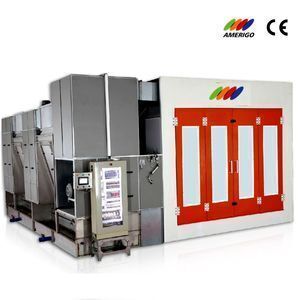

Amerigo A-900E CE ECO Water Based Paint Car Spray Booth/Car Painting Oven

Supplier: Shanghai Amerigo Trading Co., Ltd.
Region: Shanghai, China
Contact: Ms Sunny Sun
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

External Size:	700062003610mm;	Place of Origin:	Guangdong China (Mainland);
No Load Speed:	0.25m/s;	Voltage:	380-440V;
Control System:	PLC control;	Internal Size:	690040002800mm;
Disc Dia.:	N/A;	Supply Ability:	100 Set/Sets per Month;
Usage:	Auto Spray Booth;	Product name:	Amerigo CE ECO Water Based Paint Car Spray Booth/Car Painting Oven;
Type:	Spray Booths;	Warranty:	1 Year;
Payment Terms:	T/T,Western Union;	Port:	Guangzhou;
Color:	Gray or Orange;	Model Number:	A-900E;
Heating System:	Diesel Burner;	Delivery Detail:	Shipped in 30 days after payment;
Lighting System:	Led light with reflective stain steel plate;	Character:	ECO Friendly;
Power:	24.8KW;	Packaging Detail:	Packing carton Amerigo A-900E CE ECO Water Based Paint Car Spray Booth;
Certification:	CE;	Brand Name:	Amerigo;
Motor:	Centrifugal insulated fans;	Filters:	America Purafil purification system;

Product Description

Amerigo A-900E CE ECO Water Based Paint Car Spray Booth/Car Painting Oven

Model	A900E
External dimension/mm	700062003610 (LBH)
Internal dimension/mm	700062003610 (LBH)

Foundation and floor

Loading capacity of galvanized grating	700Kg/each wheel
Surface area of rear exhaust box	27m2 full grid
Metal basement	Metal basement of 350mm galvanized
Drive-in ramps	Optional

Cabin system	Wallboard	Good heating-insulation and soundproof. Contruction was European style design. Two layer thick rock-wool panel, EPS colorful steel skin board, wall panel 60mm.
	Main door	Front door EPS steel 80mm with tongue& groove style compound contruction. 4 folded with safety glass window. Door size 3300(B)*2700(H)mm
	Escape door	1 unit, 7001800mm (WH), with safety glass windows, aluminum alloy frame
	Basement	Galvanized steel sheet metal basement
	Ceiling	50mm thickness of rock wool insulation board
	Personnel door	8002000mm (BH) with door shutter
	Moveable hanger	3M moveable system, special for spare parts painting (optional)
	Moveable curing lamp	Ceiling mounted, 3 head track curing lamp (optional)
Circulation system	Intake fan	2 sets of double-intake centrifugal fans for intake air, 4kw each, air capacity 25000m3/h in total
Circulation system	Exhaust fan	1 set of double-intake centrifugal fans for intake air, 5.5kw , air flow 15000m3/h in total
Purification system	Pre-filter, 600g high efficiency filter (ceiling filter), floor filter (fiberglass filter)
Heating system	Italy riello G20 diesel burner, 200000k cal/h. stailess stell heat exchanger, argon arc welding. auto-damper for changing spraying and baking
Lighting system	Ceiling: 8 group, each group 436w, total 1152w. LED light with reflective stainless steel plate. toughened glass, protection class can reach IP65. Side lights: 10 group, each group 236W, total 720w.
Lighting system	Brightness: >1400 LUX, IP66 level
Purification	Prefilter: G4 level filter, can capture granules larger than 5mm, filter efficiency readh to 90>E≥70% (USA L6 standard) F7 belt-filter can heat-resistant to 90^.C, is EUR DIN 53438-F1 & USA UL 900-class 2 standard Ceiling: 6 gropu of EU5 high efficiency filters Exhaust filter: Bottom G3 level fiber glass paint leakage-proof cotton blanket Outlet filtration : 2 set patent water rotation device, 2 set of American Purafil VOC absorber system
Ventilation system	Direct deive motor (fresh air)	1×7.5KW, 970rpm, 380V, 50Hz, Simens motor, Germany Reiz draught fan CE certified
	Direct drive motor (exhaust air)	1×7.5KW, 970rpm, 380V, 50Hz, Simens motor, Germany Reiz draught fan CE certified
	Duct configuration	5 section exhaust tube
	Fan capacity	28000m³/h
	Air flow speed	No-load +/-0.25m/s
	Heating system	Install position: Left side
	Heating exchanger	Stainless steel 1Gr18Ni9ti (Electric/CNG heating optional)
	Heating exhanger capacity	232KW (26000k cal/h)
	Max. drying temperature	80^.C
	Heating time	3-6 (from 20^.C to 60^.C ) Max tem. 80^.C
	Heating type	RG5D (260.000kcao/H)
Control box	Control system	IC MCU control system, AC control system, pressure self-balancing control, power saving 30%-50%
Overpressure manometer		√
Function		Equipped with light switch, temperature, time settings, painting, spray pait, paint up thermostat gateway fault alrm, auto power-off function etc.
With PLC Programmable logic computer control (Touch screen), 3D display, easy operation
Frequency converting control		√
Overpressure manometerr		√
Suspend control system		√
