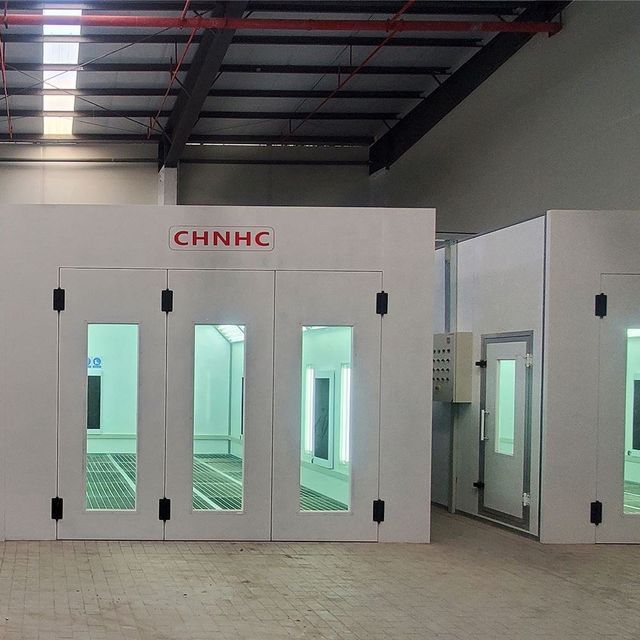

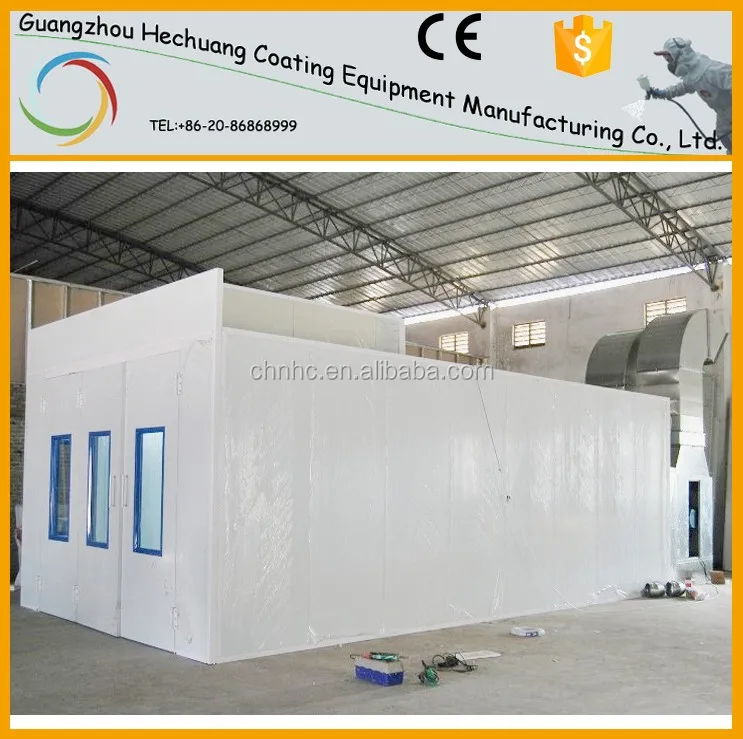

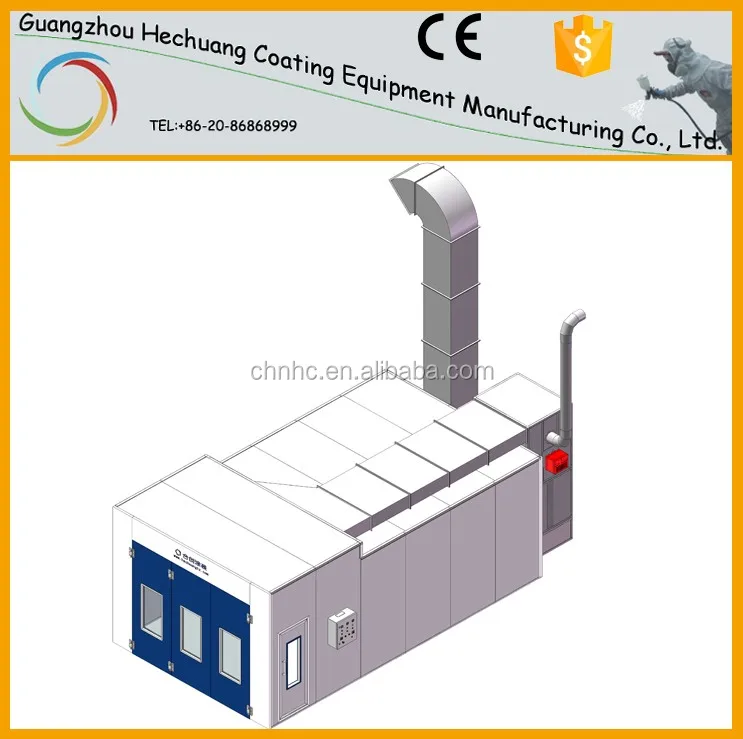

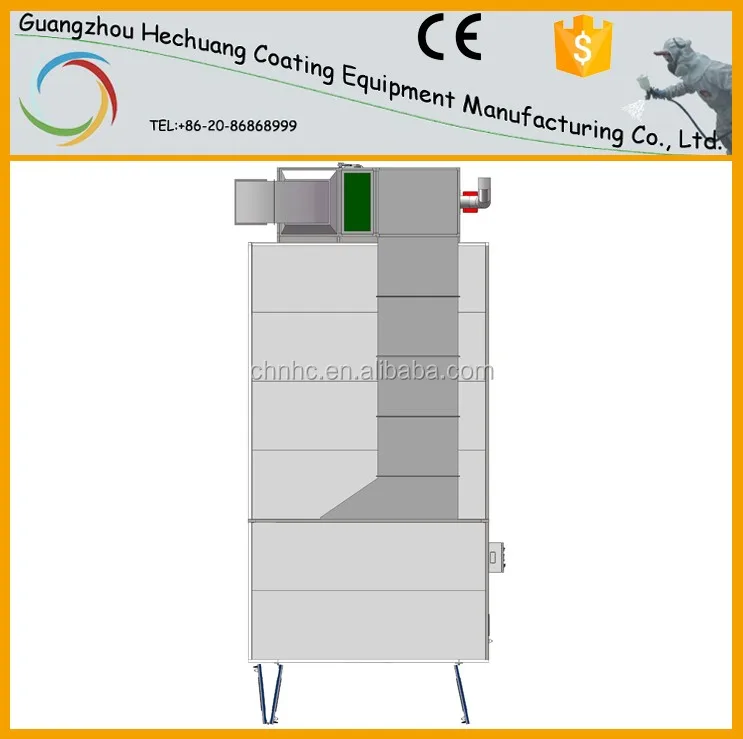

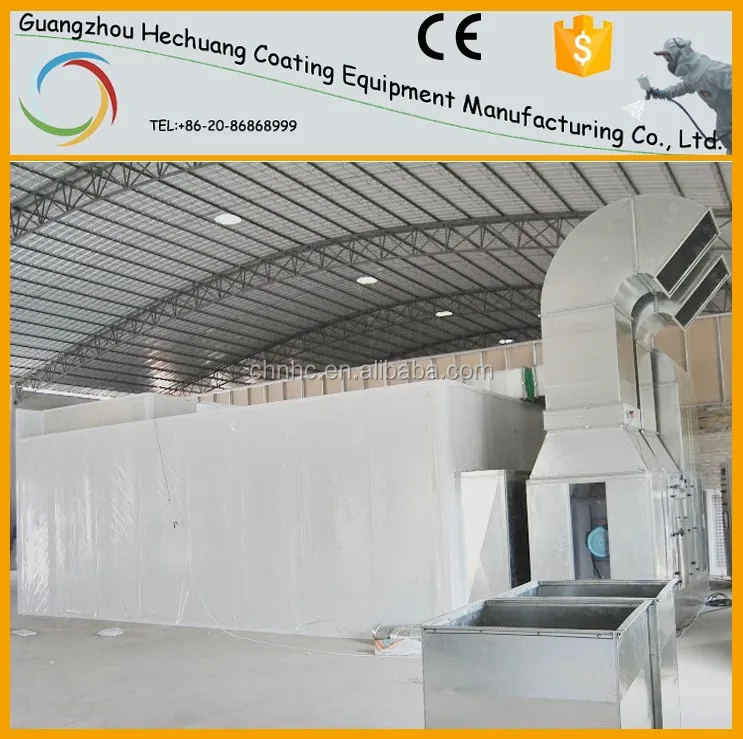

Diesel heated car paint booth/car paint booth/car oven

Internal dimensions

6900 x 3900 x 2700 mm (LxWxH)

external dimensions

8260 x 4000 x 3100 mm (LxWxH)

Base

No basement, leeward

wall panel

High-quality double-layer structure for side wall panels

Fireproof EPS insulation material with a thickness of 50mm,

It has the functions of fire prevention and heat preservation.

roof panel

Roof panels are bent and formed from galvanized steel sheets

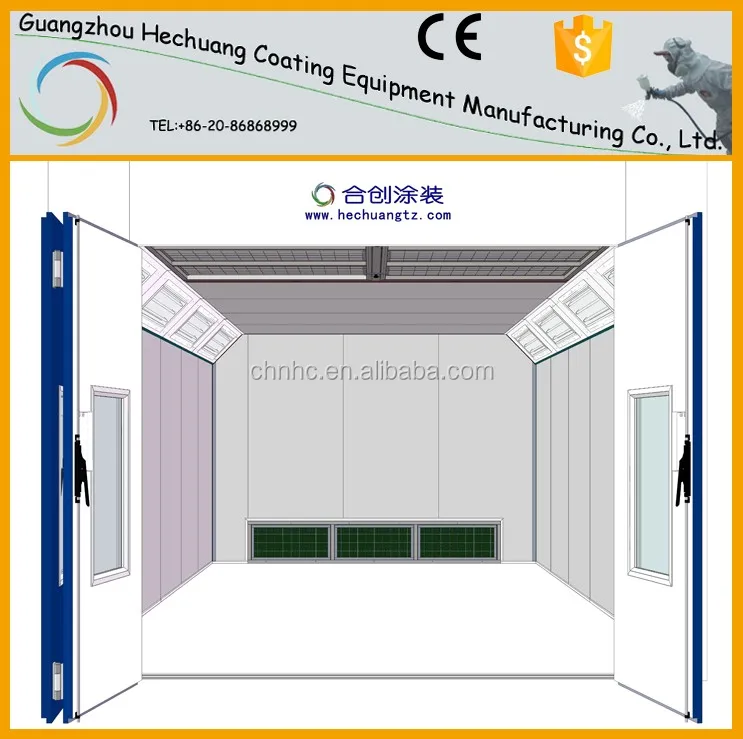

door

1 set, size: 3000x2600 mm (B x H), tempered glass

Observation window

- Operator's door

safety glass window

1 set, size: 700x2000mm (W x H), tempered glass

Observation window

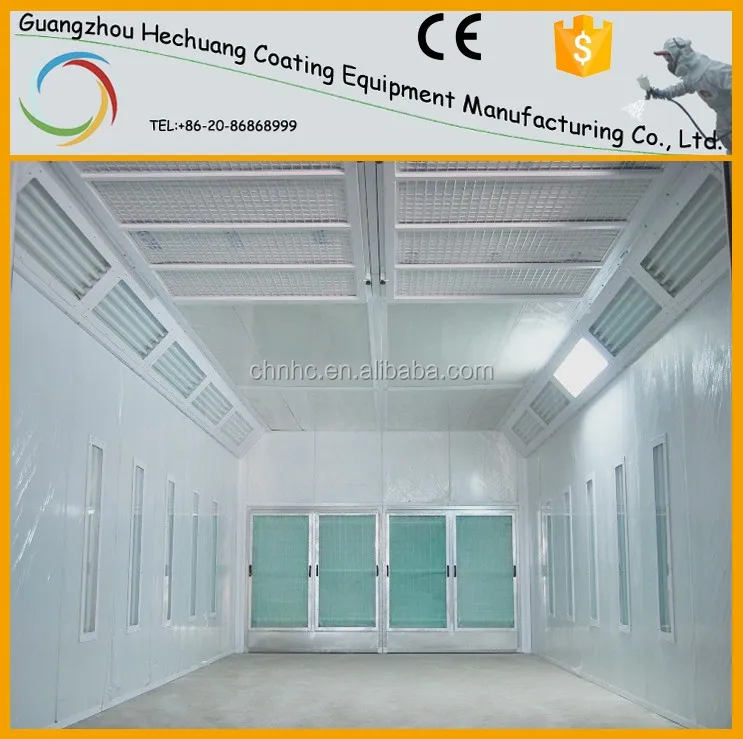

ceiling lamp

8 sets, each 4×36w, total 1152W, electronic rectifier

side lighting

Elective

Prefilter

G2 level plate glass fiber filter

ceiling filter

EU5 grade high efficiency filter

bottom filter and exhaust filter

Fiberglass Paint Stop Filters

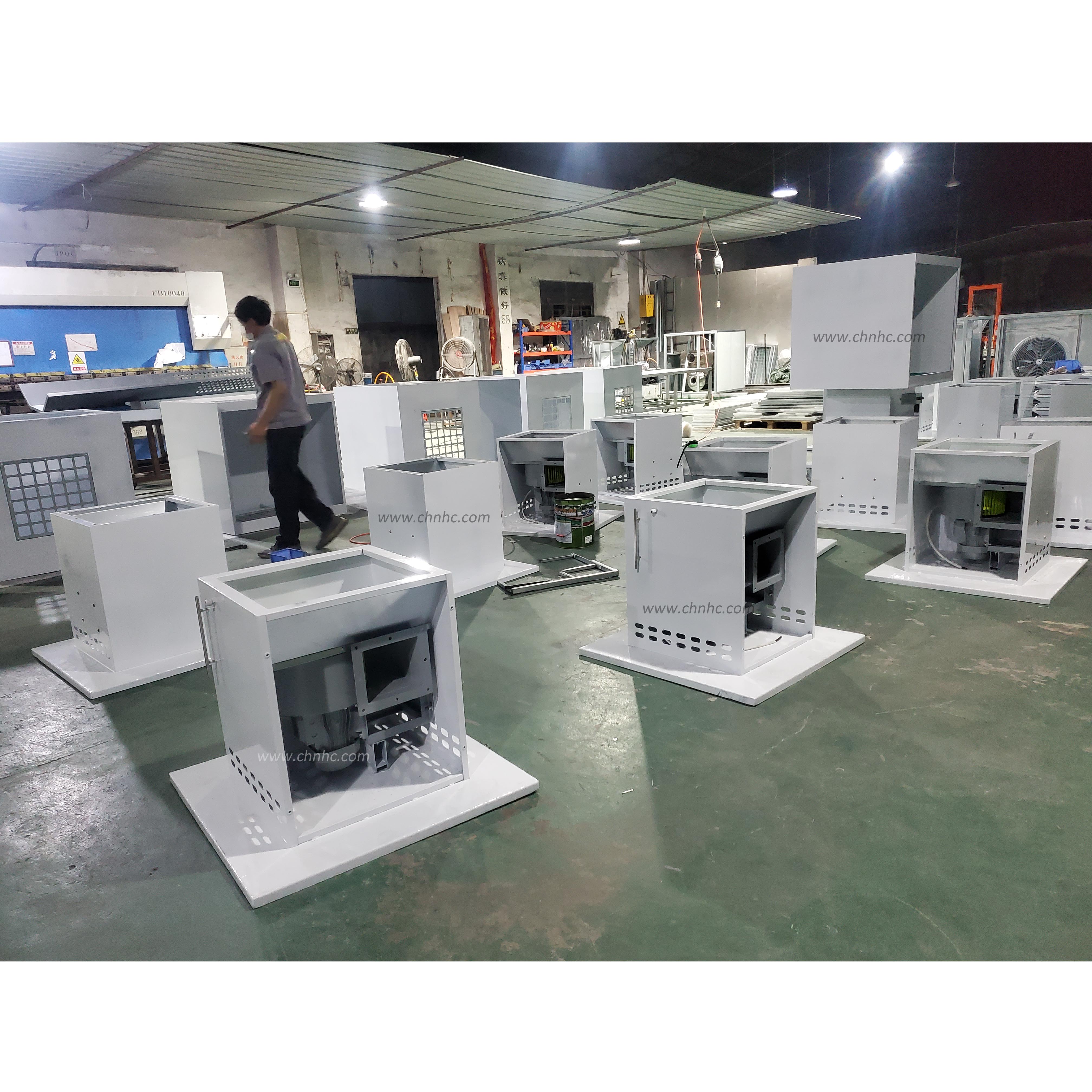

Intake fan (direct drive motor)

Using large impeller turbo fan, 5.5KW, three-phase,

380V , 960rpm , 50HZ

Air outlet fan (direct drive motor)

Using large impeller turbo fan, 5.5KW, three-phase,

380V , 960rpm , 50HZ

painting and baking

switching system

Solenoid valve + pressure regulation control

Cylinder Drive Damper Replacement

fan capacity

21,000 cubic meters per hour

air velocity

Empty booth 0.20m/s, fully loaded booth 0.20-0.35m/s

Heat Exchanger

Using high-efficiency heat-resistant stainless steel

Steel as recirculating heat exchanger

Heat transfer capacity

140KW (120,000Kcal/H)

Burner model

Adopt Italian RIELLO diesel burner G10 (120,000kcal/H)

heating time

5-7 minutes in baked state (from 20 to 60ºC),

The maximum baking temperature is 80°C

Control System

Standard Control System

Function

Painting, warm spraying, baking, lighting, emergency stop switch

total power

12.5KW
