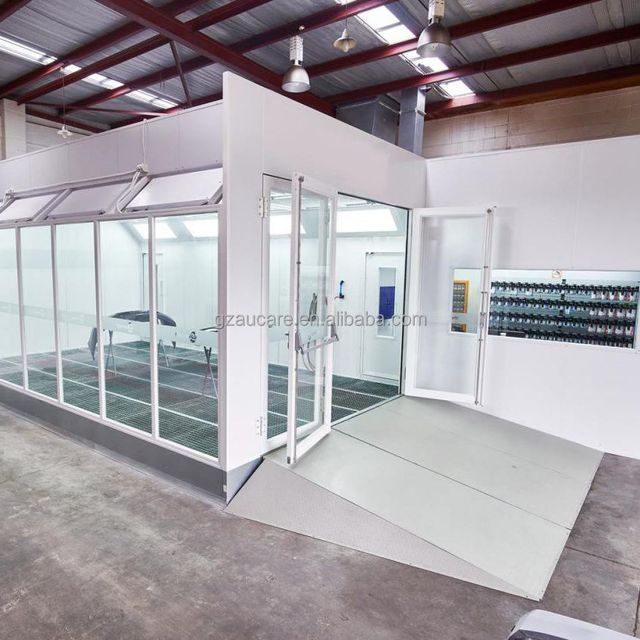

2023 CE certification 7M long car spray booth/spraybooth spray booth car oven automatic paint spray booth

Supplier: Guangzhou Aucare Automobile Technology Co., Ltd.
Region: Guangdong, China
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 months	port:	Huangpu/Shekou
No-load speed:	0.35m/s	Supply capacity:	800 sets per month
Types of fans:	drive turbofan	strength:	13KW
strength:	13KW	Wall panels:	EPS powder coated board
type:	spray booth	payment terms:	L/C, Western Union, T/T, MoneyGram, Alipay
Packaging Details:	Steel frame+carton+PVC film	Package preview:
usage:	car paint	color:	custom made
Warranty service:	12 months	Voltage:	220V/240V/380V/415V
Origin:	Guangdong, China	payment terms:	TT
No-load speed:	0.35m/s	filter:	Four-stage filtration system
model:	701	brand:	O'Connell
External dimensions:	700053503400mm	Internal dimensions:	690039002650mm
Disk diameter:	customer request

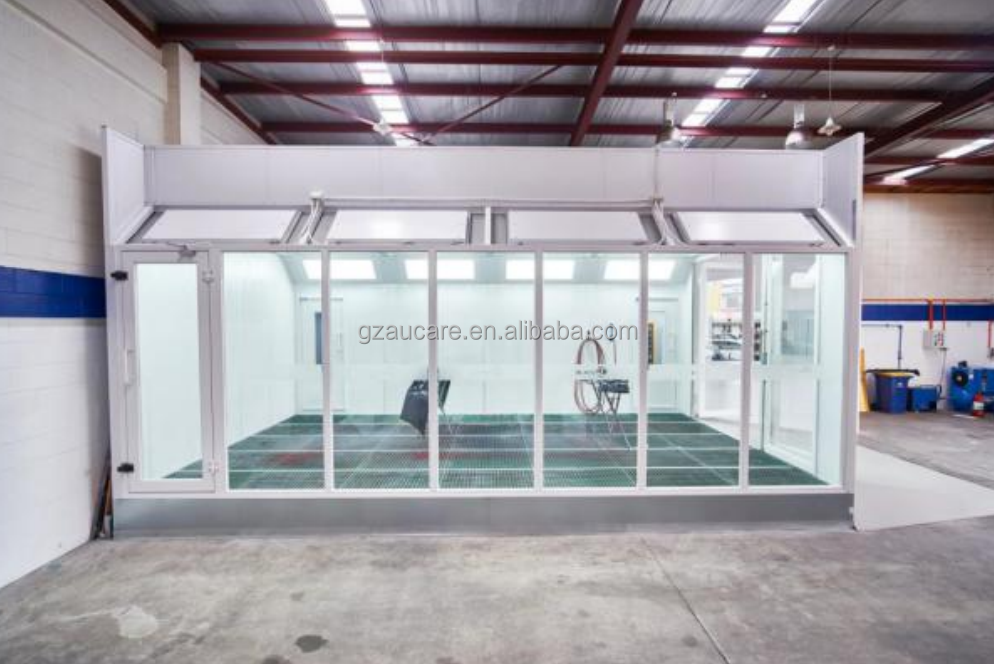

Product Description

booth size
Internal dimensions	6900×4000×2650 mm (lengthwidthheight)
Dimensions	7010×5410×3410 mm (lengthwidthheight)
basement
base design	Made of galvanized steel 2 rows of grid and 3 rows of diamond plates Basement (H): 300mm
The carrying capacity of the grid	650kg/wheel
Filter area	10 square meters
enter the ramp	2 pcs, 2000X625X280 mm/pc (LWH), diamond plate

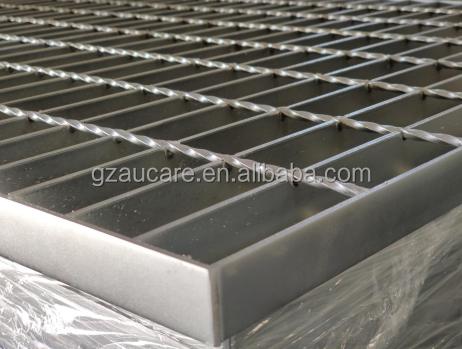

Grid description	Grid: 30x4mm steel grid, steel grating strands, strand spacing 100mm.
cabin
cabin structure	vertical wall panel
ventilation height	400mm
ceiling filter design	Made of galvanized steel, C-shaped sharp groove structure
wall panel
wall panel	50mm double-layer insulation board filled with heat-resistant rock wool substrate Thickness: 0.426mm
top panel	Single-layer galvanized steel sheet bending
Profile material	1.0mm color steel plate bending forming
door
form	Manual door, three-wing entry door ("2+1" structure)
size	3200×2550mm (width*height)
quantity and arrangement	Entrance door, 1 set
door description	Framed, with safety glass viewing window
personnel door
form	Framework
size	800×2000 mm (width×height)
quantity	1 set
door description	With safety glass viewing window
ceiling lamp
quantity and power	8 groups of lamps, each group of 4 x 24W, total 768W
lighting arrangement	both sides
Lighting description	LED light, protection grade IP54
brightness	>1000Lux
filtering system
pre-filter	G3 level pre-filter panel filter
ceiling filter	F5 grade filter cotton, model SP-600G
ground filter	fiberglass paint arrester filter
exhaust filter	Simple Activated Carbon Filter Pad, Type M
intake system
intake fan	direct turbofan
Power supply and motor description	5.5KW, 970rpm, 380V, 50Hz, CE certified motor
Intake fan parameters	22,000 cubic meters per hour, 600 Pa
exhaust system
exhaust fan	direct turbofan
Power supply and motor description	5.5KW, 970rpm, 380V, 50Hz, CE certified motor
Exhaust fan parameters	22,000 cubic meters per hour, 600 Pa
no-load wind speed	+/- 0.22 m/s
noise	＜78dB

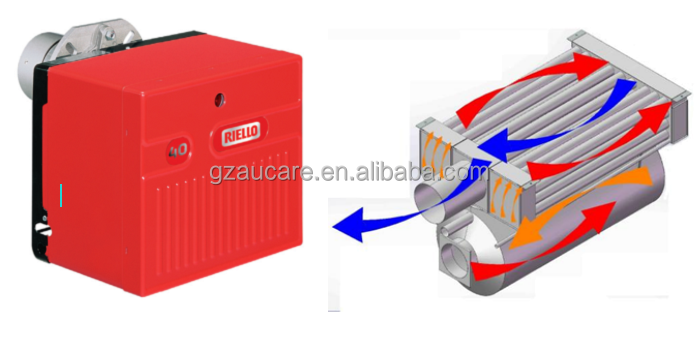

Heating system
heating form	diesel heating
power and quantity	158KW

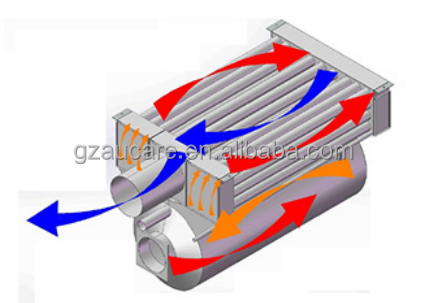

heat exchanger material	Stainless steel 1Gr18Ni9Ti (SUS304)
△T heating capacity	20° C (from 0°C to 20°C during the painting phase)
maximum. Operating temperature	80°C
heating time	6-10 minutes (from 20°C to 60°C during the baking phase)
Burner model	REILLO Diesel Burner G20 (Class 1)
plumbing
Straight	4 for air outlet
90° elbow	1 piece, for air outlet
45° elbow	1 piece, for air outlet
reducer	1
Control System
Executive standard	direct boot
PLC Programmable Logic Controller	PLC control, higher reliability and lower failure rate
touch screen control system	User-friendly interface with touch screen and switches for easy operation
feature	Paint spraying, heating spray paint, baking, lighting, emergency stop switch, fault indication, over temperature alarm indication, motor Overload and Overcurrent Protection
rated power	13KW
options	1. Full grid 2. Add Side Wall Lighting 3. Add water-soluble device 4. Infrared lamp heating/gas heating or others 5. Increase the sliding hanger

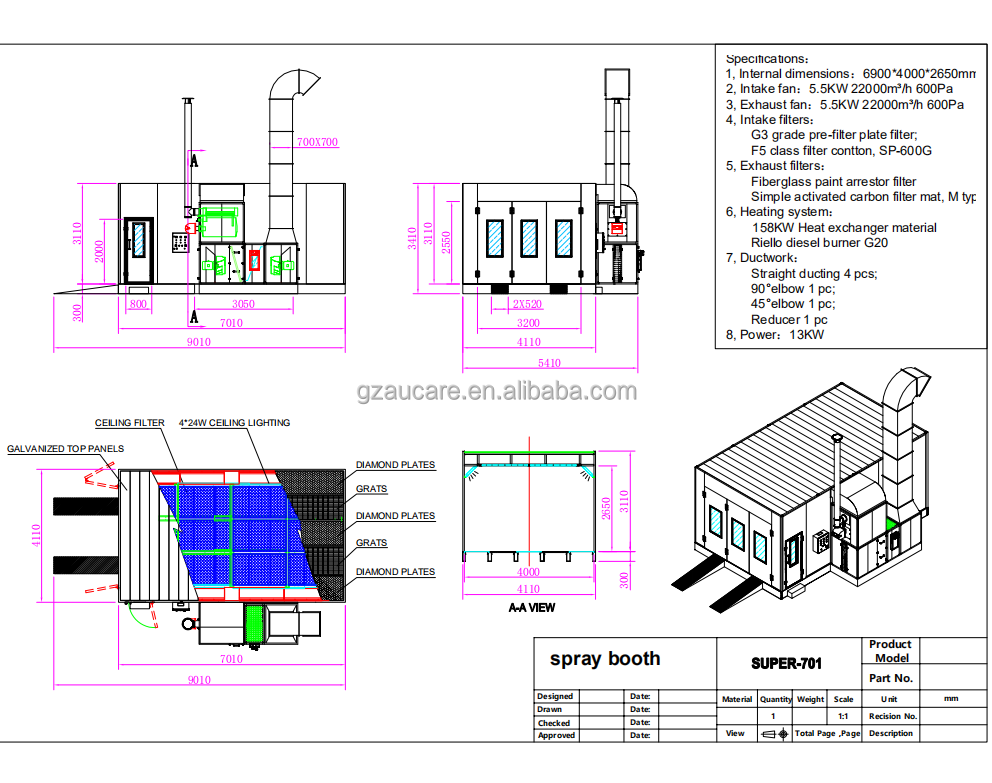

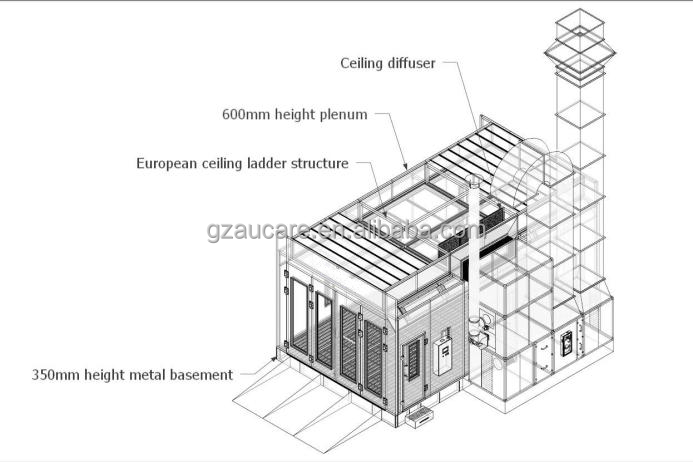

detailed drawing

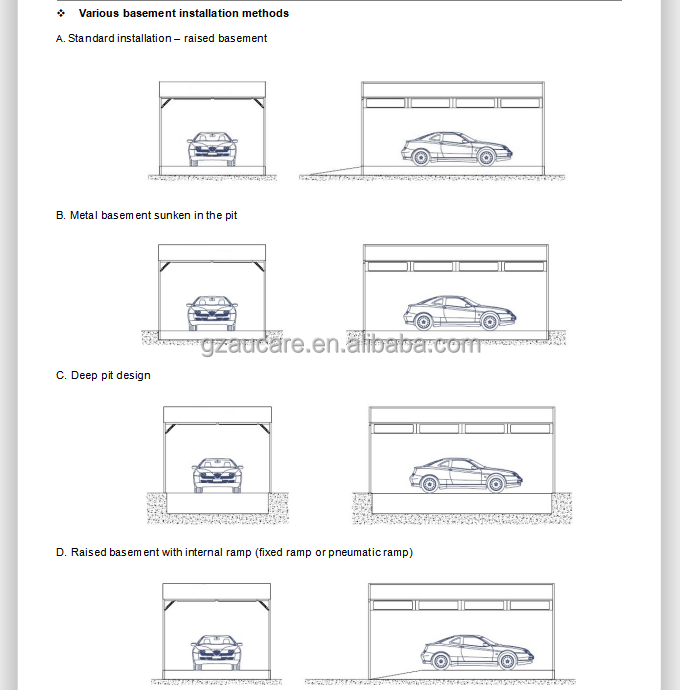

4 Ways to Install in a Basement

The air conditioning unit can be placed on the left/right/rear of the stand
Or on top of the booth according to your specific requirements.

For other forms of paint mist extract, please contact us directly. We will provide you with comprehensive technology
service and instructions.

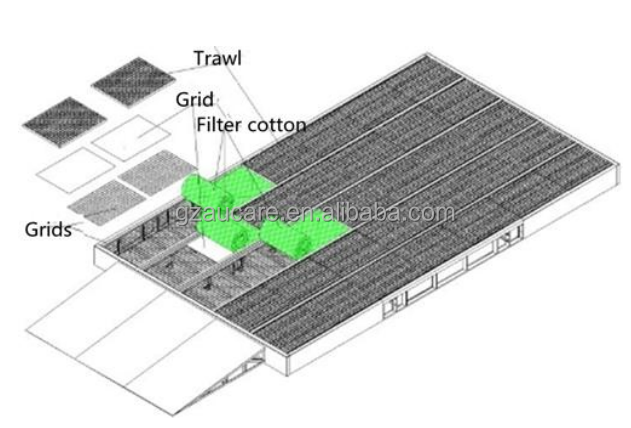

basement design

Dimensions: 7010x4105x300mm (length x width x height)
- Assembly structure
- 2 rows of grids and 3 rows of rhombus plates, grid load capacity: 650kg/wheel, safe and reliable
- Fiberglass paint barrier filter (located below the grid), G2 grade, paint capacity: 3.5KG/m2

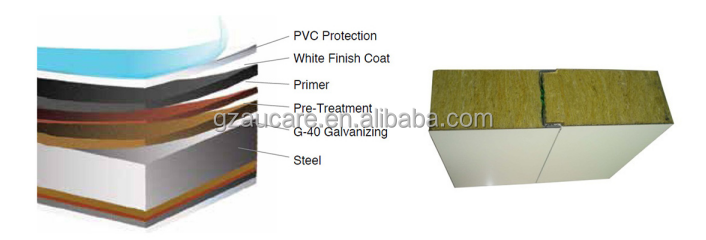

50mm thick rock wool wall panel

White powder coated double skin insulation board fill80KG/m³rock wool, total thickness: 50mm, substrate
Thickness: 0.426mm
* Top plate: single-layer galvanized steel sheet bending

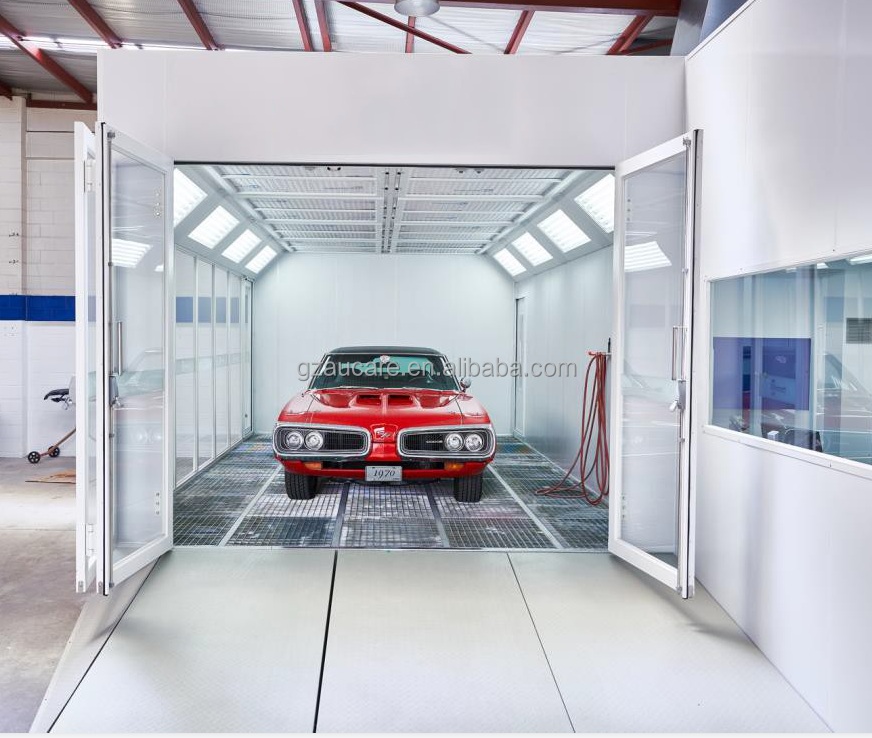

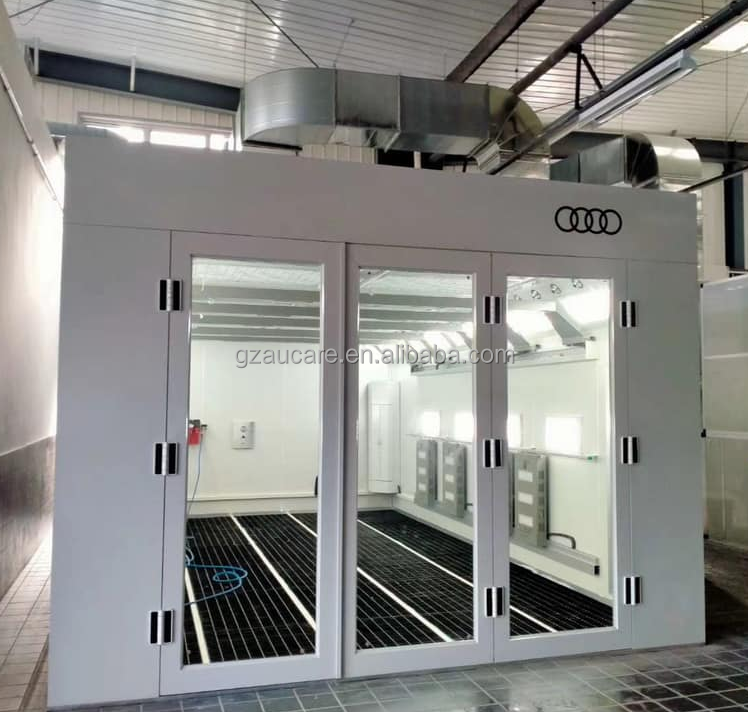

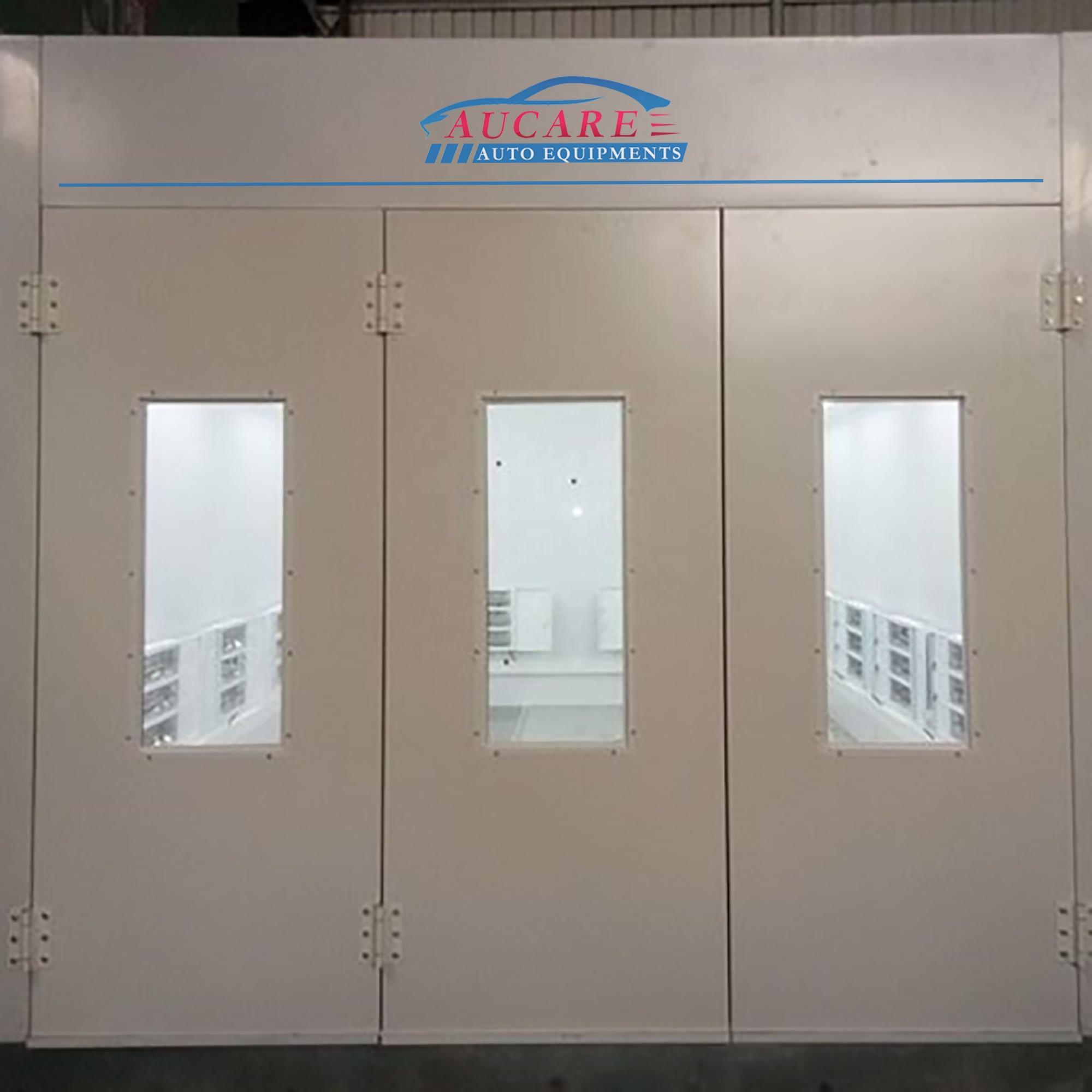

door

3-wing entry door with durable rubber for an airtight seal
* 6mm white steel plate
* Tempered viewing windows on all doors
* Heavy duty handles, latches and hinges for durability

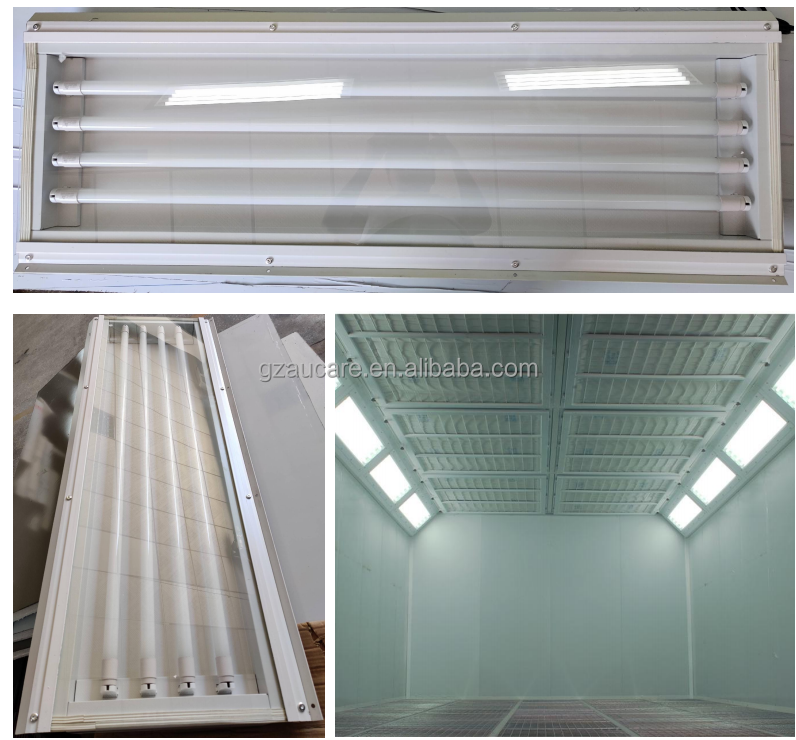

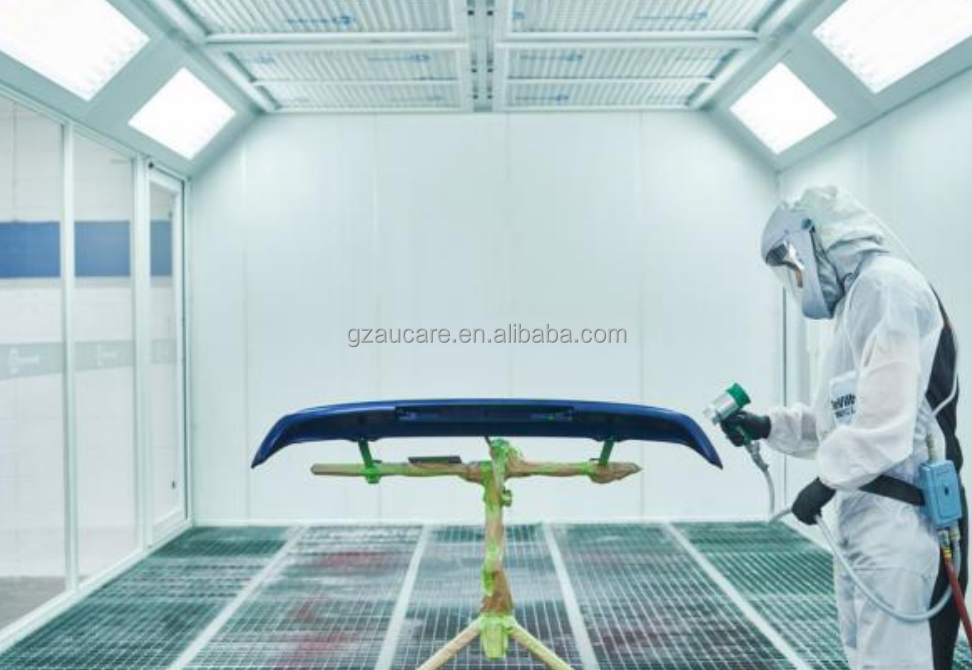

Lighting system

*Money saving and energy saving T-8 fixtures
* Sealed fixtures with tempered glass
* IP54 protection level, lamps fully comply with EU standards
* 45-degree angled ceiling lights create virtually shadow-free environments

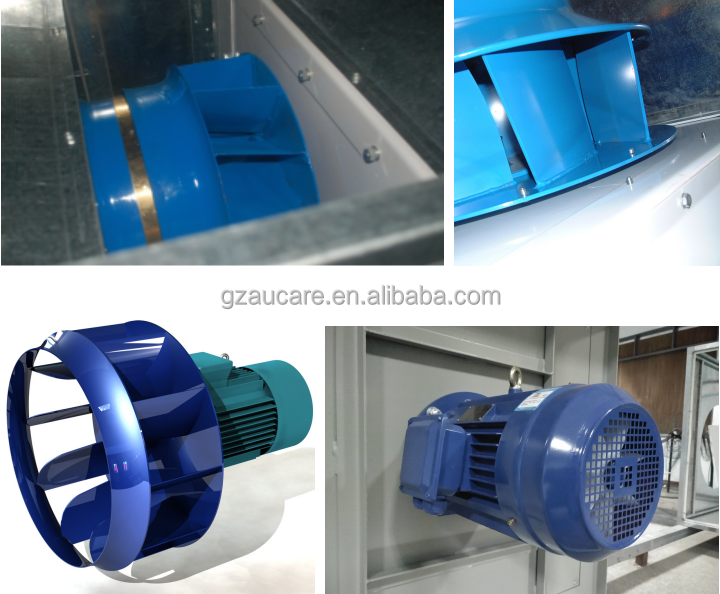

intake and exhaust system

*Non-sparking fan designIn full compliance with EU requirements for fans.
* The motor and fan are completely separated, in line with EU standards
*With cylinder-driven paint conversion damper,Faster and more accurate.
* Direct drive fan, virtually maintenance-free

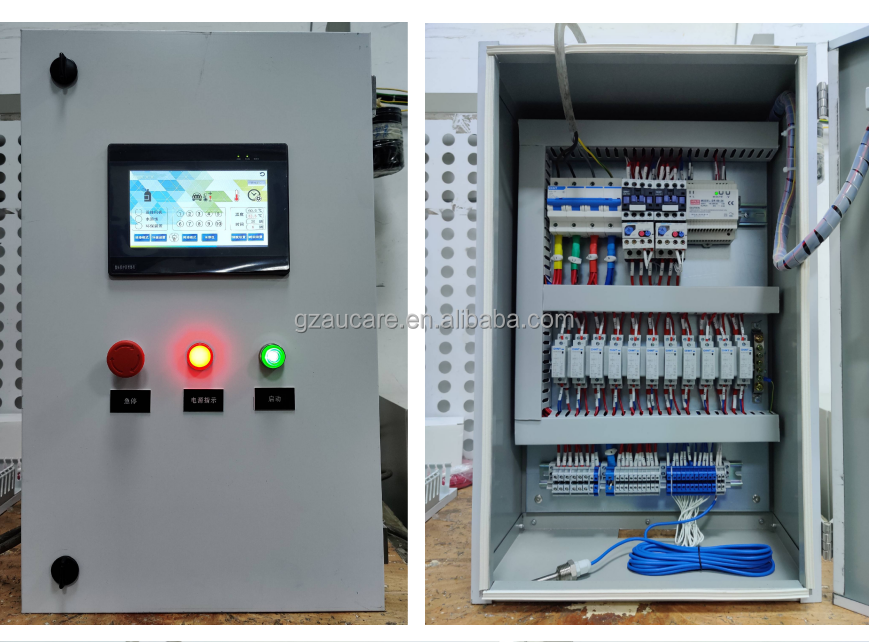

Touch screen PLC control box

* User-friendly interface with touch screen and switch, easy to operate.

* The control box meets IP55 protection level;
* Electrical components comply with CE requirements;
*Wire diameter, color and terminal meet CE requirements;

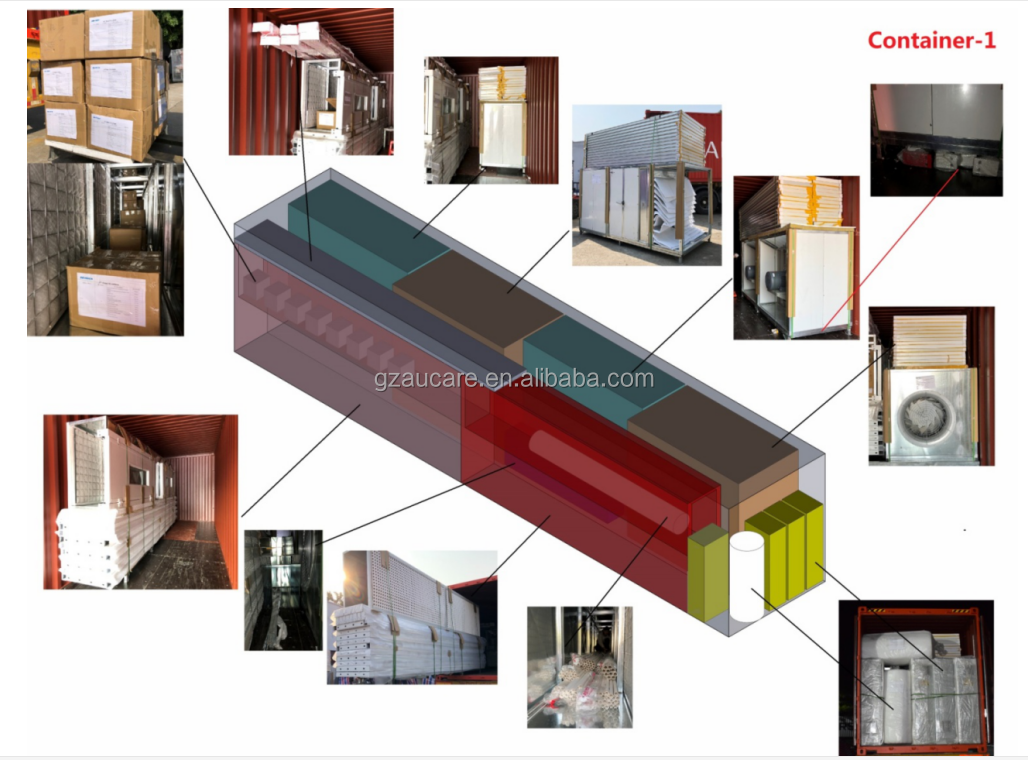

Product packaging

- The goods are loaded on a metal frame, which is convenient for forklift loading and unloading.
- 1x1.5T forklift and 2 people for loading and unloading.

- One 20GP container for one spray booth; one 40HQ container can hold 3-4 spray booths.
