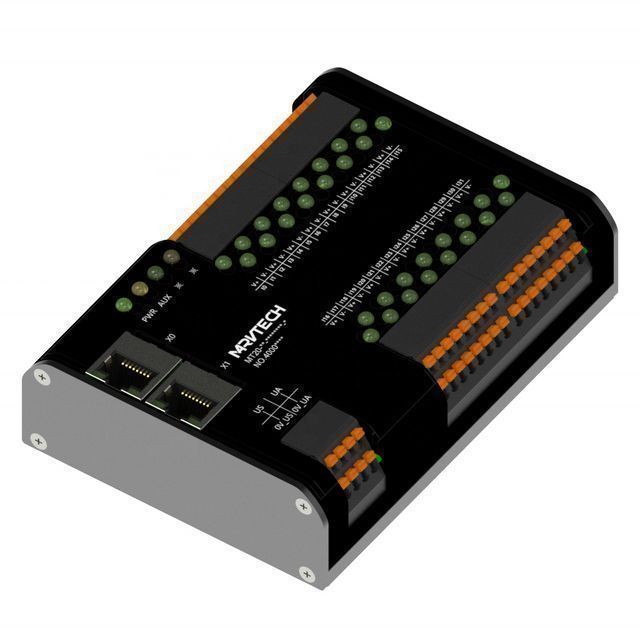

PNP 32 channel input separate fieldbus module for ethernet ip ethercat and profinet protocols
- 120.00 1 - 99 pieces
- 115.00 100 - 999 pieces
- 105.00 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Preview: | product name: | MT20-32-series | |
| Serve: | OEM or customized | Packaging Details: | 1. Our standard packing: each product is individually packed in a PE bag with a label; Carton size: 200*150*100mm; 400*300*230mm; 330*250*150mm 2.OEM packing. |
| Ambient temperature: | -25~+70℃ | brand: | Mavitek |
| Certificate: | CE ROHS | Protection class: | IP20 |
| network: | EtherNet/IP, EtherCAT, others | Protection class: | IP20 |
| Card: | Mavitek | type: | module |
| model: | MT20-32-series | payment terms: | wire transfer |
| place of origin; place of origin: | Tianjing, China | color: | Black |
| Warranty: | 12 months | channel: | 32 |
| Interface Type: | digital input, digital output |
Product Description
Specification
Basic parameters | TPU/Yellow | |
building materials | Aluminum alloy | |
shell color | anodized black | |
Protection class | IP20 | |
Dimensions (WxHxD) | 86mm×120mm×31.9mm | |
weight | 429 grams | |
Operating temperature | -25℃...70℃ | |
Storage temperature | -40℃...85℃ | |
Working humidity | 5%...95% | |
Storage humidity | 5%...95% | |
Working atmospheric pressure | 80KPa...106KPa | |
store atmospheric pressure | 80KPa...106KPa | |
Application Environment | According to EN-61131 | |
Vibration test | According to IEC60068-2 | |
crash test | According to IEC60068-27 | |
Electromagnetic Compatibility | According to IEC61000-4-2,-3,-4 | |
Certification | CE, RoHS | |
Mounting hole size | Rail installation | |

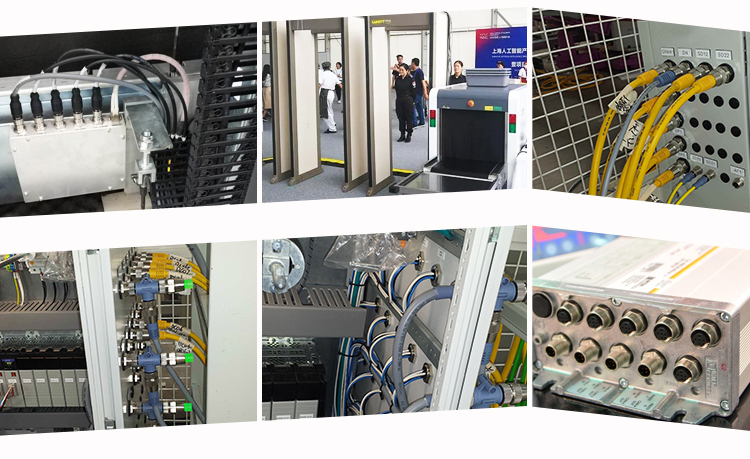

application
