China Factory Cement Plant Equipment Cement Bag Washing Machine

Supplier: Tangshan Zhongyi Machinery Co., Ltd.
Region: Hebei, China
Contact: Mr Yunlong Pei
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

weight:	800kg	Supply capacity:	300 sets per year
Voltage:	380V 50HZ +10% -15%	Warranty:	12 months, 12 months
usage:	Cement for cleaning bags	Drive Type:	electrical
application:	Cement factory packing line	Delivery Details:	Within 30 days of receiving down payment
port:	Any port in China, the nearest is Xingang	model:	BHQ-800(GD13)
payment terms:	letter of credit, wire transfer	After-sales service provided:	Engineers can repair machinery overseas
Health status:	new	Function:	Cement for cleaning the surface of the bag
aspect:	Customized according to customer requirements.	strength:	1500
Certification:	ISO9001 CE	place of origin; place of origin:	Hebei china
type:	Cleaner	Auto grade:	automatic
Dimensions (LWH):	2382x1920x1854mm	Packaging Details:	Wooden boxes, steel pallets and nudes
Name:	China Factory Cement Plant Equipment Cement Bag Washing Machine	brand:	Chinese and Italian

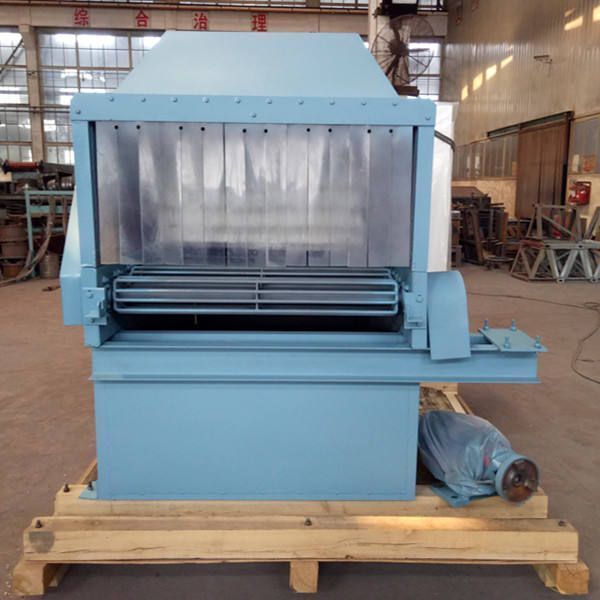

China Factory Cement Plant Equipment Cement Bag Washing Machine

1. Use

BHQ-800 (GD13) type roller bag cleaning machine is mainly used in cement packaging production line to remove dust on the surface of bagged cement. This bag cleaning machine can also be used to clean other bagged powder materials.

2. Structure

BHQ-800 (GD13) type drum bag cleaning machine is composed of frame, drum table, brush roller, dust cover, sprocket cover, dust curtain, transition drum, claw elastic coupling, reducer and so on.

3. Main technical data

Do not.	describe		unit	parameter	Comment
1	Model			BHQ-800(GD13)
2	Delivery capacity		tons/hour	120
3	Roller	speed	Miss	1
		width	mm	800
		Number of volumes	pieces.	13
		Roll diameter	mm	φ153
		Reel length	mm	950
4	Gear reducer	Model		New Wanda₃-11-1.5
4	Gear reducer	speed	A generation	11
5	Motor for reducer	Model		Y90L-4
		strength	kilowatt	1.5
		Rotating speed	rpm	1400
		Voltage	five	380
6	brush roll	diameter.	Meter	6
		quantity	piece	2
		speed	Miss	2.0
7	Dust air volume	Meter³/H		3000
8	total measurement (L×W×H)	mm		2382×1920×1854
9	gross weight	Kilogram		800

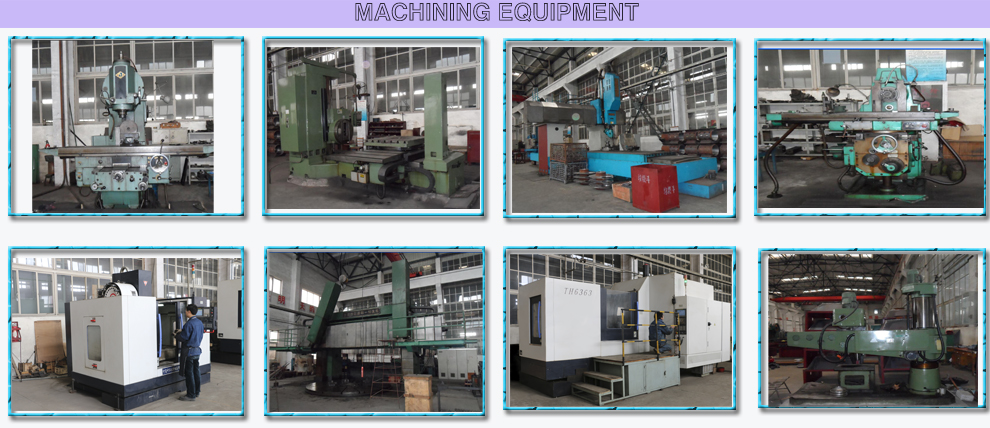

4. Our factory

5. With customers

6. Packaging and transportation
