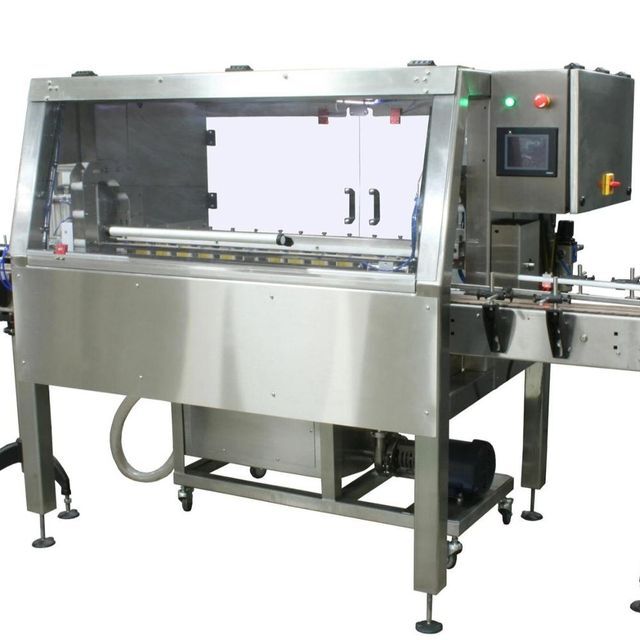

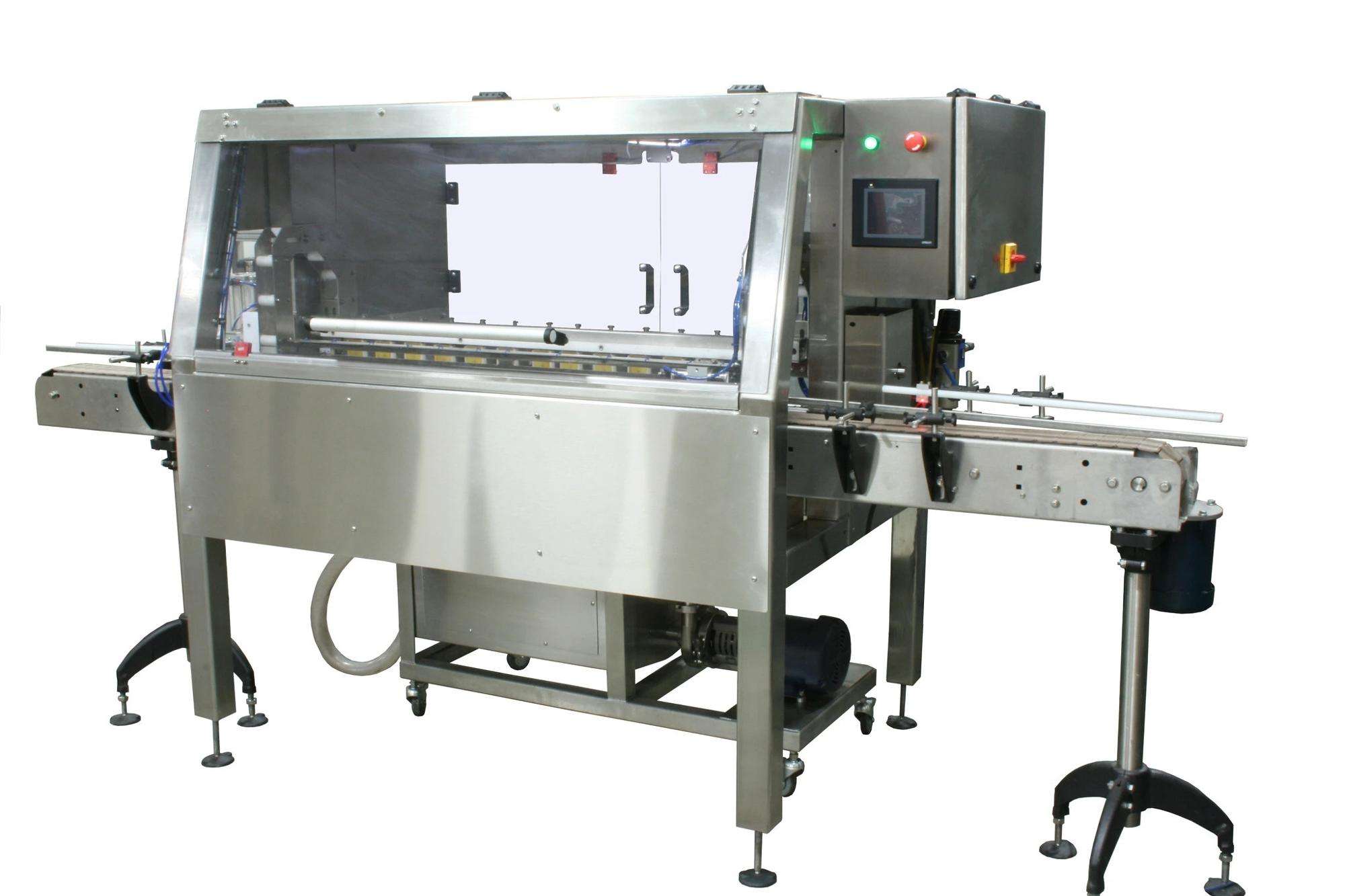

High quality best-selling JBR-15F automatic in-line glass bottle water washing machine
-
Supplier: Changzhou Jerry Packaging Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr xu yan -
Price: $6000.00 /set -
Min. Order: 1 set
Product details
| Suitable: | bottle | Main selling point: | easy to operate |

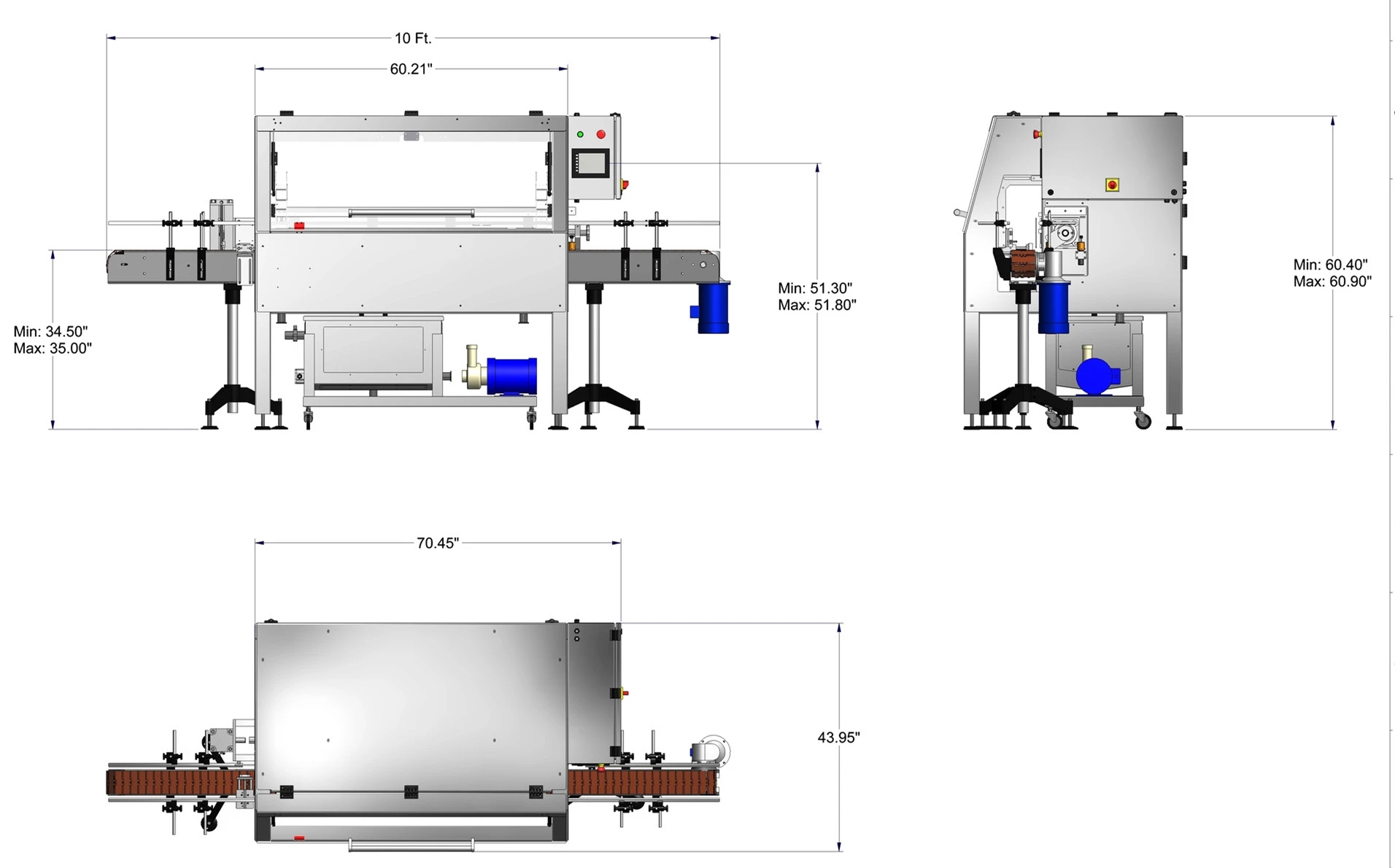

| Dimensions (L*W*H): | 1800mm*1160mm*1600mm | Packaging Details: | export wooden box |
| Auto grade: | automatic | brand: | jerry bag |
| port: | Shanghai | place of origin; place of origin: | Jiangsu, China |
| Supply capacity: | 36 sets per year | type: | Cleaner |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Voltage: | 220V |
| Warranty: | 2 years | Applicable industries: | Hotels, Food and Beverage Plants, Food Stores, Food and Beverage Stores, Advertising Agencies |
| Showroom location: | Indonesia | After-sales service provided: | Online support, video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services |
| payment terms: | L/C,D/P,T/T | weight: | 550KG |
| power supply: | electrical | speed: | 20-100BPM |
| Local service location: | United States, Philippines, Indonesia, Thailand, Malaysia, Australia, Chile | Health status: | new |
| shampoo: | 6/8/12/16 | Certification: | Chief Executive |
| Packaging Preview: | usage: | food | |
| Cleaning media: | hot water/clean water/clean air |

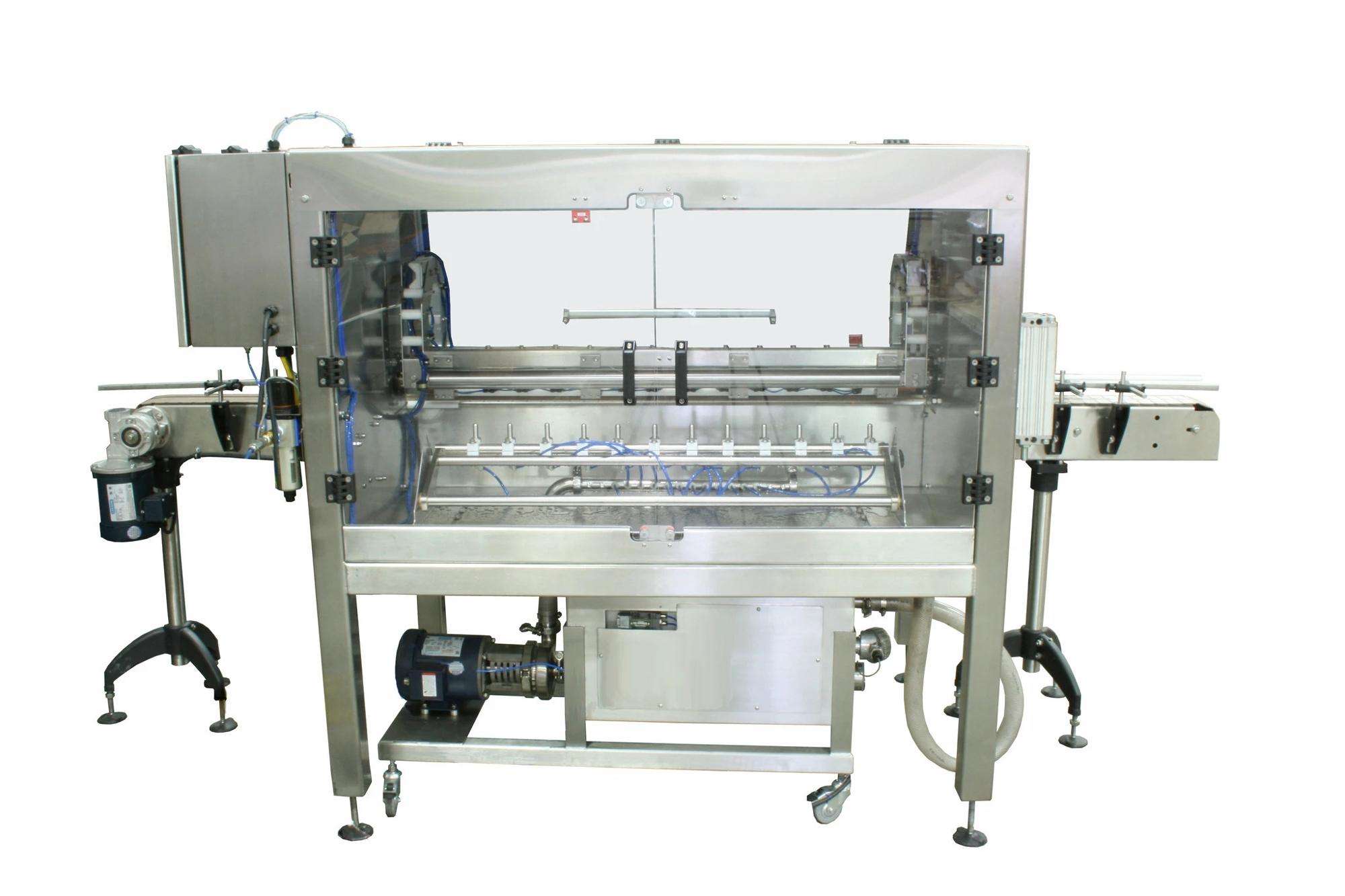

Product Description
1. 304 stainless steel heavy duty stainless steel welded frame.
2. Up to 16 cleaning nozzles.
3. All contact parts are stainless steel, hygienic, Teflon, Viton and hoses, as per your requirement.
4. Special seal or hose to order.
5. Calibration rail for quick height change.
2. Up to 16 cleaning nozzles.
3. All contact parts are stainless steel, hygienic, Teflon, Viton and hoses, as per your requirement.
4. Special seal or hose to order.
5. Calibration rail for quick height change.
Features

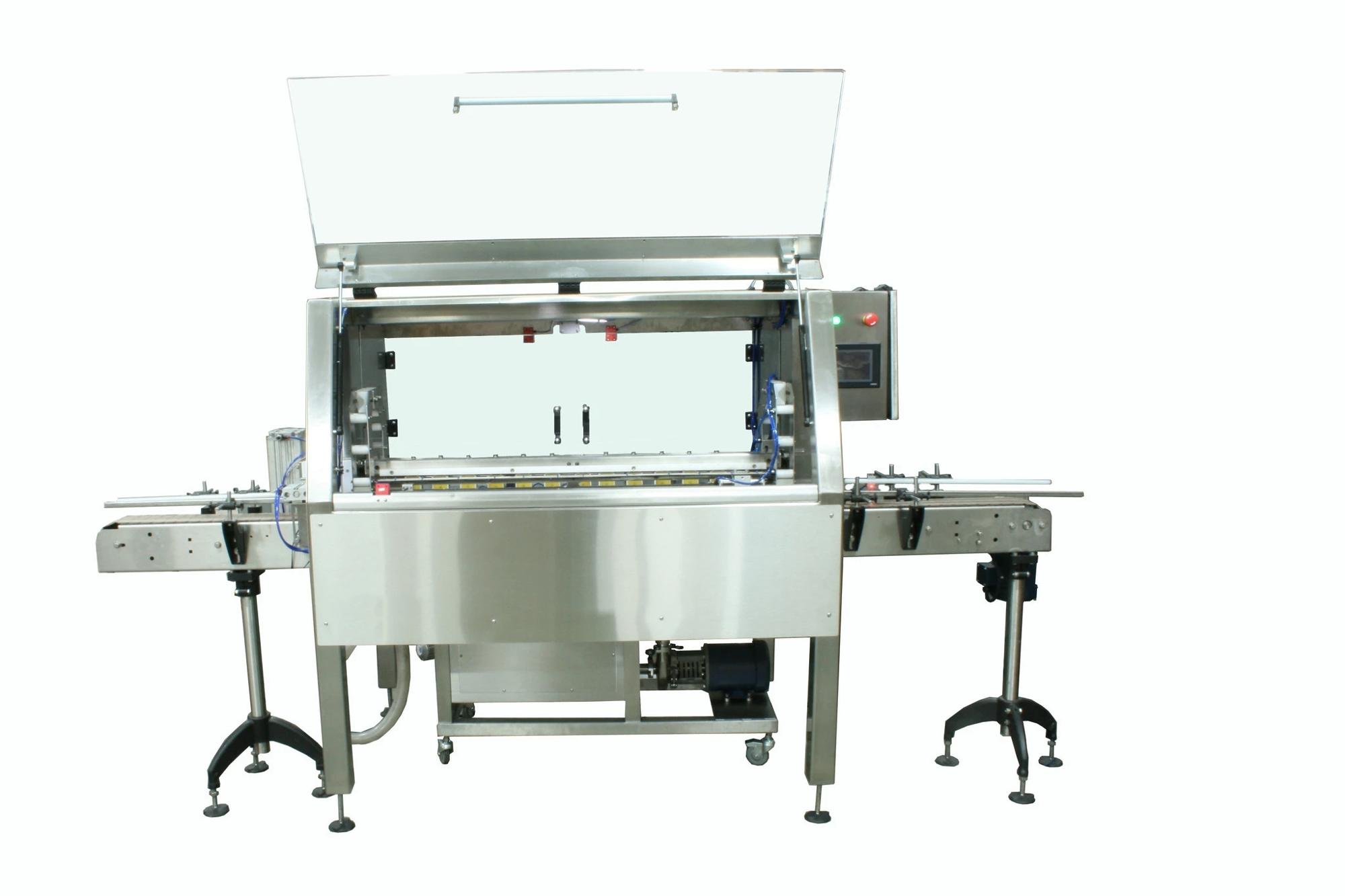

1. The tempered glass protective cover provides safety guarantee for the operator. 2. Automatically stop when the door is opened
1. Drying: Air ionization and suction.
2. Wet method: Clean with water or product with a wet nozzle.
3. The pressure control and drying time are controlled by the man-machine interface.
2. Wet method: Clean with water or product with a wet nozzle.
3. The pressure control and drying time are controlled by the man-machine interface.
International brand control system
We always adhere to the use of international advanced drive and control systems to ensure long-term stable and efficient operation of the equipment.
Standard features:
1. Independent bottle holder, reliable operation.
2. Container height adjustment from 1½ to 12 inches high.
3. The bottle is turned by a heavy duty pneumatic rotary actuator.
4. The bottle door cylinder can be adjusted sideways, up and down, inside and outside.
5. Suitable for plastic or glass containers.
6. All kinds of containers do not need to replace parts.
7. Includes air filter regulator and safety lockout valve.
8. Spacing and additional bottle control are obtained with a flow controller mounted on the valve cylinder.
2. Container height adjustment from 1½ to 12 inches high.
3. The bottle is turned by a heavy duty pneumatic rotary actuator.
4. The bottle door cylinder can be adjusted sideways, up and down, inside and outside.
5. Suitable for plastic or glass containers.
6. All kinds of containers do not need to replace parts.
7. Includes air filter regulator and safety lockout valve.
8. Spacing and additional bottle control are obtained with a flow controller mounted on the valve cylinder.
technical parameter
1. Number of filling heads: 6/8/10/12/16 (can be customized according to customer needs) 2. Voltage: 220V; 50/60HZ
3. Maximum washing temperature: 100 degrees Celsius

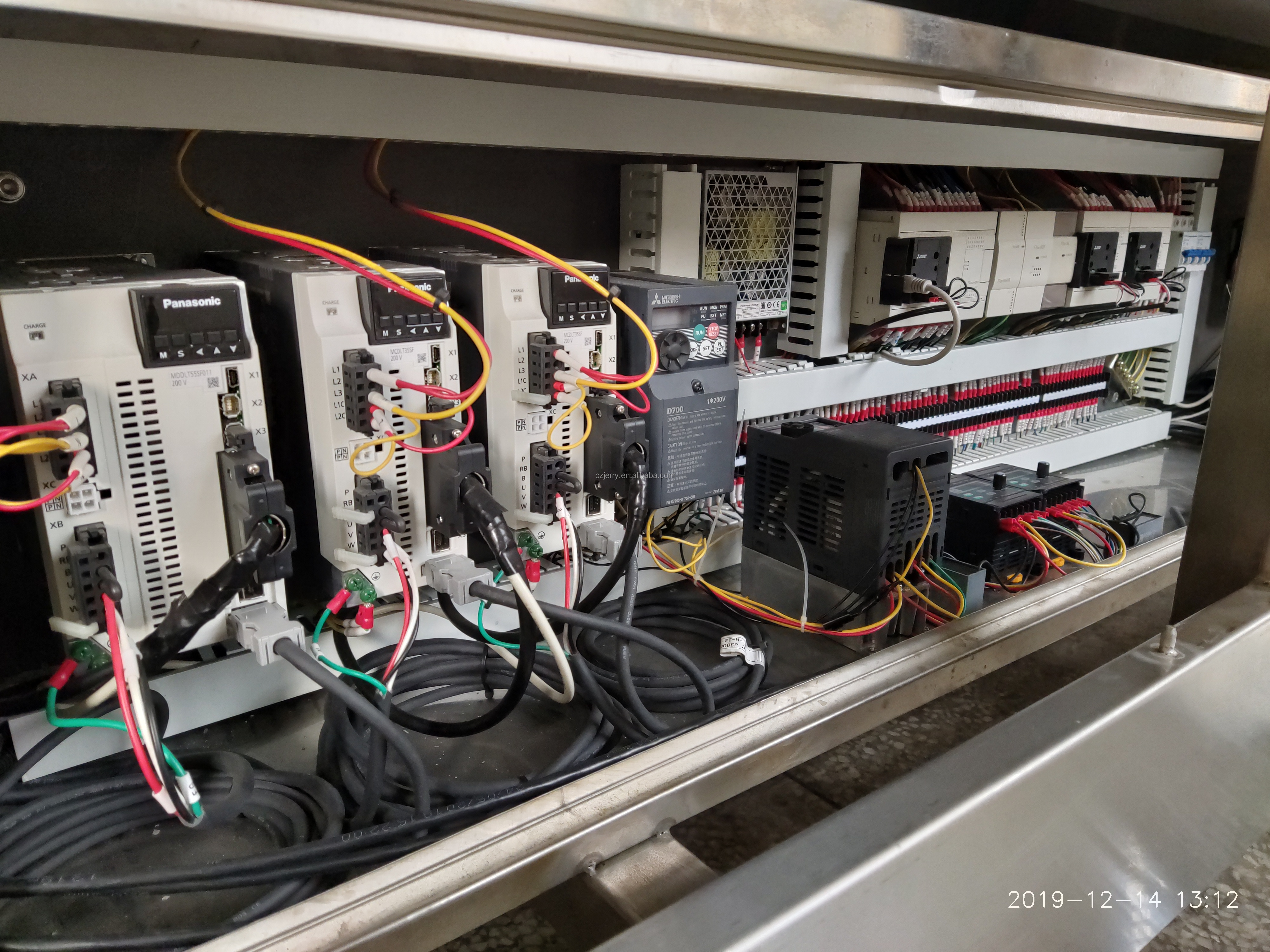

Electrical configuration
number | Name | Card | quantity | Comment |
1 | programmable logic controller | mitsubishi | 1 | |
2 | touch screen | China Science | 1 | |
3 | server system | Panasonic | 1 | |
4 | The electromagnetic valve | China Aerospace | 6 | |
5 | Pneumatic Components | China Aerospace | 4 | |
6 | Low voltage electrical appliances | French Schneider | 5 | |
7 | cleaning nozzle | 6/8/10/12/16 |

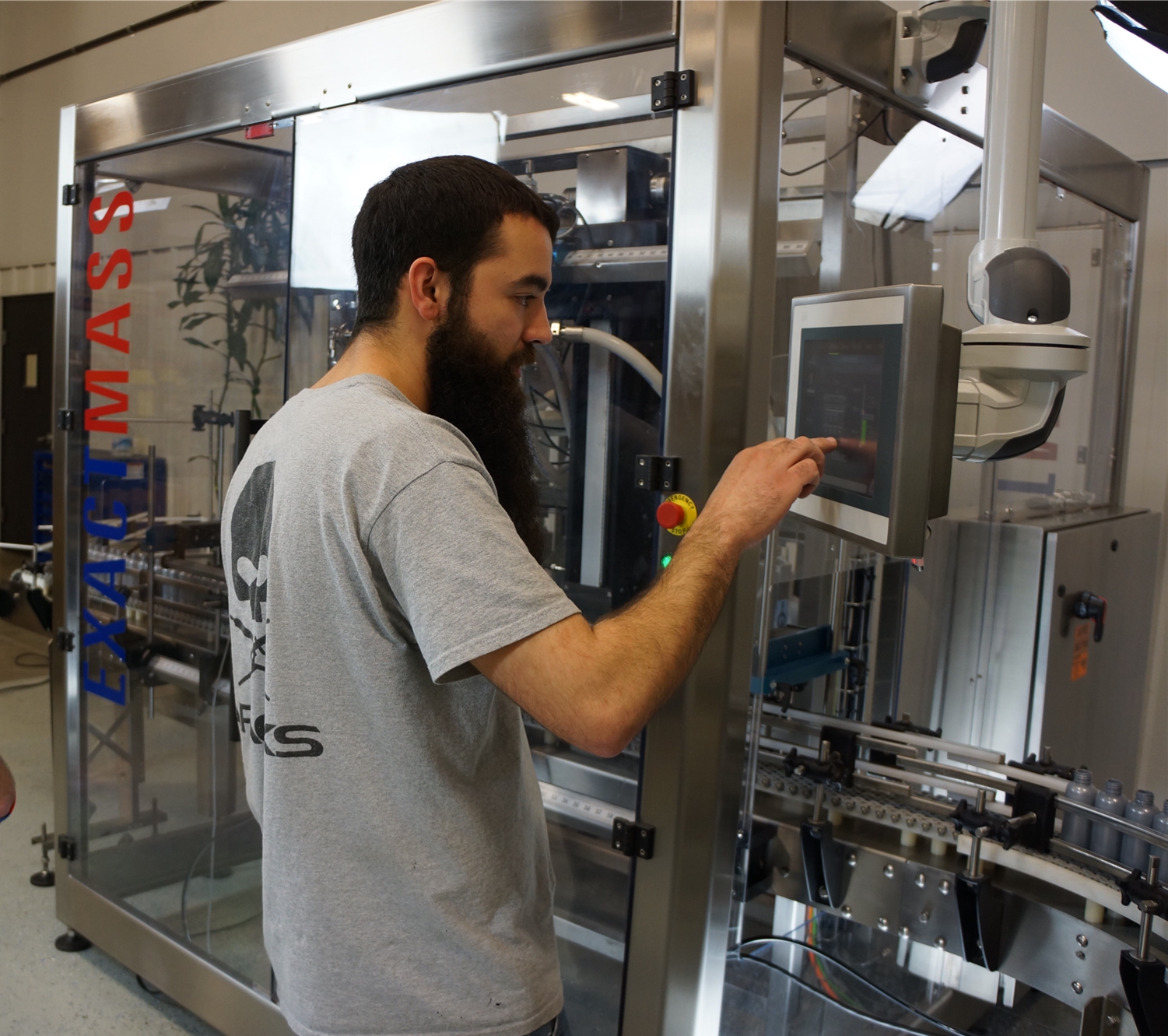

customer photo
After-sales service

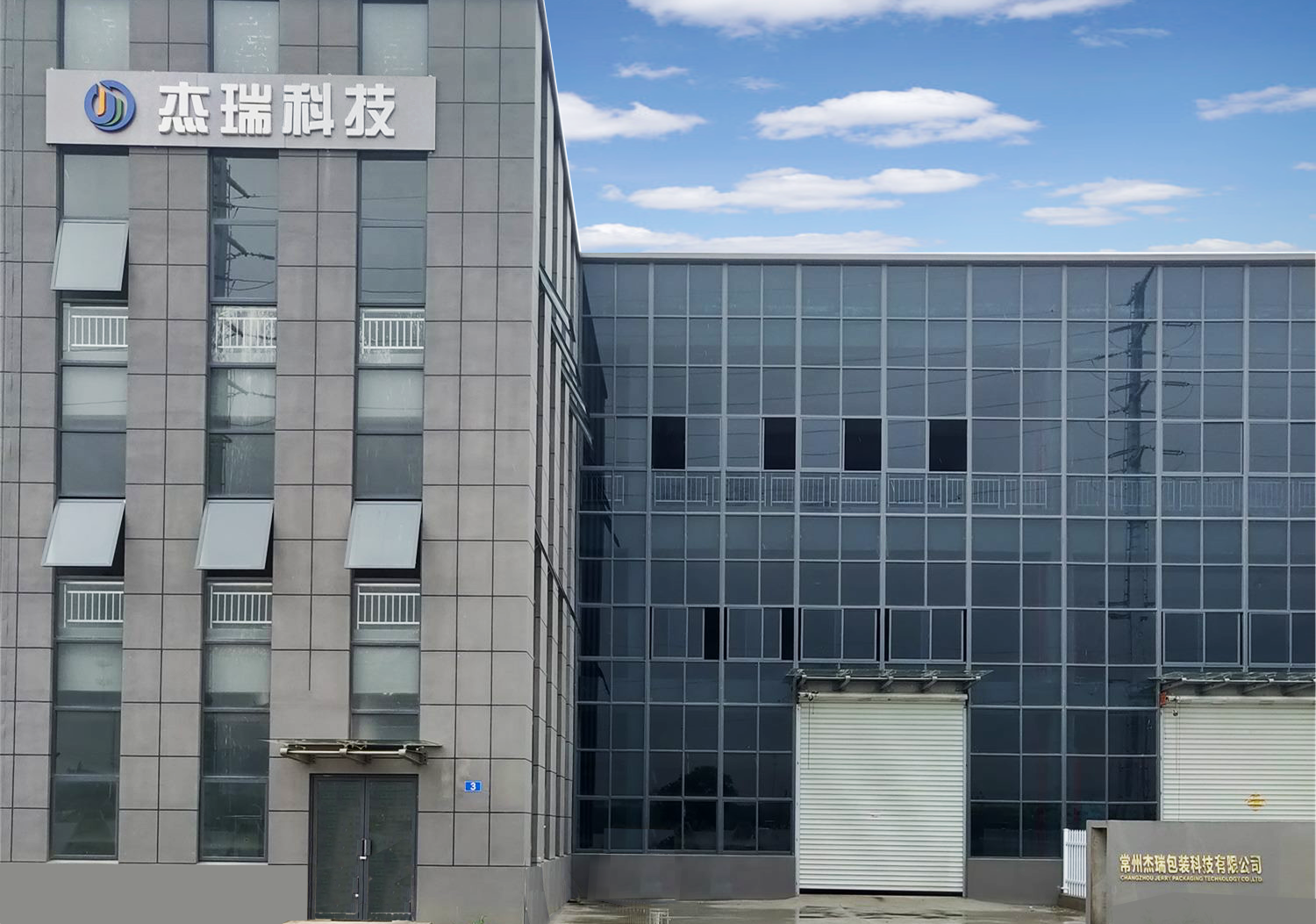

About Jerry Bags
For more than a decade, Jereh Packaging has devoted its best resources to technical research, design and implementation of innovative filling, capping and labeling systems that can respond to different needs and achieve new goals every day, capturing the market's expect. Jerry Packaging enhances its presence in the domestic and global markets with its diverse and complete range of products as well as refined and customized solutions that are quick and easy. Over the years, Jerry Packaging factories have been used by companies large and small all over the world.
contact us
Contact: Jerry
Mobile: 86-15051909335
Website: www.jpacks.com
Address: No. 96, Jinsheng Road, Economic Development Zone, Jintan City, Jiangsu Province, China
