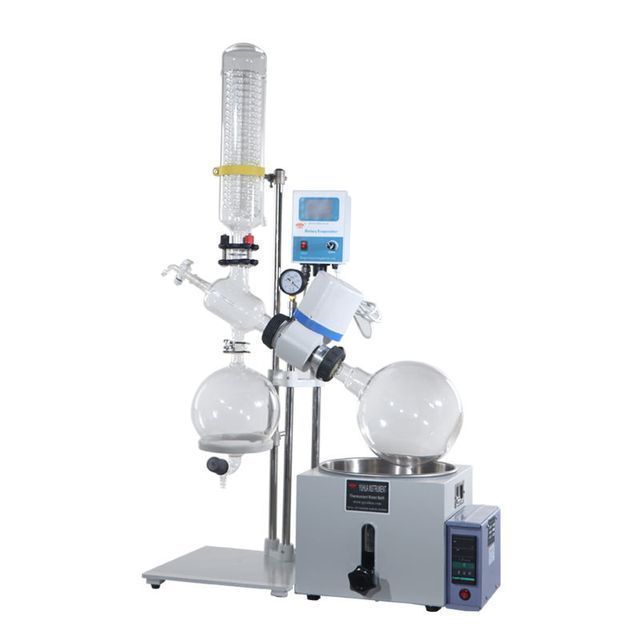

Yuhua Mini Explosion-Proof Industrial 5L Rotary Vacuum Evaporator Laboratory Evaporation System

Supplier: Gongyi Yuhua Instrument Co., Ltd.
Region: Henan, China
Contact: Mr Jack Ma
Price: $780.00 / 1 - 9 sets
$702.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

product name:	Rotary vacuum evaporator	weight:	49 kg
Energy source:	electrical	Spin the flask:	5L
strength:	180W	Material:	High borosilicate glass
Warranty:	1 year	process:	vacuum distillation
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Applicable industries:	Manufacturing plants, food and beverage plants, energy and mining, vacuum evaporation, laboratories
Health status:	new	Advantage:	High stability
Voltage:	220V	port:	China's main ports
place of origin; place of origin:	Henan, China	Video external inspection:	if
Rotating speed:	0~90r/min	Mechanical test report:	if
After Warranty Service:	Online support	Showroom location:	U.S.
Marketing Type:	New Products 2020	capacity:	4~5L/h
Packaging Details:	Export wooden packaging	Core Components Warranty:	1 year
The main purpose:	laboratory reaction	Glass material:	Borosilicate glass 3.3 (GG-17)
Main selling point:	high productivity	Dimensions (LWH):	790L380W1180H(mm)
Evaporating flask:	5L	Core components:	Engines, Bearings, Motors, Pressure Vessels, Pumps
Packaging Preview:		Supply capacity:	30000 sets per month
brand:	rain flower

Yuhua Mini Explosion-Proof Industrial 5L Rotary Vacuum Evaporator Laboratory Evaporation System

Product Description

Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical, biopharmaceutical and other industries. The principle is: under vacuum conditions, constant temperature heating makes the rotating bottle rotate at a uniform speed, and the material forms a large-area film on the bottle wall, which evaporates efficiently.

The evaporation of the solvent is cooled by a high-efficiency glass condenser, recovered and collected in a bottle, which greatly improves the evaporation efficiency, and is especially suitable for the concentration and purification of high-temperature easily decomposable biomass.

technical parameter

Model	YRE-201D	YRE-301D	YRE-501D
Spinner flask (L)	1	3	5
Collection bottle (L)	1	2	3
Motor power (W)	30	40	40
Heating power (W)	1200	1500	1500
Speed (rpm)	0~90	0~90	0~90
Evaporation rate (ml/min)	20	30	30
degree of vacuum	-0.098 (20 mbar)	-0.098 (20 mbar)	-0.098 (20 mbar)
seal	Teflon seal	Teflon seal	Teflon seal
water bath capacity	φ250×160H(mm) about 8.6L	Φ280*160(H) about 8.6L	790L×380W×1180H(mm)
Water bath lift	0-150mm (manual)	0-150mm (manual)	0-150mm (manual)
Dimensions (mm)	760L×410W×800H(mm)	760L×380W×970H(mm)	790L×380W×1180H(mm)
Total weight (kg)	24 kg	47kg	49 kg
