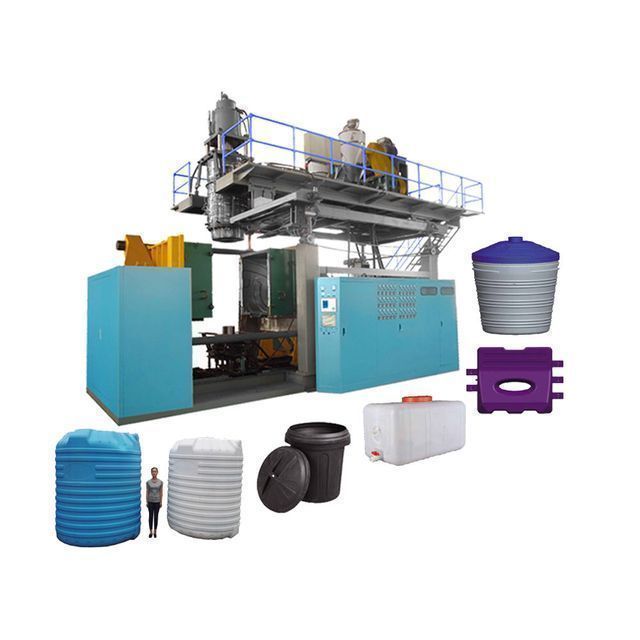

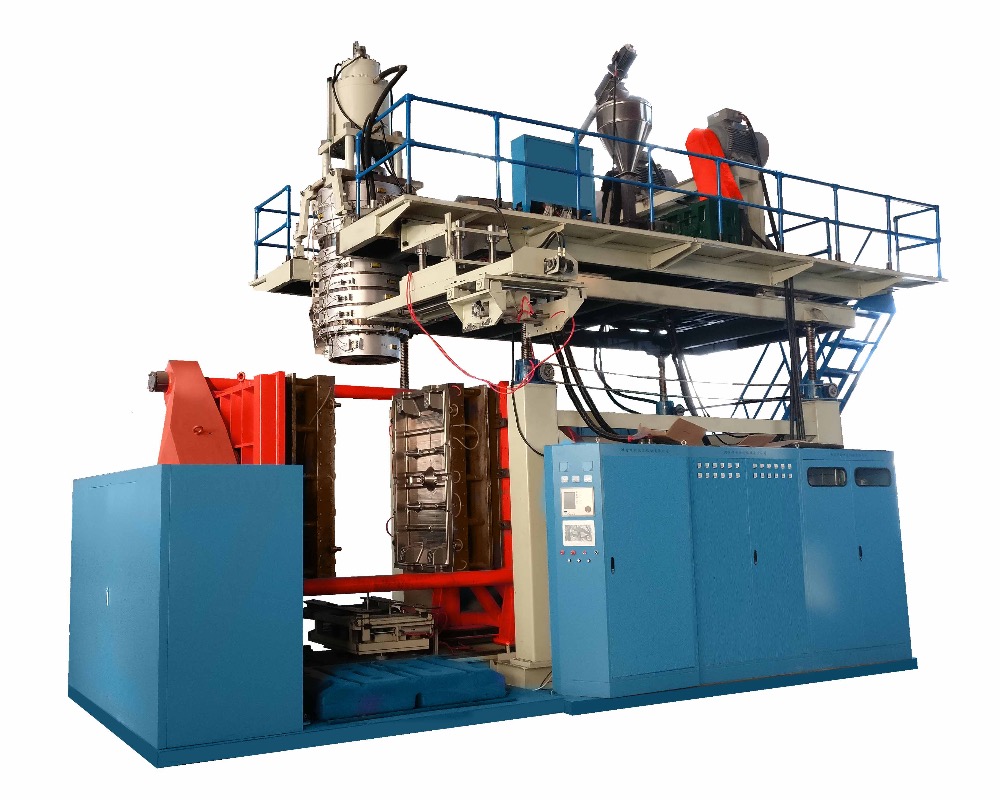

5000L HDPE water tank three-layer blow molding machine

Supplier: Weifang Xinhengda Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Jerry Liu
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Plastic Processing:	High-density polyethylene
Material:	High-density polyethylene	brand:	Sehenda
programmable logic controller:	Siemens	Supply capacity:	20 sets per year
weight:	75 tons	Blow molding type:	extrusion blow molding, extrusion blow molding
Certification:	EU standard	job type:	accumulator
After-sales service provided:	Online support, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, engineers can service machinery overseas	automatic:	Yes
Dimensions (LWH):	14M5M8M	port:	Qingdao
Applicable industries:	Hotels, building materials stores, food and beverage factories, farms, restaurants, home use, construction works	payment terms:	Letter of credit, wire transfer, visa
Operating mode:	automatic	Voltage:	380v-415v, customized
Packaging Details:	simple packaging	capacity:	5000L
application:	Water tank, container, pallet, road bucket	Main selling point:	energy saving
place of origin; place of origin:	Shandong China	Warranty:	1 year
color:	custom made	Layers:	1-4
strength:	320kW

Product Description

machine type	unit	XHD5000-2	XHD5000-3	XHD5000-4
review
Capacity range	large	2000-5000	2000-5000	2000-5000
layers		1-2	1-3	1-4
Machine size	Meter	1458	1458	1488
machine weight	Ton	75	80
total power	kilowatt	474.5	567.5	632.5
average energy consumption	kilowatt	320	310	320
extruder
Screw size	Meter	130/130	120/120/120	110/110/110/110
Screw L/D		30/1	30/1	30/1
Screw output	kg/hour	700	700	750
screw motor	kilowatt	110/110	90/90/90	75/75/75/75
heating power	kilowatt		94.5	90
die
Accumulator capacity	large	220	200	200
maximum shot weight	kilowatt	165	150	150
Max core	mm	800	800	800
heating power	kilowatt	100	120	160
clamping system
daylight between platens	mm	1600-4000
Template size	mm	2250*2250
clamping force		2000-3500
Hydraulic system
Main pump motor power	kilowatt	75
Servo pump motor power	kilowatt	7.5

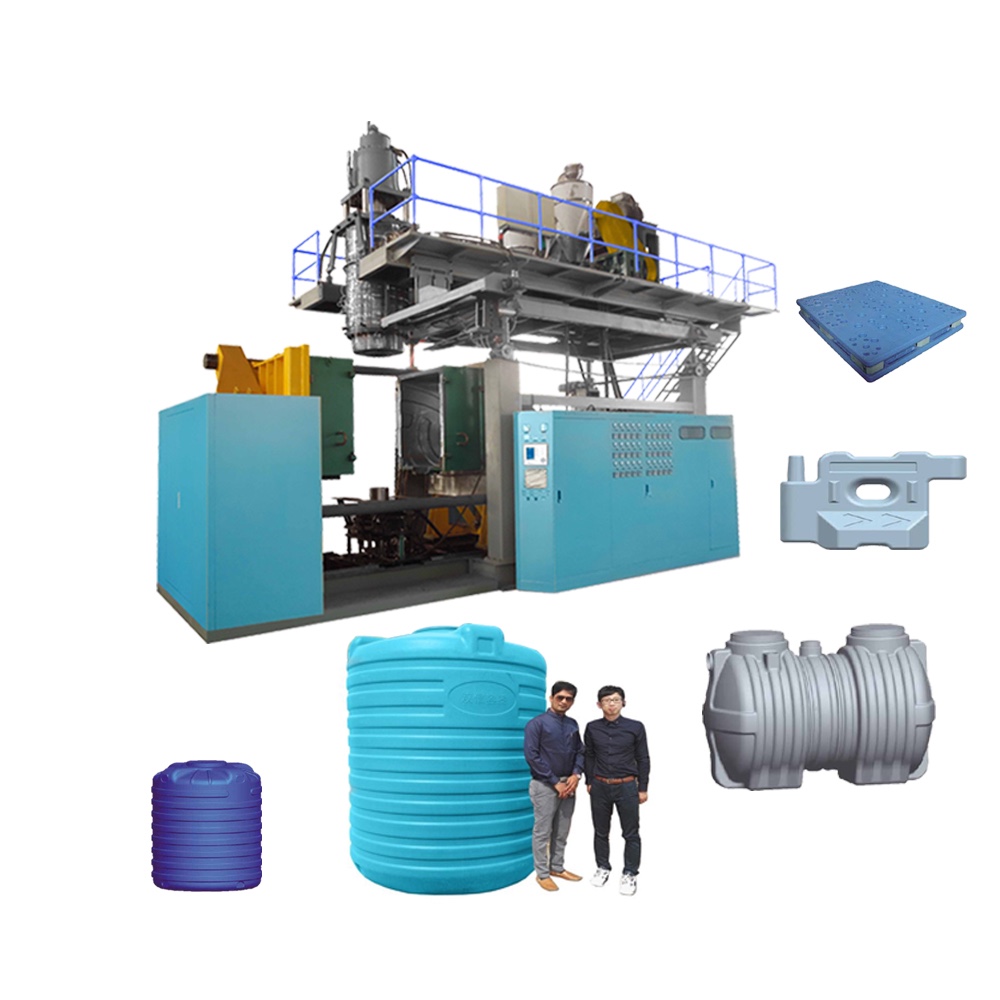

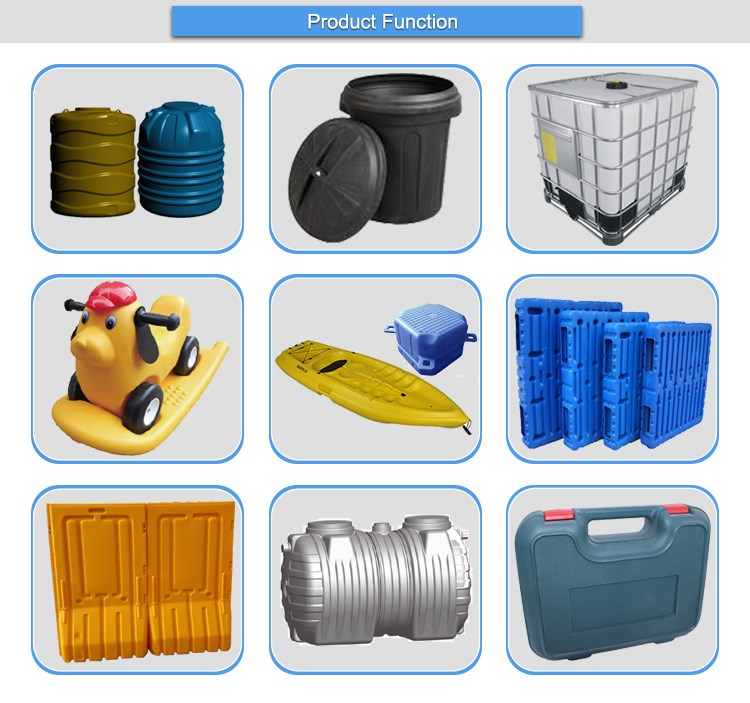

Applications:

Customized products such as water tanks, septic tanks, plastic trays, chemical tanks, roadblocks, fiberglass containers, IBCs, L-ring rollers, floating docks, fish tanks, etc.

main feature:
Produced tanks that never leak

Save production costs
Automatic high productivity

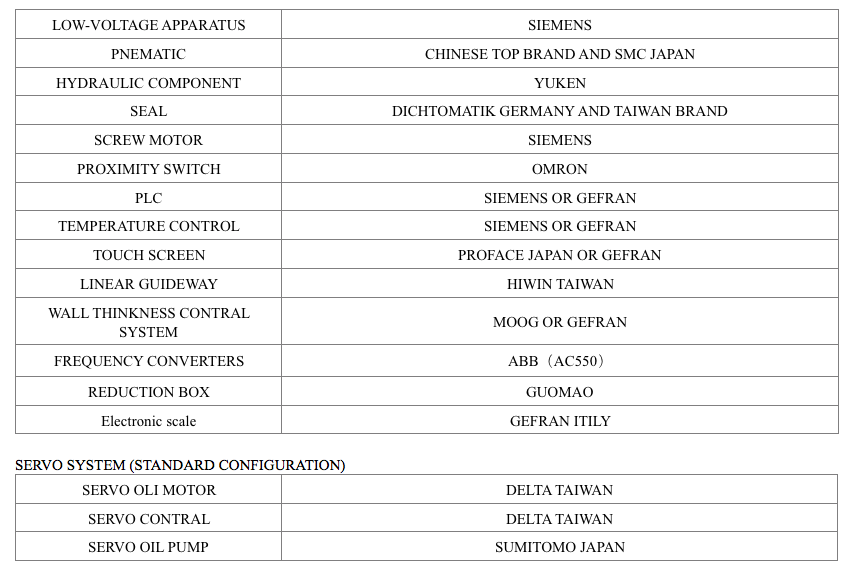

configure

Product Features

Certification

Packaging and Delivery

our service

pre-sale service

* Inquiry and consultation support.

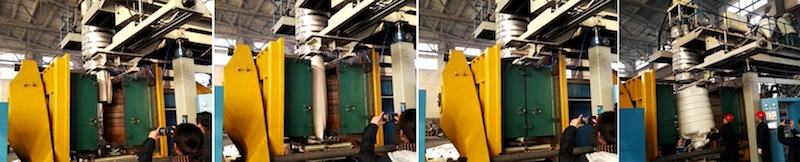

* Machine test show.

* View our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers can repair machinery overseas.

3000L blow molding machine

91.8%reaction speed

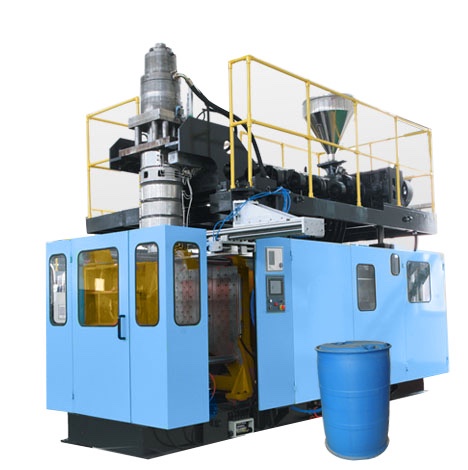

220L blow molding machine

91.8%reaction speed

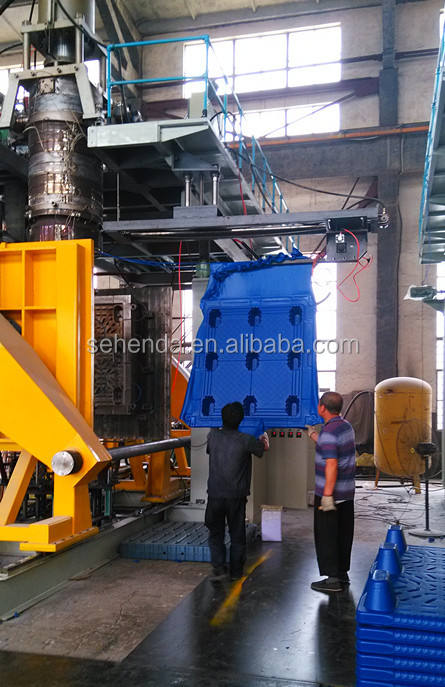

Pallet blow molding machine

91.8% reaction speed

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we offer high quality ex-factory price, welcome to visit us!

Q2: If we buy your machine, what is your quality guarantee or guarantee?
A2: We offer you high quality machines with one year warranty and lifetime technical support.

Q3: When can I get the machine after payment?
A3: The delivery time is subject to the exact machine you confirmed.

Q4: How to install after my machine arrives?
A4: We will send engineers to your factory to install the machine and train your staff how to operate the machine.

Q5: How about spare parts?
A5: After we have dealt with everything, we will provide you with a spare parts list for your reference.
