High Quality Energy Saving Automatic Blow Molding Machine For Sale

Supplier: Cangzhou Yatai Commercial And Trade Co., Ltd.
Region: Hebei, China
Contact: Mr Steven Song
Price: $5325.00 /set
Min. Order: 1 set

Click here to contact

Product details

Screw diameter (mm):	65 mm	Supply capacity:	10 sets per month
Certification:	ISO9001	Core Components Warranty:	1 year
Mechanical test report:	if	Air pressure (MPa):	20 MPa
Dimensions (LWH):	2000x1200x2000	Clamping force (kN):	220
Blow molding type:	Extrusion blow molding	payment terms:	letter of credit, wire transfer
Extruder motor power (kW):	20kW	place of origin; place of origin:	Hebei china
Mold platen size (width) (mm):	1000 mm	application:	bottle
Applicable bottle:	Level line bottle, plastic bottle	Health status:	new
Weight (tons):	1.5	Packaging Preview:
Applicable industries:	Food and Beverage Factory	Power (kW):	20
Name:	High quality energy saving automatic blow molding machine for sale	weight:	1000kg
Accumulator capacity (L):	1000 liters	Applicable raw materials:	PE/PP/PVC
Video external inspection:	if	Marketing Type:	normal product
Air consumption (m³/min):	10 cubic meters per minute	Main selling point:	easy to operate
Screw heating power (kW):	20kW	brand:	Yatai
Voltage:	220V/380V	After-sales service provided:	Provide overseas service center
Die head heating power (kW):	20kW	Core components:	programmable logic controller
Power (W):	22kW	Plastic Processing:	PP,HDPE,HDPE/PP,PE/PP/PVC
Mold platen size (height) (mm):	1500 mm	After Warranty Service:	Online support
port:	Qingdao	Warranty:	1 year
Local service location:	not any	Packaging Details:	Standard export wooden pallet, covered with PP film, suitable for plastic bottle blow molding machine.
Output (kg/hour):	100 kg/h	Maximum bottle capacity:	5000
Showroom location:	not any	automation:	automatic

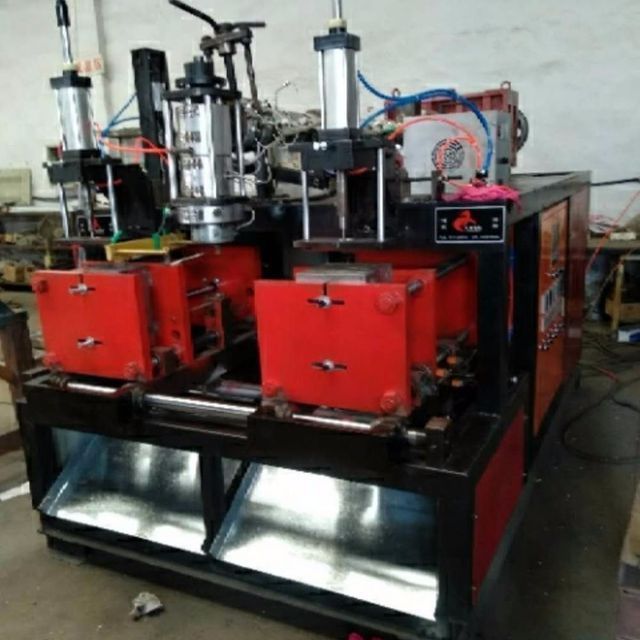

High quality energy saving automatic blow molding machine for sale

Product Description

This machine adopts electric powder clamping. Reliable operation, low energy consumption and strong clamping force.

The extruder part adopts frequency conversion and automatic temperature control! It can be used for single-layer, multi-layer bottles, liquid level line bottles, plastic bottles, etc. below 5 liters.

Product Specifications:

parameter Model	double station
maximum. bottle volume	5000
maximum. bottle diameter	18
theoretical capacity	800
Die sinking	230
Die thickness	150-220
Die width	303
Motor powder	2.2
Air consumption	0.5-0.6
weight	1000
Size (LWH)	200012002000
Applicable raw materials	PE/PP/PVC
Speed mode	programmable logic controller
