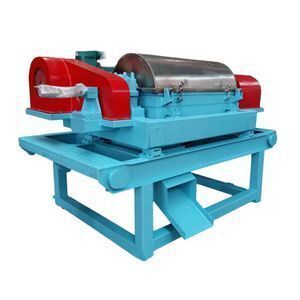

Continuous Decanter Drilling Mud/ Fluid Recovery Centrifuge

Product details
Material:Carbon steel / 304 stainless steel;Port:Tianjin;
Condition:New;Payment Terms:T/T;
Country of origin:Hebei,China;Place of Origin:Hebei China (Mainland);
Packaging Detail:Frame Packaging or Customer Requirements;Color:blue,green;
Applicable Industries:Energy & Mining,oil,drilling,mud;Keyword:Drilling fluid decanter centrifuge;
Supply Ability:30 Set/Sets per Month;Type:Oilfield Centrifuge;
Model Number:LXJ450x1000N;Size:2520*1445*870mm;

Model

LXJ450x1250N

LXJ450x1000N

GLXJ355x1250N

Bowl diameter

450mm

450mm

355mm

Bowl Speed

2800RPM

1800RPM

3200RPM

G-force

2200

810

2876/2932

Separation size

3-5μm

5~7μm

2~4μm

Main drive motor

37KW-2p                   50hp

30KW-4p                     40hp

37KW-2p                     50hp

Back drive motor

5.5 KW-4p                   7.5hp

7.5 KW-4p                    l0hp

11KW-2p                 7.5hp

Treating capacity

≤40m³/h                (176GPM)

≤50m³/h              (264GPM)

≤40m³/h            (176GPM)

Weight

2900kg

2780kg

2450kg

Dimension

2920x1500x1200mm

2520x1445x870mm

3100x1650x1670m
