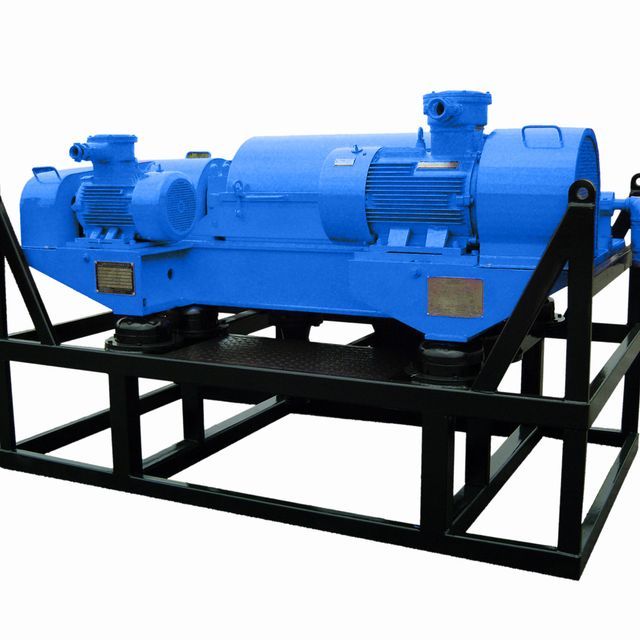

High Quality Centrifuge High Speed Universal Drilling Fluid Continuous Centrifuge

Supplier: Xi'an HL Petroleum Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms Cici Xiong
Price: $41350.00 / 1 - 2 sets
$41000.00 / 3 - 4 sets
$40500.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Tianjin	Health status:	new
Warranty:	1 year	Origin:	China
Core component warranty:	1 year	Maximum Bowl Speed:	2200 rpm
Auxiliary motor power:	7.5 kW	Bowl diameter:	450mm
aspect:	258017001850mm	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
main motor power:	30 kW	Separation factor:	≤1218
model:	LW450*1000-N	Applicable industries:	Energy and Mining
Supply capacity:	Annual output of 10000 sets	Video outbound inspection:	if
Mechanical test report:	if	Marketing Type:	New products in 2023
Core components:	Main motor, auxiliary motor, single screw feed pump, vertical/horizontal sand pump	maximum. capacity:	50 cubic meters / hour
brand:	oil company	type:	Oilfield centrifuge
product name:	centrifuge	Showroom location:	not any
Bowl Length:	1000mm	Model:	LW450*1000-N

centrifuge

Oilfield decanter centrifuge is one of the important equipment for solid-liquid separation in solid control equipment. It is usually installed at the last stage of the solids control system to remove harmful fine solid particles such as cuttings in the mud to ensure fast and safe drilling, or to recover valuable heavy materials such as cuttings in the mud.
For barite, save mud cost.

Model	LW355×1257-N	LW450×842-N	LW450×1000-N	LW500×1000-N	LW600×1000-N
Bowl diameter (mm)	Chapter 355	450	450	500	600
Bowl length (mm)	Chapter 1257	Chapter 842	1000	1000	1000
maximum. Processing capacity (cubic meter/hour)	30	40	50	50	60
drum speed(rpm)	3200	1800	2200	2500	1600
separation factor	≤2296	≤820	≤1218	≤1817	≤900
Main motor power (kW)	30	twenty two	30	37	45
Auxiliary motor power (kW)	7.5	5.5	7.5	7.5	7.5
aspect: LxWxH(mm)	3000×1500×1650	2370×1700×1800	2580×1700×1850	2660×1670×1760	3060×1870×1790
Weight (kg)	3300	2950	3300	3400	3500
All the above models have medium-high speed and variable frequency models, and customers need to inform when placing an order.						1900	2300	3200	3800
