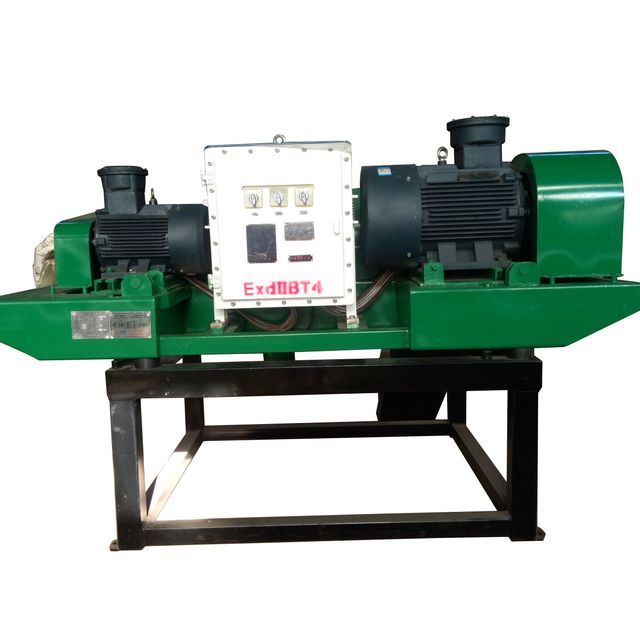

Drilling fluid solid control system industrial centrifuge 37KW decanter centrifuge

Supplier: Xi'an HL Petroleum Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms Cici Xiong
Price: $27550.00 / 1 - 2 sets
$27300.00 / 3 - 4 sets
$27000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Bowl diameter:	500mm	Auxiliary motor power:	7.5 kW
Origin:	Shaanxi, China	Video shipment inspection:	if
Showroom location:	not any	Core component warranty:	1 year
Marketing Type:	New Products 2023	Model:	LW500
main motor power:	37 kW	Health status:	new
Supply capacity:	10000 sets per year	product name:	centrifuge
maximum. capacity:	50 cubic meters / hour	Core components:	Main motor, auxiliary motor, single screw feeding pump, vertical/horizontal sand pump
Mechanical test report:	if	model:	LW500
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	brand:	oil company
port:	Tianjin	Maximum Bowl Speed:	2500 rpm
Separation factor:	≤1817	Bowl length:	1000mm
aspect:	26601670176mm	Applicable industries:	Energy and Mining
Warranty:	1 year	type:	Oilfield centrifuge

centrifuge

Oilfield decanting centrifuge is one of the important equipment for solid-liquid separation in solid control equipment. It is usually installed in the final stage of the solids control system to remove harmful fine solid particles such as drilling cuttings in the mud to ensure fast and safe drilling, or to recover valuable heavy materials such as
Such as barite, and save mud cost.

Model	LW355×1257-N	Length and width 450×842-N	Length and width 450×1000-N	Length and width 500×1000-N	LW600×1000-N
Bowl diameter (mm)	355	450	450	500	600
Bowl length (mm)	1257	842	1000	1000	1000
maximum. Capacity (m3/h)	30	40	50	50	60
drum speed(rpm)	3200	1800	2200	2500	1600
separation factor	≤2296	≤820	≤1218	≤1817	≤900
Main motor power (kW)	30	twenty two	30	37	45
Auxiliary motor power (kW)	7.5	5.5	7.5	7.5	7.5
aspect: L x W x H (mm)	3000×1500×1650	2370×1700×1800	2580×1700×1850	2660×1670×1760	3060×1870×1790
Weight (kg)	3300	2950	3300	3400	3500
The above models are available in medium and high speed, frequency conversion models, customers need to specify when ordering.						1900	2300	3200	3800
