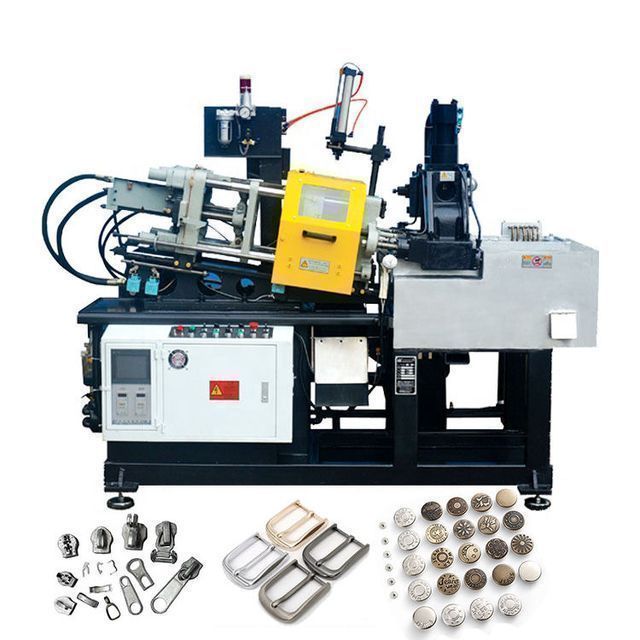

HTD Fully Automatic High Speed 18T Hot Chamber Zipper Slider Die Casting Machine Slider/Button

Supplier: Guangzhou HTD International Trading Co., Ltd.
Region: Guangdong, China
Contact: Ms Rachel Leung
Price: $8750.00 / 1 - 9 sets
$8500.00 / 10 - 49 sets
$7916.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Applicable industries:	Mechanical repair shop, manufacturing plant, other
Internal space between bars (horizontal) (mm):	205mm	Supply capacity:	1000 sets per year
Clamping force (kN):	180kN	Shooting force (kN):	19kN
Injection stroke (mm):	70mm	Min. Thickness of Die Block (mm):	120 mm
technology:	Die casting technology	Video external inspection:	if
Weight (kg):	1500	year:	2021
Auto grade:	Fully automatic	conference hall:	Hot Chamber Die Casting Machine
Type of machine:	Hot Chamber Die Casting Machine	Packaging Details:	Packaging and transportation: 1. Standard packaging: the machine is wrapped in plastic film and packed in wooden boxes. 2, fumigated wooden box packaging.
place of origin; place of origin:	Guangdong, China	Marketing Type:	Popular products
feature:	Precision casting	Advantage:	Energy efficient
Voltage:	380V	Function:	Die-cast aluminum, zinc
Showroom location:	not any	payment terms:	letter of credit, wire transfer
Key words:	Zipper Slider Die Casting Machine	Power (kW):	5.5
Name:	Die Casting Machine	Maximum thickness of die base (mm):	200 mm
Packaging Preview:		Ejector stroke (mm):	25 mm
port:	Guangzhou, Shenzhen, Hangzhou	Health status:	new
Dimensions (LWH):	2491x 1038x 1795mm	Mechanical test report:	if
brand:	HTD	application:	Metal Castings for Sliders, Buttons and Hardware
Internal space between bars (vertical) (mm):	220mm	Final product:	Brass aluminum zinc alloy products
Core Components Warranty:	1 year	Main selling point:	high productivity
Core components:	PLC, motor	Ejection force (kN):	19kN

Product Specifications

Model Name: 18T automatic die casting machine

- High-speed automatic die casting

- Automatic mold adjustment

- Electric heating or oil heating

- With PLC control system

Model application:

- Suitable for complex shaped zipper pullers, buttons and various hardware accessories and accessories

Specification
Model	18T
clamping force	180 kN
Tie rod diameter	40 mm
Internal space between tie rods	220*205mm
Die thickness range	120~200mm
Material diameter	32~38mm
ejection force	19 kN
effective injection	150~250mm
hydraulic ejector	19 kN
Hydraulic ejection stroke	25 mm
Sweeping location	200 mm
Oil pump flux	31 L/min
Nozzle electric heating power	1.2kW
Melt electric heating power	9kW
melt fuel consumption	1.5kg/hour
Motor Power	5.5kW
Working oil pressure	7~10MPa
machine weight	1.5 tons
Machine size	2491x 1038x 1795mm
