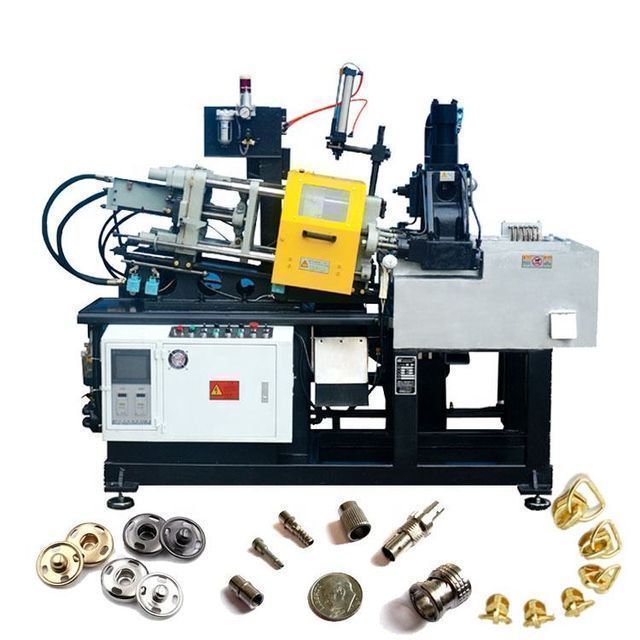

HTD Manufacturer Fully Automatic 20 Ton Hot Chamber Zinc Die Casting Machine for Slide Block Manufacturing

Supplier: Guangzhou HTD International Trading Co., Ltd.
Region: Guangdong, China
Contact: Ms Rachel Leung
Price: $10340.00 / 1 - 9 sets
$10045.00 / 10 - 49 sets
$9356.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Maximum thickness of die base (mm):	200 mm	conference hall:	Hot Chamber Die Casting Machine
Weight (kg):	1500	Injection stroke (mm):	70mm
Advantage:	Energy efficient	Final product:	Brass aluminum zinc alloy products
Auto grade:	Fully automatic	application:	Metal Castings for Sliders, Buttons and Hardware
Function:	Die-cast aluminum, zinc	Core components:	PLC, motor
Power (kW):	5.5	Name:	Die Casting Machine
place of origin; place of origin:	Guangdong, China	Packaging Details:	Packaging and transportation: 1. Standard packaging: the machine is wrapped in plastic film and packed in wooden boxes. 2, fumigated wooden box packaging.
Ejection force (kN):	19kN	technology:	Die casting technology
Internal space between bars (horizontal) (mm):	230mm	Applicable industries:	Mechanical repair shop, manufacturing plant, other
Main selling point:	high productivity	Internal space between bars (vertical) (mm):	230mm
Core Components Warranty:	1 year	Packaging Preview:
Video external inspection:	if	Ejector stroke (mm):	25 mm
year:	2021	Marketing Type:	Popular products
Key words:	Zipper Slider Die Casting Machine	Health status:	new
Dimensions (LWH):	2491x 1038x 1795mm	payment terms:	letter of credit, wire transfer
Supply capacity:	1000 sets per year	Min. Thickness of Die Block (mm):	120 mm
feature:	Precision casting	Mechanical test report:	if
port:	Guangzhou, Shenzhen, Hangzhou	Showroom location:	not any
brand:	HTD	Warranty:	1 year
Clamping force (kN):	200kN	Shooting force (kN):	19kN
Voltage:	380V	Type of machine:	Hot Chamber Die Casting Machine

Product Specifications

Model Name: 20T automatic die casting machine

- High-speed automatic die casting

- Automatic mold adjustment

- Electric heating or oil heating

- With PLC control system

Model application:

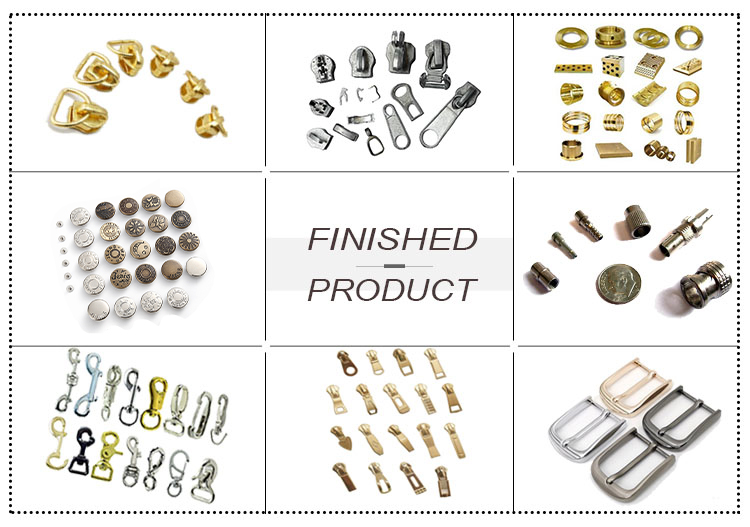

- Suitable for complex shaped zipper pullers, buttons and various hardware accessories and accessories

Specification
Model	20T
clamping force	200 kN
Tie rod diameter	40 mm
open position	140 mm
Internal space between tie rods	230*230mm
Die thickness range	120~200mm
Injection cylinder location	70 mm
Material diameter	32~38mm
ejection force	19 kN
effective injection	150~250mm
hydraulic ejector	19 kN
Hydraulic ejection stroke	25 mm
Sweeping location	200 mm
Crucible capacity	120 kg
Oil pump flux	36 L/min
Battery capacity	10 liters
Fuel tank capacity	150 liters
Empty cycle time	3 seconds
Nozzle electric heating power	1.2kW
Melt electric heating power	9kW
melt fuel consumption	1.5kg/hour
Motor Power	5.5kW
Working oil pressure	7~10MPa
machine weight	1.5 tons
Machine size	2491x 1038x 1795mm
