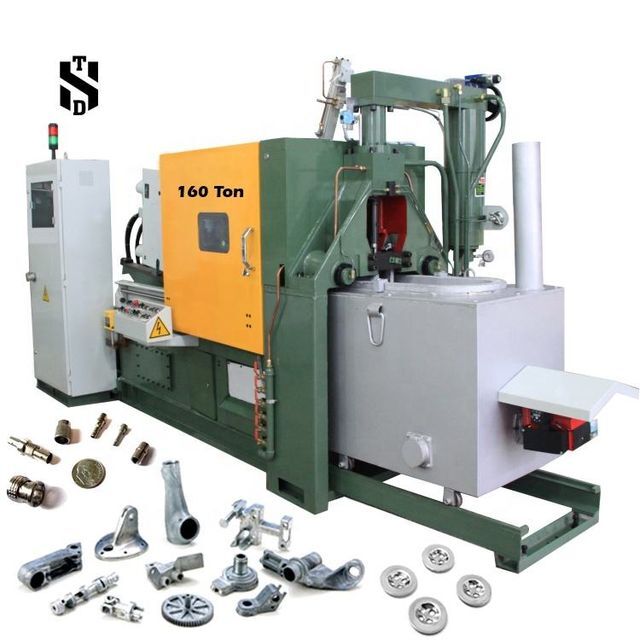

160 ton hot chamber zinc alloy die casting machine

Supplier: Guangzhou HTD International Trading Co., Ltd.
Region: Guangdong, China
Contact: Ms Rachel Leung
Price: $44972.00 / 1 - 19 sets
$40934.00 / 20 - 49 sets
$37985.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Final product:	Brass aluminum zinc alloy products	year:	2022
Name:	Die Casting Machine	Function:	Die-cast aluminum, zinc
Warranty:	1 year	Clamping force (kN):	1600kN
Applicable industries:	Mechanical repair shop, manufacturing plant, other	Showroom location:	not any
feature:	Precision casting	Dimensions (LWH):	4950x1950x2300 mm
Maximum thickness of die base (mm):	505 mm	place of origin; place of origin:	Guangdong, China
Video external inspection:	if	Advantage:	Energy efficient
Ejection force (kN):	108 kN	Health status:	new
Weight (kg):	6000	technology:	Die casting technology
brand:	HTD	Shooting force (kN):	108kN
Voltage:	380V	Internal space between bars (horizontal) (mm):	459mm
port:	Guangzhou, Shenzhen, Hangzhou	Marketing Type:	Popular products
conference hall:	Hot Chamber Die Casting Machine	Internal space between bars (vertical) (mm):	459mm
Min. Thickness of Die Block (mm):	205 mm	Auto grade:	Fully automatic
Main selling point:	high productivity	Core Components Warranty:	1 year
Core components:	PLC, motor	Type of machine:	Hot Chamber Die Casting Machine
application:	Metal casting for sliders, buttons and hardware	Ejector stroke (mm):	85 mm
Packaging Preview:		Injection stroke (mm):	150mm
Packaging Details:	Packaging and transportation: 1. Standard packaging: the machine is packed in plastic film and wooden box. 2, fumigated wooden box packaging.	payment terms:	letter of credit, wire transfer
Supply capacity:	1000 sets per year	Mechanical test report:	if
Key words:	Zipper Slider Die Casting Machine

Product Specifications

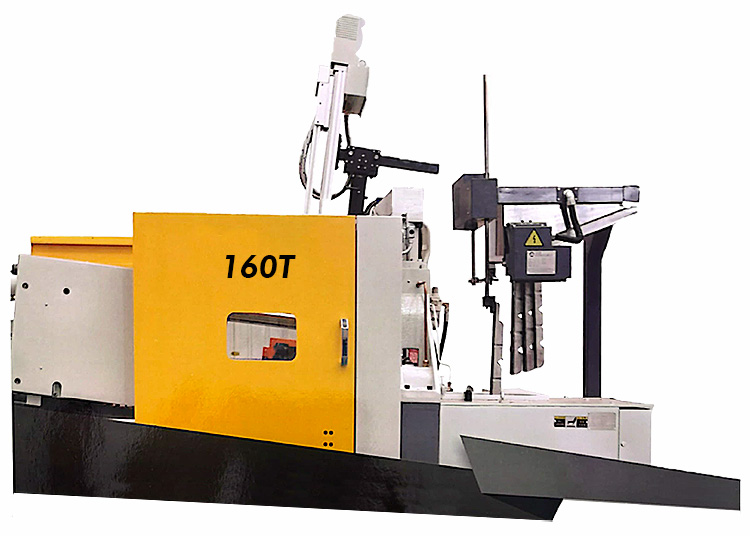

Model Name: 160T Fully automatic hot chamber die casting machine

- Energy saving: Equipped with servo energy saving control system, saving more than 30% energy - High efficiency:Adopt servo control system, increase production efficiency by 10%- Intelligent system: using Siemens PLC,Stable and reliable, running fast.Mold parametersstored by the system, while controlling the temperature.- Large screen, easy to operate

- Electric heating or oil heating

Model application:

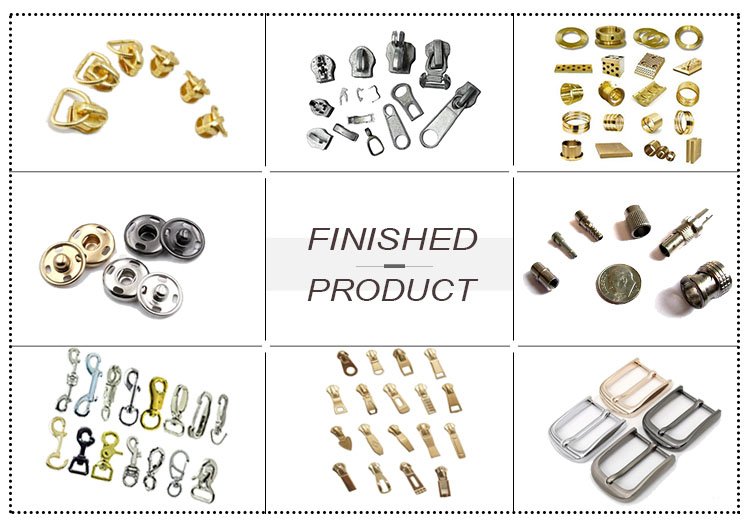

- For complex shaped zipper pulls, buttons and various hardware and accessories

thing	unit	100 tons	130 tons	160 tons
clamping force	KN	1000	1300	1600
Mold opening stroke	mm	300	350	350

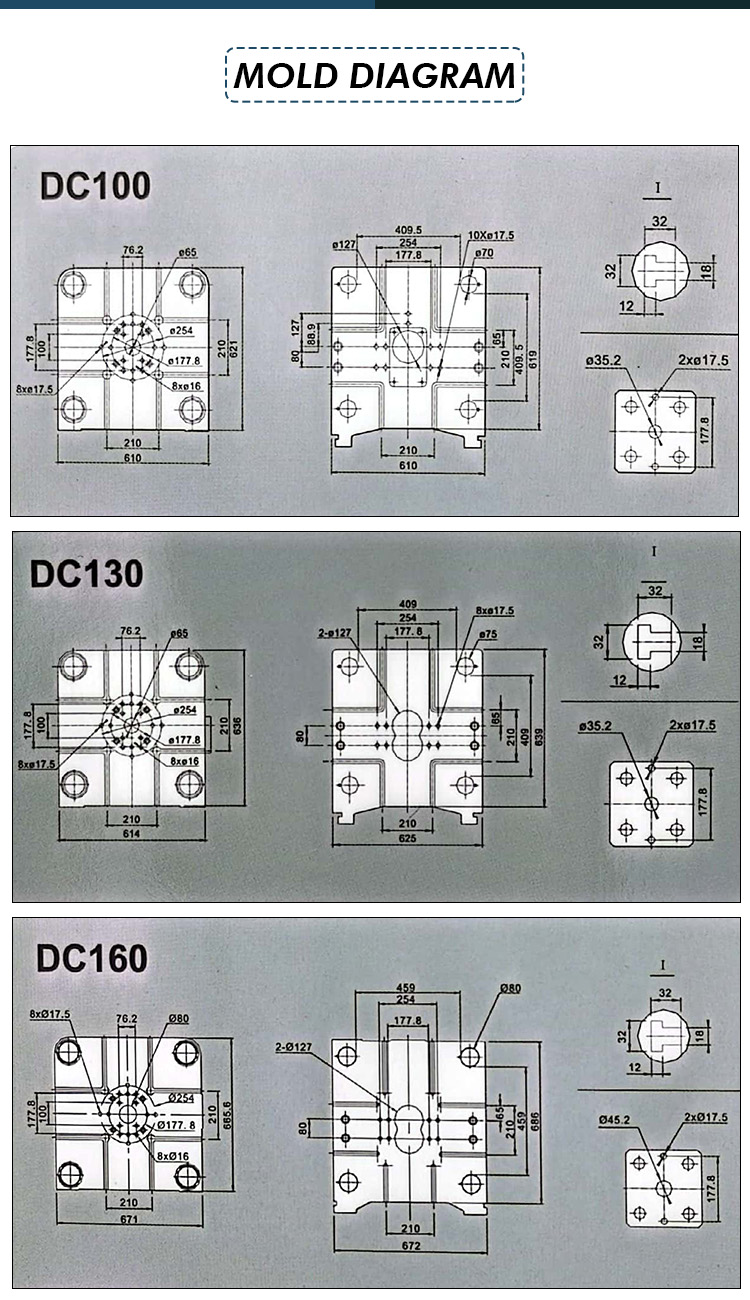

Mould height (min--max)	mm	150-450	170-450	205-505
Template size	mm	610*621	614*636	671*666
space between tie rods	mm	409*409	409*409	459*459
ejection force	KN	70	88	108
Ejection stroke	mm	70	85	85
ejection force	KN	89	108	108
Injection stroke	mm	150	150	150
Plunger diameter	mm	55/ 60	60/ 65	60/ 65/ 70
Injection weight	Kilogram	1.76/ 2.1	2.1/ 2.4	2.1/ 2.4/ 2.86
casting pressure	MPa	37.4/ 31.5	38.9/ 33.1	38.9/ 33.1/ 28.6
Maximum casting area	square centimeter	267/ 317	334/ 392	411/ 483/ 559
Injection location	mm	0-80	0-80	0-80
Plunger launch distance	mm	200	200	200
Working oil pressure	MPa	14	14	14
Fuel tank capacity	large	300	300	300
Nozzle heating power	kilowatt	2.5	2.5	2.5
Crucible capacity	square meter (kg)	55(360)	55(360)	55(360)
Furnace energy consumption (electricity)	kilowatt	30/ 42	30/ 42	30/ 42
Machine size	mm	476019002270	485019502300	495019502300
machine weight	Kilogram	5500	5700	6000
