Integrating Sphere Model MSPB-2000 (2M Carbon)

Product Description

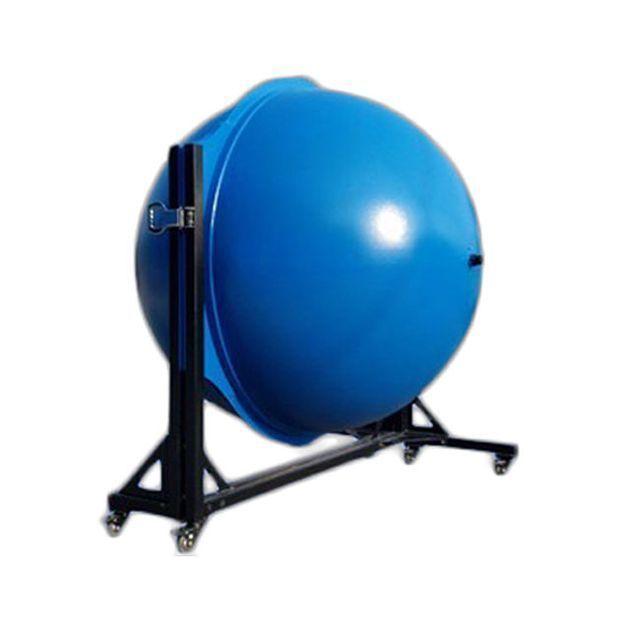

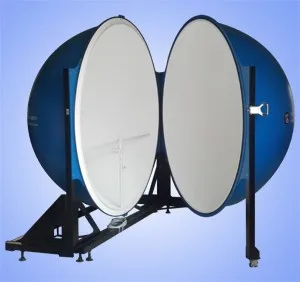

1) The diameter of this one is 1500mm and the overall height is 1870mm. One of its great advantages is that it can be detached and combined by the six screws attached to the stand. After separation, the width of the hemisphere will be less than 800mm, so it can be easily transported through narrow doorways.

2) There is a multifunctional stage in the center of the inner sphere. Various lighting fixtures can be installed on this stage. Common lights such as E40, E27, T5, T8, T10 and some non-target lights can be easily mounted on it.

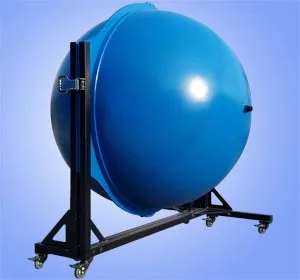

3) Pulley structure

The current circulating sphere is fixed and supported by its feet, so it is very inconvenient when the sphere needs to be carried and moved. To solve this problem, we designed completely new spheres, we replaced the feet with pulleys, and only needed a little force to move the new sphere. Also, when we use the former, we need to lift our feet to install the light fixture, which can cause tripping or other problems. The new sphere perfectly avoids the above problems.

4) Selection of parts

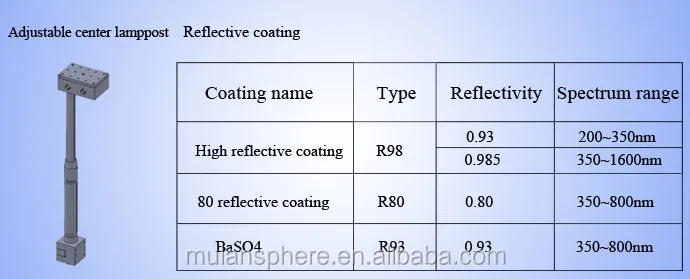

In order to meet the different needs of customers, we provide imported pulleys, adjustable central lamp posts, aluminum alloy brackets, different coatings and other parts.

This time we designed a whole new series of integrating spheres to meet the strict requirements of transportation. This series already supports diameters of 1000mm, 1750mm, and 2000mm. It has also started mass production. Also, you can decide if the sphere needs a port diameter of 500mm for a 2π measurement.
