Guihe ATG automatic tank metering system TCM-1 tank metering intelligent console/gas station remote fuel monitoring system

Supplier: Qingdao Guihe Measurement & Control Technology Co., Ltd.
Region: Shandong, China
Contact: Ms ANNA ANNA
Price: $1.00 /set
Min. Order: 1 set

Click here to contact

Product details

Measuring range:	300-15000mm	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
product name:	Automatic fuel tank level measurement	Automatic level gauge:	Fuel tank level monitor
port:	Qinggao	output signal:	4~20mA
brand:	river kwai	Packaging Details:	Oil level console packed in wooden case
Level measurement:	volume measurement sensor	Volume measurement sensor:	Fuel tank level measurement
Supply capacity:	1000 sets of fuel level consoles per month	accuracy:	0.3
application:	Diesel Fuel Tank Level Sensor	model:	SYW-A
place of origin; place of origin:	Shandong China	Magnetostrictive sensor:	fuel controller
type:	Magnetostrictive Liquid Level Sensor

Product Details

Gas station underground storage tank fuel monitoring fuel tank level gauge diesel measurement system

Automatic Fuel Tank Gauging System ATG

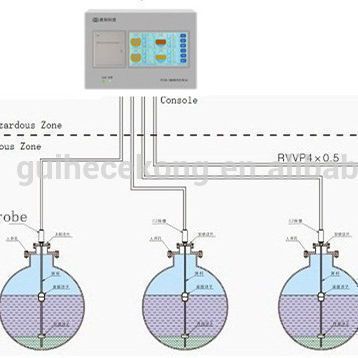

The fuel tank level gauge consists of magnetostrictive probes (models: SYW-A, SYW-A1) and touch screen consoles (models: TCM-1, TCC-3).

The SYW-A magnetostrictive probe is installed in the fuel tank and adopts magnetostrictive technology, which can accurately measure the oil level, water level, water shortage and various temperatures.

The touch console is installed in the control room of the gas station, automatically detects data collection and processing, displays storage tank information in real time, realizes storage tank leakage detection, automatic oil unloading, record query, control multi-channel submersible pumps, oil level alarm, data upload and other functions .

product description

SYW-A probe+TCM-1 touch console+central control system+Internet

●Industrial design, long service life and fast running speed.
●It has good compatibility with the central control system of different brands.
●Integrated design of safety barrier and console, easy installation and low cost.
● Information is stored in memory for future queries.
●With fuel tank tilt compensation function
●External explosion-proof ringer can be connected to avoid product overflow
●Built-in printer to print inventory reports, delivery reports, leak reports and shift reports
●Up to 12 water tanks can be monitored, and the product level and water level can be dynamically displayed in proportion to color graphics.
●After connecting with the central control system through the Internet, it can provide information for managers to manage product inventory, delivery, and sales.

Product parameters

Do not.	thing	Specification
1	usage	Measure product level, water level and temperature
2	Measuring medium	Gasoline, diesel, kerosene, ethanol, water, etc.
3	Explosion-proof	ExiaIIBT4 (Intrinsically Safe)
4	temperature	-40℃~70℃
5	Oil level accuracy	±0.3mm
6	temperature accuracy	±0.2℃
7	height resolution	0.023mm
8	Minimum Product Inactive Area	2.5'' Float-180mm
9	Minimum water inactivity	2.5'' Float - 25mm
10	measure variable	Product level, interface level and temperature and average temperature for 5 sensors
11	Measuring range	600~4000mm
12	communicate	RS-485
13	power supply	+24~26VDC
14	Probe cartridge protection class	IP67
15	Probe material	1Cr18Ni9Ti
16	Maximum communication distance	1200 meters
