High Precision Measuring Instruments Automatic Levels and Accessories Measuring Instruments Automatic Levels
- 140.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| 1 km double run leveling: | 1 mm | weight: | 1.75 kg |
| Minimum sight distance: | 0.3M | Objective lens aperture: | 32mm/36mm/42mm |
| size: | 215*130*135mm | Origin: | Jiangxi, China |
| port: | Shenzhen/Ningbo/Shanghai | Compensator: | Magnetic |
| Customization support: | OEM, ODM, OBM, software reengineering | brand: | Processing |
| Magnification: | 24X/28X/32X | grade: | industrial |

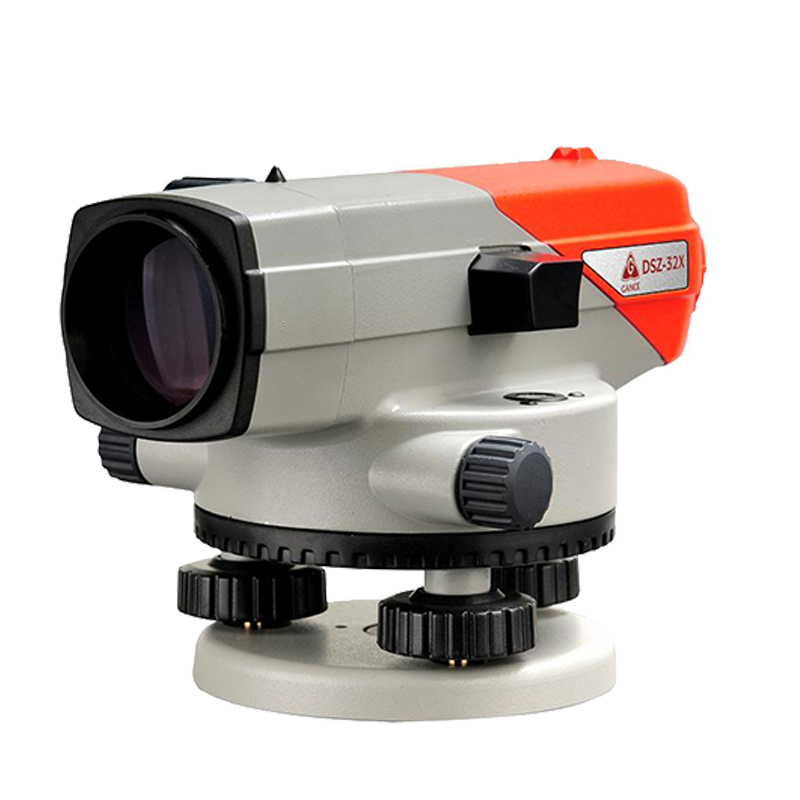

| product name: | automatic level | model: | DSZ-32X |
| Supply capacity: | 20000 pieces per year | Warranty: | 1 year |
| Packaging Details: | One piece of high-precision measuring instrument automatic level and accessories are packed in a hard case, and 4 pieces are packed in an outer box. | Protection class: | IP66 |
| Material: | brass | payment terms: | L/C, Western Union, D/P, D/A, T/T |

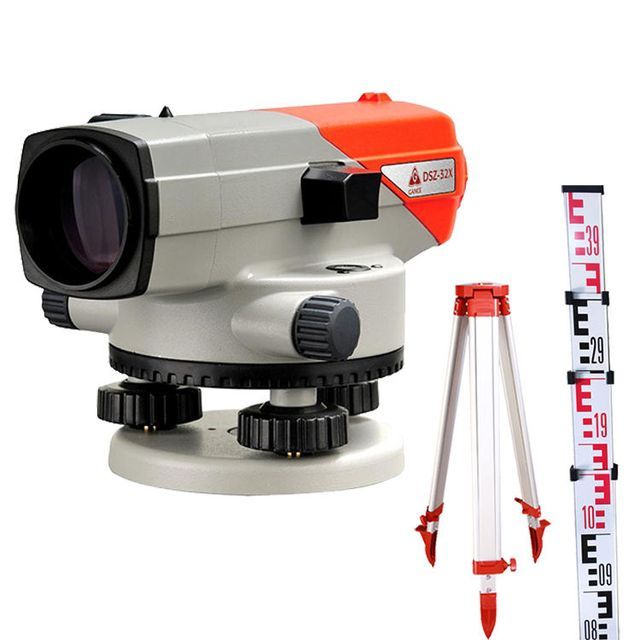

Ground level magnetic automatic level
| Model and technical parameters | HJC-DSZ-32X | HJC-DSZ-B30 | HJC-DSZ-B20 | |
| telescope | pipe length | 215 mm | ||
| image | upright | |||
| Objective lens aperture | 32mm | 36mm | 42mm | |
| enlarge | 24X | 28X | 32 times | |
| vision | 1°25′ | 1°25′ | 1°20′ | |
| Resolution (JIS standard) | 4.0 inches | 3.5 inches | 3.0 inches | |
| minimum focus | 0.3m (from the center of the instrument) | |||
| Aspect Ratio | 100 | |||
| horizontal scale | diameter | 103 mm | ||
| split value | 1° | |||
| automatic compensator | type | Magnetic | ||
| scope | ±15 | |||
| accuracy | 0.5/1 | 0.3/1 | ||
| Round bubble sensitive | ≤8′/2mm | |||
| aiming device | / | with aiming device | ||
| 1km round-trip leveling standard deviation | without micrometer | ±2.0mm | ±1.5 mm | ±1.0mm |
| with micrometer | / | 0.8mm | ||
| waterproof level | IP66 | |||
| size | 215×130×135mm | |||
| weight | 1.75 kg | 1.75 kg | 1.75 kg | |
| Box weight (including accessories) | 1.38 kg | |||
