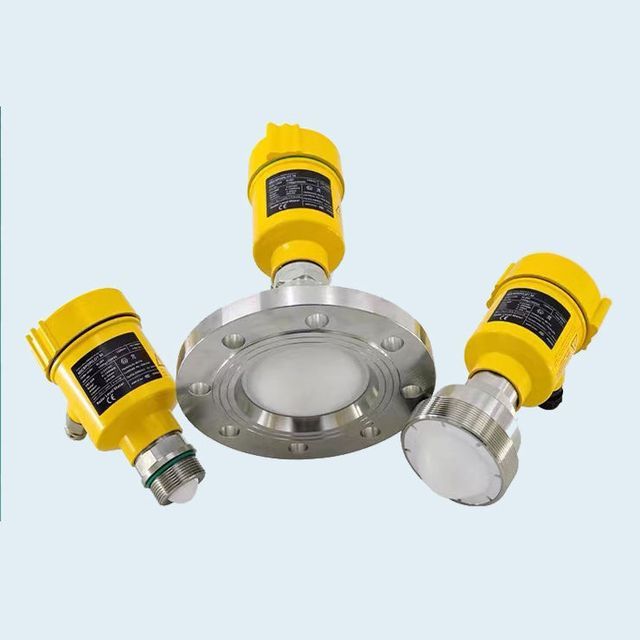

High Frequency 76-81ghz 80g Fm Radar Level Gauge Radar Level Gauge Radar Level Gauge

Supplier: Jiangsu Changshuo Electrical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Qiu
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Process temperature:	-40~130℃	accuracy:	0.1%/0.15%/0.2%/0.25%
brand:	JSCS	type:	radar level gauge
Certification:	CE, Exiaii CT6 Ga, Exd Ia II CT6 GB/ IP67	application:	Hygienic liquid storage, corrosive
payment terms:	Western Union, T/T, MoneyGram	port:	Nanjing
Warranty:	3 years	grade:	industrial
Material:	Aluminum shell	in principle:	radar pulse
Package preview:		Process connection:	flange connection
Process pressure:	-0.1~4.0MPa	Customization support:	OEM、ODM
Packaging Details:	wooden box	Supply capacity:	3000 sets per week
scope:	10-150m	model:	JSCS009
Origin:	Jiangsu, China

Product Description

High-precision high-frequency radar sensor level meter radar level measurementWith high temperature display for different media

* Radar liquid level measurement *

The W-band 76-80GHz radar level gauge adopts the millimeter wave band with a higher frequency than the Ku-band radar. It has important applications in long-distance target detection, dense smoke and dust environment, long-distance imaging, multi-spectral imaging, etc., and can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger confidentiality. .

Measuring range	30m
accuracy	±1mm
working frequency	W-band, 76~81GHz
process connection	flange
Beam angle	<3°
Antenna material	PTFE, PTFE
process temperature	(-40~80)℃(standard type)
process pressure	(0~1)MPa
signal output	4-20mA/HART (2-wire/4-wire) RS485/Modbus
energy source	Two-wire system (DC24V) Four-wire system (DC24V/AC220V)
current consumption	90 mW
connect	thread, flange
degree of protection	IP67 level
Explosion-proof grade	Exia IIC T6 Ga/Exd IIC T6 Gb

Measuring range	0.045m~120m
accuracy	±1mm
working frequency	W-band, 76~81GHz
process connection	flange
Beam angle	<3°
Antenna material	PTFE, PTFE
process temperature	(-40~80)℃(standard type)
process pressure	(0.1~2)MPa
signal output	4-20mA/HART (2-wire/4-wire) RS485/Modbus
energy source	Two-wire system (DC24V) Four-wire system (DC24V/AC220V)
current consumption	90 mW
connect	thread, flange
degree of protection	IP67 level
Explosion-proof grade	Exia IIC T6 Ga/Exd IIC T6 Gb

Measuring range	150m
accuracy	±1mm
working frequency	W-band, 76~81GHz
process connection	flange
Beam angle	<3°
Antenna material	PTFE, PTFE
process temperature	(-40~80)℃(standard type)
process pressure	(0~1)MPa
signal output	4-20mA/HART (2-wire/4-wire) RS485/Modbus
energy source	Two-wire system (DC24V) Four-wire system (DC24V/AC220V)
current consumption	90 mW
connect	thread, flange
degree of protection	IP67 level
Explosion-proof grade	Exia IIC T6 Ga/Exd IIC T6 Gb

suitable for medium	various corrosive liquids
Measuring range	10m
frequency	26GHz
accuracy	±5 mm
process temperature	(-40~130)℃
process pressure	(-0.1~0.3)MPa
signal output	4-20mA/HART (2-wire/4-wire) RS485/Modbus
energy source	Two-wire system (DC24V) Four-wire system (DC24V/AC220V)
connect	thread, flange
degree of protection	IP67 level
Explosion-proof grade	Exia IIC T6 Ga/Exd IIC T6 Gb

Measuring range	0.02~60m
accuracy	±1mm
working frequency	W-band, 76~81GHz
process connection	flange
Beam angle	<3°
Antenna material	PTFE, PTFE
process temperature	(-40~80)℃(standard type)
process pressure	(-0.1~2)MPa
signal output	4-20mA/HART (2-wire/4-wire) RS485/Modbus
energy source	Two-wire system (DC24V) Four-wire system (DC24V/AC220V)
current consumption	90 mW
connect	thread, flange
degree of protection	IP67 level
Explosion-proof grade	Exia IIC T6 Ga/Exd IIC T6 Gb

Measuring range	0.02~30m
accuracy	±1 mm
working frequency	W-band, 76~81GHz
Beam angle	<7°
Antenna material	PTFE, PTFE
process temperature	(-40~80)℃(standard type)
process pressure	(-0.1~2) MPa
signal output	4-20mA/HART (2-wire/4-wire) RS485/Modbus
energy source	Two-wire system (DC24V) Four-wire system (DC24V/AC220V)
current consumption	70 mW
connect	thread, flange
degree of protection	IP67 level
Explosion-proof grade	Exia IIC T6 Ga/Exd IIC T6 Gb

main type
