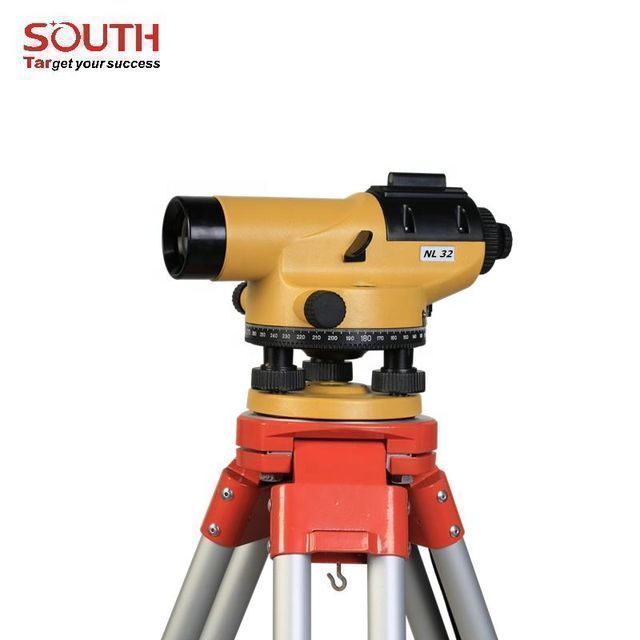

Magnetic Damping 32X Auto Level SOUTH NL32G Optical Measuring Instrument
- 59.40 1 - 4 pieces
- 56.40 5 - 24 pieces
- 50.40 >=25 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Compensator: | Magnetic damping | enlarge: | 32x |
| model: | NL32G | place of origin; place of origin: | Guangdong, China |
| payment terms: | wire transfer | brand: | South |

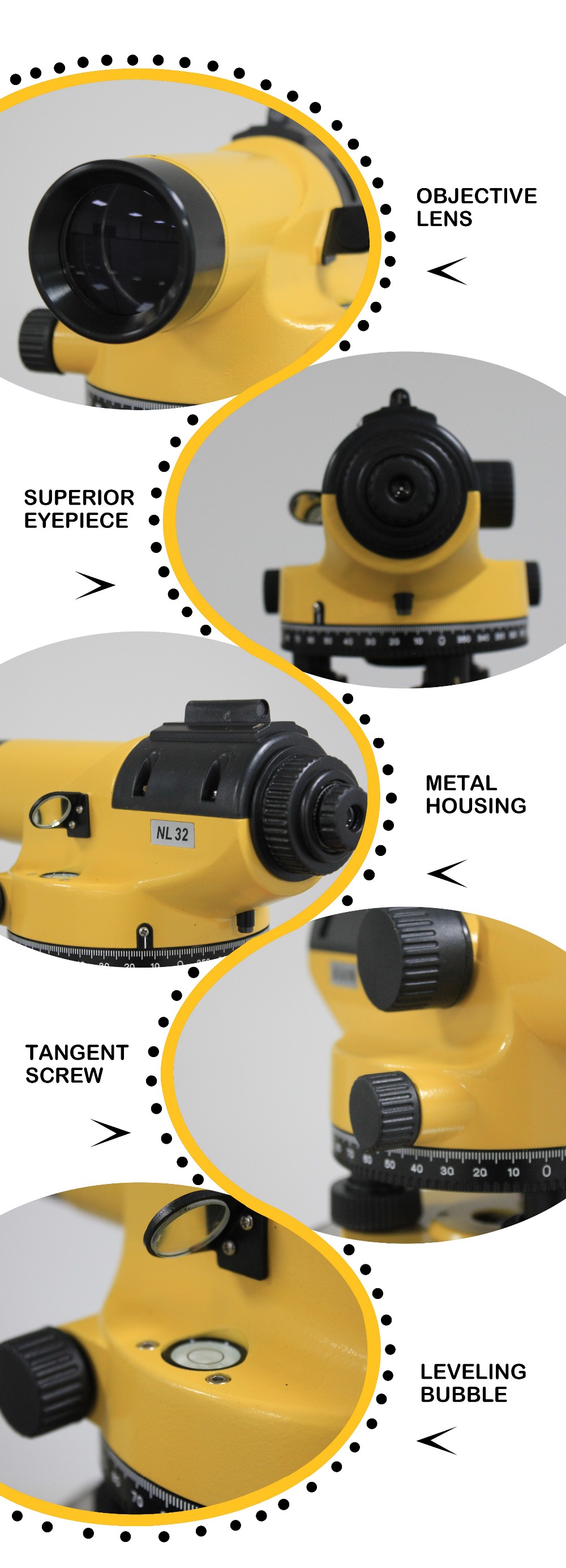

main feature
1) Reliable and durable leveling tool
2) 32X magnification, 28x, 24x, 20x are also available.
3) Excellent shockproof design
4) Magnetic damping compensator
NL20G | NL24G | NL28G | NL32G | ||||
enlarge | 20 times | 24x | 28x | 32x | |||
Effective objective lens aperture | 34mm | 36mm | 36mm | 38mm | |||
picture | upright | ||||||
vision | 1°20' | ||||||
Minimum focal length | 0.6m | ||||||
multiplicative constant | 100 | ||||||
additive constant | 0 | ||||||
Compensator Type | Magnetic damping | ||||||
Compensator range | ±15' | ||||||
Compensator Accuracy | ±0.6" | ±0.6" | ±0.6" | ±0.6" | |||
Standard 1 km deviation | 2.5mm | 2.0mm | 1.5mm | 1.0mm | |||
Sensitivity | 8'/2mm | ||||||
circle graduation | 360° or 400 gon | ||||||
Protection class | IP54 | ||||||
Operating temperature | - 20℃ ~ +50℃ | ||||||
Storage temperature | - 40℃ ~ +70℃ | ||||||
net weight | 1.8kg | ||||||
