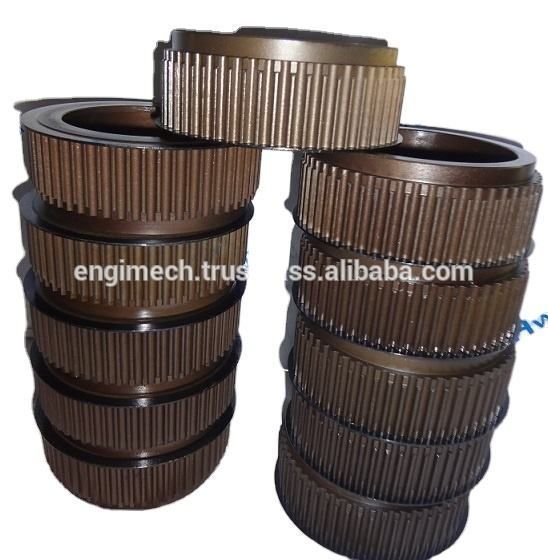

HTD machines, Gear machines for various industrial machines
- 1.00 piece
| Warranty: | 1 year | After Warranty Service: | Video technical support |
| type: | pulley | Health status: | new |
| Showroom location: | India | Card: | engineer |
| port: | ahmedabad or nawashewa | Model: | VI-800 |
| Flange Material: | Stainless steel | Core components: | PLC, engine, bearing, motor |
| brand: | engineer | Mechanical test report: | Not available |
| payment terms: | L/C,Western Union,D/P,T/T,Pay Pal | Weight (kg): | 2.5 |
| Packaging Preview: | Applicable industries: | Mechanical repair shops, manufacturing plants, food and beverage plants, printing plants, construction works, energy and mining | |
| Supply capacity: | 10000 pieces per month | Marketing Type: | normal product |
| Video external inspection: | Not available | Material: | Aluminium or AISI 1045 |
| Packaging Details: | Seaworthy corrugated boxes on wooden pallets | After-sales service provided: | Online support |
We manufacture high qualitytiming pulley/Positive drive pulleyAccording to standard and custom specifications. We also provide complete drive design and development services based on customer needs.
|
belt segment |
asphalt |
outer diameter (Pcd difference is small) |
Belt width |
tooth depth |
|
High torque drive pulley with curved geometry teeth, i.e. as follows: |
||||
|
3M HTD Timing Pulley |
3.000 mm |
0.75mm |
6, 9 mm |
Not applicable |
|
5M HTD timing pulley |
5.000 mm |
1.15mm |
9, 15mm |
Not applicable |
|
8M synchronous pulley |
8.000 mm |
1.37mm |
20,30,50,85 mm |
3.560 mm |
|
14M HTD timing pulley |
14.000 mm |
2.80 mm |
40,55,85,115,170 mm |
Not applicable |
|
Bush |
Large diameter (mm) |
Length (mm) |
Maximum Aperture (mm) |
|
1008 |
35.30 |
22.20 |
9 to 25 |
|
1108 |
38.20 |
22.20 |
9 to 28 |
|
1210 |
47.50 |
25.40 |
11 to 32 |
|
1215 |
47.50 |
38.10 |
11 to 32 |
|
1610 |
57.10 |
25.40 |
14 to 42 |
|
1650 |
57.10 |
38.10 |
14 to 50 |
|
2010 |
69.80 |
31.75 |
16 to 60 |
|
2517 |
85.60 |
44.45 |
25 to 75 |
|
2525 |
85.60 |
63.50 |
25 to 75 |
|
3020 |
107.80 |
50.80 |
25 to 75 |
|
3030 |
107.80 |
76.20 |
25 to 75 |
|
|
|
|
|
