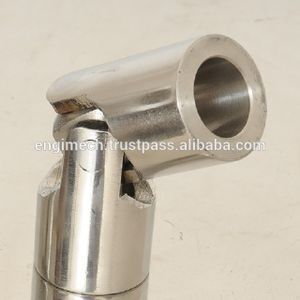

Superb Quality Single Universal Joint having Operating Angle at 45 degree

Click here to contact

Product details

Place of Origin:	India;	Operating Angle:	Max Working Angle 45 Degree;
Package Preview:	;	Port:	Mumbai or Ahmedabad;
Packaging Detail:	Standard Sea worthy - Corrugated carton boxes on wooden pallets;	Payment Terms:	L/C,D/P,T/T,Western Union,Pay Pal;
Application:	Mechanical;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Printing Shops,Construction works ,Energy & Mining;
Supply Ability:	10000.0 Piece/Pieces per Month;	Material:	STAINLESS STEEL;
Brand Name:	Engimech;	Structure:	DOUBLE;

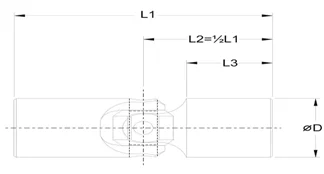

Normal Size (in Inches)	D (in mm)	L 1 (in mm)	L 3 (in mm)	Maximum Operating Torque (in Nm)
Single Universal Joint – 3/8”	9.39	44.5	17.2	2.3
Single Universal Joint – 1/2”	12.57	50.8	19.1	7.9
Single Universal Joint – 5/8”	15.75	57.2	20.6	15.2
Single Universal Joint – 3/4”	18.93	68.3	24.1	28.2
Single Universal Joint – 7/8”	22.10	76.2	26.2	39.5
Single Universal Joint – 1”	25.27	85.7	30.2	50.8
Single Universal Joint – 1-1/8”	28.45	88.9	31.0	73.4
Single Universal Joint – 1-1/4”	31.62	95.3	31.8	117.9
Single Universal Joint – 1-1/2”	37.97	108.0	35.7	225.9
Single Universal Joint – 1-3/4”	44.32	127.0	40.6	327.4
Single Universal Joint – 2”	50.67	139.7	43.2	485.5
