KINGPAK Fluid Plate Heat Exchanger Price
-
Supplier: Wenzhou Kingpak Manufacturing Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Pan Michael -
Price: $500.00 /unit -
Min. Order: 1 unit
| Dimension(L*W*H): | 1500*800*1300mm; | Power(W): | 3-15KW; |
| Brand Name: | kingpak; | Model Number: | Plate Heat Exchanger; |
| Condition: | New; | Packaging Detail: | Within: film packaging, Outside: wooden packaging, (the price would include packing fee); |
| Delivery Detail: | in 10 days after receive the deposit; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Warranty: | 1year; | Processing: | Heat Exchanger; |
| Voltage: | 220v; | Payment Terms: | T/T; |
| Certification: | ce; | Processing Types: | Juice; |
| Place of Origin: | Zhejiang China (Mainland); | Weight: | 120kg; |
| Port: | Shanghai or Ningbo; | Supply Ability: | 200 Set/Sets per Month Can be customized plate heat exchanger; |
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Plate Sheet Type | BR0.05 | BR0.1 | BR0.2 | BR0.3 | BR0.5 |
Plate Sheet Material | SS304 or SS316 | ||||
Single Heat Exchange Area(m2) | 0.05 | 0.1 | 0.2 | 0.3 | 0.5 |
Plate Sheet Size(mm) | 500*168 | 660*250 | 970*330 | 365*1183 | 450*1451 |
Plate Sheet Thickness(mm) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Angle Hole Diameter(mm) | 38 | 60 | 75 | 85 | 110 |
Connect Pipe Diameter(mm) | 28 | 38 | 46 | 90 | 116 |
Corrugation Form | "Y" type | ||||
Corrugation Space Between(mm) | 10 | 12 | 12 | 14 | 16 |
Average Plate Space Between(mm) | 3.8 | 3.8 | 3.8 | 4.5 | 4.5 |
Combined Heat Exchange Area(M2) | 0.5-3 | 3-10 | 8-38 | 30-50 | 40-80 |
Max. Pressure (Mpa) | 0.4-2 | ||||
Max. temperature (oC) | Common:120-160 Especial:250 | ||||
Heat Transfer Coefficient(w/m2 oC) | 2000-6000 | ||||
Note: Due to the escalating changes plate heat exchanger, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>Plate heat exchanger is a high effective heat exchanging equipment, can be used in such fields as chemicals, metallurgy, petroleum, power station, agriculture chemicals, paper making, pharmacy, air-conditioner, beer, beverage, and biological project. It is of advantages of compact structure, large heat exchanging area, small area taking, and easy disassembly, cleaning and maintain.

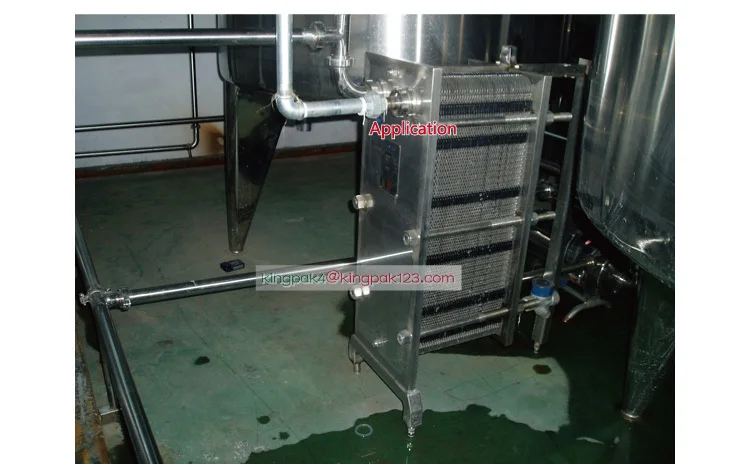

- Scope
>Refrigeration: used for condenser and evaporator.
>Hvac: use in the middle of the boiler heat exchanger, high-rise building intermediate heat exchanger, etc.
>Chemical industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin composite cooling, etc
>Metallurgical industry: aluminate liquor heating or cooling, steelmaking process cooling, etc.
>Machinery industry: all kinds of quenching liquid cooling, reducer lubricating oil cooling, etc.
>Electric power industry: high voltage transformer oil cooling, oil cooling generator bearing, etc.
>Paper industry: bleaching process heat recovery, heating wash slurry, etc.
>Textile industry: viscose rayon aqueous alkali cooling, boiling nitrocellulose cooling, etc.
>Food industry: juice sterilization cooling, animal and plant oil heating or cooling.
>Grease technology: soap base ambient pressure, heating or cooling of various process with liquid.

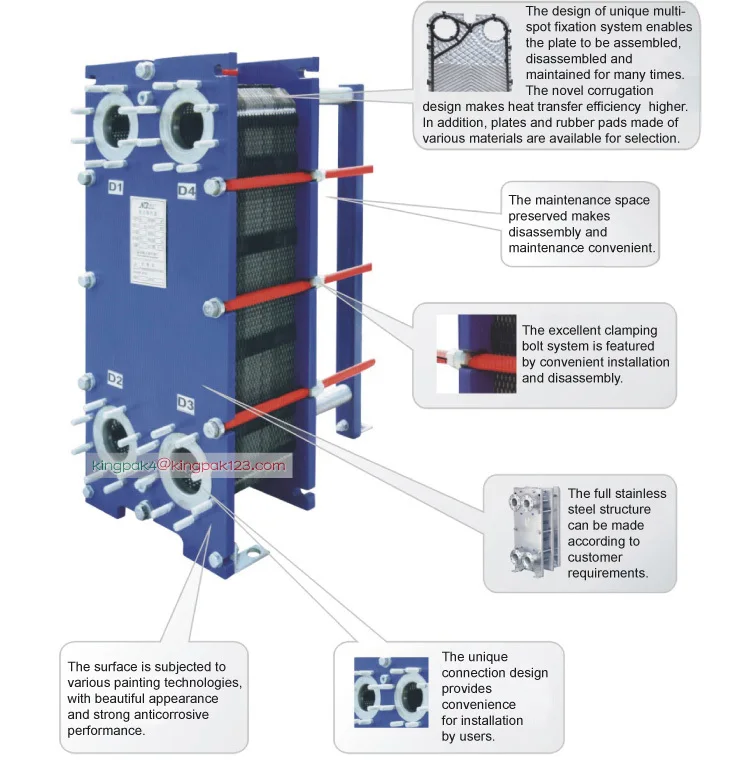

3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
1) high heat transfer coefficient.
2) cover an area of an area small.
3) easy to change the heat transfer area or process combination.
4) the heat loss is small.
4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
-
