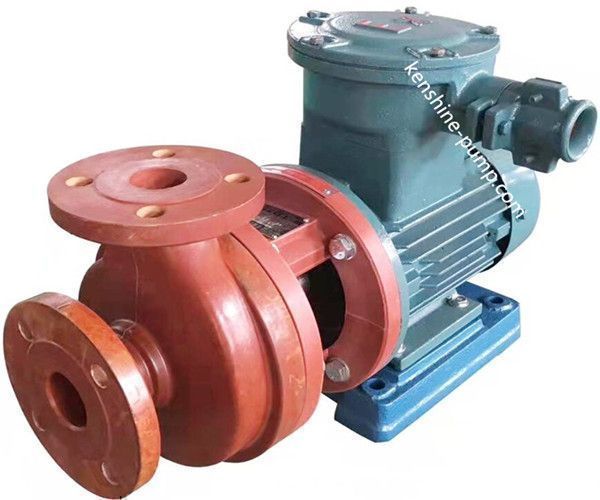

Corrosion resistant fiberglass centrifugal chemical transfer pump for acid

Corrosion-resistant fiberglass pump

fiberglass reinforced plastic pumps are centrifugal, single stage pumps,

The flow parts which contact with liquids are made of polyvinyl butyral, modified phenolic glass fiber material by high temperature molding, with superior corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation, etc

Shaft seal: using WB2 type external F4 corrugated mechanical seal, reliable sealing, long service life.

FS Fiberglass pump is mainly used in petrochemical, smelting, dyes, printing and dyeing, pesticide, pharmaceutical, rare earth, leather and other industries. It is suitable to transport various non-oxidizing acids (hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid) and other corrosive media) without solid particles, not easy to crystallize. Liquid temperature is not higher than 100℃.

Close coupled type which is more compact for the pump and motor.   Flexible shaft coupling for the bigger

Horizontal single stage end suction fiberglass centrifugal pump

The flow components are made of polyvinyl butyral and modified phenolic glass fiber materials by high temperature molding. The material has the features of Corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation etc.

WB2 external mounted mechanical seal

The connection between the pump and motor: Close coupling or Shaft coupling

Fiberglass centrifugal pump is mainly used in petrochemical, smelting, dye, printing and dyeing, pesticide, pharmaceutical, rare earth, leather and other industries. It is used for conveying various non-oxidizing acids (hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid). The acids are without solid particles, not easy to crystallize and the temperature is not higher than 100 degrees Celsius.
