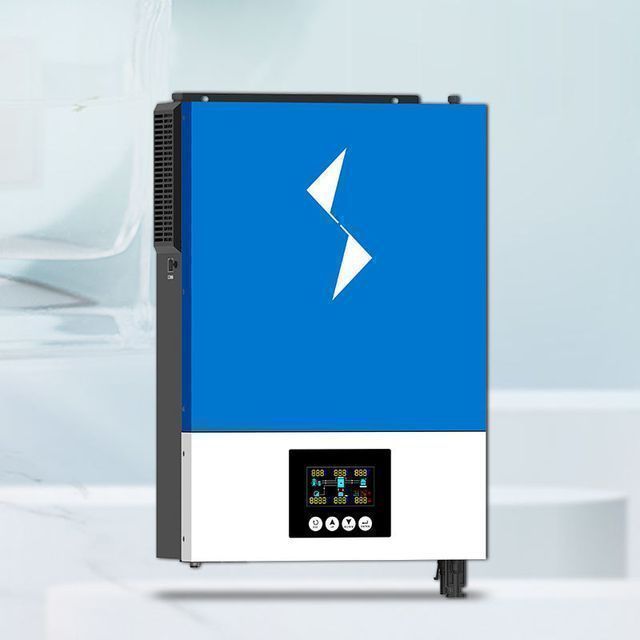

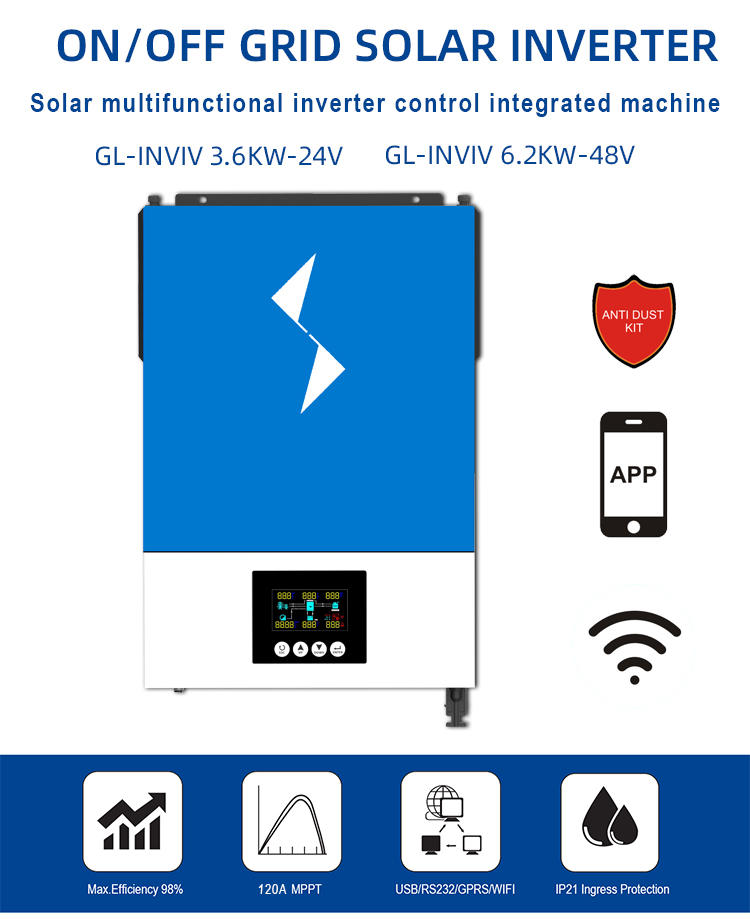

Hybrid Solar Inverter 3.6kw 6.2kw On Grid Off Grid Solar Inverter With Mppt Solar Charge Controller For Home

Supplier: Guolong Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Joanne Tan
Price: $129.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

weight:	12KG	product name:	Solar inverters
Protect:	overload	brand:	gore
application:	Solar System Home	Supply capacity:	10000 pieces per month
payment terms:	L/C,Western Union,D/P,T/T	port:	Ningbo, Shanghai, Wenzhou
Warranty:	1	place of origin; place of origin:	China
Inverter efficiency:	98.1%	size:	420310110mm
type:	DC/AC inverter	Communication Interface:	Remove LCD/RS232/GPRS/WIFI
Input voltage:	DC 24v/48v	Output waveform:	pure sine wave
Certificate:	Chief Executive	Packaging Details:	carton
The output voltage:	230vac	output type:	single
model:	INVV-3.6KW/6.2kw	exhibit:	LCD Monitor
Controller:	120A MPPT	Output frequency:	50/60Hz
Output current:	15.7/27.0A

Product Description

Specification

Model	MY-INVV-3.6KW 24V	MY-INVV-6.2KW 48V
stage	one phase
Maximum PV input power	6200W	6500W
Rated output power	3600W	6200W
Maximum solar charging current	120A
Grid-tied operation PV input (DC)
Nominal DC Voltage / Maximum DC Voltage	360VDC/500VDC
Start-up voltage/initial feed voltage	90VDC/120VDC
MPPT voltage range	90VDC~450VDC
Number of MPPT trackers/maximum input current	1/27A
Grid output alternating current
Nominal output voltage	200/230/240VAC
Output voltage range	195.5~253VAC
Nominal output current	15.7A	27.0A
power factor	>0.99
Feed into grid frequency range	49-51±1Hz
efficiency
Maximum Conversion Efficiency (DC/AC)	97%
Two-way load output power supply (V2.0)
fully loaded	3600W	6200W
Maximum main load	3600W	6200W
Maximum secondary load (battery mode)	1200W	2067W
Main load cut-off voltage	22VDC	44VDC
Main load return voltage	24VDC	48VDC
AC input for off-grid operation
AC starting voltage/auto-restart voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC input current	30A	40A
Nominal operating frequency	50/60Hz
surge power	7200VA	12400VA
PV input (DC)
Maximum DC voltage	500VDC
MPPT voltage range	90VDC-450VDC
Number of MPPT trackers/maximum input current	1/27A
Battery Mode Output (AC)
Nominal output voltage	24VDC	48VDC
output waveform	pure sine wave
Efficiency (DC to AC)	94%
charger
Nominal DC voltage	24VDC	48VDC
Maximum solar charging current	120A
Maximum AC Charge Current	100A
Maximum battery current	125A	150A
general physics
Dimensions, D x W x H(mm)	420310110
Net weight (kg)	10	11
interface
Communication port	RS232/WIFI/BMS
surroundings
humidity	0~90%
Operating temperature	-10 to 50℃

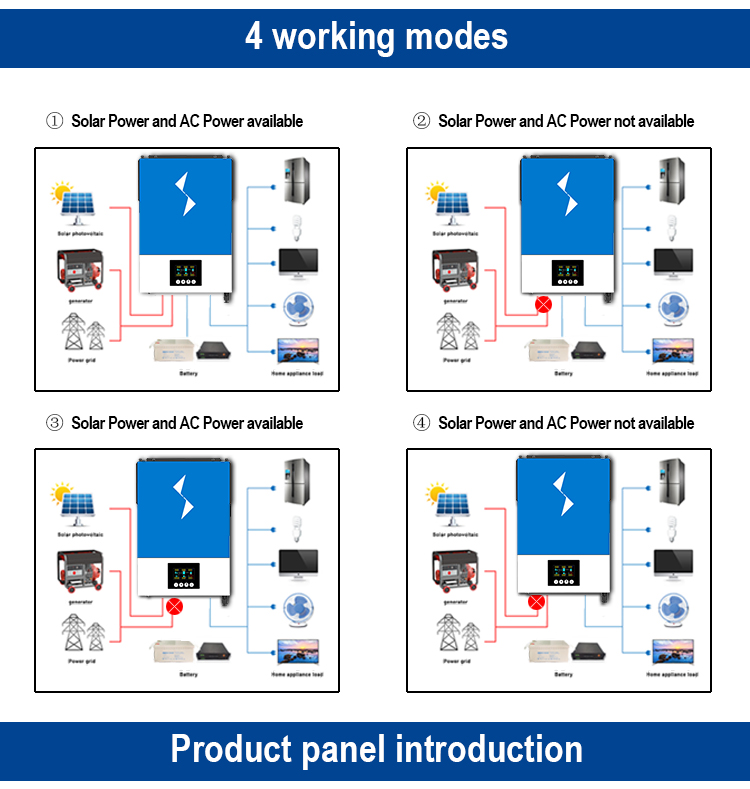

System diagram

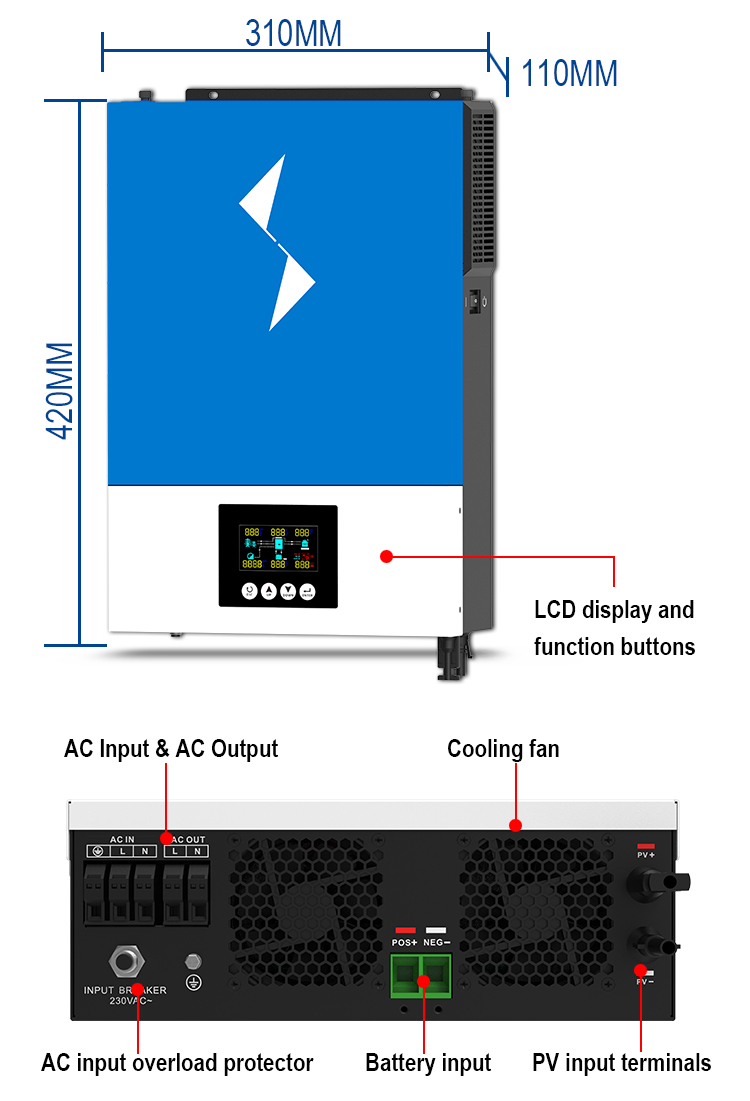

Product panel introduction

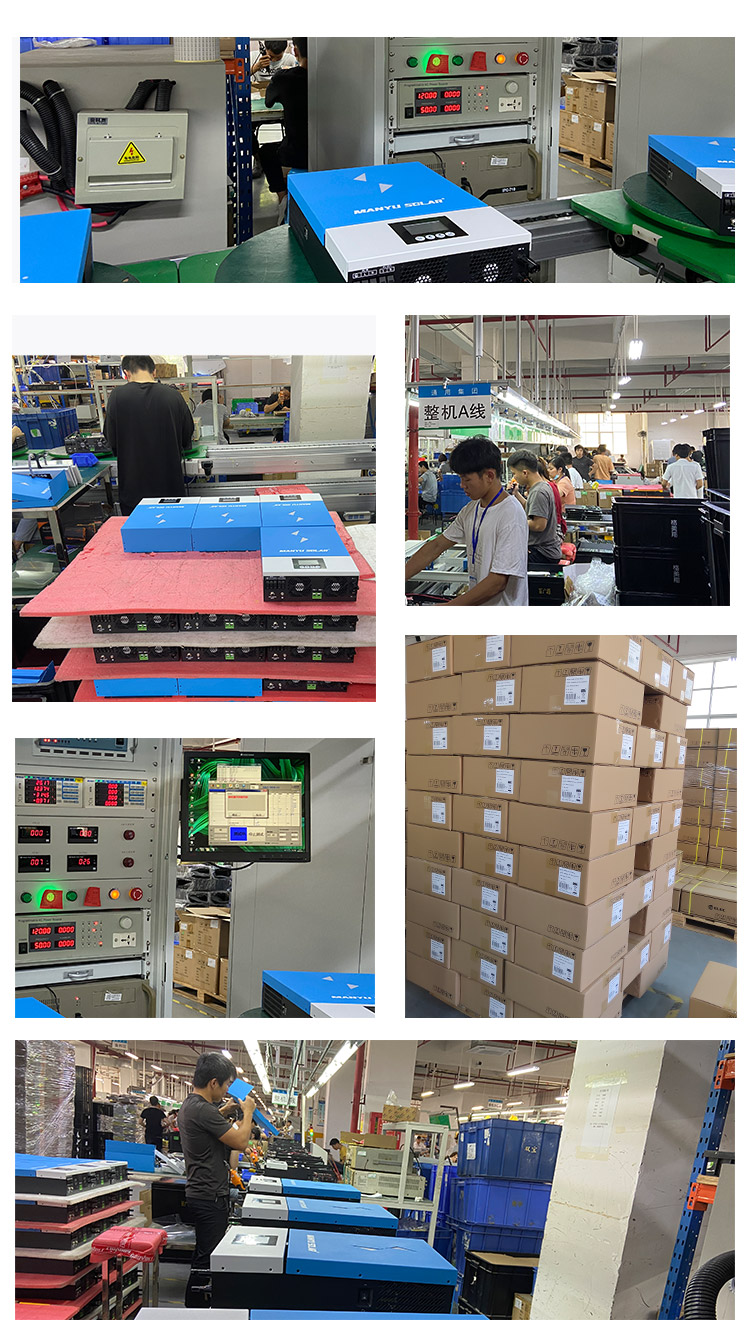

Production site
