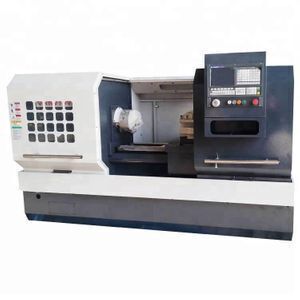

CK6140 High Quality China Flat Bed cnc Lathe Machine Price

Supplier: Shandong Lu Young Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Bruce Yang
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Model Number:	CK6140A;
Spindle speed:	150-2500rpm;	Supply Ability:	60 Set/Sets per Month;
Voltage:	380v 50hz;	Max. swing over bed:	400mm;
Max. swing over carriage:	225mm;	Chuck:	Manual 3 Jaw Chuck;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Tool holder:	4 station electric tool holder;
Packaging Detail:	Standard export package CK6140 High Quality China Flat Bed cnc Lathe Machine Price;	Spindle bore:	60mm;
Brand Name:	Lu Young;	Port:	Qingdao or shanghai port;
Place of Origin:	Shandong China (Mainland);	System:	GSK,KND, FANUC,SIEMENS;
After-sales Service Provided:	Engineers available to service machinery overseas;	Machine Type:	CK6140 High Quality China Flat Bed cnc Lathe Machine Price;
Condition:	New;	Weight:	1800/1950kg;
Dimension(LWH):	2120/237014001700mm;	Type:	Horizontal;
Max. Swing Diameter:	400mm;	Power(W):	5.5KW;
Processing length:	750/1000MM;	CNC or Not:	CNC;
Max. Spindle Speed (r.p.m):	2500;	Warranty:	1 Year;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	CE ISO9001;

CK6140 High Quality China Flat Bed cnc Lathe Machine Price

Product Description

Meddle CNC Lathe Machine CK6140

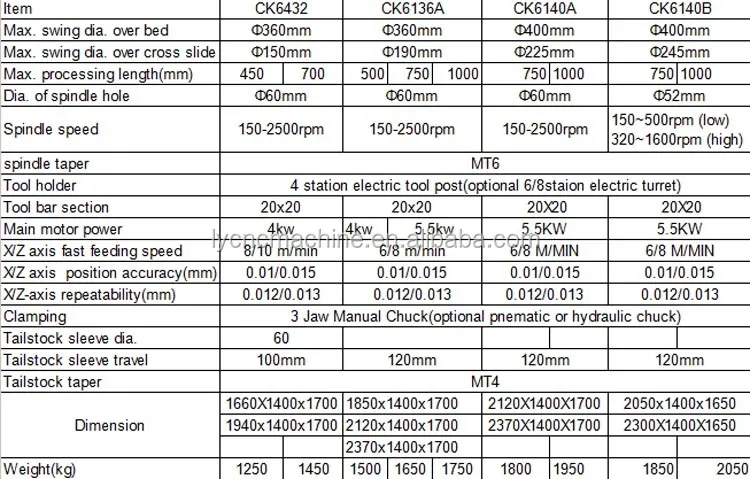

Item	CK6140A		CK6140B
Max. swing dia. over bed	Φ400mm		Φ400mm
Max. swing dia. over cross slide	Φ225mm		Φ245mm
Max. processing length(mm)	750	1000	750	1000
Dia. of spindle hole	Φ60mm		Φ52mm
Spindle speed	150-2500rpm		150~500rpm (low) 320~1600rpm (high)
spindle taper	MT6
Tool holder	4 station electric tool post(optional 6/8staion electric turret)
Tool bar section	20X20		20X20
Main motor power	5.5KW		5.5KW
X/Z axis fast feeding speed	6/8 M/MIN		6/8 M/MIN
X/Z axis position accuracy(mm)	0.01/0.015		0.01/0.015
X/Z-axis repeatability(mm)	0.012/0.013		0.012/0.013
Clamping	3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.	60	60	60	60
Tailstock sleeve travel	120mm		120mm
Tailstock taper	MT4
Dimension	2120X1400X1700		2050x1400x1650
	2370X1400X1700		2300X1400X1650
Weight(kg)	1800	1950	1850	2050
Standard configuration:		Optinal configuration:
GSK928 CNC Controller		Siemens,Fanuc cnc controller system
Servo motor for X,Z axis, Servo driven		pneumatic chuck,hydraulic chuck
3 Jaw Manual Chuck		pneumatic tailstock,hydraulic tailstock
4 station electric tool post		6 staion tool turret,8staiton tool turret
Auto lubrication system		Auto feeder system
lighting system		Chip conveyor
cooling system
Detail photo:

Company Information

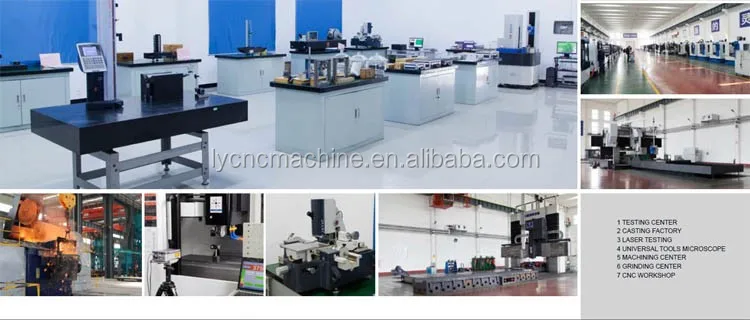

Company Strength:

Production Capatity:

CNC Lathe Machine:400 sets/year

CNC Milling Machine:300 sets/year

Other CNC Machine 200sets/year

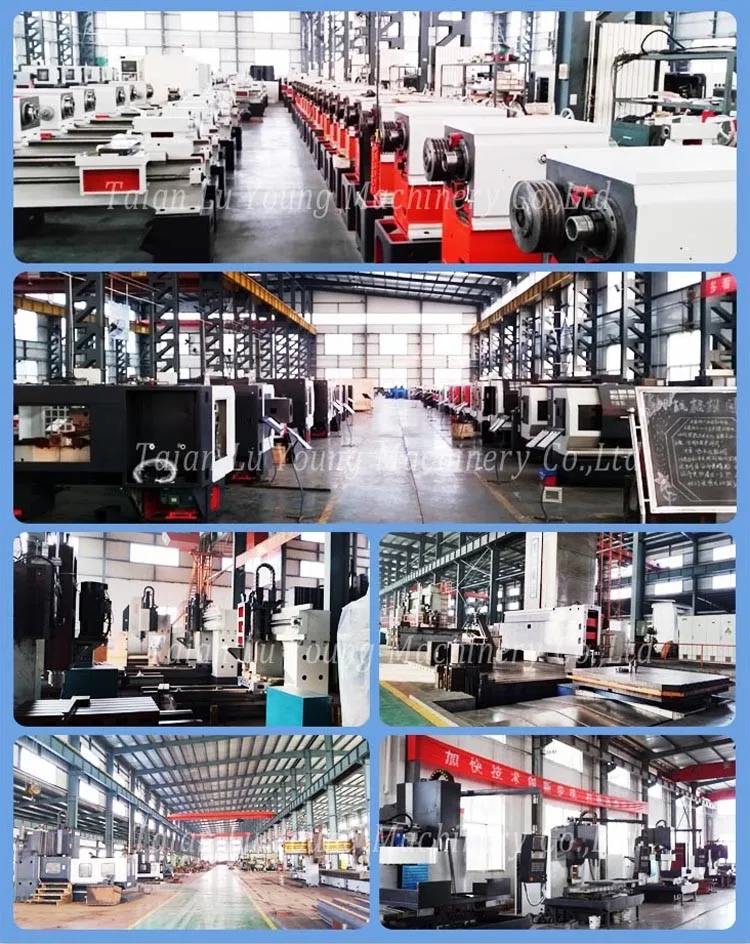

Workshop Detail:

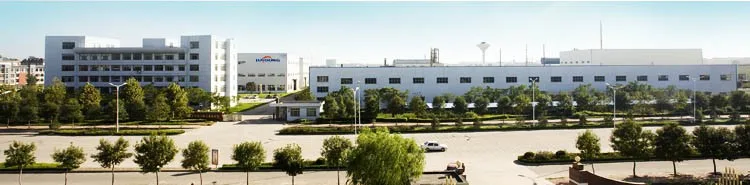

About factroy

Established in 1995, covers an area of 35,000 square meters,and more than 300 workers in all.
Our company has established a base to realize scientific research achievement with Shandong University, and established the academician workstation with Huazhong University of Science and Technology in 2011, which composed of Technology Development Center, Information & Data Processing Center, Product Supervision & Test Center and Metrology room. CAD and
ERP are adopted in the development of new products and informatization management.
