Farmland Irrigation Solar Pumping System Products from Yunnan Yaochuang Energy Development Co., Ltd.

Product Details

payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram	load:	AC 220V / 380V Electric Water Pump Motor
theory:	Solar water pump system	Warranty:	1-10 years
port:	Shanghai	Private Label:	usable
Input voltage:	DC 310V / 560V	Supply capacity:	10000 Wp per week
strength:	solar submersible water pump	structure:	Deep well water pump
application:	submersible	Inverter:	Solar water pump inverter with built-in VFD
Output frequency:	0-50/60Hz	brand:	Yaochuang Energy
Serve:	Free Solar Power System Design	usage:	Solar Irrigation Pump
PV array:	Polycrystalline/Monocrystalline Solar Panel Modules	Certificate:	CE & TUV & RoHS
model:	solar water pump irrigation	place of origin; place of origin:	China Shanghai
pressure:	high pressure	Standard or non-standard:	solar pumping
stage:	single phase or three phase	gasoline:	The Sun can generate system
Packaging Details:	Standard export packing carton/wooden box by sea or air

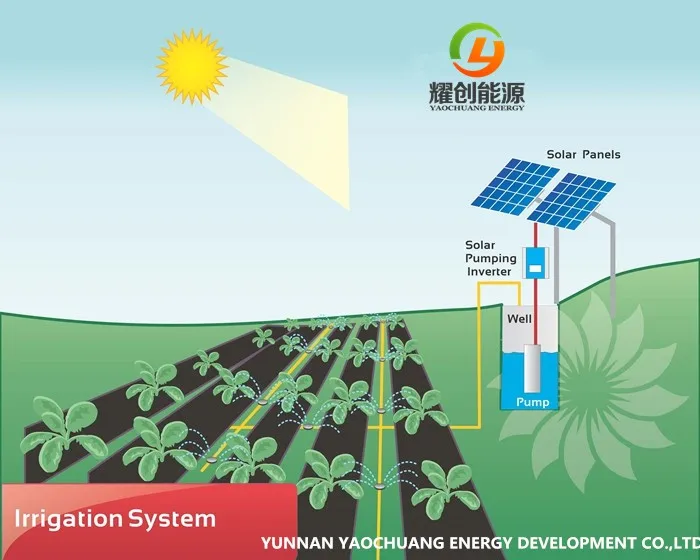

Farmland Irrigation Solar Pumping System

Yaochuang Energy has been committed to agricultural irrigation application of solar water pump system for more than 10 years.
Cooperate with famous Chinese brand CNP/NENBA to manufacture solar panels and solar water pump inverters and water pumps.
Solar power system products have been exported to the Middle East, Southeast Asia, Africa, South America.
Free system design, technical support, commissioning and installation services, 1-year after-sales service for the whole machine, and 10-year warranty for solar panels.
CE & RoHS & TUV certified solar products.
Solar water pumps, solar lighting systems, off-grid/on-grid solar power generation systems, solar power stations/stations, solar street lights, solar camping lights, etc.

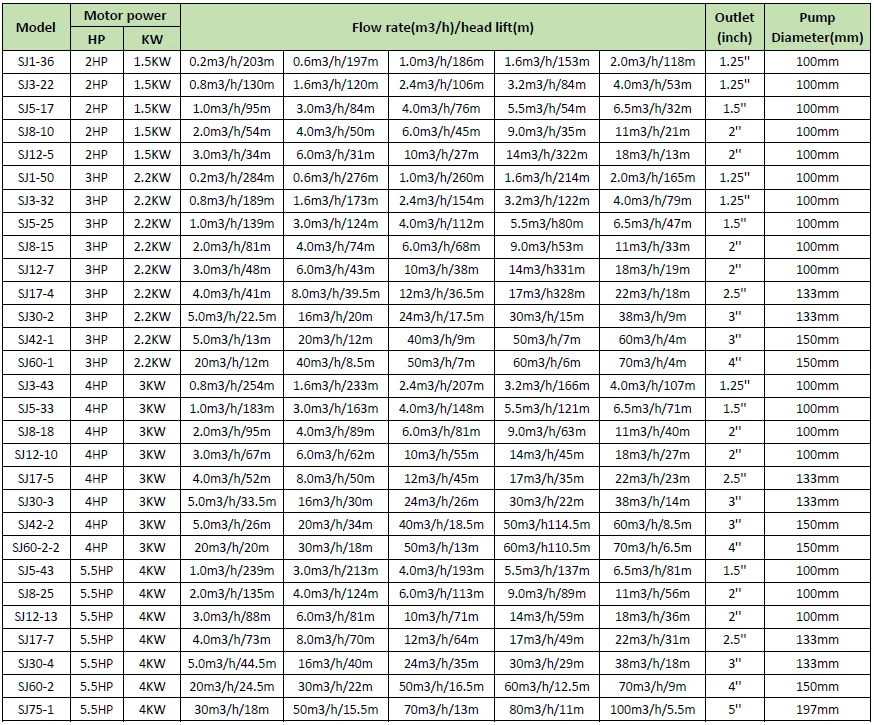

Widely used submersible deep well water pump

According to different sources and uses, choose the appropriate pump model. Now, the most popular pumps are submersible deep well pumps, horizontal centrifugal pumps and vertical centrifugal pumps. The most widely used solar water pump is the submersible deep well water pump, which can be used in boreholes, deep wells, rivers, water tanks.

application

Circulation or pressurization of clean water, demineralization
water
water supply and irrigation system
Lower the groundwater level
promote
Industrial application

operating conditions

◊ Diluted clean, non-corrosive liquid free of solid particles or fibers
◊ Maximum liquid temperature: +25°C
◊ Maximum working pressure: 38 bar
◊ PH: 6.5~8.5
◊ Maximum diving depth: ≤70m

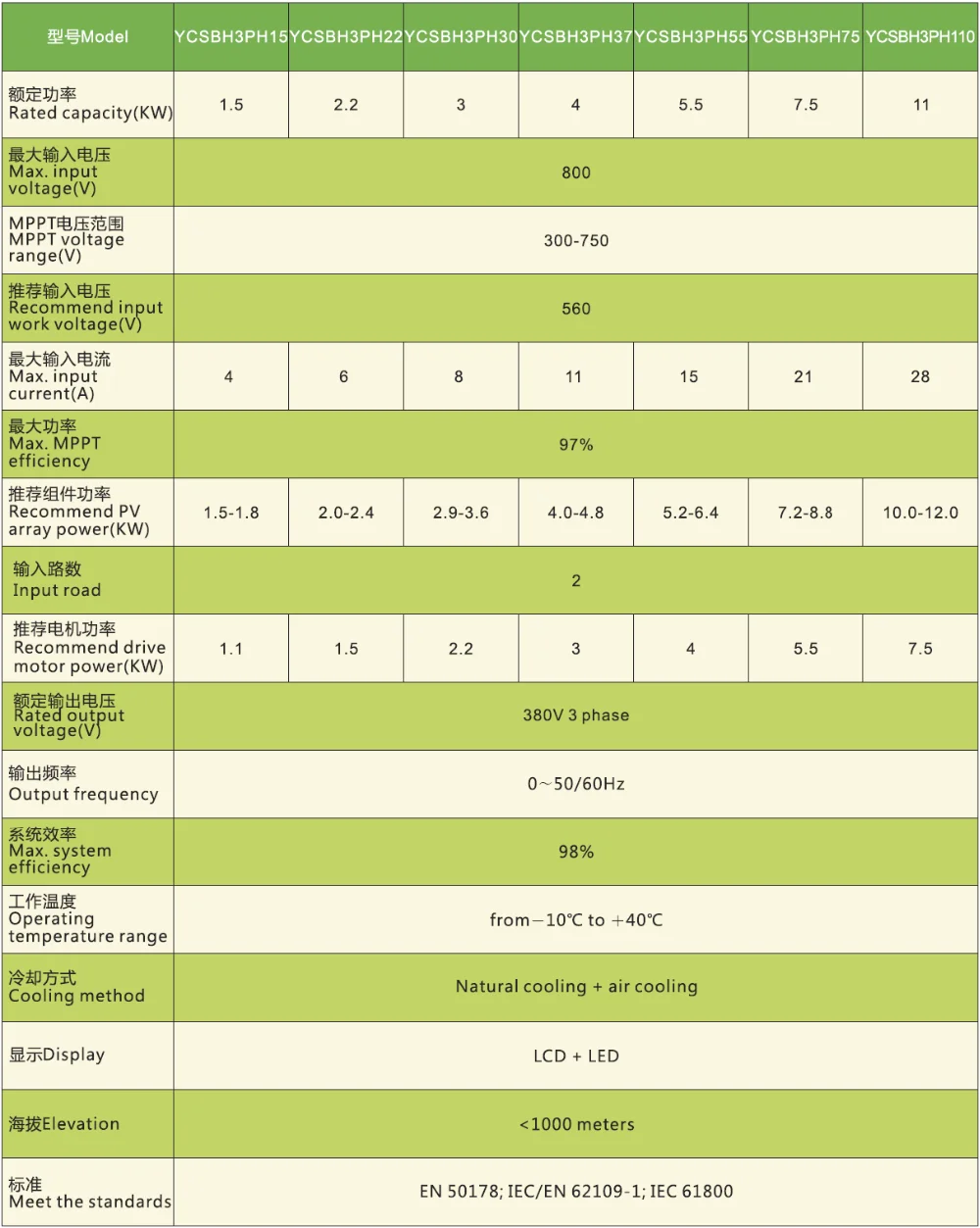

Solar Water Pump Inverter Single Phase/Three Phase

To meet the needs of various pumping applications, the YCSB solar water pump controller uses maximum power point tracking and mature motor drive technology to maximize the output power of the photovoltaic array. Both DC and AC input are supported, if the sunlight is insufficient, the controller will switch to single-phase or three-phase AC input, such as a generator set or battery. And provide fault detection, built-in VFD, speed regulation functions, out of the box, easy to install.
