PLC control system laboratory mixer
-
Supplier: Dongguan Baopin Precision Instruments Co., Ltd. -
Region: Guangdong, China -
Contact: Mr BAOPIN Zhou -
Price: $5600.00 /set -
Min. Order: 1 set
| Mechanical test report: | if | color: | Yellow, white and others accepted |
| Core components: | PLC, motor | Power (kW): | 5kW |
| Total capacity (L): | 1 Litre | payment terms: | Western Union, Wire Transfer, Paypal |
| Health status: | new laboratory mixer, new | port: | Shenzhen |
| Supply capacity: | 35 sets of laboratory mixers per month | place of origin; place of origin: | Guangdong, China |
| Core Components Warranty: | 1 year | After-sale service: | Always serve you sincerely |
| Weight (kg): | 300kg | model: | BP-8172-B Laboratory Mixer,BP-8172-B |
| Debug installation service: | Laboratory mixer completed before shipment | Video external inspection: | if |
| ODM/OEM: | Accept Lab Mixer | Packaging Details: | The inner packaging of the equipment is film and foam, and the outer packaging of the laboratory mixer is exempt from inspection. |
| Shipping Terms: | Sea, Air, Express and Train | Applicable industries: | manufacturing plant |
| type: | PLC control system laboratory mixer | Voltage: | AC380V |
| Main selling point: | High precision, good quality and optimal function | Marketing Type: | normal product |
| Dimensions (L*W*H): | 560*565*1250mm | brand: | Treasures |
| Warranty: | Lab Mixer 1 Year, 1 Year | Batch time (times/hour): | 3 times/hour |
| Showroom location: | not any | Name: | PLC control system laboratory mixer |

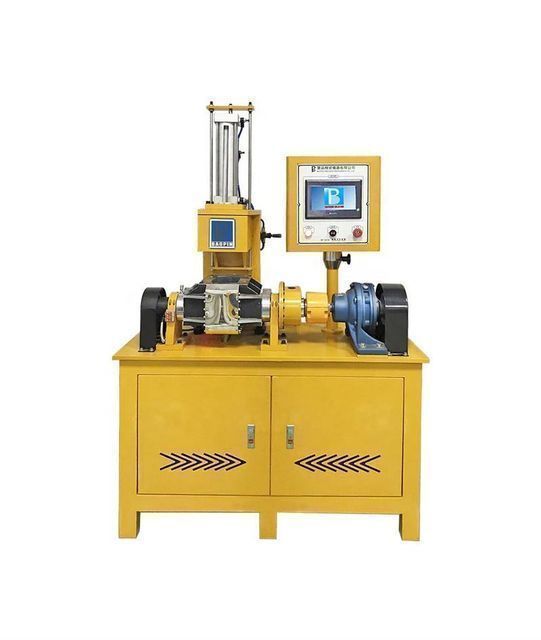

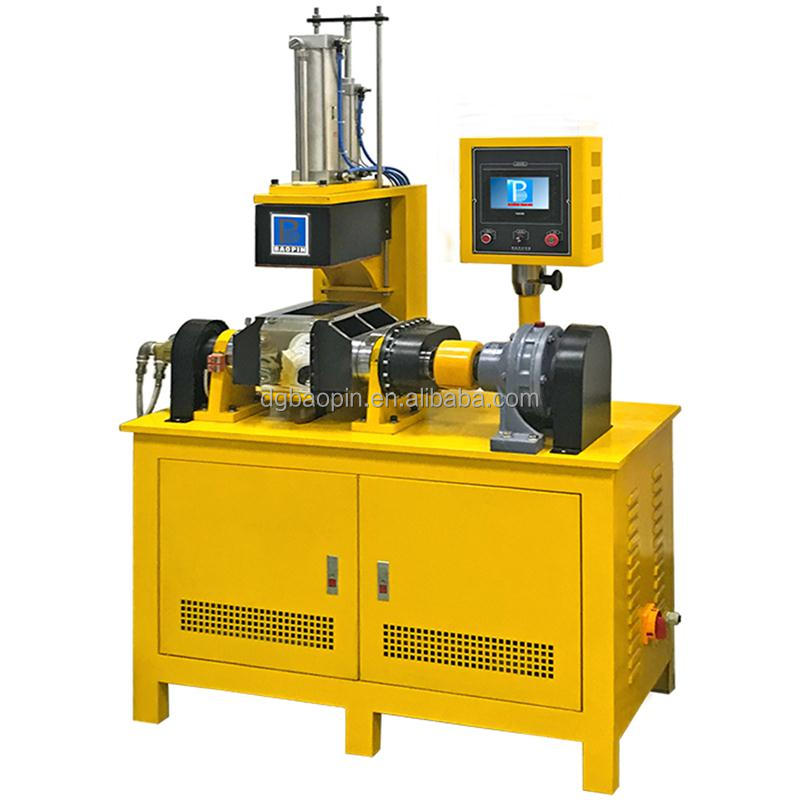

PLC control system laboratory mixer
|
scope |
|
|
Mixing chamber volume |
1L/3L/5L (optional) |
|
Rotation angle |
135° |
|
Refueling way |
turn around |
|
Rotor ratio |
1:1.27 |
|
rotor speed |
0-50rpm inverterthreeAdjust the speed |
|
temperature range |
normal temperature~260°C |
|
heating method |
Heating plate |
|
cooling method |
Tap water cooling (water connection port provided by customer) |
|
Air pressure |
0.5~0.8Mpa (customer provides air source connection port) |
|
Rotor material |
SKD chrome molybdenum alloy |
|
heating power |
2.5KW |
|
Rotor hardness |
HRC60 mirror chrome |
| mixing chamber | SKD chrome molybdenum alloy, inner surface mirror-plated HRC60 chrome |
|
strength |
8KW~15KW |
|
controller |
PLC programmable color touch screen, man-machine interface system, all parameters can be set and controlled arbitrarily, dynamic display of molding process |
|
power supply |
3§, AC380V, 22A three-phase five-wire power supply (The connection port is provided by the customer.) |
-
