V760A-5 0.5 inch OLED virtual 90 inch screen wearing high-definition large screen portable display electronic viewfinder

Supplier: Shenzhen V-Focus Electronic Technology R&D Co., Ltd.
Region: Guangdong, China
Contact: Mr Andy Yu
Price: $159.99 / 1 - 4 pieces
$149.99 / 5 - 9 pieces
$146.99 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	Safe packaging	Single package size:	18X8X9 cm
brand:	OEM	Gross weight per piece:	1.000 kg
place of origin; place of origin:	Guangdong, China	model:	V760A-5
Sales unit:	single product

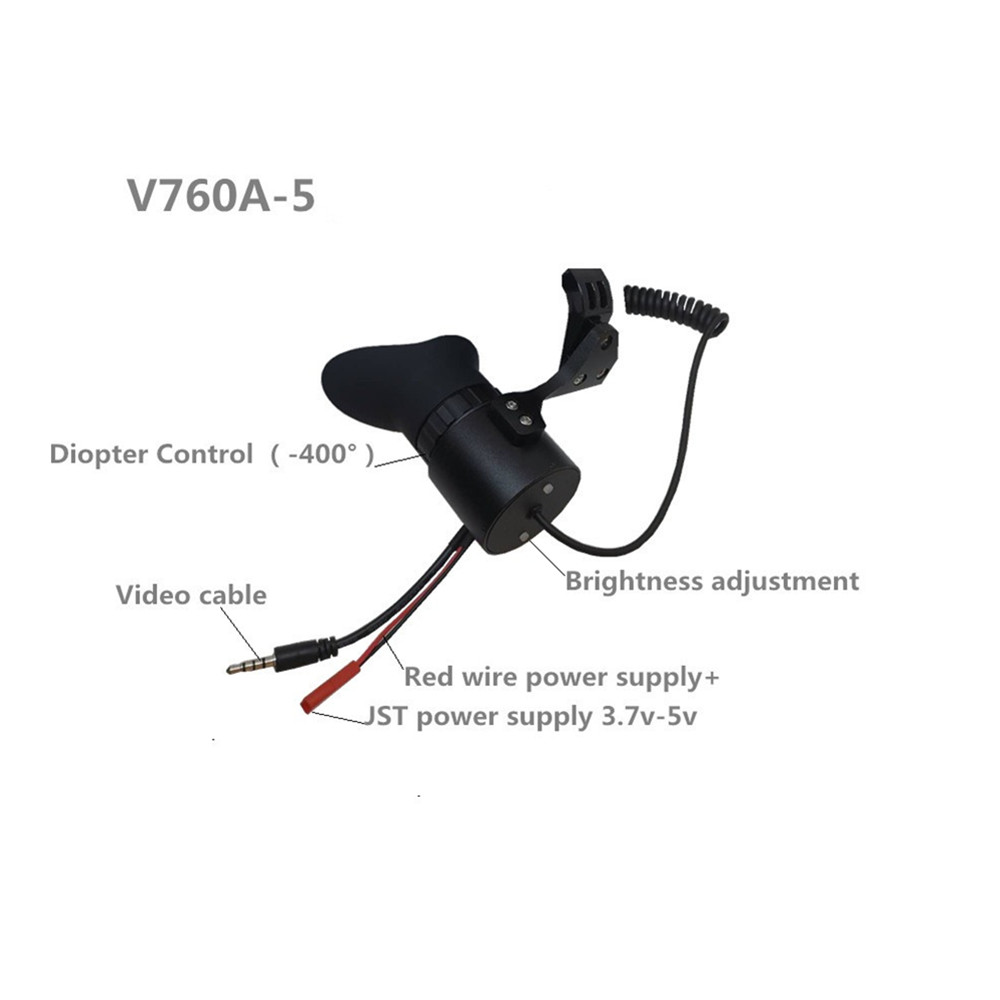

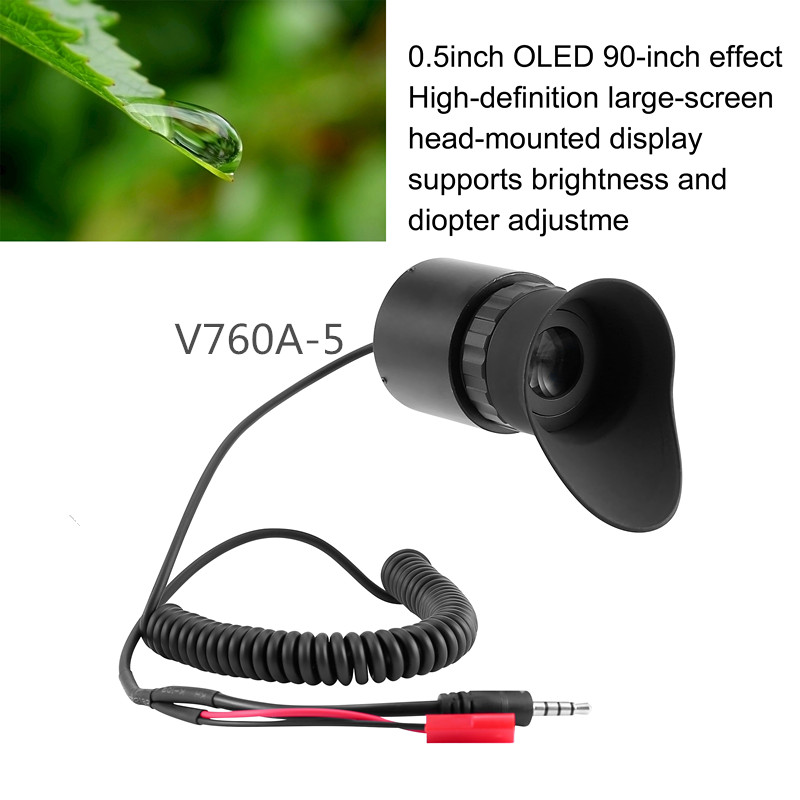

V760A-5 virtual 90-inch monitor wearing high-definition large-screen portable monitor

scope	exhibit:	0.5 INCU OLED
	Resolution:	1024*768
	screen ratio:	4:3
	Color depth:	24-bit input
	Perspective:	45° diagonal
	Video input:	composite video
	Video signal:	NTSC/PAL/SECAM automatic selection
	Operating Voltage	3.7-5V
	Working current	100mA
	energy consumption	0.1W
	Display frame rate	120HZ(NTSC),100HZ(PAL)
	Exit pupil distance	20mm
	Exit pupil diameter	1-2m
	eyepiece	14x optical
	Dimming	Yes
	Diopter adjustment	Yes
application
	1024×768 active matrix color 0.5 inch OLED panel module adopts monocrystalline silicon transistor
	The display module can be equivalent to a virtual 90-inch screen at a distance of 2 meters,
	VGA pixel, image and light source system of micro display chip, High-performance optical engine, drive control circuit
	FPV model aircraft display, plug and play, convenient for users to carry and operate
	Monocular Display Kit, Night Vision, Medical, Information, Infrared Detection, Power Monitoring Electronics Kit Viewfinder
	Metal shell with internal fixing bracket, waterproof, dustproof and shockproof
	Equipped with 18MM eyepiece, custom hood,
	Humanized shoulder strap, comfortable and convenient, and supports up and down adjustment
Accessories
	Display*1
	Bind*1
	Instruction manual × 1
Package	Unit size (mm)	Unit GW (kg)
Package	1889CM	0.35
