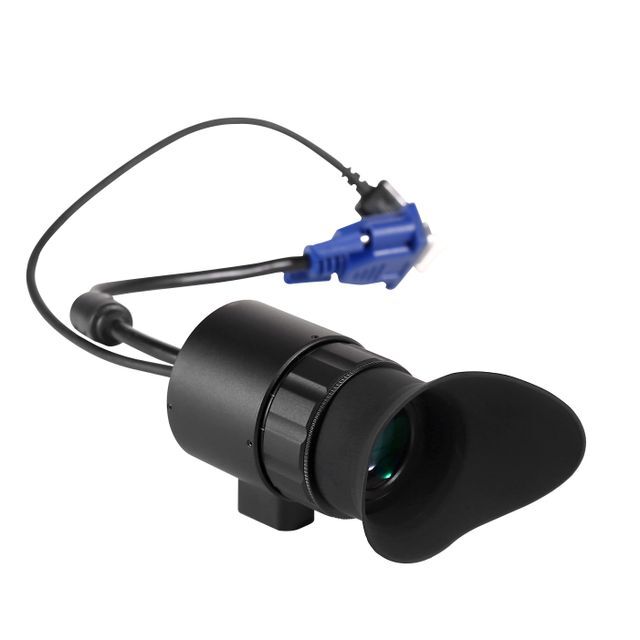

V780V/H 0.5 inch OLED virtual 80 inch display wearing high-definition large-screen portable display electronic viewfinder

Supplier: Shenzhen V-Focus Electronic Technology R&D Co., Ltd.
Region: Guangdong, China
Contact: Mr Andy Yu
Price: $221.00 / 1 - 4 pieces
$219.00 / 5 - 9 pieces
$217.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

place of origin; place of origin:	Guangdong, China	Packaging Details:	Safe packaging
Single package size:	18X8X9 cm	Sales unit:	single product
model:	V780V/H	brand:	OEM
Gross weight per piece:	1.000 kg

V780V/H virtual 80-inch monitor wearing high-definition large-screen portable monitor

scope	exhibit:	0.5 inch OLED
	Resolution:	1024*768
	screen ratio:	4:3
	Color depth:	24-bit input
	Perspective:	45° diagonal
	Video input:	Composite VGA
	Video signal:	Digital signal
	Operating Voltage	3.7-5V
	Working current	350MA
	energy consumption	0.5W
	Display frame rate	60Hz
	Exit pupil distance	20mm
	pupil diameter	22MM
	eyepiece	12x optical
	Dimming	Yes
	Contrast	Yes
	Diopter adjustment	Yes
application
	1024*768 active matrix color 0.5 inch OLED panel module adopts monocrystalline silicon transistor
	The display module can be equivalent to a virtual 80-inch screen at a distance of 2 meters,
	VGA pixel, image and light source system of micro display chip, High-performance optical engine, drive control circuit
	Camera external viewfinder, industrial equipment HD monitor, analog command system observer
	Monocular Display Kit, Night Vision, Medical, Information, Infrared Detection, Power Monitoring Electronics Kit Viewfinder
	Metal shell with internal fixing bracket, waterproof, dustproof and shockproof
	Equipped with 22MM eyepiece, custom hood,
	Support 1/4 inch tripod hole for fixing
	Support brightness and contrast adjustment, 0-400° diopter adjustment
Accessories
	USB extension cable*1
	Suitcase*1
	VGA extension cable*1
	Instruction manual × 1
Package	Unit size (mm)	Unit GW (kg)
Package	1889CM	0.55
