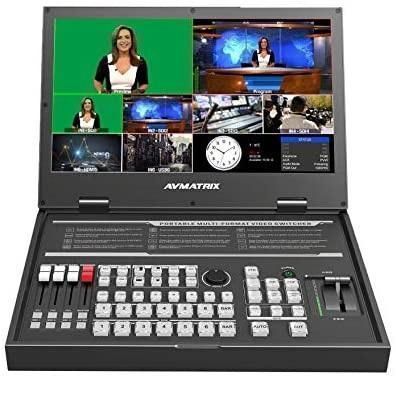

Lilliput AVMatrix PVS0615U 6-Channel Multi-Format Streaming Media Switcher UVC and UAC Compliant Uncompressed Capture Video Switcher

Supplier: Fuzhou Weishijie Camera And Equipment Co., Ltd.
Region: Fuzhou, China
Price: $1759.20 / 1 - 9 pieces
$1495.20 / 10 - 49 pieces
$1407.20 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

stream media:	USB Type-C uncompressed capture, compliant with UVC & UAC	Gross weight per piece:	14.000 kg
place of origin; place of origin:	Fujian China	brand:	AV Matrix
Certification:	CE, RoHS	Record:	SD card, H.264, PGM recording up to 1080p60
Sales unit:	single product	Single package size:	58X47X25 cm
mixer:	follow / mix	power supply:	DC 12V 2.8A, 33W
screen size:	15.6 inches	model:	PVS0615U
application:	Live Sports, Education, Party, Broadcast	channel:	6 channels
Resolution:	1920 x 1080	exhibit:	Full HD LCD display

Product Description

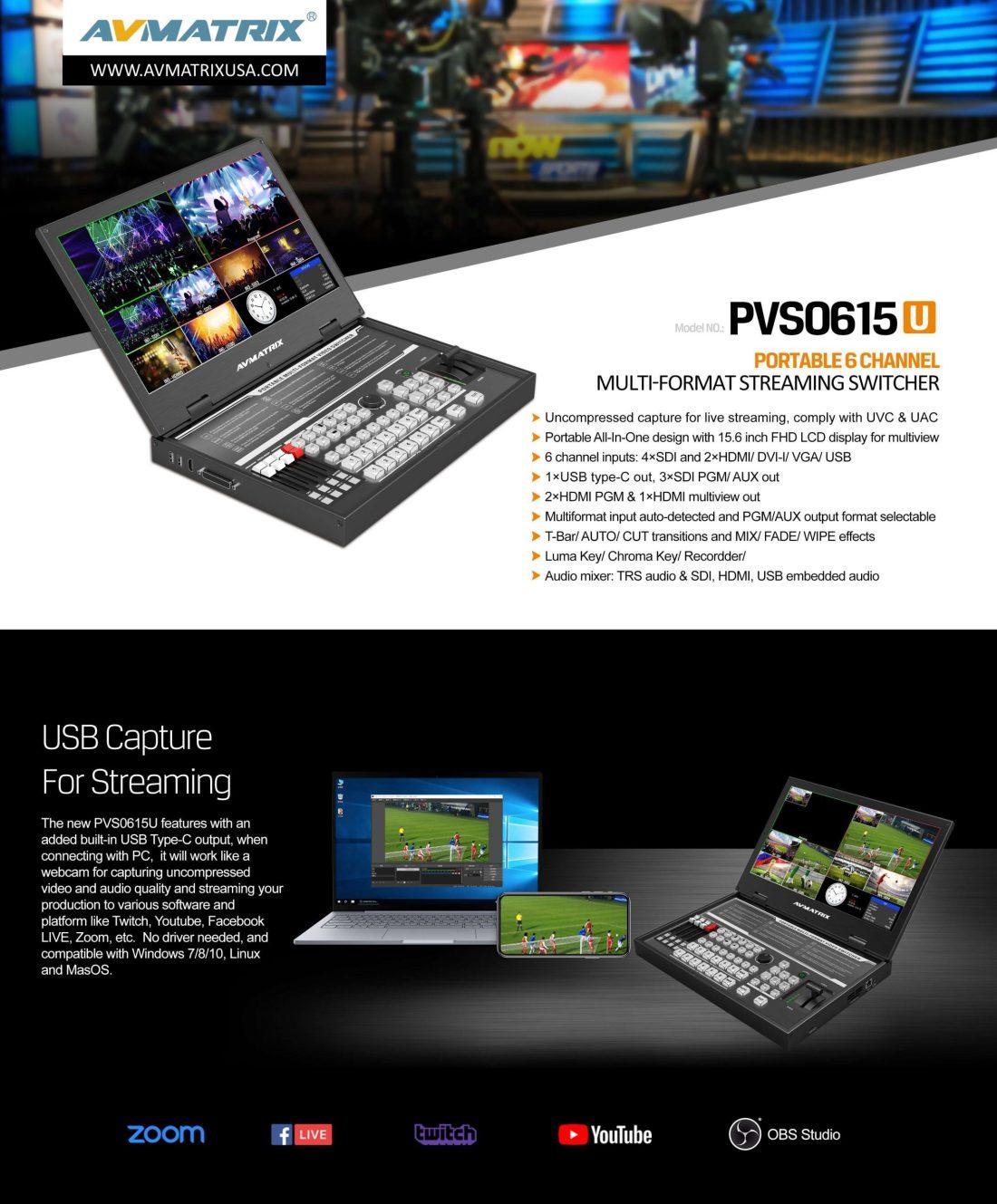

main feature

* Uncompressed capture for live streaming, UVC and UAC compliant.

* Portable all-in-one design with 15.6-inch FHD LCD display for multiple views.

* 6-channel input: 4xSDI and 2xHDMI/ DVI-I/ VGA/ USB.

* 1 xUSB type-C output, 3xSDl PGM/AUX output.

* 2xHDMI PGM and 1 xHDMI Multiview output.

* Multi-format input auto detection and PGM/AUX output format optional.

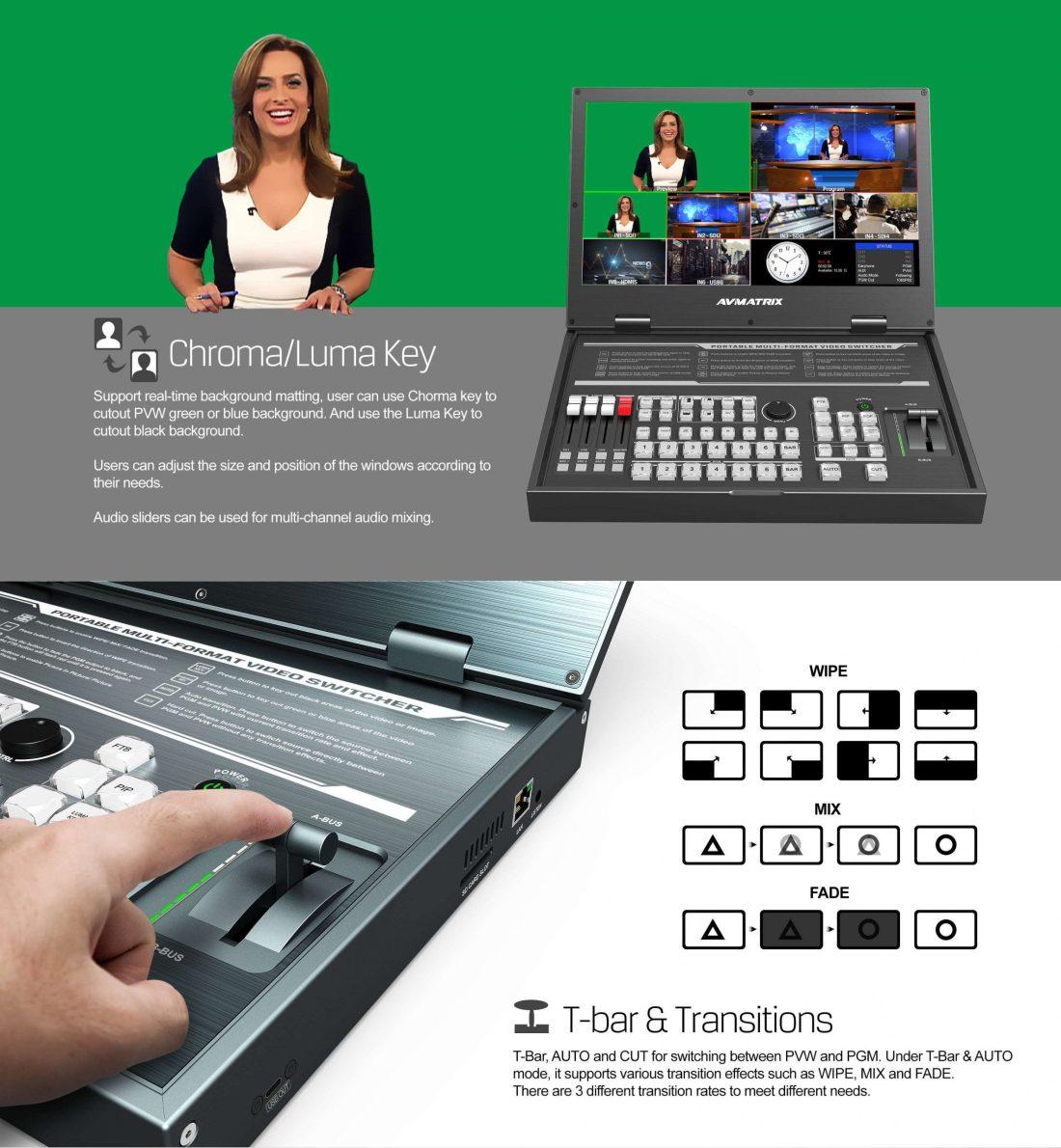

* T-Bar/AUTO/CUT transition and MIX/FADE/WIPE effect Luma Key/ Chroma Key/ Recorder/.

* Mixer: TRS audio and SDI, HDMI, USB embedded audio.

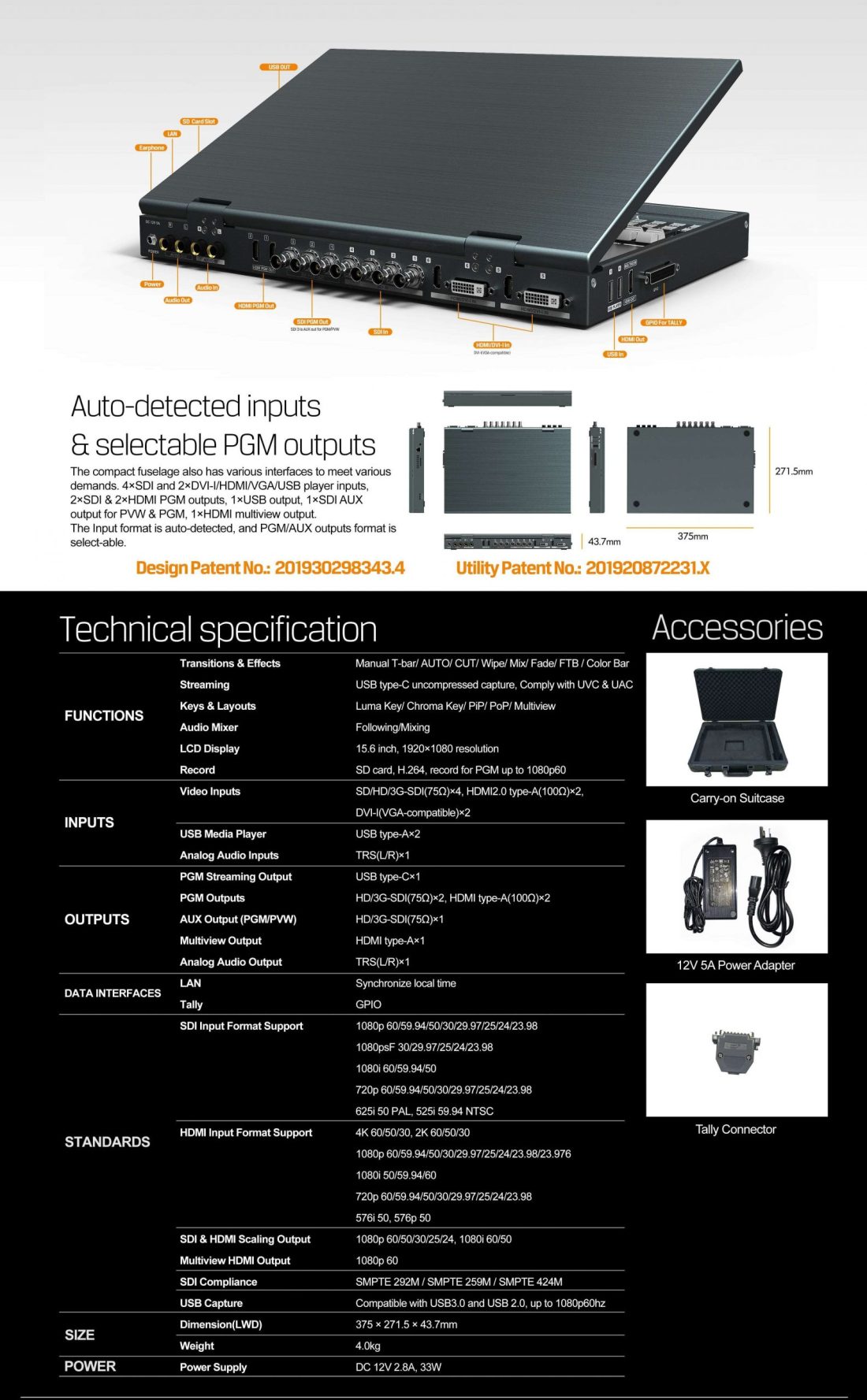

Specification

power supply	DC 12V 2.8A, 33W
Transitions and Effects	Manual T-bar/AUTO/CUT/Wipe/Mix/Fade/FTB/Color Bar
streaming	USB type-C uncompressed capture, compliant with UVC & UAC
LCD Monitor	15.6 inches, 1920 x 1080 resolution
mixer	follow / mix
keys and layout	Luma Key/Chroma Key/PiP/PoP/Multi View

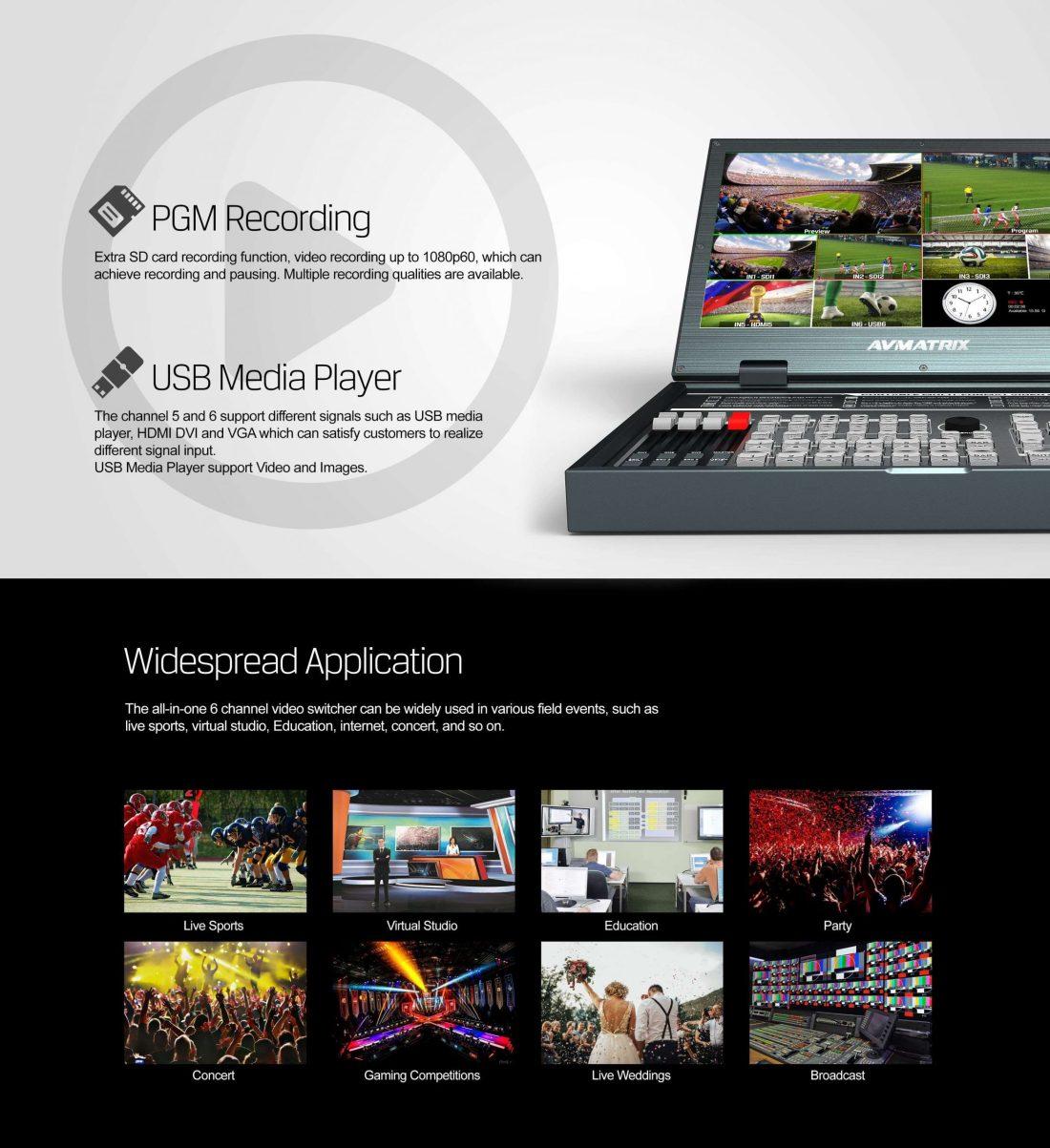

Record	SD card, H.264, PGM recording up to 1080p60
