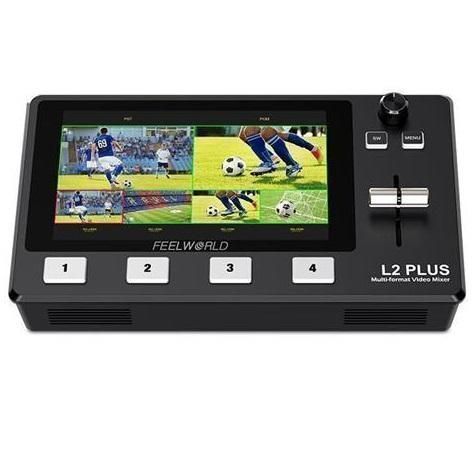

FEELWORLD L2 PLUS Multi-Camera Video Mixer Switcher with 5.5" LCD Touch Screen PTZ Chroma Control Switch USB3.0 for Live Streaming

Click here to contact
Product details
Single package size:27X14X10 cmbrand:feel the world
Input voltage:DC 12V/2Ascreen size:5.5" touch screen
product name:L2+output:HDMI, USB Type A
Private Mold:Do notbrand:feel the world
Backlight:to leadSales unit:single product
Operating temperature:0℃~50℃enter:HDL
place of origin; place of origin:Fujian ChinaGross weight per piece:1.000 kg
Package preview:model:L2+
humidity:5%~85%Maximum power:21W
Related Products
Product Description
Full-featured multi-cam live production switcher
FEELWORLD L2 PLUS is a portable full-featured live switching streaming solution. 5.5-inch LCD large touch screen, you can easily complete various operations with just a tap of your finger. You can preview 4 cameras, PST and PGM in real time. L2 PLUS is upgraded from LIVEPRO L1. In addition, it also supports PTZ camera control, which can well control the rotation, focus and zoom of the camera. Built-in chroma key functionality is perfect for news or live presentation work. You can even make your live broadcast more professional by creating graphics to use in title overlays. Even interviews and presentations are made easy with a separate microphone!
Plug and play, improve work efficiency

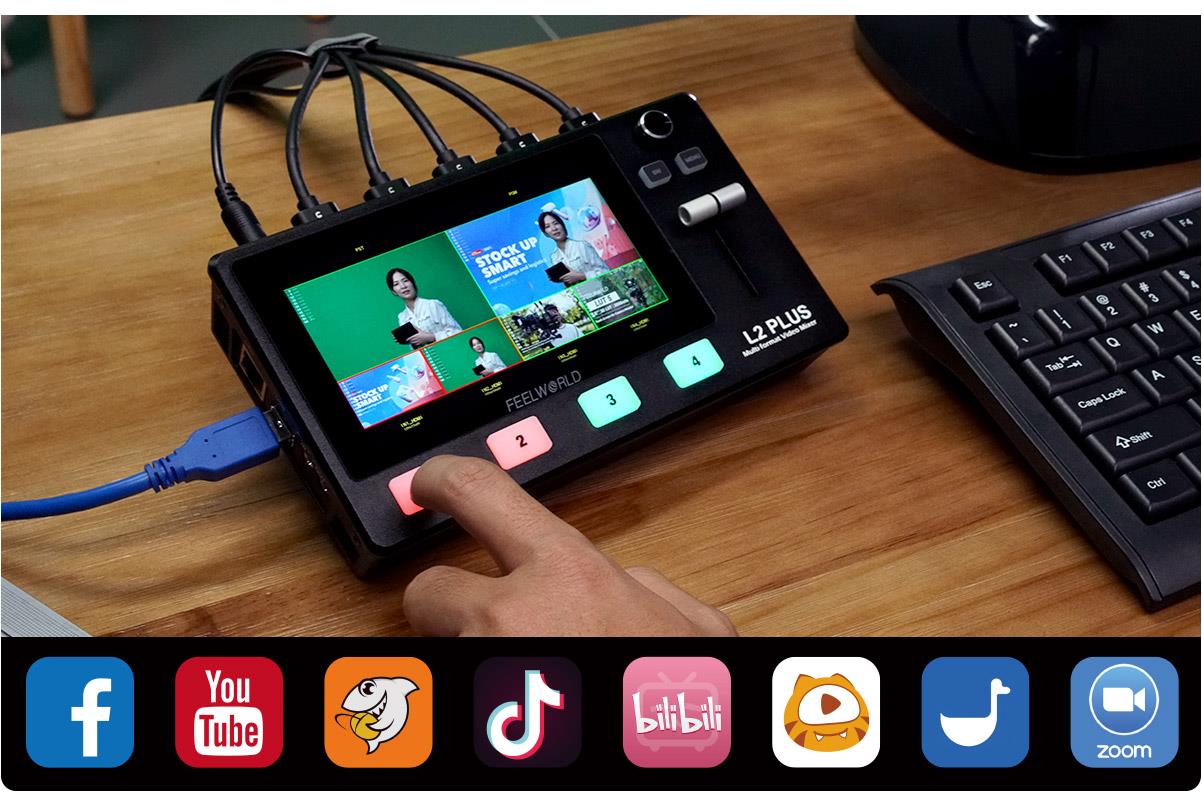

The L2 PLUS is for video creators or anyone who wants to easily and quickly produce broadcast-quality multi-camera shows from anywhere. You can live stream to YouTube/Facebook/Instagram or use Skype or ZOOM for innovative business presentations and easily control every screen with PTZ cameras. Best of all, the L2 PLUS is plug-and-play, so you don't need to be a video pro to get great results.

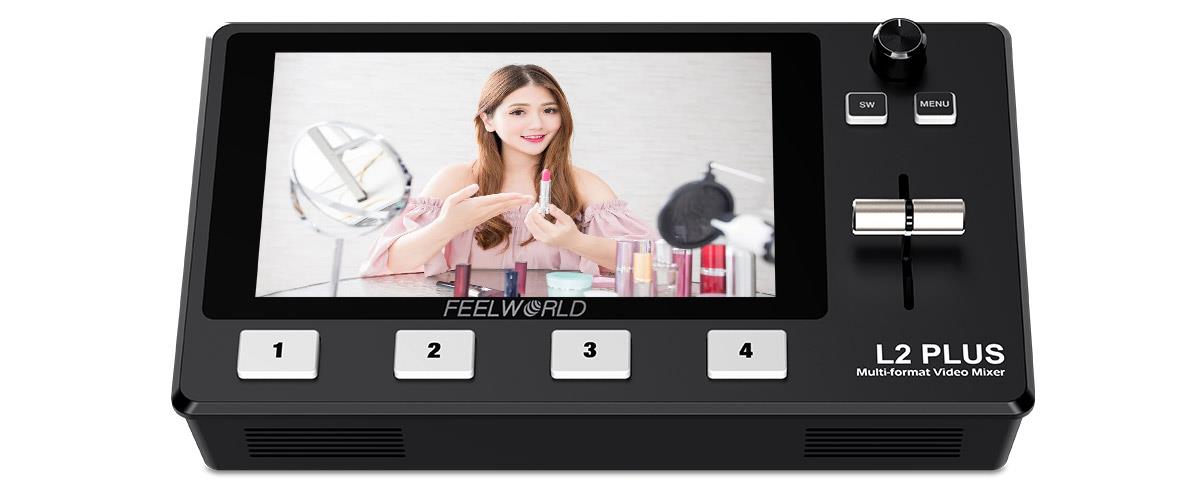

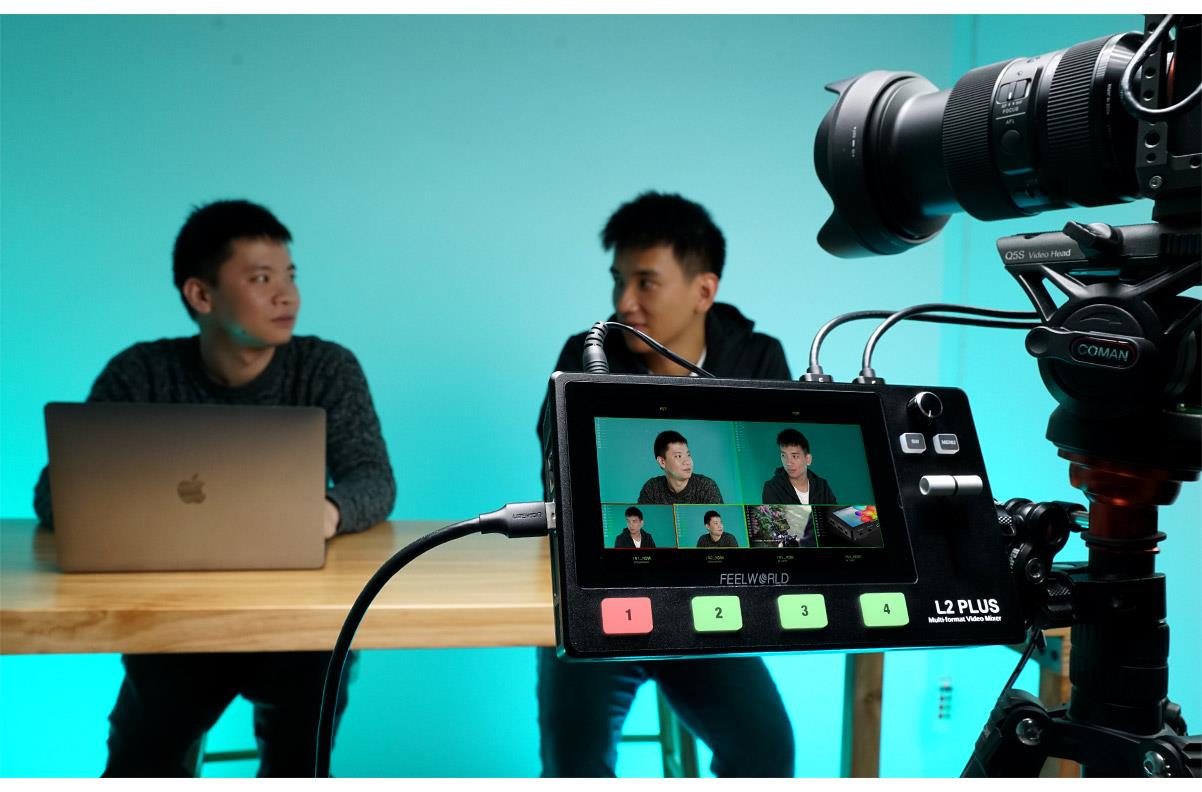

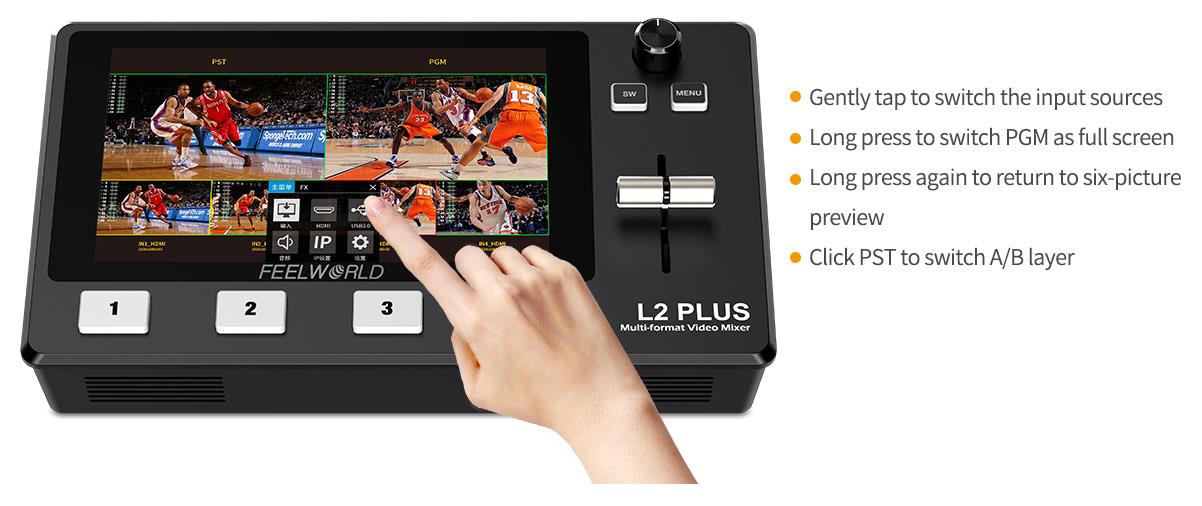

5.5 inch large LCD touch screen
Easier operation and more comfortable monitoring
The 5.5-inch touch screen on the front panel of the L2 PLUS can display 4 input sources, the PST preview screen and the PGM output screen allow you to monitor in real time without an external monitor. Touch the menu icon to quickly enter the corresponding submenu settings. In non-menu mode, touch any one of the four input signal screens on the screen to switch the input signal; long press anywhere on the screen to switch PGM to full screen; then long press to return to the six-image preview; click the PST preset to switch A/ Layer B. Easy to use and make your live streaming experience smarter.

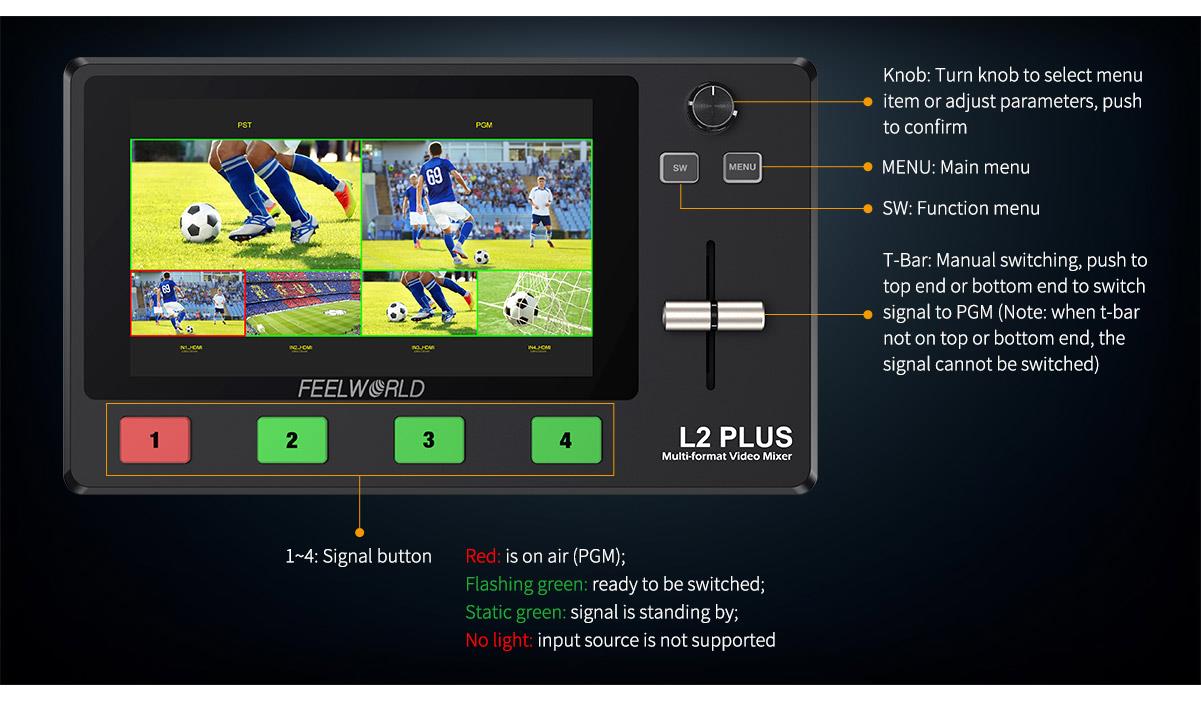

Flexible Control Panel
Simple switching and streaming
The flexible control panel of the L2 PLUS allows you to use the touch screen or physical buttons. Press the MENU main menu or SW function menu key, the screen displays the interface. You can select and set menus by touching or turning the knob in the upper right corner. 1~4 illuminated signal buttons allow you to switch and broadcast easily even in dimly lit environments. In addition, you can also switch the signal source through the T-Bar on the panel.

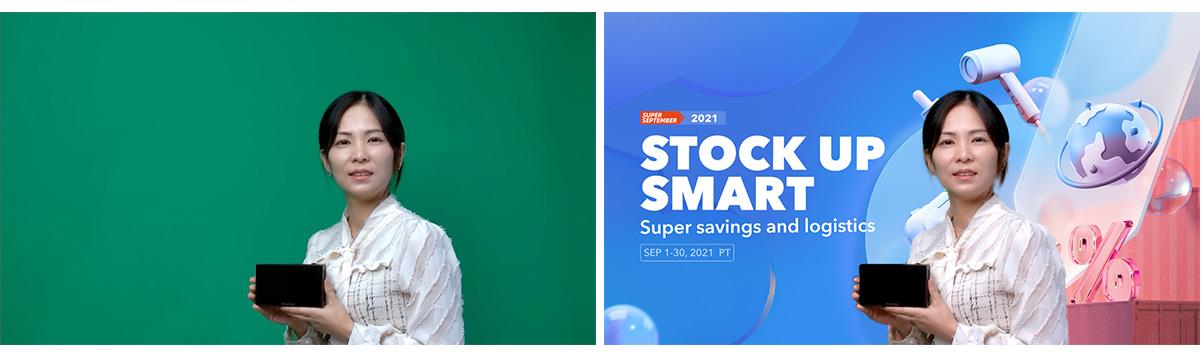

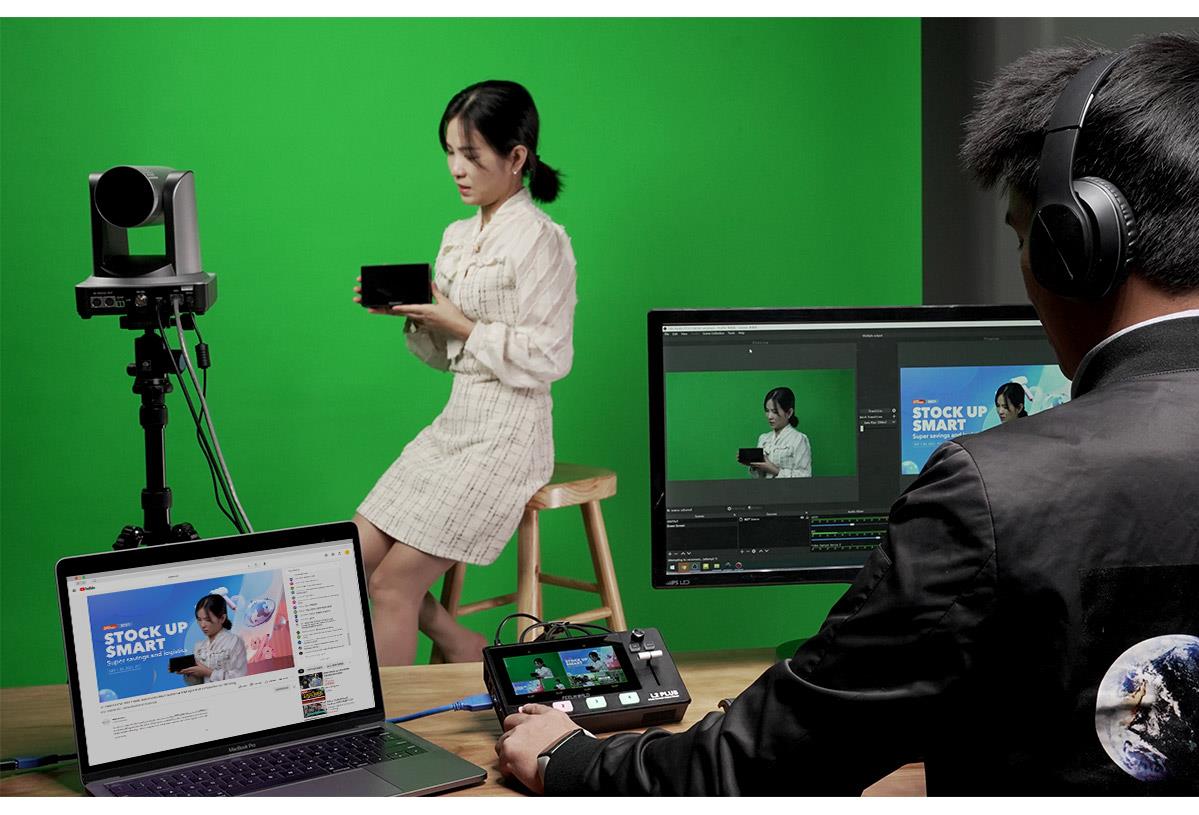

Built-in chroma key and logo overlay
Create a wonderful virtual studio
For news or live presentation work, the L2 PLUS is essential because it features powerful advanced chroma keying for green-screen or blue-screen keying effects. You can even use the LOGO overlay function to create a title overlay effect, making the virtual studio more professional and exciting.

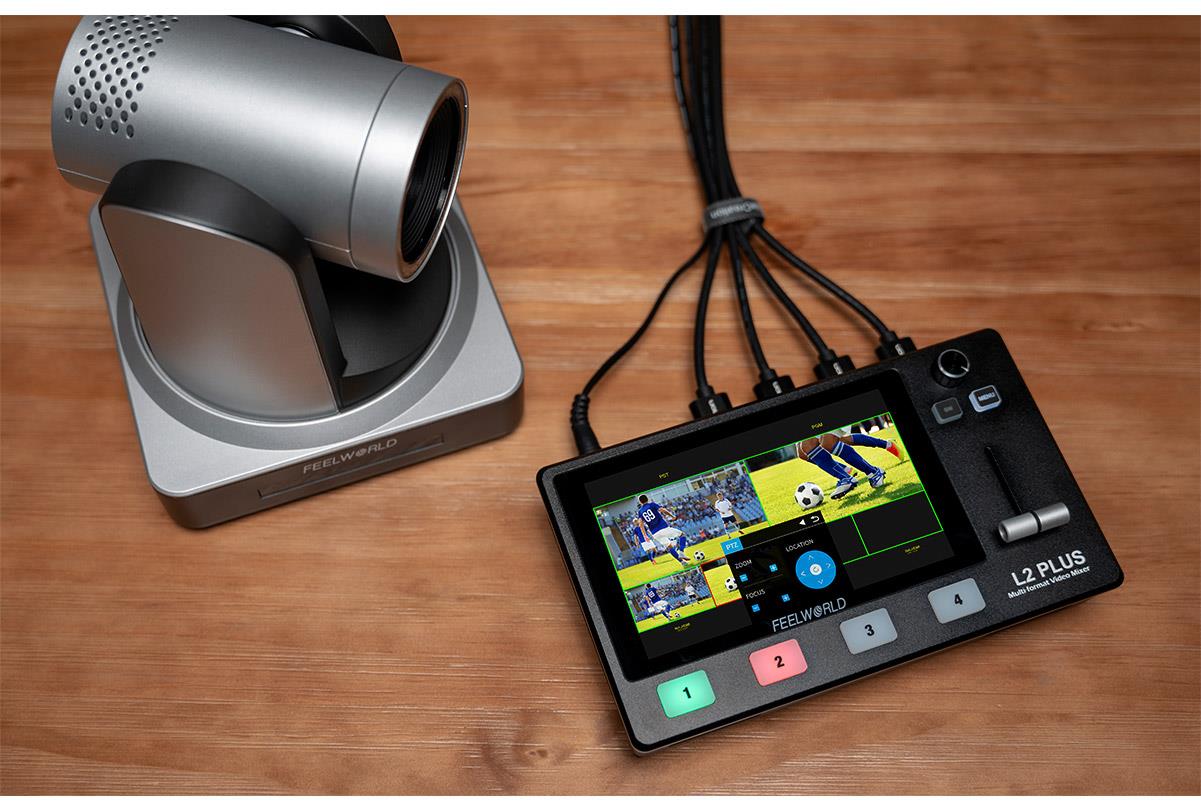

PTZ camera control
Control up to 8 cameras
L2 PLUS can control cameras that support VISCA protocol. You can control camera movement, zoom and focus. At the same time, it also saves the memory of the camera position and zoom information for quick retrieval the next time it is used. Ideal for all kinds of video conferencing, online education, live streaming of churches and sporting events.
Note: When operating the camera, L2 PLUS needs to stay on the control interface all the time, otherwise the PTZ camera cannot be controlled.

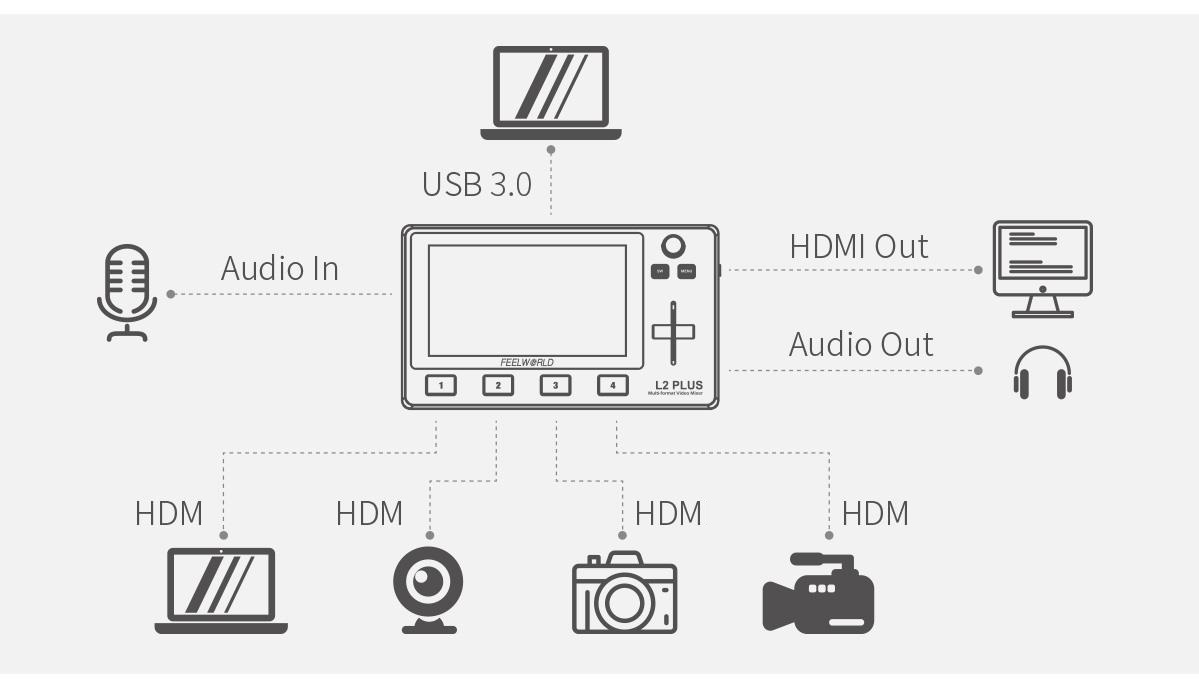

Faster Video Production and Live Streaming
USB3.0 live broadcast
Live production is the fastest way to get your show done, and you can simultaneously stream it to live audiences around the world via YouTube. The L2 PLUS has a USB 3.0 connection and can be used as a simple webcam source. It can be connected to any computer, so all streaming software for social media platforms will work! For example, OBS software for live broadcast, or conference software for business presentations (Skype, ZOOM, Tencent Conference and Yealink). All toggles are live so you can live stream to any social media platform like Youtube, Facebook, Tik Tok, Douyu TV and more! Additionally, with up to 4 HDMI inputs and full resolution 1080HD quality, the L2 PLUS allows you to set up multiple camera angles such as wide-angle shots as well as individual close-ups of everyone in the show.
1080P high quality image
The input and output resolution of L2 PLUS supports up to 1080P@60, which makes the live broadcast more clear and charming, and interacts with fans in an unprecedented way.

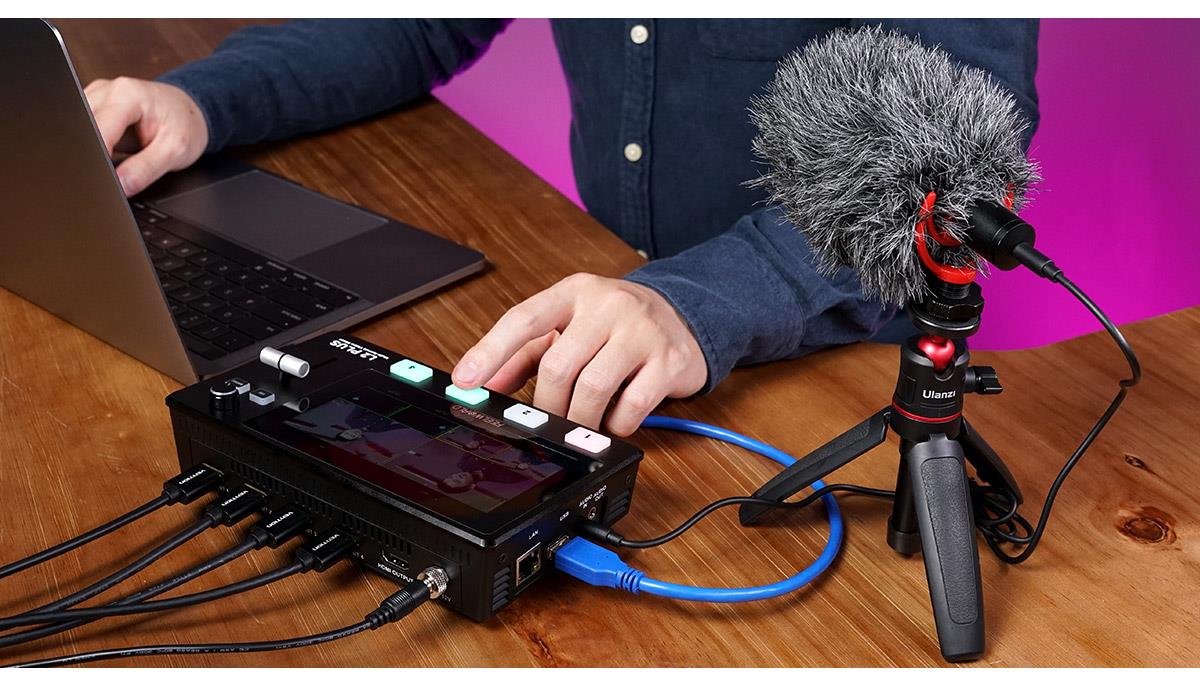

Audio input and output
With a microphone, it is more suitable for live broadcast
L2 PLUS provides a standard 3.5mm microphone interface (Audio In). Support independent input of active (self-powered) microphone equipment, which is used to collect sound information more clearly when interviewing programs. You can also mix multiple external sound inputs using an external mixer. L2 PLUS also provides a standard 3.5mm audio output, so you can use external speakers or headphones to monitor the main output audio signal of L2 PLUS in real time.
HD output

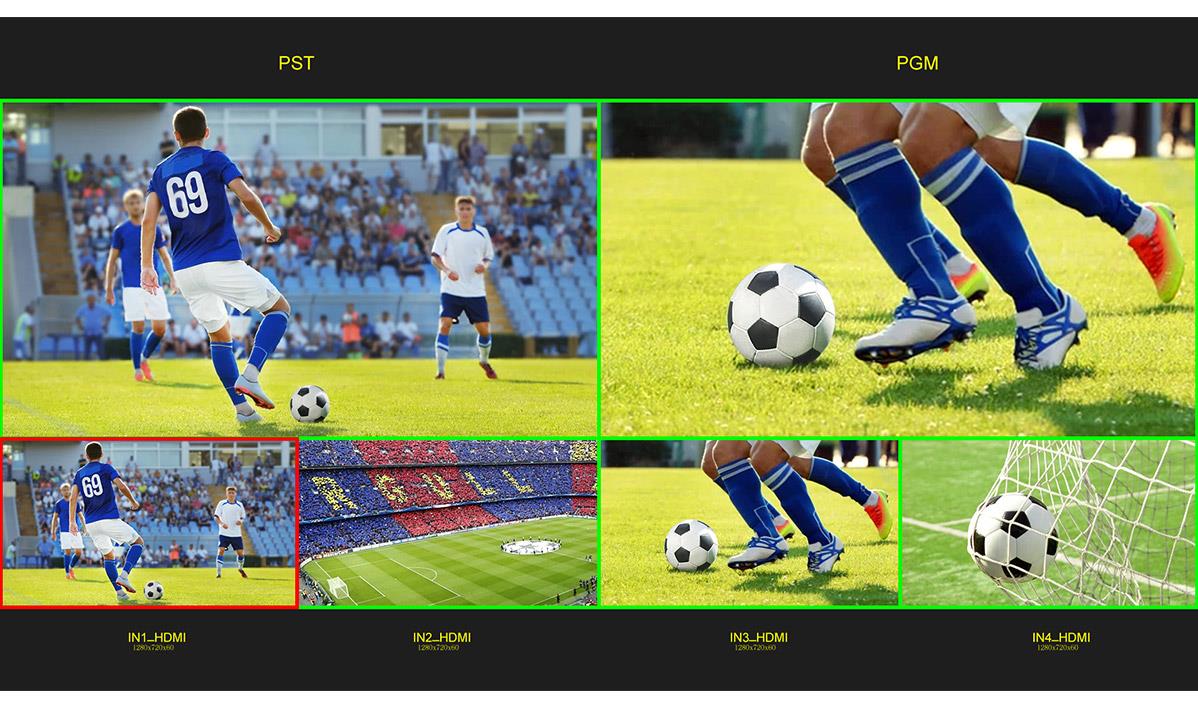

Support switching between 6-screen PVW and PGM
L2 PLUS can not only see 6 split-screen images on the screen, but also connect an external extended display through the HDMI output interface for synchronous monitoring. Includes PGM, PST and 4 HDMI input signals, and displays the audio bar. You can also set up picture-in-picture, and all switching is real-time, which is very useful for large-scale multi-camera live productions.

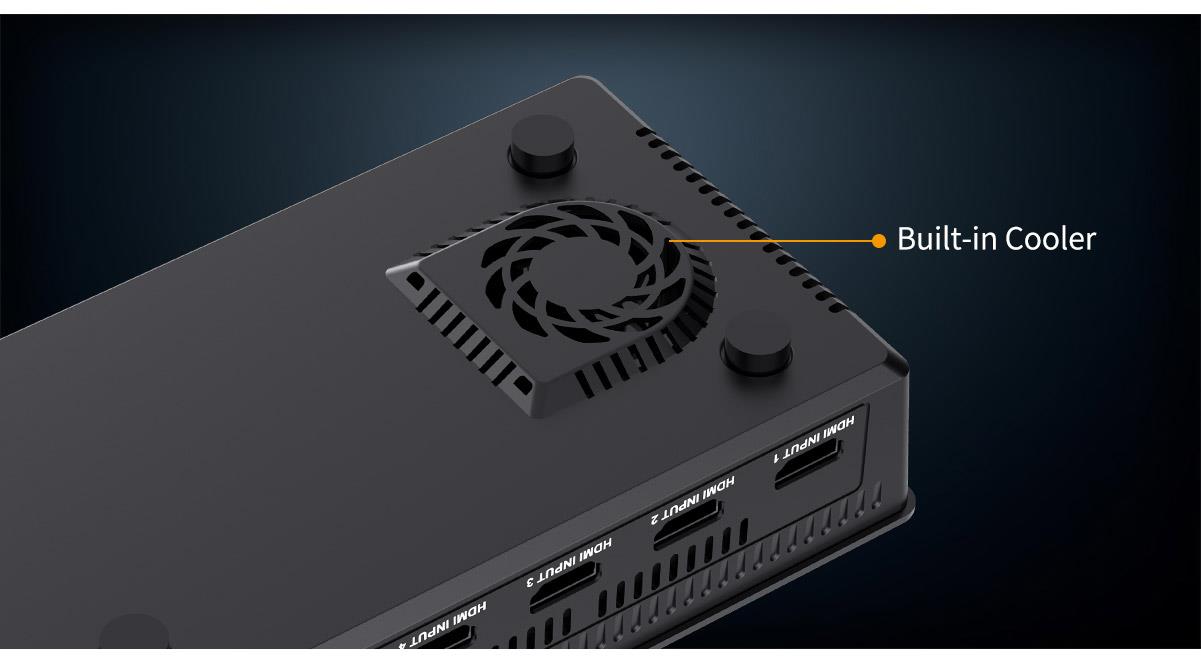

built-in cooler
The switch has a built-in radiator, and the fan speed can be adjusted in three gears, eliminating the trouble of overheating the device!
Many applications, one solution
L2 PLUS is full-featured, but small and light enough, standard 1/4" screw hole can fix the switcher on a tripod. Live broadcast and multi-signal control will be easily done by one person.

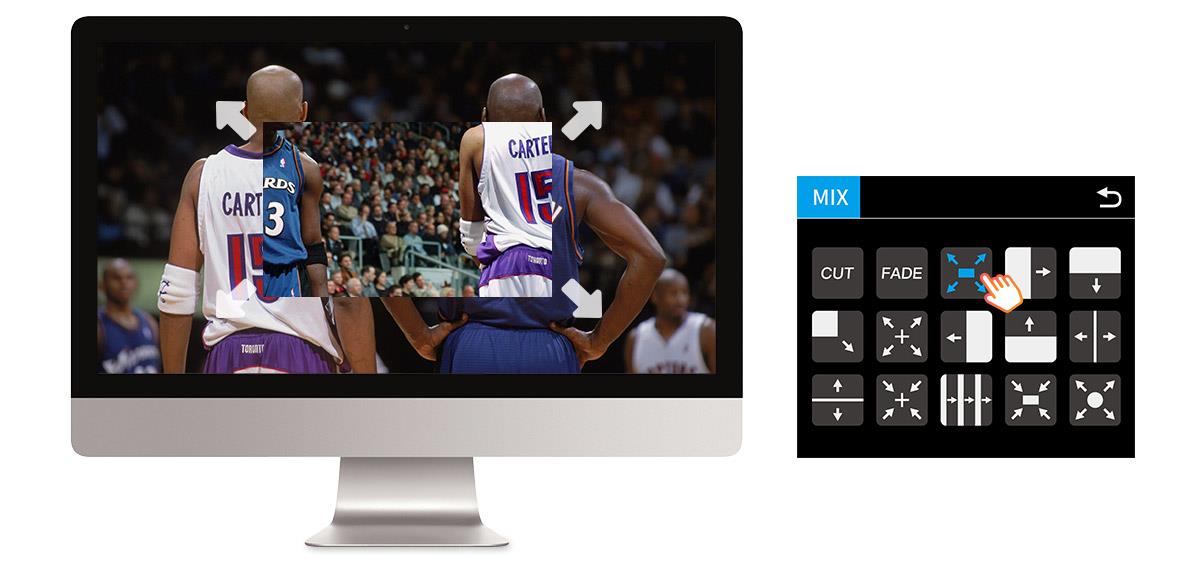

Professional broadcast transition effects
Take your live streaming to the next level
One of the strengths of the L2 PLUS is the ability to use a range of built-in video effects for professional production value. "CUT" is a hard cut operation in "FAST" mode, which can be set to switch the transition effect from 0.5 seconds to 5.0 seconds. You can also use T-Bar to switch the special effects you want. Note: In actual use, hard cut is only available in FAST mode, if you use T-Bar mode, it will automatically become FADE.

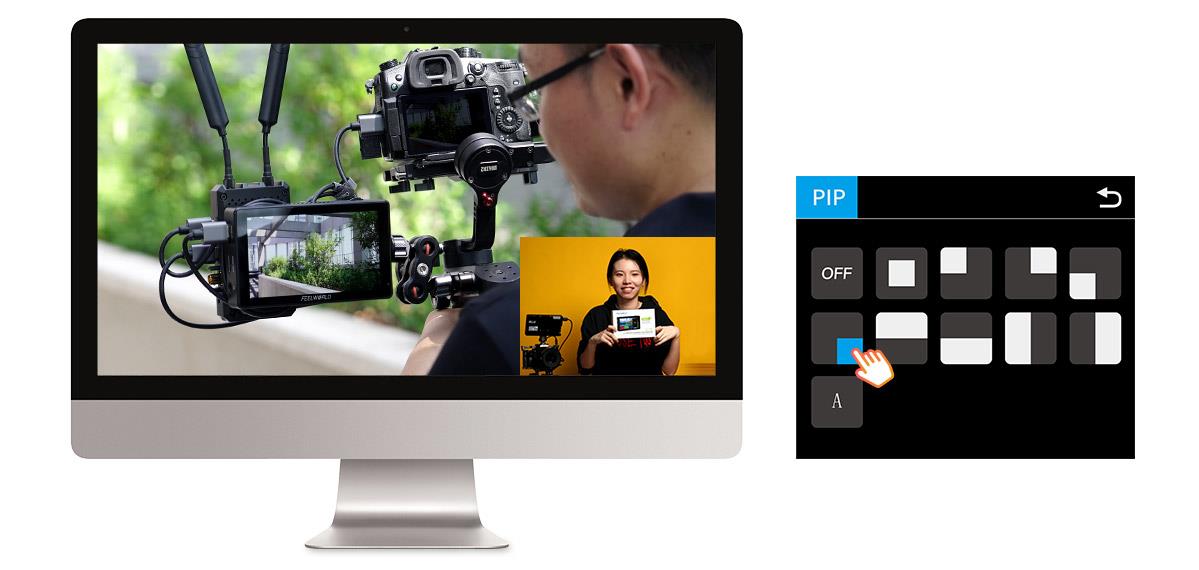

9 picture-in-picture modes
One of the benefits of using the L2 PLUS in a multi-camera setup is that you can use the picture-in-picture feature to display both inputs simultaneously. Any of the four HDMI inputs can be used to produce a picture-in-picture effect on the program output, choose your preferred mode. You can show a close-up of a product on your desk and simultaneously show your face in a picture-in-picture while talking about it.

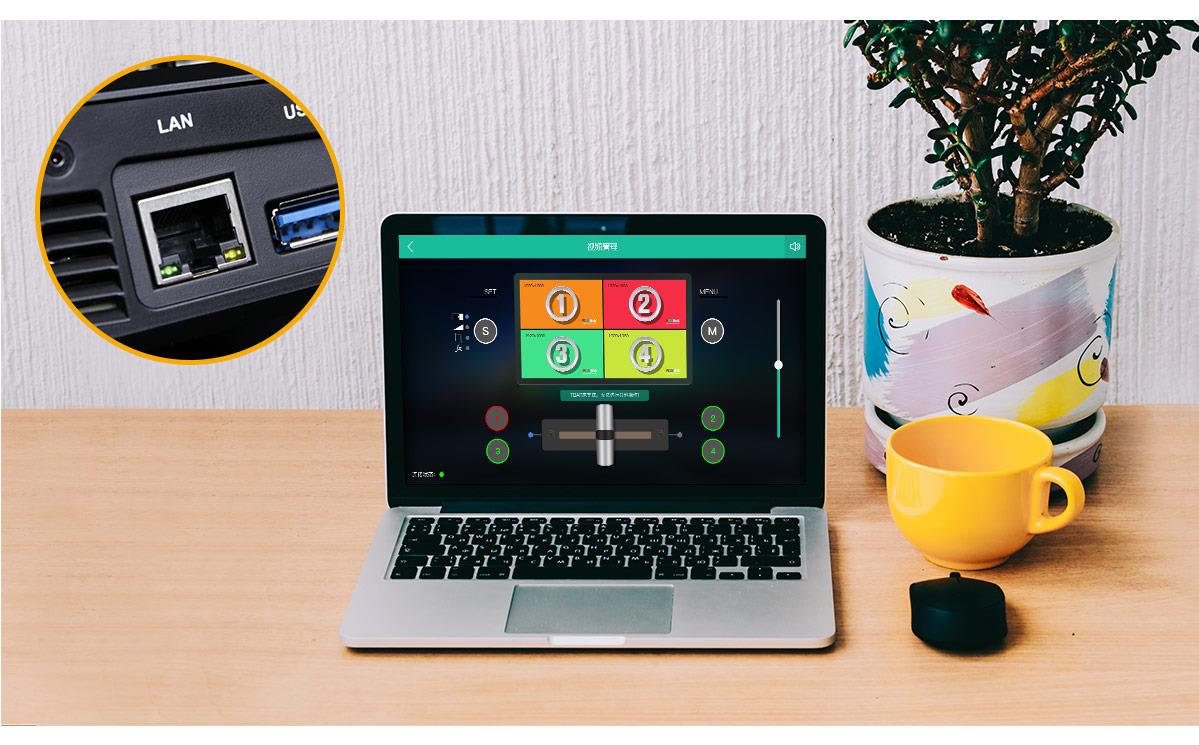

PC and mobile APP control, remote operation
After the LAN port is connected to the computer, the XPOSE software can control the L2 PLUS on the computer, and the operation is the same as that of the switcher. For remote control, imagine using a switcher in the control room, setting up a professional broadcast room where the control room can be separate from the show or interview. Smartphones can also be controlled remotely, just download the XPOSE (Feelworld Live) APP and connect to WIFI. Also, it allows you to add any number of panels at the same time.
Applicable to various application scenarios
L2 PLUS is widely used in sports events, e-sports competitions, business presentations, weddings, character interviews, education and training and other fields.
feature
* 5.5-inch full HD IPS screen, providing a real picture

* Touch screen operation, easy to use

* Real-time 6-screen preview (4 input sources + PST preview + PGM output screen)

* USB 3.0 fast live streaming

* PTZ camera control (up to 8 cameras)

* Chroma key, LOGO overlay

* T-Bar to easily switch transition effects and signal sources

* 15 kinds of transition effects and 9 kinds of picture-in-picture modes, the live picture is more vivid

* Audio available in AFV or line-in mode

* Remote control via PC/Smartphone APP
Specification

display specifications
Model
L2+

screen size
5.5" touch screen

backlight
to lead
enter
4x HD Data Management
HD Data Manager
output
1 x HD Data Manager
HD Data Manager

1 x USB Type A
USB 3.0
sound
audio input
1×3.5mm (external microphone can be connected)

Audio output
1×3.5mm stereo jack


input scheme
HDL
SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 |
| 1680X1050@60 | 1920X1080@60 | 1920X1200@60



output solution
HDL
SMPTE 720p@50/60|1080p@24/25/30/50/60
VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60
USB streaming
1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60
Note: Please refer to the connected computer for applicable resolution support








General
Input voltage
DC 12V/2A

Maximum power
21W

Operating temperature
0℃～50℃

humidity
5%~85%

unit size
191(L) x 110(W) x 43(H)mm

unit weight
610 grams

Color box size
260(L)*130(W)*82(H)mm

Outer box quantity
15

Carton size
470*275*480mm

total weight
16.6 kg

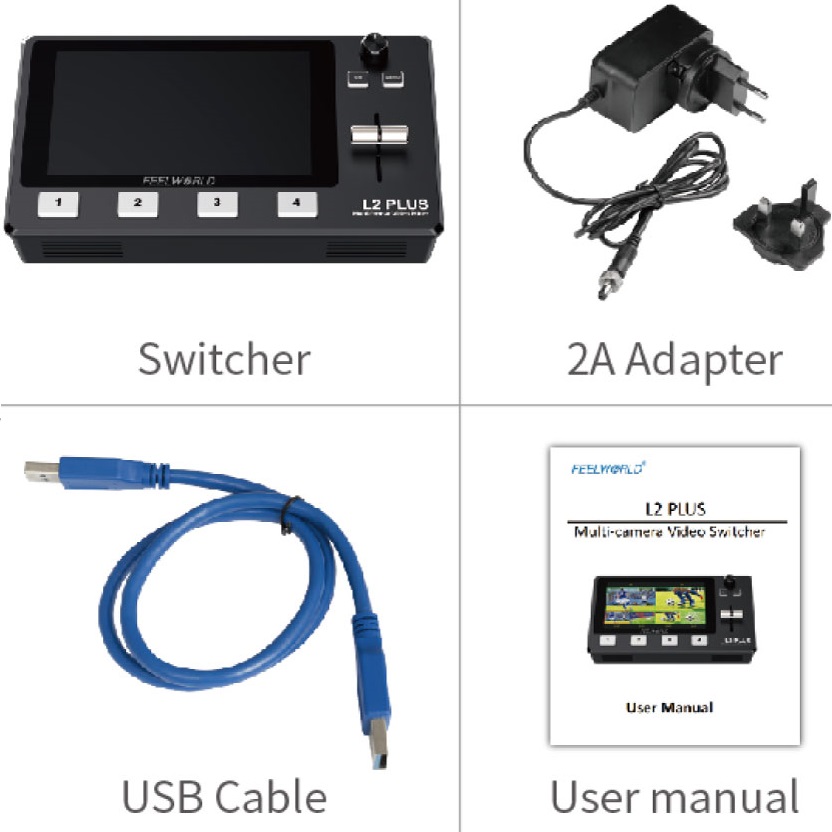

pack:
include:
1× L2 Plus
1× 2A adapter
1× USB data cable
1× manual
