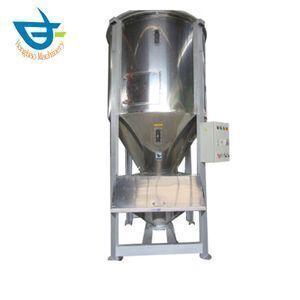

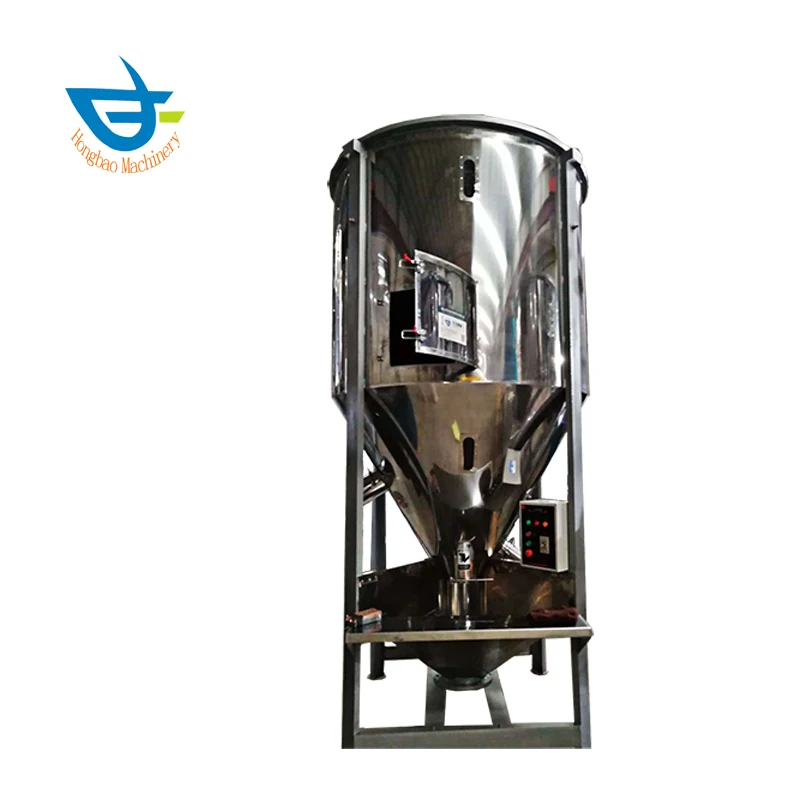

Vertical mixer dryer for blowing plastic particles

Supplier: Foshan Hongbao Machinery Technology Co., Ltd.
Region: Guangdong, China
Price: $2394.15 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Guangzhou huangpu port;	Payment Terms:	T/T;
After-sales Service Provided:	Video technical support;	Type:	Mixing dry;
Dimension(LWH):	160160265;	Speed:	350r/min;
Model:	HBH--1000;	Condition:	New;
PRODUCT NAME:	Vertical mixer dryer;	Brand Name:	Hongbao;
Overall dimensions:	160160265;	Supply Ability:	1 Piece/Pieces per Day;
Capacity:	1000kg;	Warranty:	1 Year;
Place of Origin:	Guangdong China (Mainland);	Suitable material:	Plastic particles;
Heating power:	20kw;	The motor power:	4kw;
Packaging Detail:	Wooden splints plywood Stretch film Foam membrane;	Material of blade:	Stainless steel;

Model	HBH--500	HBH--1000	HBH--2000	HBH--3000	HBH--5000
Capacting(KG)	500	1000	2000	3000	5000
The motor power(KW)	3	4	5.5	7.5	11
Heating power(KW)	12	20	30	40	50
Speed(r/min)	350
Overall dimensions(CM)	120120235	160160265	175175355	220220385	240240435

Characteristics of stirring dryer: 1. This series of machines cover a small area, low energy consumption, easy to control, saving time and effort, the mixing effect is quick and uniform, using screw stirring feeding, feeding is convenient, workers directly standing on the ground feeding can also use the wind machine from the granulator directly into the plastic particles into the barrel. The principle of mixing is to screw the materials into the upper end of the barrel, and then drop in the shape of an umbrella and continue to circulate and stir, so as to achieve the purpose of mixing evenly. This machine is equipped with automatic mixing timing, overload protection. The machine is classified into heating and drying type and non-heating type, and the barrel material is divided into stainless steel type and iron type, which can be selected by customers from 0.5-15 tons and other capacity models. Customers can also choose heating or non-heating type according to their own needs.
