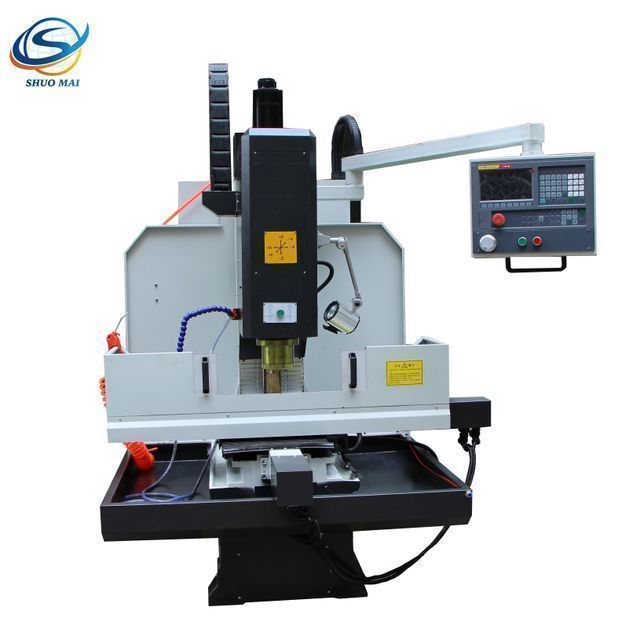

Cnc mini milling machine XK7136

Supplier: Zaozhuang Shuomai Industrial And Commercial Co., Ltd.
Region: Shandong, China
Contact: Ms Annie Cui
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Maximum table load:	400kg	Type of machine:	CNC vertical milling machine
Spindle taper:	BT40	port:	Qingdao Port, Shanghai Port, Tianjin Port
strength:	5.5kW	model:	XK7136
Spindle speed range (rpm):	50 - 8000	type:	vertical
Voltage:	220v	CNC or not:	CNC
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops	Warranty:	1 year

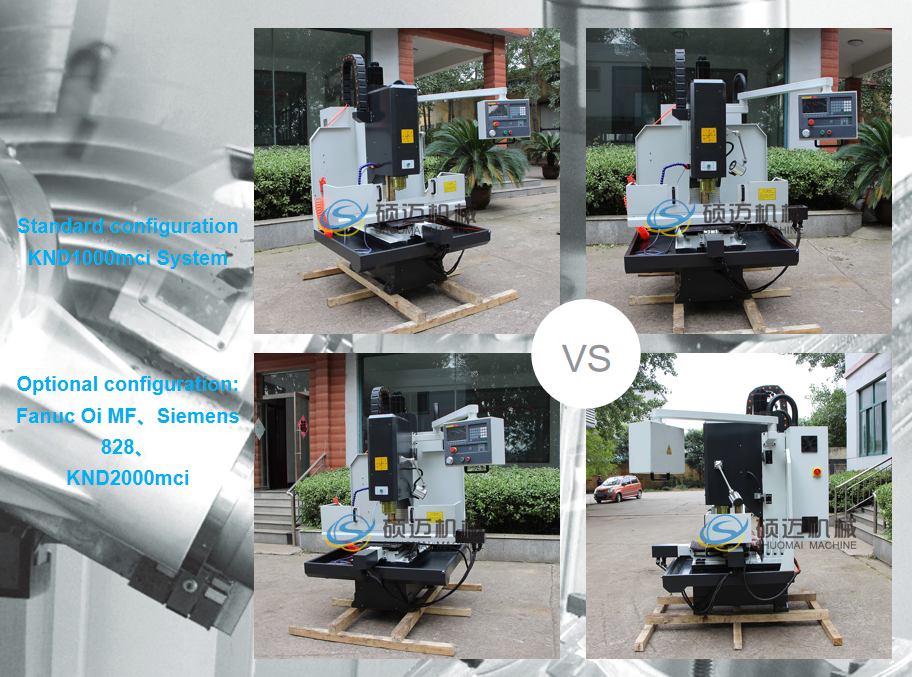

Spindle taper:	BT40	Control System:	KND Siemens GSK FANUC (optional)
year:	2019	payment terms:	L/C,D/P,T/T,Western Union
Health status:	new	Table travel (mm):	900X360X500
Name:	Milling machine Xk7136	Supply capacity:	30 sets per month
brand:	Somai	Main selling point:	competitive price
Spindle speed:	8000 rpm	application:	metal processing
place of origin; place of origin:	Shandong China	Table size:	1250X360mm
After-sales service provided:	Online support, video technical support, free spare parts	Certification:	CE, SGS, ISO9001
Packaging Details:	Export standard wooden box packaging Delivery time: about 30 days Vertical cheap CNC milling machine XK7136	Dimensions (LWH):	2380X1900X2350 mm
X/Y/Z travel:	900X360X500mm	Positioning accuracy (mm):	0.04
Key words:	VMC milling machine	Weight (kg):	2800
Repeatability (X/Y/Z) (mm):	0.02

Product Description

Main Specifications

Main technical data	thing	XK7136
X-axis travel	mm	900
Y-axis travel	mm	360
Z-axis travel	mm	500
Spindle nose to table	mm	100-600
Distance from spindle center to column surface	Kilogram	460
Rapid movement (X/Y/Z)	mm/min	6000/6000/4000
Cutting feed rate	mm/min	1-10000
table size	mm	1250×360
Maximum table load	Kilogram	400
Spindle speed	number of revolutions	8000
main motor power	kilowatt	5.5
Spindle taper		BT40
positioning accuracy	mm	0.04
Repeatability	mm	0.02
machine weight	Kilogram	2800

Show details

Packaging and Shipping

Package dimensions	2400×2000×2400mm
Package weight	1000kg
Packing	Nude color, or wooden case, or customer's request
20'GP	About>2 sets
40' Headquarters	About >4 sets
Minimum order quantity	1 set
delivery time	7-15 days
