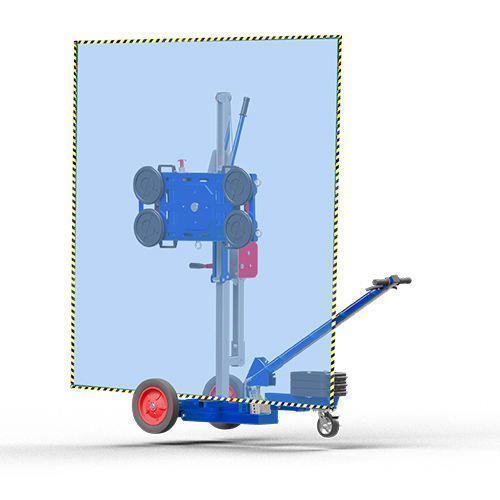

The manual vacuum gripper lifts and lowers the glass plate up and down through a hand-cranked winch system.

Click here to contact

Product details

Supply capacity:	500 sets per year	slope:	90 degrees
Packaging Details:	Please don't hesitate to contact us.	Core Components Warranty:	1 year
Packaging Preview:		port:	cat lei
Video external inspection:	Not available	WLL:	330 lbs (150 kg)
Warranty:	1 year	Minimum glass size:	1100 x 600 mm.
Applicable industries:	Building materials stores, manufacturing plants, construction projects	color:	dark blue
place of origin; place of origin:	Binh Duong, Vietnam	Mechanical test report:	Not available
Showroom location:	Vietnam	Number of suction cups:	4
Weight (kg):	76 kg	Rotation angle:	360 degrees
Health status:	new	brand:	Osavina
payment terms:	letter of credit, wire transfer	Maximum glass size:	2400 x 1200mm
Marketing Type:	normal product	Suction cup diameter:	250mm

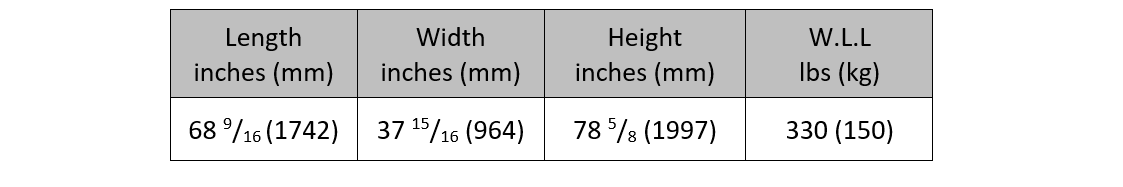

Core components:	motor	Dimensions (LWH):	1742 x 964 x 1997
net weight:	167.2 lbs (76 kg)	warranty period:	12 months

AUSAVINA Manual Vacuum

Designed for easy and safe installation and handling of materials such as glass panels, windows or thin slate.

Advantages of Ausavina Manual Vacuum Grip Lifters:

The maximum size of the glass plate is 2400 x 1200mm and the minimum size of the glass plate is 1100 x 600mm.
The device's vacuum suction system uses a hand pump to generate negative pressure to suction the glass sheet. The negative pressure must reach -80kPa.
The vacuum suction system can be rotated 360°.

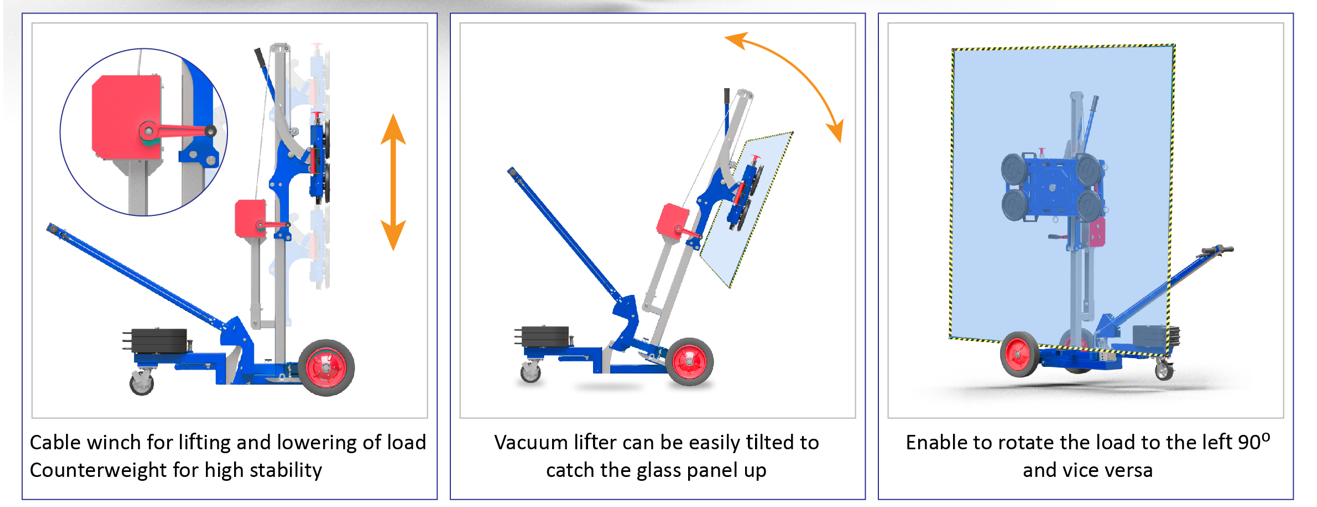

The glass pane is lifted up and down with a hand winch system.
The vertical bars have the ability to be rotated 90° to change the position of the glass sheets along the device, with an angle of 20° depending on the angle of the glass sheets on the A-rack.
