Product Details

weight:	5580	Health status:	new
Showroom location:	not any	Warranty:	1 year
Unique Selling Points:	remote control	Certification:	ISO9001
payment terms:	letter of credit, wire transfer	place of origin; place of origin:	Zhejiang, China
brand:	Zhenzhong	Local service location:	Philippines, Indonesia
Packaging Details:	iron tray	Applicable industries:	construction project
type:	electrical	After-sales service provided:	Video technical support, online support, free spare parts, on-site installation and commissioning training
port:	Ningbo or Shanghai Port	efficiency:	high efficiency
Dimensions (LWH):	2.561.531.1

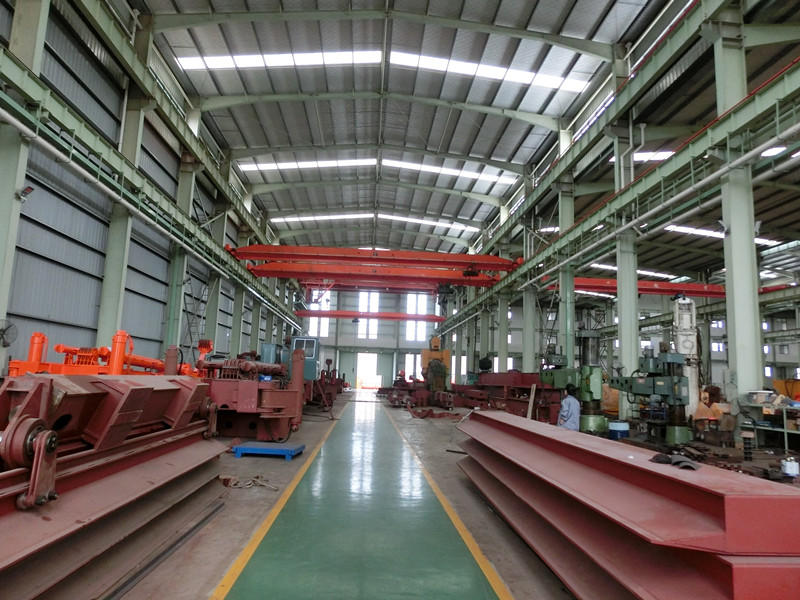

Company Profile

Zhenzhong Company was established in 1983 and has been focusing on piling machinery. Our company cooperates with Beijing Construction Machinery Research Institute, one of the best piling machine research institutes in China, and we cooperate with Kencho Co., Ltd, a famous Japanese piling equipment company. It has been rated as "Credit Enterprise" and "Star Enterprise" by the government for many years. We warmly welcome domestic and foreign customers to establish cooperation with us to create a better future.

pre-sale service

* Inquiry and consultation support.

* View our factory.

Product Description

The vibrating hammer uses the periodic excitation force to liquefy the surrounding soil, reduce the friction between the soil and the pile, and make the pile embedded. Can drive concrete pile, big toe pile, lime pile, gravel pile, steel pipe pile, L-shaped pile, sheet pile ETC

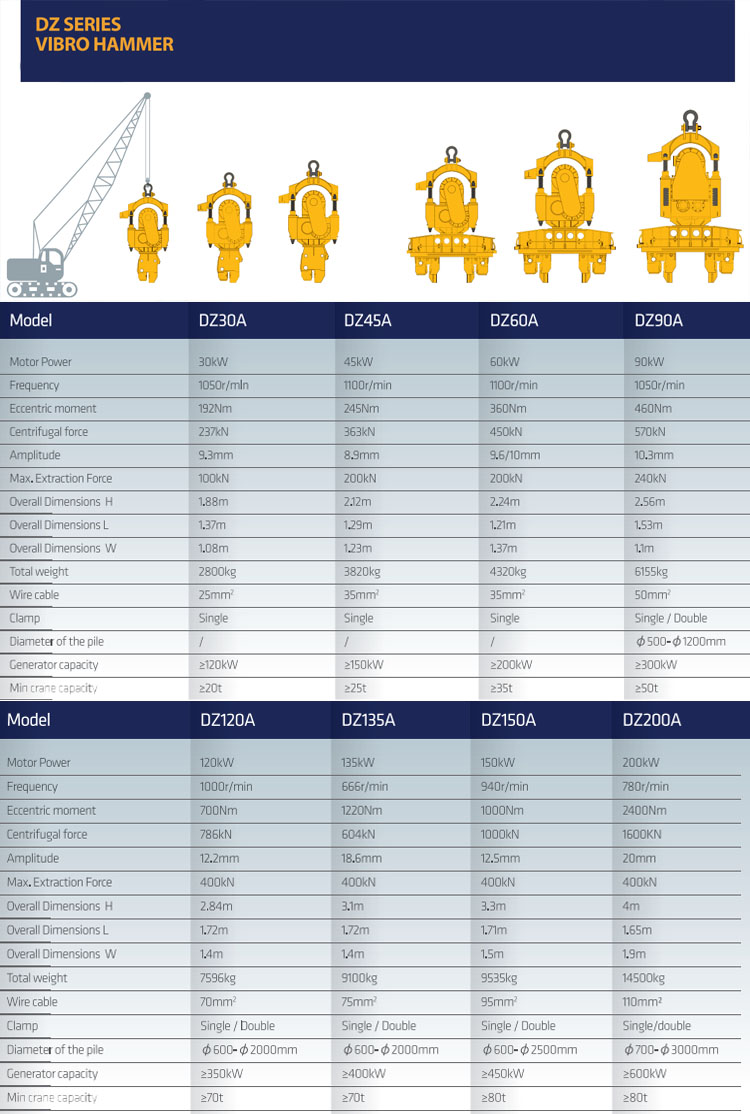

Motor Power	kilowatt	90
frequency	rpm	1050
Eccentric moment	New Zealand rice	460
centrifugal force	kN	570
amplitude	mm	10.3
maximum pull-out force	kN	240
size H	Meter	2.56
size L	Meter	1.53
size W	Meter	1.1
gross weight	Kilogram	5580
cable	square millimeter	50
clamp	single	single/double
diameter. heaped		φ500-1200mm
Generator capacity	kilowatt	≥300
Minimum lifting capacity	Ton	≥50

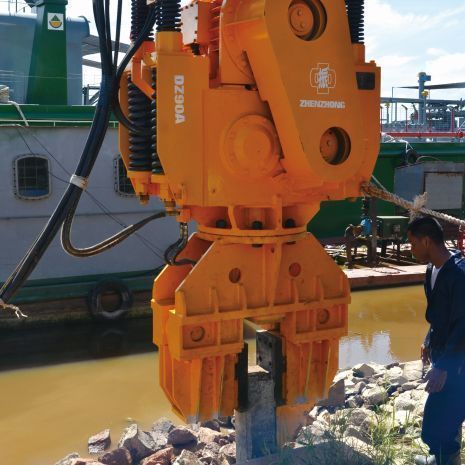

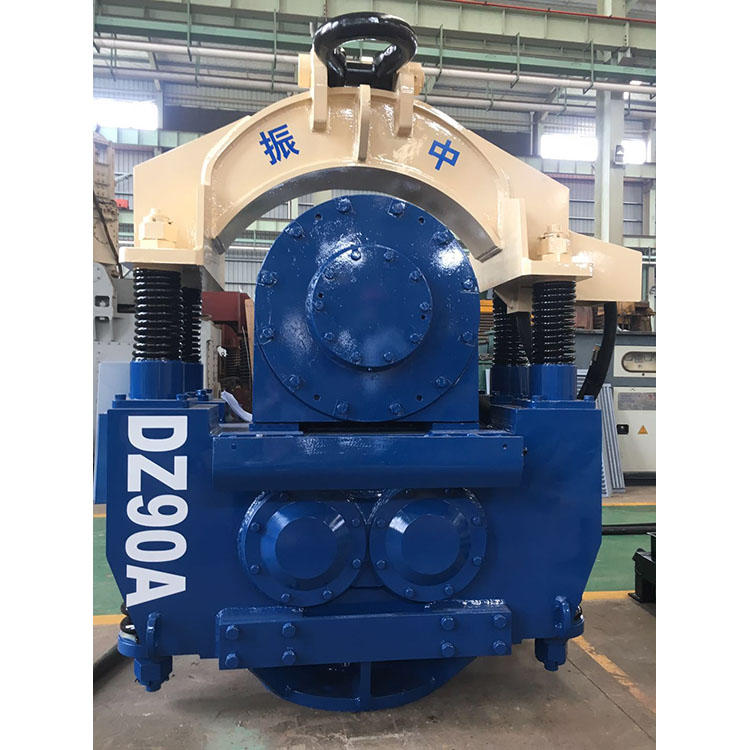

The DZ90A vibratory hammer is a popular choice for our regular customers. Various fixtures can be used to drive concrete piles, big toe piles, lime piles, gravel piles, steel pipe piles, L-shaped piles, sheet piles, etc.
