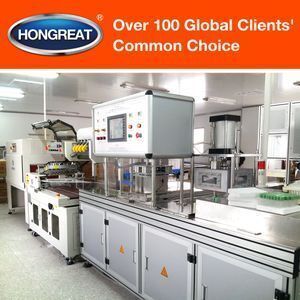

Vacutainer Vacuum Blood Collection Tube Making Machine

Supplier: Changsha Hongreat Automation Technology Co., Ltd.
Region: Hunan, China
Contact: Ms Quiping Lee
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Packaging Material:	Plywood;
Dimension(LWH):	N/A;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	60 Set/Sets per Year;	Tube:	Available for PET, PP, Glass;
Automatic Grade:	Automatic;	Delivery Detail:	90 days after your deposit;
Condition:	New;	Air consumption:	Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa;
Port:	Shenzhen/Shanghai/Guangzhou;	Drying system:	2 sets of "PTC" dust-free drying system;
Voltage:	380V;	Production capacity:	12,000-15,000 pcs/h;
Product name:	Automatic blood collection tube making machine;	Packaging Type:	Case;
Tube size:	Diameter:13; height: 75mm,100mm;	Control way:	Touch screen operation, PLC Control;
Tube type:	Vacuum blood collection tube;	Type:	Packaging Line;
Brand Name:	Hongreat;	Weight:	N/A;
Tube cap size:	Outer diameter:16±0.05*19mm+0.1;(according to purchaser sample);	Model Number:	HY-100AB-6;
Place of Origin:	Hunan China (Mainland);	Application:	Medical;
Packaging Detail:	Plywood Case;	Driven Type:	Electric;
Power:	30KW;	Certification:	CE ISO9001;

Product Name

Vacutainer Vacuum Blood Collection Tube Making Machine

Our Customers

China's FIRST manufacturer of blood collection tube automatic production machines

Since 2003, HONGREAT designed the FIRST set blood collection tube automatic production machine successfully. Through 15 years practical application production, and constant feedback from customers, HONGREAT is making continuous efforts on innovation, maintaining its leadership in technology and market, becoming the preferred partner and equipment supplier of lots of public companies and large-scale production enterprises.

Product Description

Vacutainer Vacuum Blood Collection Tube Making Machine

• Application: Full automatic production line of blood collection tubes(vacuum & non-vacuum).

• Process flow: Reverse tube detection→EDTA / BCA dosing-spraying→Drying→Cap adding→Vacuuming→Unloading into tray→Sealing & shrinking packaging→Finished product.

Production capacity	12,000-15,000 pcs/h
Tube size	Ø1375mm, Ø13100mm (available for PET, PP, Glass)
Cap size	Outer Ø16±0.05*19mm+0.1
Control way	Touch screen operation, PLC Control
Dosing system	10 sets of precision ceramic metering pump for EDTA K2/K3: 20-50ul±6%; 10 sets of metering valve for BCA: 20-50ul±10%
Drying system	2 sets of “PTC” dust-free drying system
Detecting system	Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage.
Vacuum degree	0 ~ -95Kpa ±5% for vacuum tubes; 0 for non-vacuum tubes (Numerical control for vacuum pressure, Frequency conversion control for vacuum pump)
Configurations	1) Reverse tube detection device- 1pcs 2) EDTA Precision Dosing Sprayer(10 sets) - 1pcs 3) BCA Precision Dosing Sprayer(10 sets) - 1pcs 4) PTC Dust-free Drying machine - 2pcs 5) Cap taking and wearing machine - 1pcs 6) NC Vacuuming and Cap-pressing Machine - 1pcs 7) Tube taking and unloading into Tray device - 1pcs 8) Sealing & shrinking packaging machine - 1pcs Remarks: 1) Sodium citrate/Heparin dosing spray optional; 2) Customized spec available;
Air consumption	Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa
Power	30KW/AC380V

Product Features

After more than 10 years of usage test by over 100 customers, HONGREAT has been focused on technological improvement, based on customer tracking service and feedback data, accumulated extensive experiences in production and technical solutions.

Stable, Reliable, Unbelievable low failure rate and humanized design, HONGREAT has won the trust from lots of customers.

HONGREAT has a core technical team, with more than 10 years of experience in R&D, production and service. Concentrating on each production link, by using innovation to create more value for manufacturing enterprises. HONGREAT refreshed techniques and efficiency of blood collection tube automatic production again.

Unique Inverted Tube Detection and Alarm System

Control every production link

HONGREAT unique inverted tube detection system, alarms timely in case of any tube direction inversion by worker’s misoperation while placing tubes, and will not pass into additive dose-spraying process, avoiding damaging the expensive precision spray system or affecting production.

Precision Ceramic Dosing-spraying System

HONGREAT newly self-developed customized ceramic metering dosing-spraying system, has low failure rate and accurate dosage. Plunger and plunger kit are made of high purity precision ceramic, normal working life reaches 100,000,000 times.

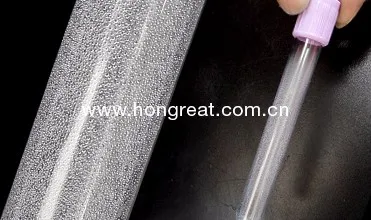

* Applied with leading SMC 3-axis servo control, nozzles rise gradually while spraying, which can spray more evenly. Product quality and test effect can be greatly improved.

HONGERAT developed various kinds of accurate and stable dosing system

optional for different BCT production demand.

1. EDTA K2 /K3: 5 or 10 nozzle precision ceramic spraying system optional;
2. Sodium citrate: 5 or 10 nozzle precision ceramic dosing system optional;
3. Lithium / Sodium Heparin: 5 or 10 nozzle precision ceramic spraying system optional;
4. BCA:10 nozzle precision spraying system optional;

PTC hot-air drying, finish good quality can be improved

Adopted with dust-free “PTC” heating mode, heat faster, temperature control more accurately.

Production efficiency and quality can be improved.

Precise Vacuum Digital Automatic Control System

HONGREAT self-developed intelligent digitized vacuum compensation system, vacuum degree is auto-compensated during vacuuming and cap-pressing. Intuitive control interface, simple and easily use even for ordinary workers. Vacuum blood tube of stable and high quality can be guaranteed in production process.

Frequency Converting Vacuum System

Latest frequency technology for vacuum pump, working / standby mode is selected automatically while machine running. Workload of pump is reduced, energy-saving, which is more, vacuum pump working life is extended.

Equipped with internet interface Simpler maintenance

HONGREAT blood collection tube automatic intelligent production machines are equipped with Internet remote maintenance interface. Wherever the customer is, we can solve faults for customers quickly and timely.

National Key Patents

HONGREAT is a company who is focusing on the intelligentization and innovation of BCT production.We have a core technical team, with more than 10 years of experience in R&D, production and service. Concentrating on each production link, by using innovation to create more value for manufacturing enterprises.

Through 15 years of practical application experience and constant feedback from 100 enterprises, we refreshed techniques and efficiency of BCT automatic production, each patents is our solid footprint.

Certifications
