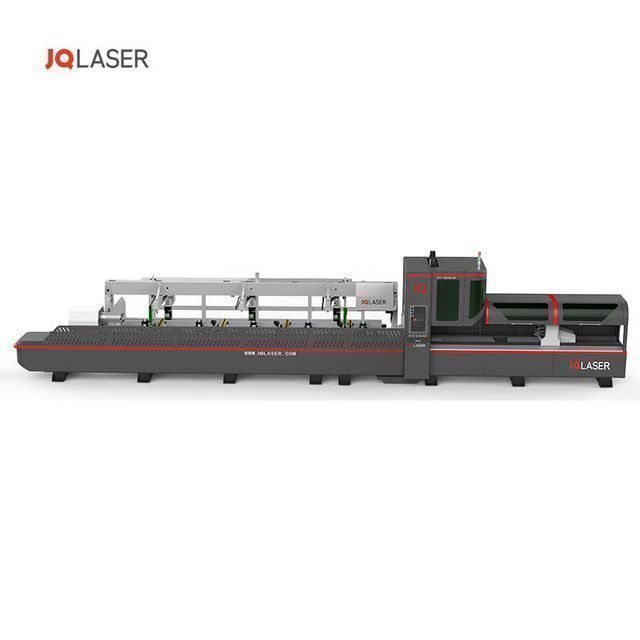

JQ-FLT6020ET Metal Automatic Feeding Three Chuck Fiber Laser Cutting Machine

Supplier: Jinan Jinqiang Laser Cnc Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms JQ LASER
Price: $160000.00 / 1 - 1 pieces
$150000.00 / 2 - 2 pieces
$140000.00 / >=3 pieces
Min. Order: 1 piece

Click here to contact

Product details

motor:	Fuji Motors	feature:	autoload
port:	Qingdao	Applicable materials:	Metal
Laser head brand:	mine tool	Control system brand:	Baichu 5000A
application:	laser cutting	Supply capacity:	500 pieces per year
Servo motor brand:	Fuji	Supported graphic formats:	AI,DXF,PLT,BMP,Dst,Dwg,LAS,DXP
payment terms:	L/C,D/P,D/A,T/T	Control System:	optional bochu
Key words:	China CNC Laser Cutting Machine	brand:	Jiang Qing
place of origin; place of origin:	China	Rail brand:	silver
controlling software:	Sepket	Laser source brand:	Rex
Function:	Cutting metal materials	Weight (kg):	6500kg
Core Components Warranty:	3 years	Video external inspection:	if
cooling method:	water cooling	Products processed:	tube
Laser Type:	fiber-optic laser	CNC or not:	Yes
Laser source:	Raycus IPG	Core components:	Pressure Vessels, Motors, Others, Bearings, Gears, Pumps, Gearboxes, Engines, PLCs
Operation Mode:	continuous wave	Cutting speed:	120m/min
Configuration:	5 axes	Main selling point:	high productivity
Cutting thickness:	30mm	Cutting area:	1-30mm
Packaging Details:	export waterproof	Packaging Preview:
Health status:	new	product name:	Fiber Laser Metal Cutting Machine
Maximum cutting speed:	700mm/min	strength:	1000W/2000W/3000W/6000W
Mechanical test report:	if	Laser head:	mine tool
Warranty:	3 years	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
power supply:	380V/50HZ

Product Description

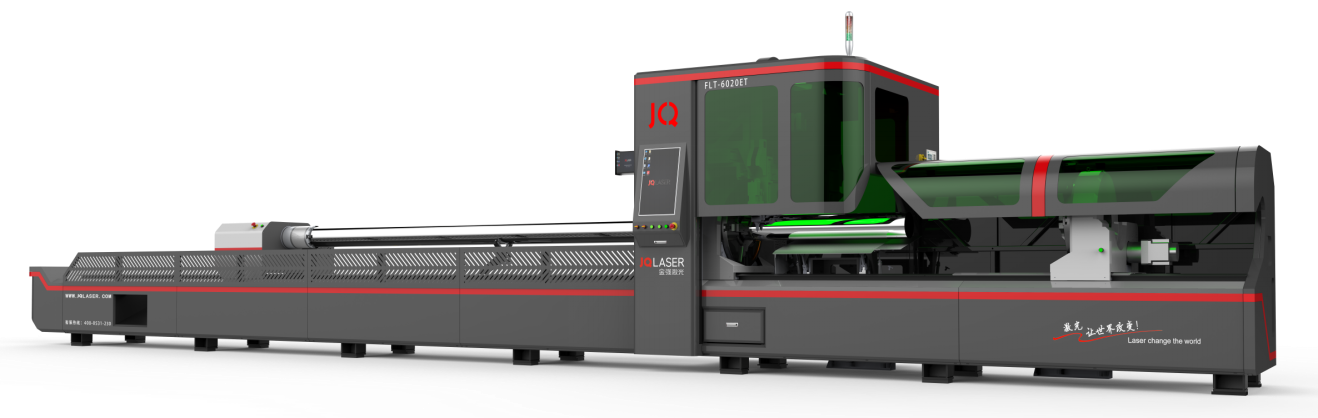

FLT-6020ET. Metal Cutting Laser Cutting Machine

Mainly used for round tubes, square tubes, rectangular tubes, oval tubes and waist round tubes of ordinary carbon steel, stainless steel and other materials. The outer circle size of the cutting workpiece is Φ15-Φ230mm, and the maximum length of the raw material is 6000mm.

Advantage

1. Three chucks, zero tailings

2. Automatic feeding system

3. Automatic unloading device

4. Fully enclosed pneumatic chuck with dustproof function.

5. Double row claws, high cutting precision.

scope

Model	6020ET
Laser power	1000W 1500W 2000W 3000W
Repeatability	±0.02mm
tube length	≦6mm
Pipe diameter	∅16mm-∅220mm
power supply	380V/50HZ
X, Y axis speed	90 m/min
Chuck speed	100 rpm
Machine size	1243555002400mm

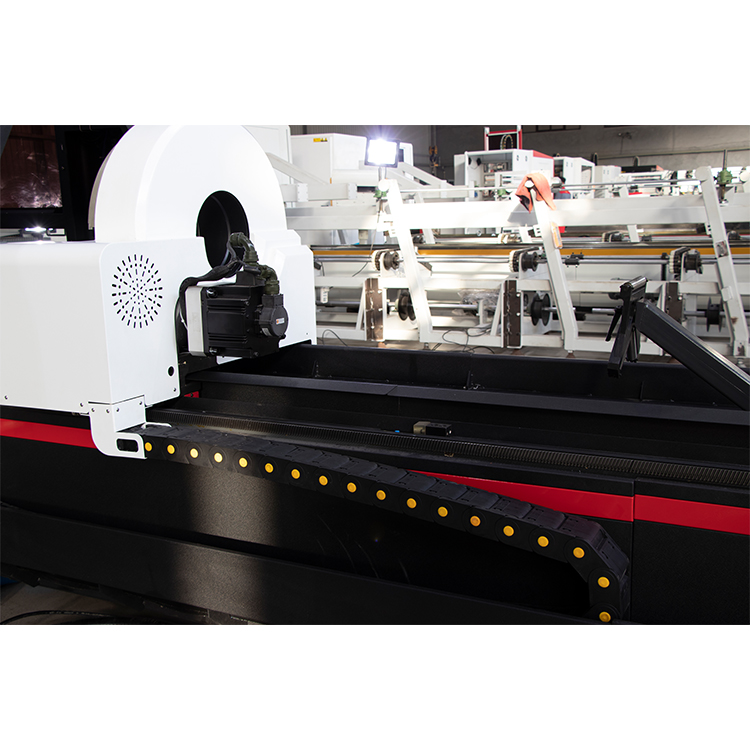

product structure

Hot selling triple chuck automatic loading system 1000W 1500W 2000W 3000W zero allowance CNC pipe cutting machine metal pipe cutting stainless steel pipe cutting laser cutting machine

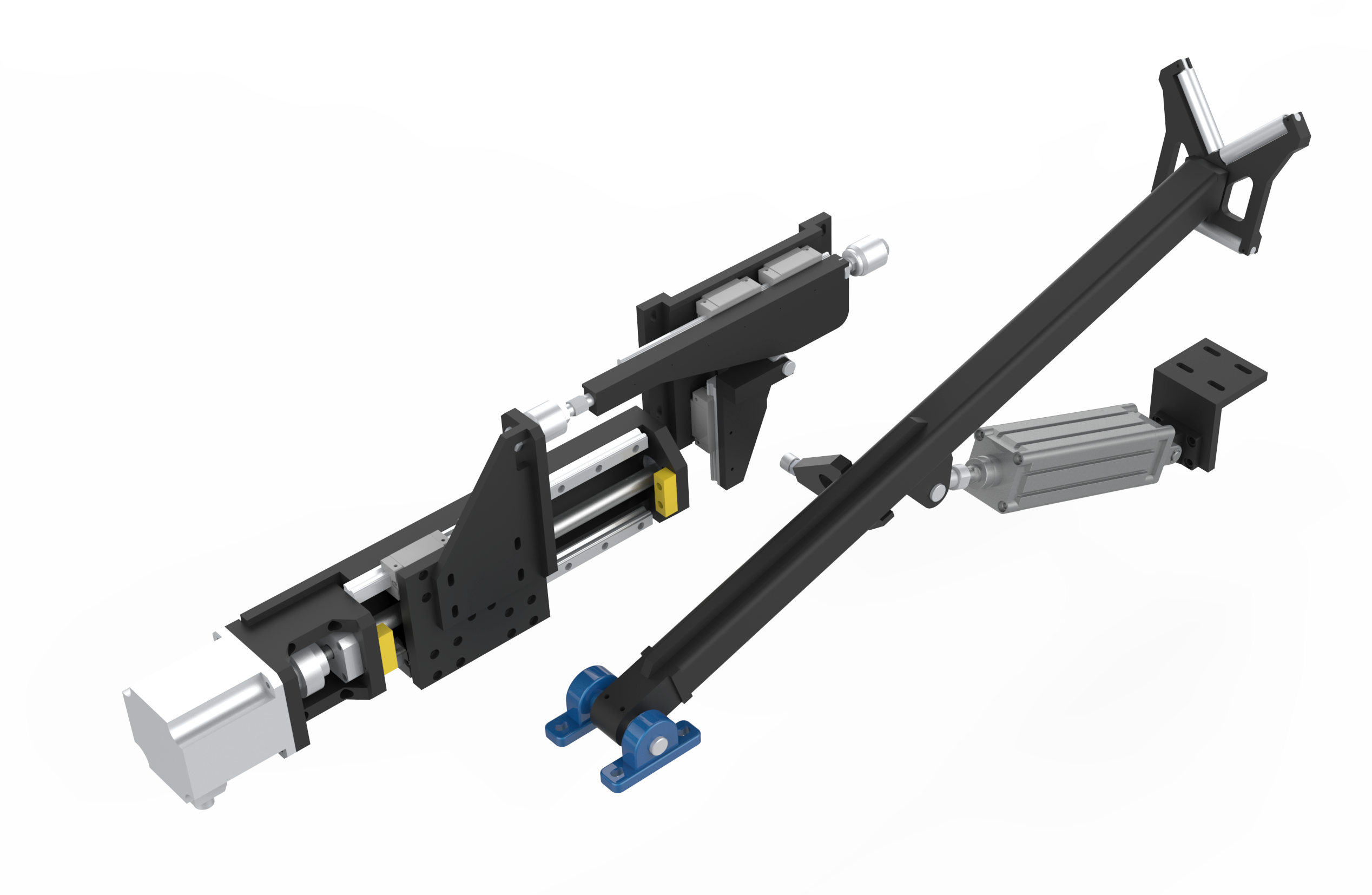

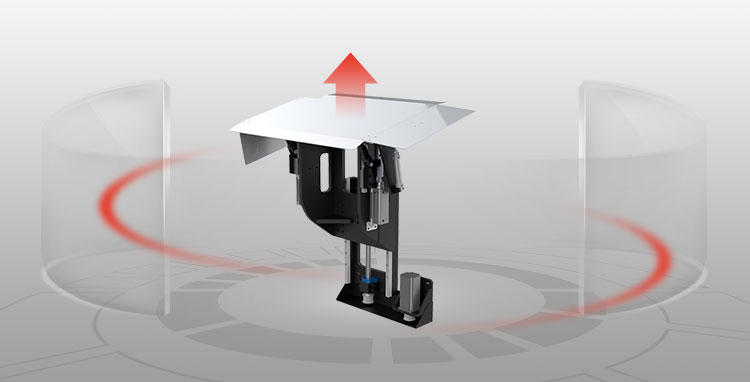

Follow-up support

The servo motor is used to drive the lead screw to control the lifting and lowering of the receiving board. When cutting a longer tube, the receiver plate supports the tube to prevent it from sagging.

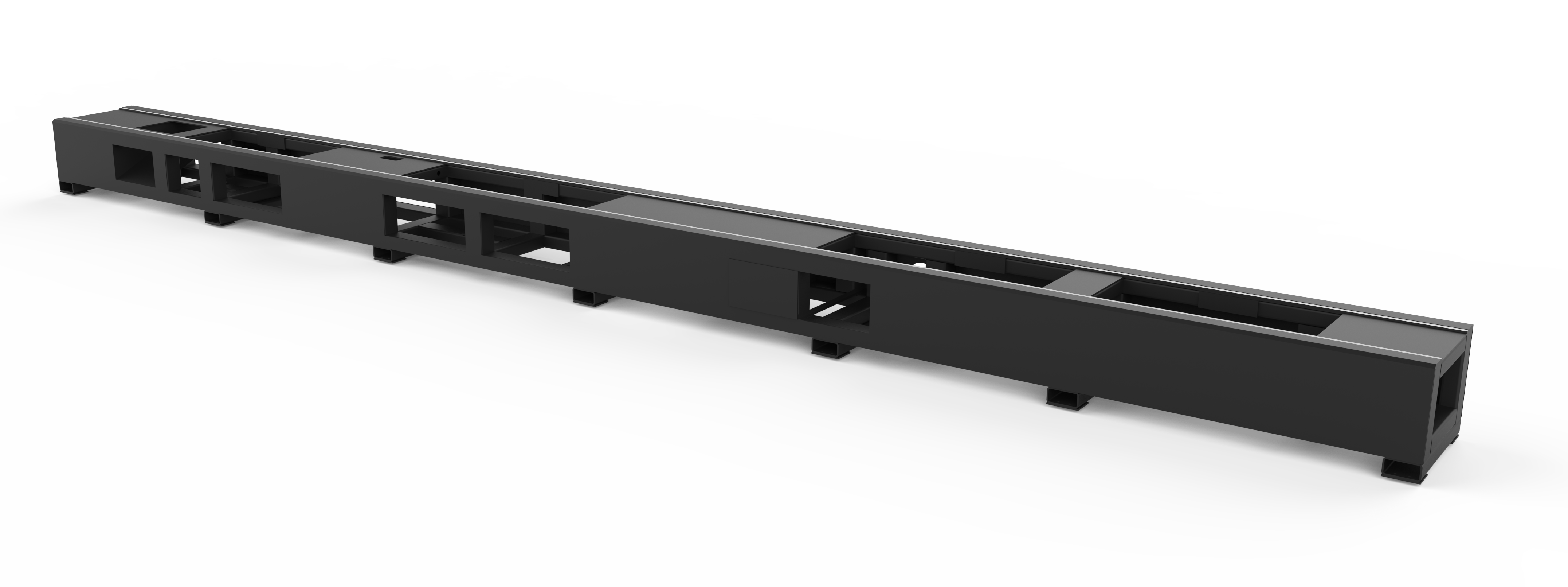

bedstead

The whole bed is welded and annealed to eliminate internal stress. After rough machining, vibration aging is performed before finishing machining, which greatly improves the rigidity and stability of the machine tool and ensures the accuracy of the machine tool.

Follow-up support

The bed is equipped with a follow-up support mechanism, and the auxiliary support is mainly used to assist in controlling the excessive deformation of longer pipes (pipes with smaller diameters).

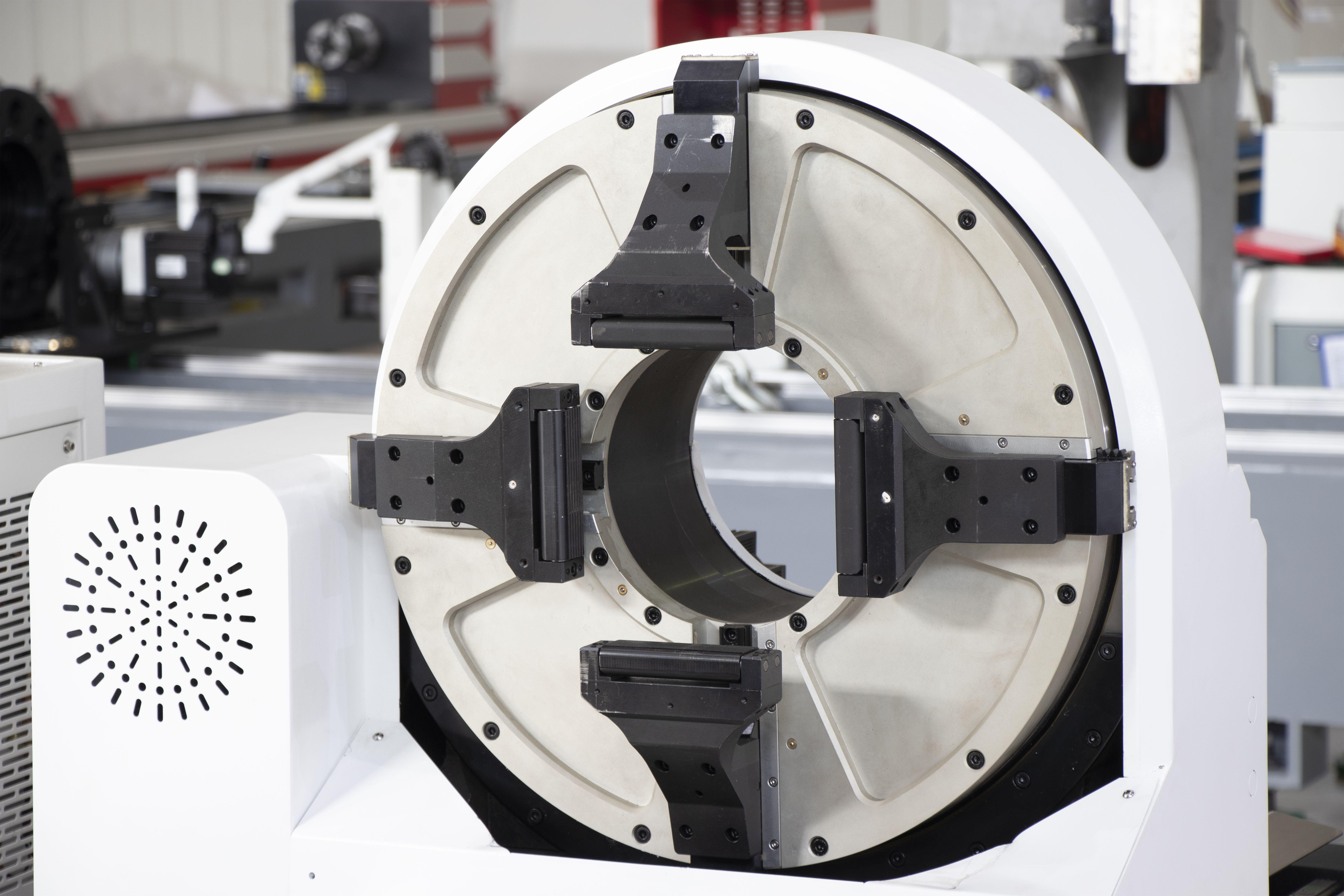

Chuck

Fully enclosed pneumatic chuck with dust protection. Adopt double row claw design, high cutting precision. Diameter: 20mm-220mm (the diagonal of the square barrel is less than 220mm) The maximum supporting weight is 300kg

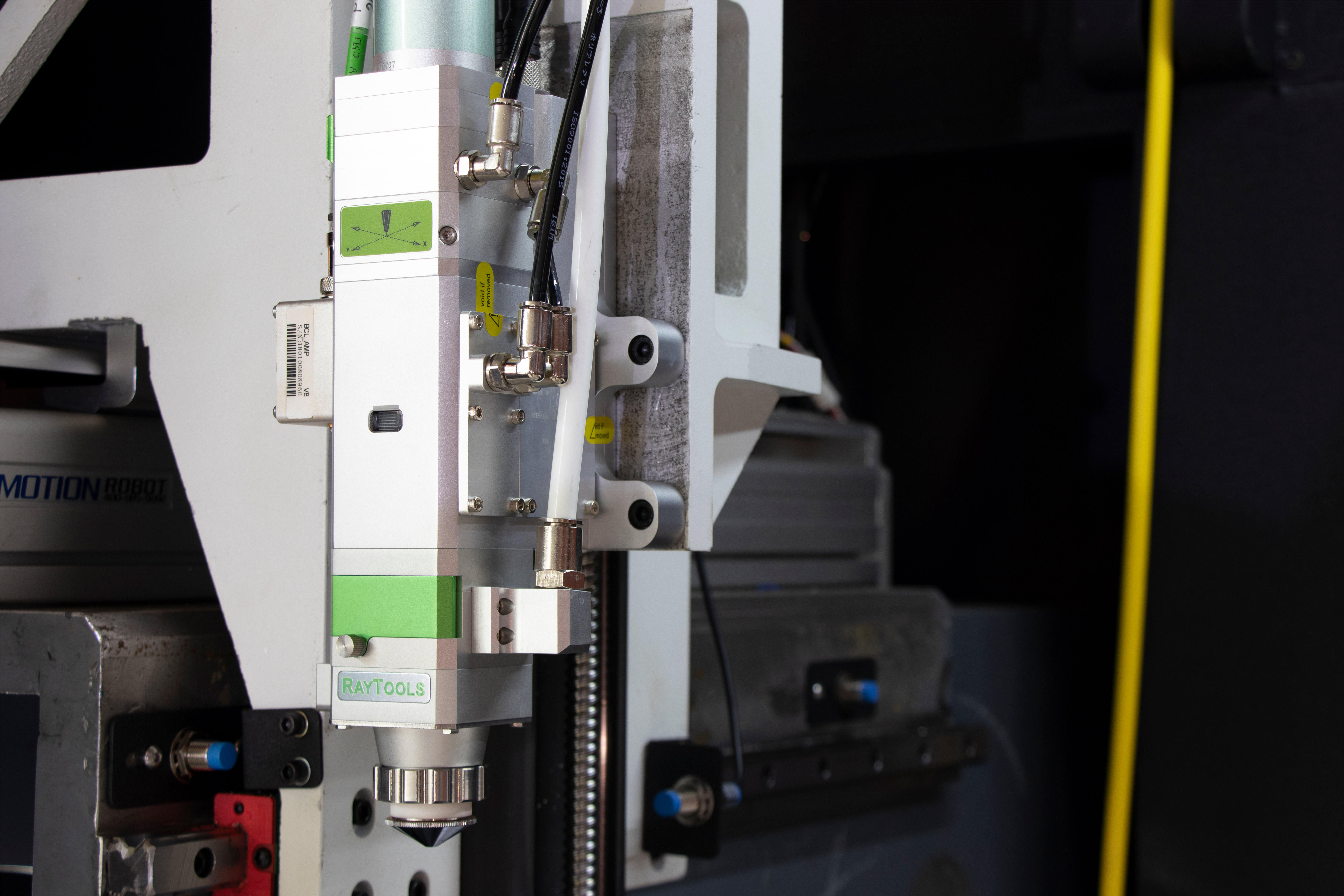

laser head

Semi-automatic PET blow molding machine bottle machine bottle machine PET bottle making machine is suitable for producing PET plastic containers and bottles of various shapes.

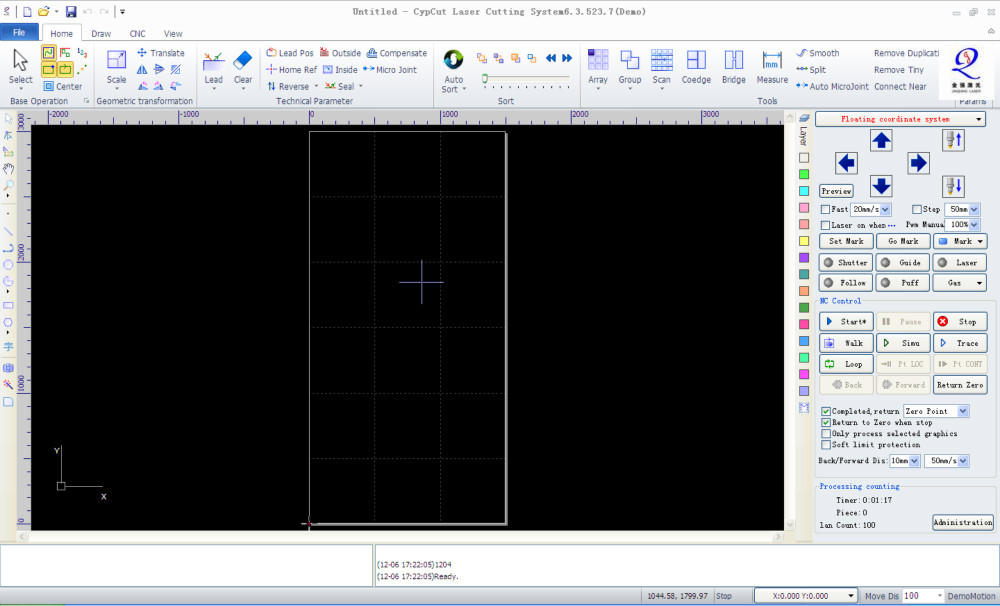

FSCUT system

FSCUT 5000A system is a PC numerical control system based on WINDOWS, a real-time system based on bus control, and the subsequent control is more stable.

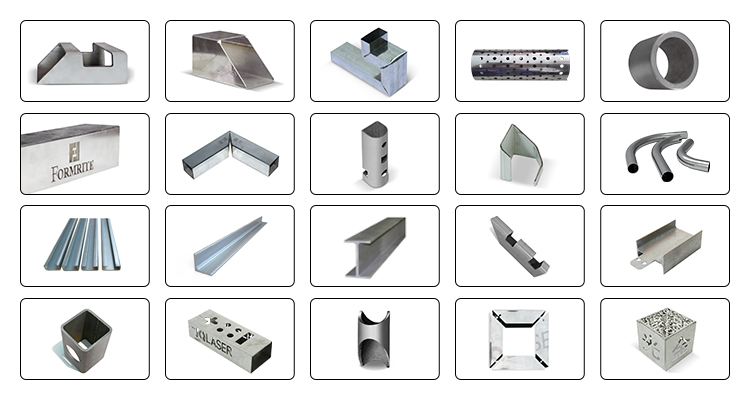

sample

FLT-6020ET Fiber Laser Cutting Machine Automatic unloading device, three-clamp 1000W zero-residue CNC pipe cutting machine, metal pipe cutting stainless steel pipe cutting laser pipe cutting machine, with two automatic clamps, the unloading length can reach 3 meters. The maximum unloaded weight is 60 kg. It is controlled by a servo motor (moves synchronously with the chuck and laser head). Two air cylinders automatically control the lift of the flap (when cutting short pieces, the three chucks are used together with the tool holder). An oil cylinder automatically controls the main wing from 180 degrees to 135 degrees (for automatic sliding of the material after cutting)

*FLT-6020ET can be equipped with automatic feeding rack, which is convenient and labor-saving

*We support free sample service! !You can tell us about the material and thickness, please get a sample first!

Industry application

JQlaser Fiber Laser Cutting MachineIt is used in various industries such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, sheet metal processing and so on.

Certificate

* we passedChief Executivecertification,ISO9001International certifications such as quality management system certification, Alibaba Jinpincheng enterprise certification and design patents.

Strictly control the incoming materials, processing, assembly, debugging, testing, packaging, transportation and other links to ensure the performance and quality of laser products.
