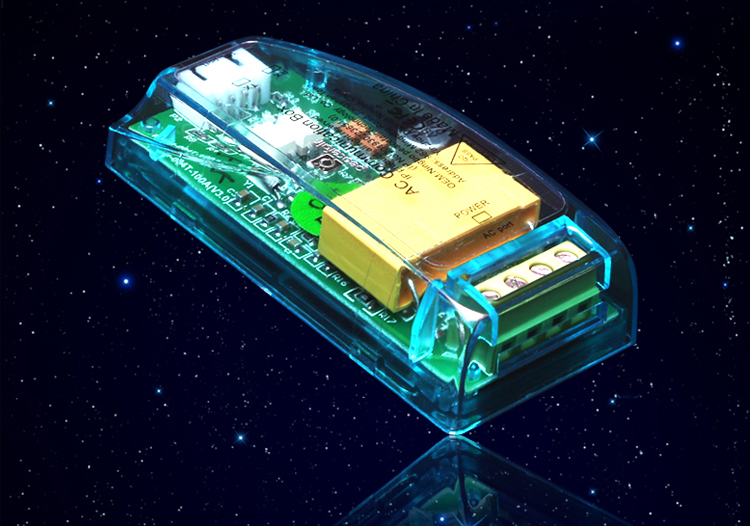

MITE MT004T 3.0 Coil CT USB Cable 220V TTL Modbus AC Voltmeter Ammeter Smart Electric Power Meter
- 7.80 1 - 19 units
- 7.30 20 - 49 units
- 6.80 50 - 499 units
- 6.00 >=500 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certificate: | European Union Federal Communications Commission | unit weight: | 109 grams |
| Single package size: | 13X10X6 cm | brand: | Mites |
| Measuring current range: | 0-100A | Power range: | 0-23kW |
| Accessories: | Coil CT+USB cable | type: | Single-phase digital energy meter |
| Sales unit: | single product | Name: | Multifunction Power Meter |
| Measuring voltage range: | 80-260V | Current testing scope: | 0-100A |
| Energy test range: | 0-9999.99kwh | place of origin; place of origin: | Zhejiang, China |
| Voltage test range: | 80-260V | model: | MT004T |
| Packaging Preview: | Operating temperature: | -10-60 degrees | |
| Gross weight per piece: | 0.200 kg | Packaging Details: | carton |

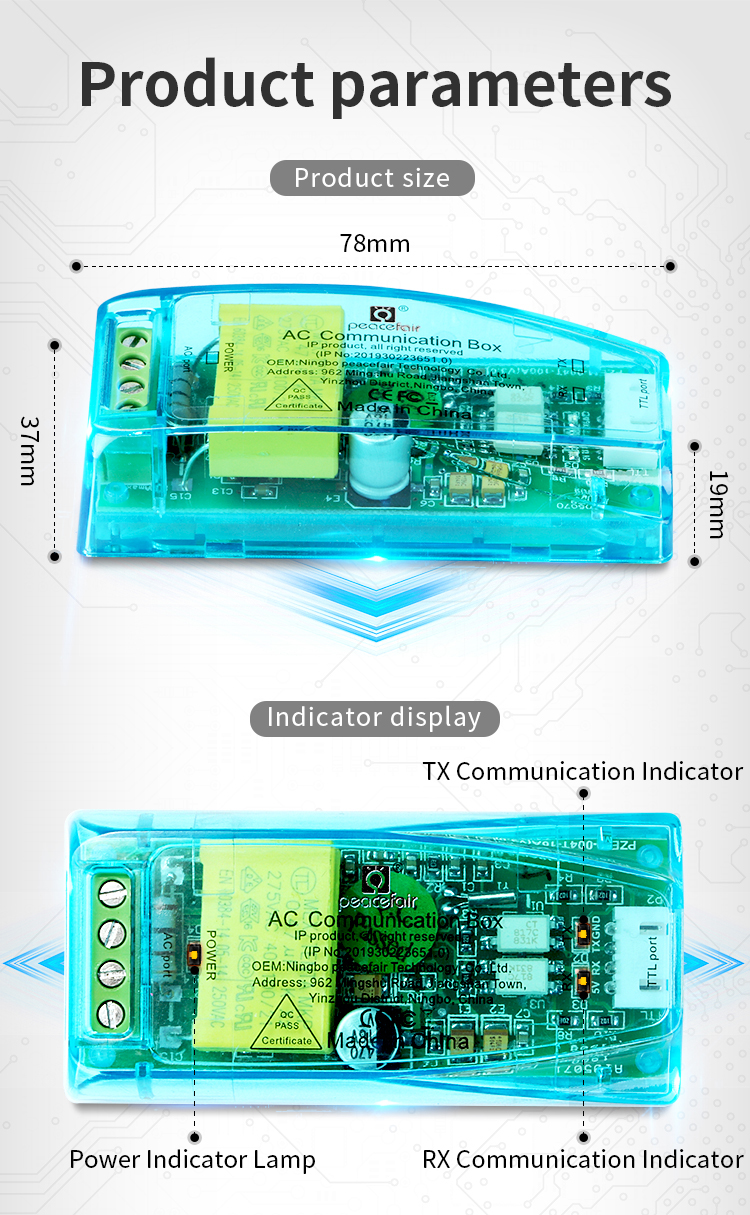

| aspect: | 78*37mm | Accuracy class: | Level 1.0 |
| communicate: | TTL |
MITE MT004T 3.0 Coil CT USB Cable 220V TTL Modbus AC Voltmeter Ammeter Smart Electric Power Meter
|
Product Category
|
004T 3.0v
|
|

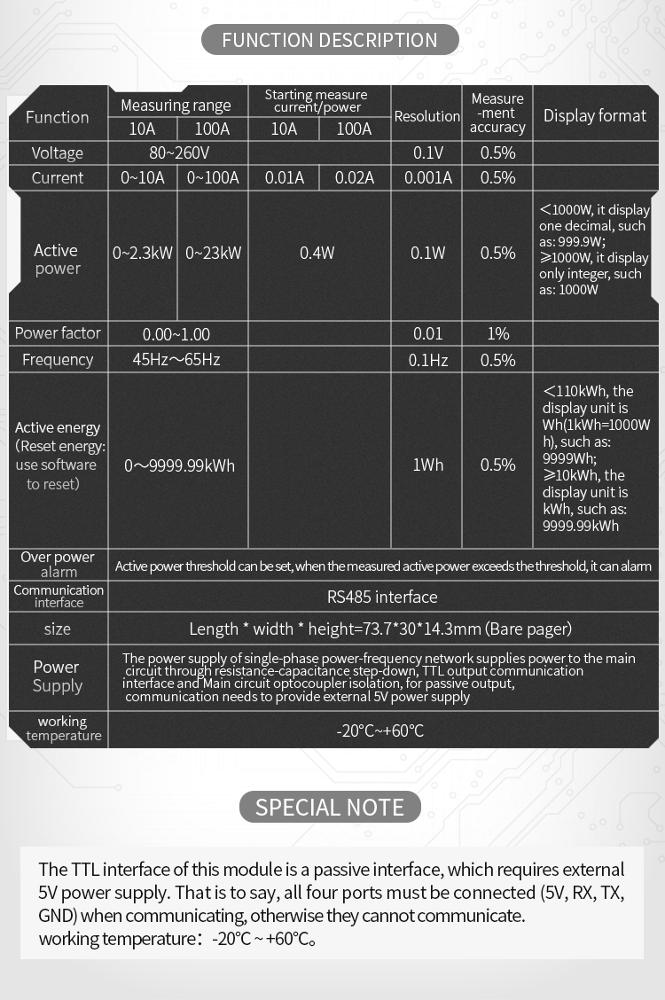

Function
|

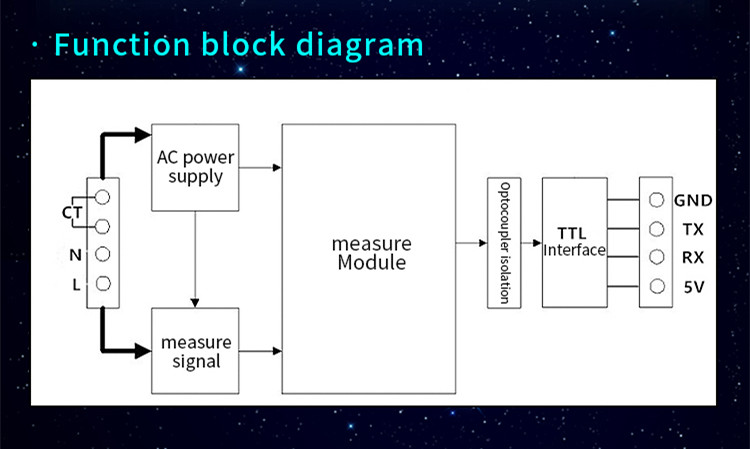

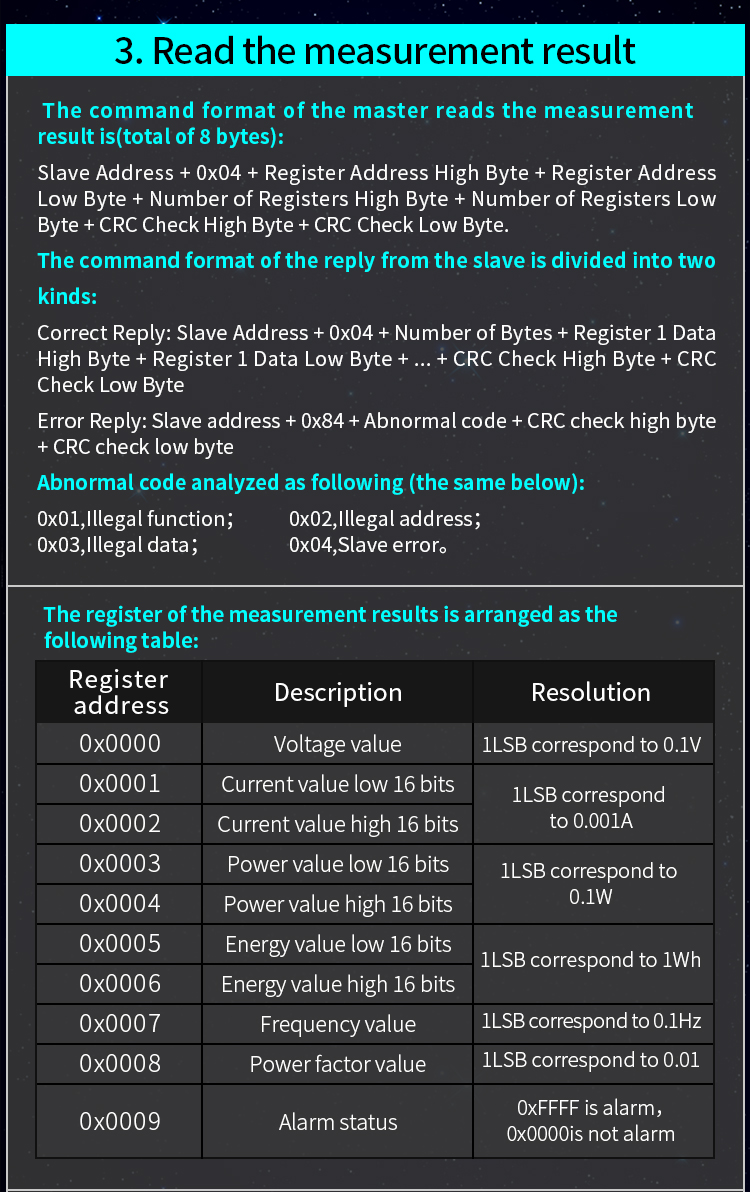

This module is mainly used to measure AC voltage, current, active power, frequency, power
Factor and active energy, not displayed, read data through TTL interface. |
|
voltage range
|
AC 80-260V
|
|
current range
|

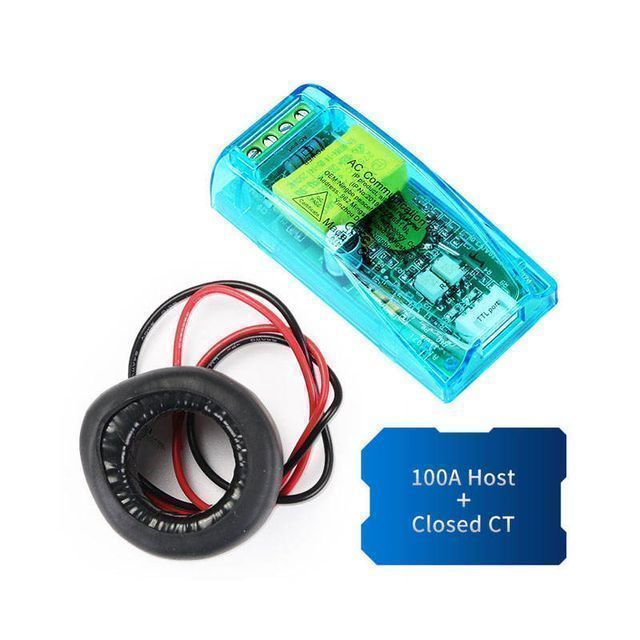

0-100A (with coil CT+USB cable)
|
|
Active power
|
0-23KW
|
|
energy range
|
energy range
|
|
power factor
|
0.00~1.00
|
|
frequency
|
45Hz~65Hz
|
|
weight
|
109 grams
|
|
Communication port
|
TTL interface
|
|

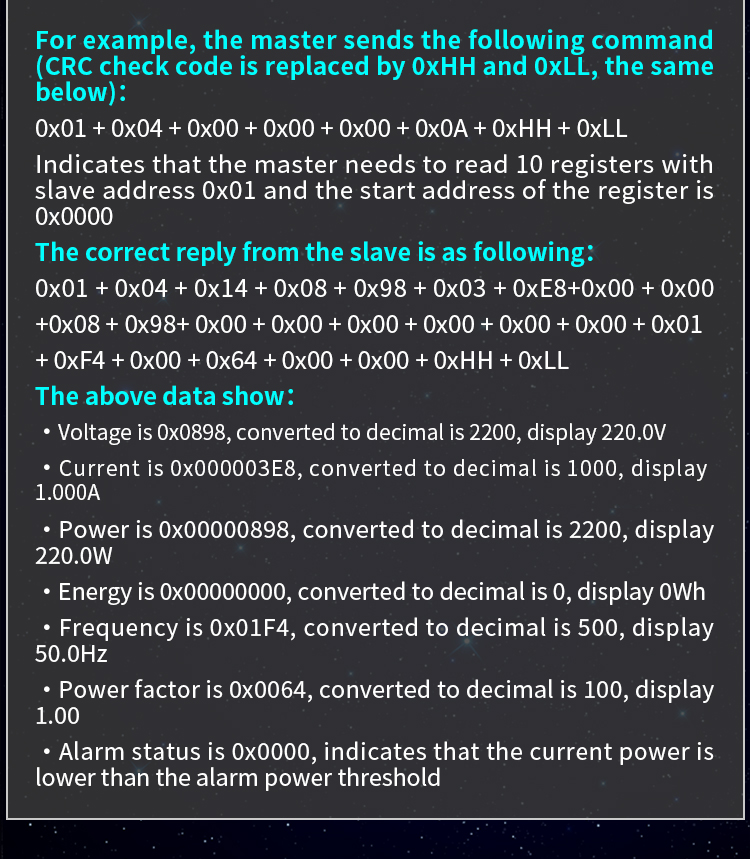

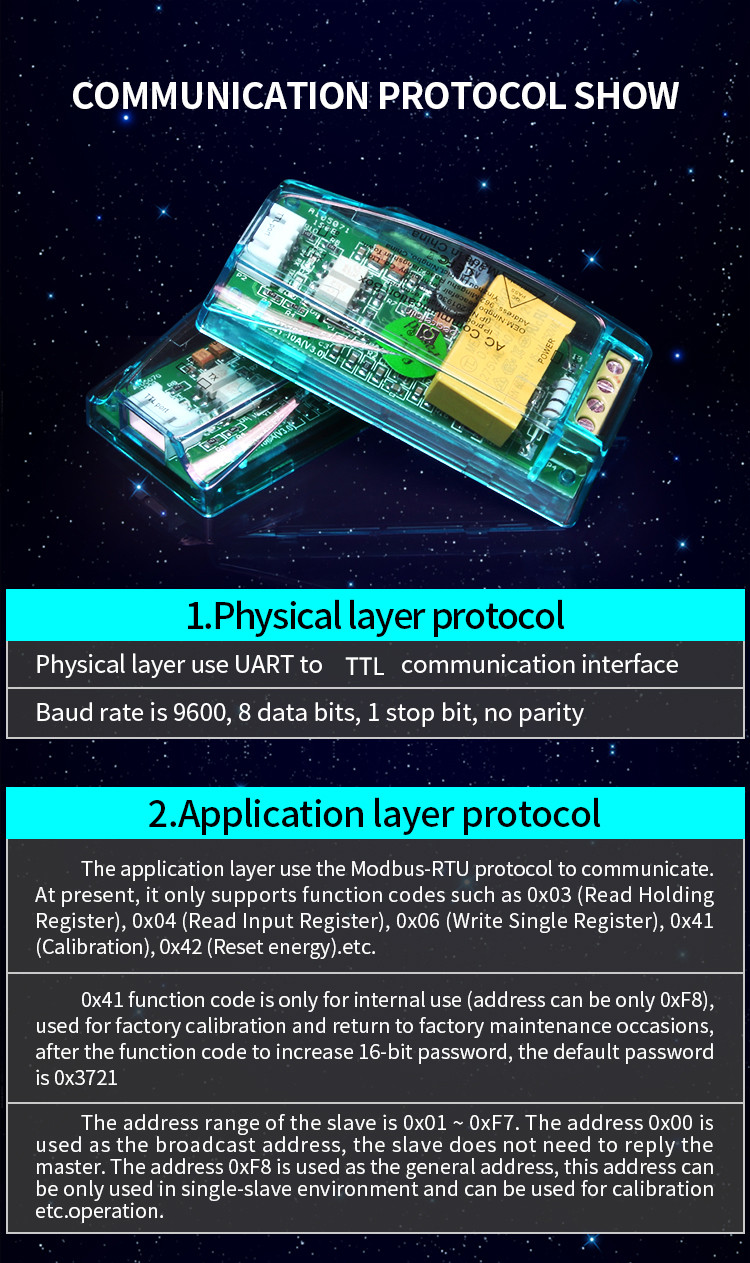

physical layer protocol
|
9600 baud rate, 8 data bits, 1 stop bit, no parity
|
