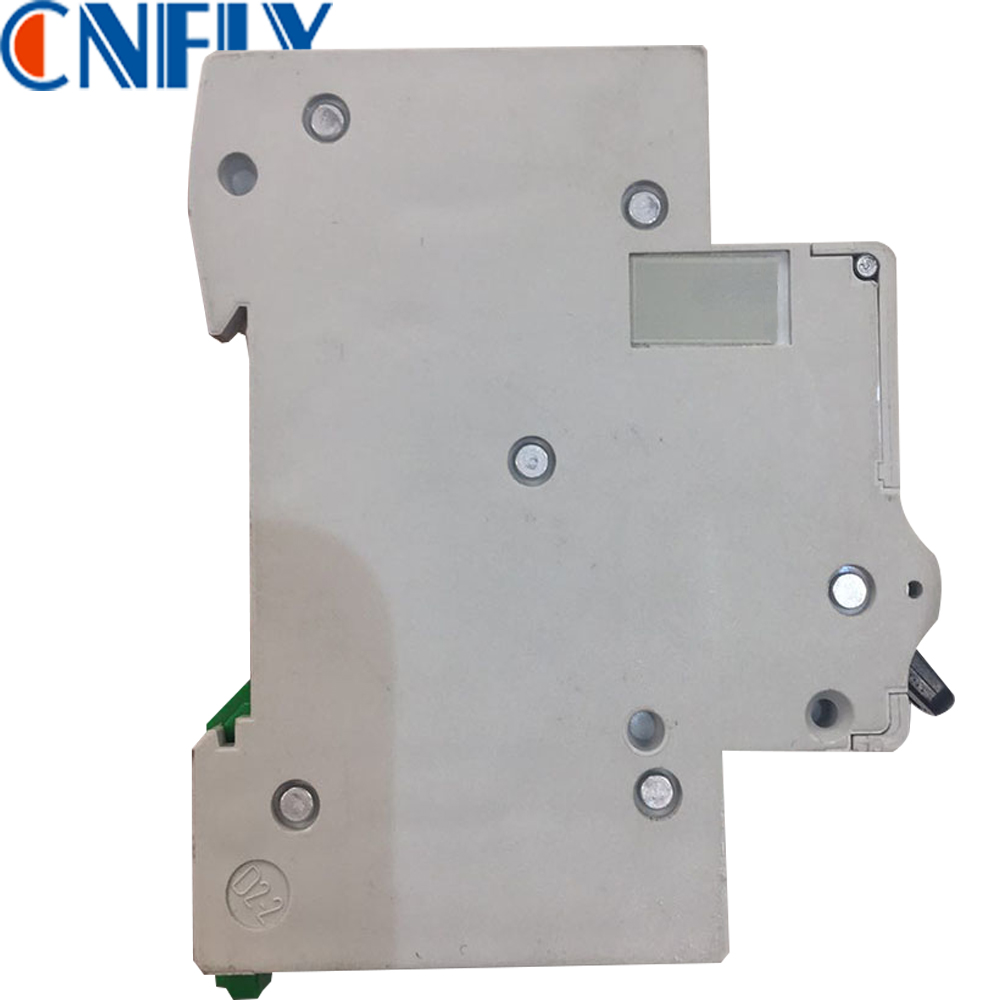

1pole 16A 25A 32A 40A 63A Easy9 EZ mcb miniature circuit breaker
- 0.60 >=480 pieces
| Rated current: | 16 | warn: | 5 years |
| Key words: | EASYPACT | Install: | 35mm DIN rail |
| Function: | Overload/Short Circuit | type: | MCB |
| BCD curve: | C | brand: | Huafei |
| structure: | C65 | model: | Easy 9 |
| payment terms: | L/C,Western Union,D/A,T/T | port: | Ningbo |
| Rated voltage: | 230/400V | Number of poles: | 1 |
| Packaging Details: | 1. Carton size: 460*240*340mm; 2. Gross weight: 24KGS, net weight: 23KGS; 3. Packing quantity: 12pcs/box, 20box/carton, 240Pole/carton | Breaking capacity: | 6K |
| Packaging Preview: | Supply capacity: | 300,000 poles per month | |
| Rated frequency (Hz): | 50/60HZ | Electrical life (time): | 6000 operations |
| Mechanical life: | 10000 times | place of origin; place of origin: | Zhejiang, China |
1 pole 16A 25A 32A 40A 63A Easy9 EZ miniature circuit breaker mcb
application
Easy9 is suitable for AC 50Hz/60Hz, single-pole 230V, double, triple, and quadrupole 400V lines for overload and short circuit protection, and the rated current can reach 63A. Can also be used for infrequent line changes under normal conditions. This circuit breaker is suitable for lighting distribution systems in industrial enterprises, commercial areas, high-rise buildings and residences. Comply with IEC60898 standard.
The main technical parameters
| type | Easy 9 | |||
| pole | 1P | 2P, 3P, 4P | ||
| Rated current (A) | 6,10,16,20,25,32,40,50,63 | |||
| Rated voltage (V) | 230 | 400 | ||
| ambient temperature | -5○C~+40○C | |||
| Instant release type | C | D | C | D |
| Rated short-circuit breaking capacity Icn(kA) | 1-32A:6 50-63A:4 |
4 | 1-32A:6 50-63A:4 |
4 |
Applicable lead
| Rated current (A) | Wire Nominal Section mm2 |
| 1-6A | 1 |
| 10A | 1.5 |
| 16,20A | 2.5 |
| 25A | 4 |
| 32A | 6 |
| 40,50A | 10 |
| 63A | 16 |
Overcurrent Protection Features
| ambient temperature | initial state | Test current | expected outcome | expected outcome | notes |
| 30±2○C | cold position | 1.13 inches | t≥1h | non-published | - |
| Immediately after the last test | 1.45 inches | t < 1h | release | - | |
| cold position | 2.55 inches | 1s < t< 60s(In≥32A) | release | The current rises smoothly to the specified value within 5s | |
| cold position | 2.55 inches | 1s < t < 120s(In>32A) | release | ||
| -5~+40○C | cold position | 3 inches | t≥0.1s | non-published | Type B |
| cold position | 5 inches | t < 0.1s | release | Type B | |
| cold position | 5 inches | t≥0.1s | non-published | Type C | |
| cold position | 10 inches | t < 0.1s | release | Type C | |
| cold position | 10 inches | t≥0.1s | non-published | Type D | |
| cold position | 20 inches | t < 0.1s | release | Type D |

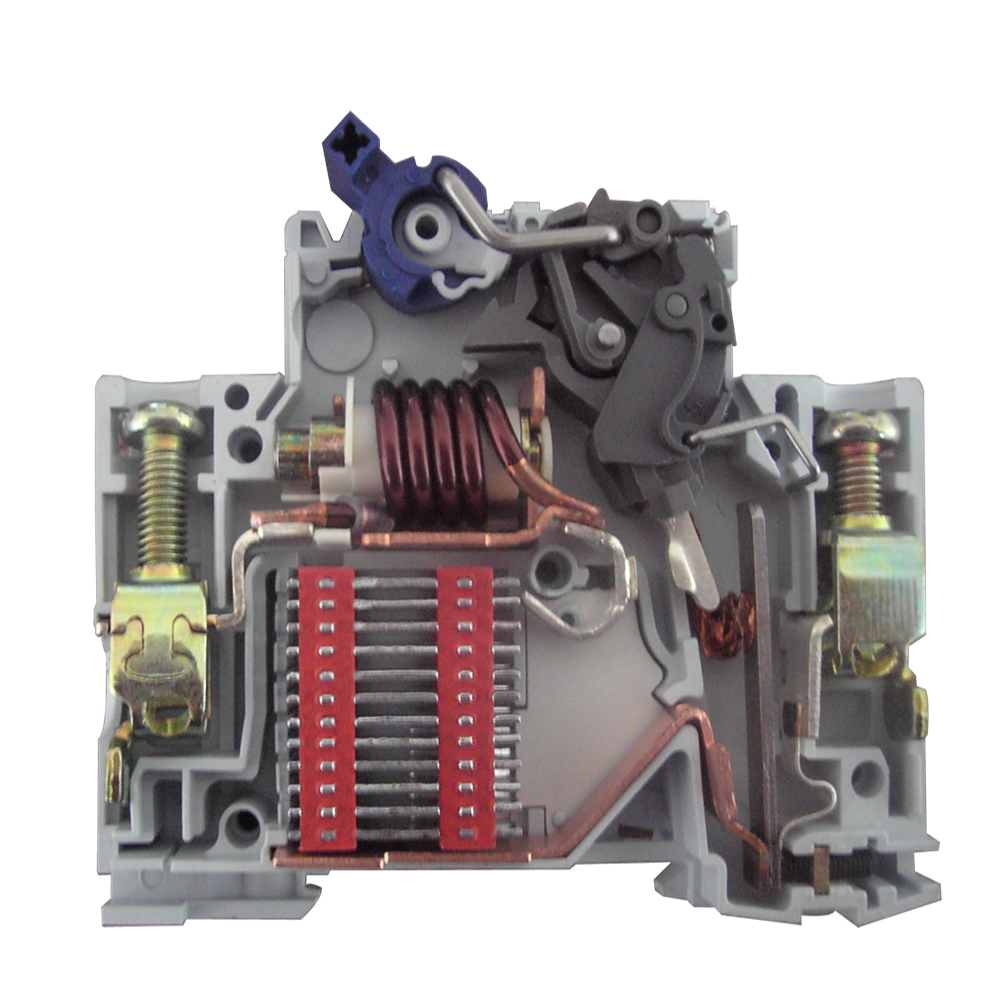

Material: Fire-resistant nylon PA66, copper silver dots
MCB is usually packed in cartons.
MCB Shipping: The main delivery port is Ningbo/Shanghai. Other terms may be used to follow up on client requests.
