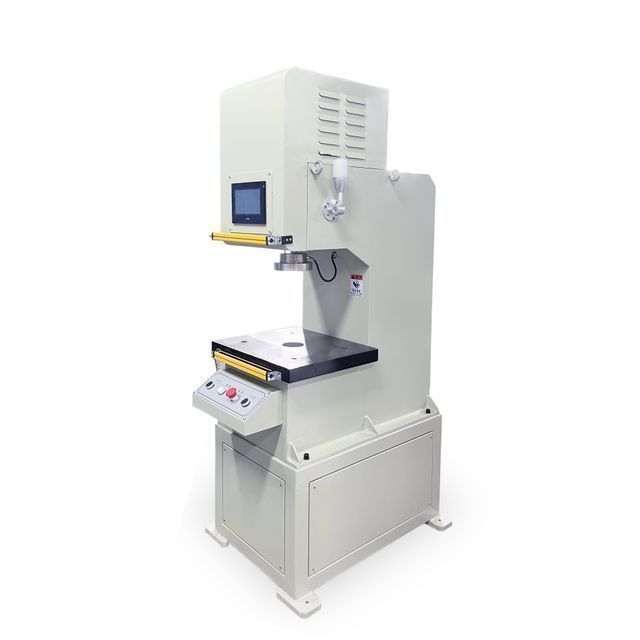

Single Column CNC Servo Electronic Press Auto Parts Pressure Test Single Arm Press

Product details
brand:HongjinSupply capacity:5 sets per day
place of origin; place of origin:Guangdong, ChinaPackaging Preview:
Voltage:220~380VSetting unit (mm):0.01
Allowable range (kg):1~100/300~30000Custom Support:OEM, ODM, OBM
Maximum (mm):200~500Repeatability (mm):0.01
Warranty:1 yearPress fit (mm/s):0~35/0~15
Card:Hongjinpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal
Packaging Details:Export fumigation-free wooden boxMaximum (kg):100~30000
Fast forward/rewind (mm/s):0~50/0~30port:Shenzhen, Guangzhou
Power (Kw):0.4~11KW
Product Description
Precision CNC servo electronic press is referred to as electronic press/servo press for short. Its working principle is that a servo motor drives a high-precision ball screw for precision pressure assembly. It can realize the whole-process closed-loop control of the pressing force and pressing depth in the pressing operation. Application fields: precision assembly application of auto parts, precision assembly application of electronic products, precision assembly application of IT and photography technology core components, precision pressure test application. The equipment is composed of base body sheet metal, precision servo electric cylinder, servo system, control system, etc. The special machine has high working efficiency, stable operation, low noise, high pressure precision and easy control.
feature
1. Improve productivity The stroke length can be set to the lower limit value required for production. A speed suitable for processing content can be maintained. 2. High product accuracy Through closed-loop feedback control, the accuracy of the set displacement is always guaranteed. Suppress product burrs and prevent defective products from appearing. 3. Low noise and long die life Through the low noise mode (that is, reducing the contact speed between the slider and the plate), the noise is greatly reduced compared with the general mechanical press. And the mold vibration is small and the service life is long. 4. The controllability of the slider movement Users can use this function to program the slider movement mode suitable for the processing technology, which can effectively improve the accuracy and stability of the product, improve the life and production efficiency of the mold, and can realize silent stamping and even expand the processing range. (eg magnesium alloys). It is suitable for processes such as stamping, punching, deep drawing, embossing and bending, as well as characteristic curves of different materials. If the slider can be stopped to maintain pressure, the purpose is to improve the molding quality of the part. 5. Energy saving and environmental protection Energy-consuming components such as flywheels and clutches of traditional mechanical presses are cancelled, driving components are reduced, and the mechanical transmission structure is simplified; the amount of lubricating oil is small, and the stroke is controllable; due to low power consumption, compared with hydraulic presses, the operation The cost is also greatly reduced. Cleaner and no greasy issues.
Product parameters
strength
0.4~11Kw
Voltage
220~380V
Model structure
Type C/Quad Column
Repeat accuracy (related to press-fitting speed)
0.01mm
