High Quality Nilos Ring 25*62 LSTO Hot Sales
- 16.00 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Brand Name: | XIR/OEM; | Port: | Qingdao/meet your need; |
| Model Number: | 25*62 LSTO; | Packaging Detail: | single box/meet your need; |
| Model Number: | 25*62 LSTO; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Port: | Qingdao; | Place of Origin: | Shandong China (Mainland); |
| Package: | Single box; | Material: | Chrome steel; |
| Supply Ability: | 10000 Piece/Pieces per Month; |
Product Description

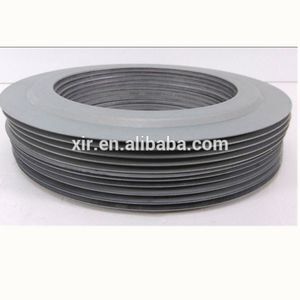

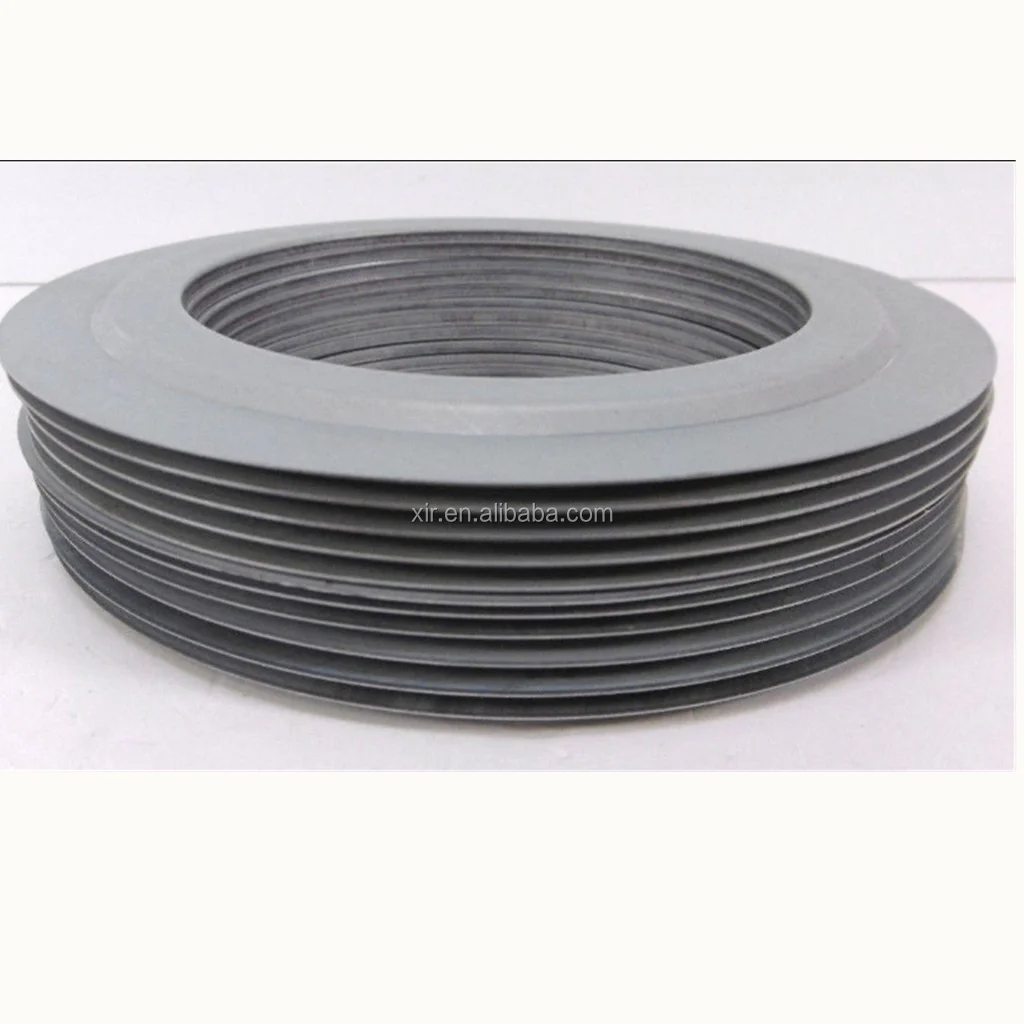

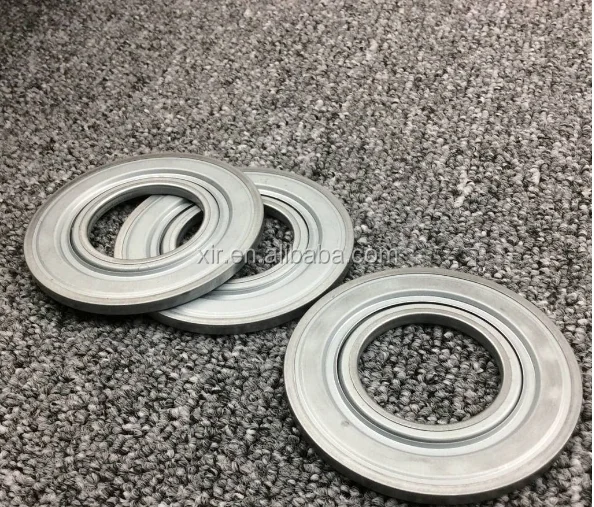

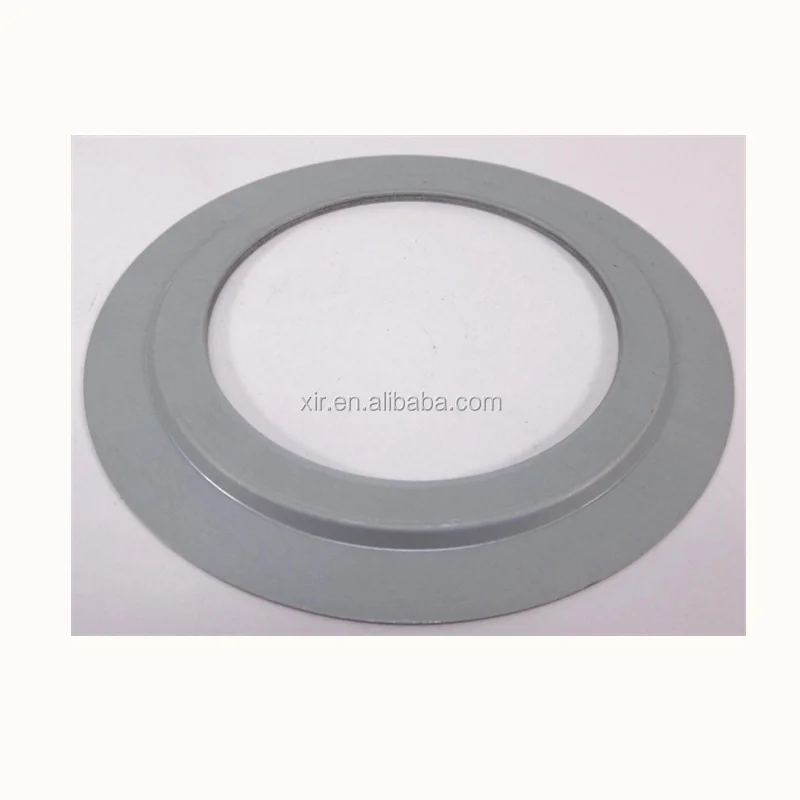

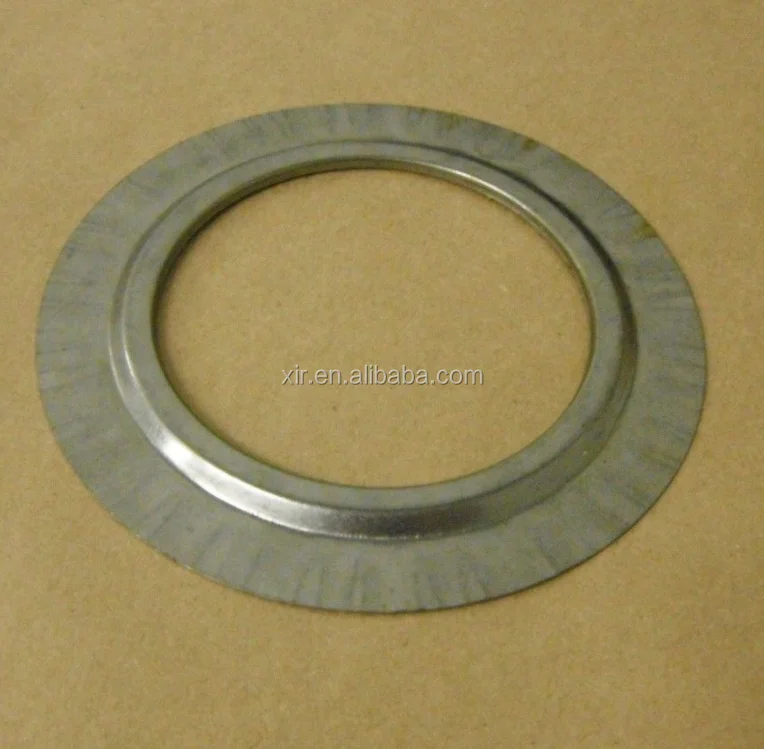

Niros Metal Bearing Seal Ring (NILOS RINGS) LSTO Labyrinth Seal Ring
LSTO steel disc seals can handle extreme conditions
The Niros LSTO labyrinth seal is a high-end sealing element that seals grease-lubricated bearings exposed to extremely contaminated environments. Unlike other types of seal rings, LOST seals are non-contact, filled grease, and labyrinth seals. It contains a laminated steel sealing disc and a steel core that can withstand axial pressure and does not slip on the other side after the inner or outer ring is secured.
| d | D | Modle number | h+0.2 | wA | wJ |
| 10 | 30 | 10*30 LSTO | 4.0 | 25 | 15 |
| 12 | 28 | 12*28 LSTO | 4.0 | 25 | 15 |
| 15 | 35 | 15*35 LSTO | 4.0 | 30 | 20 |
| 17 | 35 | 17*35 LSTO | 4.0 | 31 | 31 |
| 17 | 40 | 17*40 LSTO | 4.0 | 34 | 23 |
| 20 | 42 | 20*42 LSTO | 4.0 | 38 | 24 |
| 20 | 47 | 20*47 LSTO | 4.0 | 41 | 26 |
| 20 | 52 | 20*52 LSTO | 4.0 | 45 | 27 |
| 25 | 47 | 25*47 LSTO | 4.0 | 43 | 29 |
| 25 | 52 | 25*52 LSTO | 4.0 | 46 | 31 |
| 25 | 62 | 25*62 LSTO | 4.0 | 54 | 33 |
| 30 | 55 | 30*55 LSTO | 4.0 | 50 | 35 |
| 30 | 62 | 30*62 LSTO | 4.0 | 56 | 36 |
| 30 | 72 | 30*72 LSTO | 4.0 | 65 | 42 |
| 35 | 62 | 35*62 LSTO | 4.0 | 57 | 40 |
| 35 | 72 | 35*72 LSTO | 4.0 | 65 | 42 |
| 35 | 71 | 35*71 LSTO | 4.0 | 71 | 44 |
| 40 | 63 | 40*63 LSTO | 4.0 | 63 | 45 |
| 40 | 73 | 40*73 LSTO | 4.0 | 73 | 47 |
| 40 | 81 | 40*81 LSTO | 4.0 | 81 | 49 |
| 45 | 70 | 45*70 LSTO | 4.0 | 70 | 50 |
| 45 | 78 | 45*78 LSTO | 4.0 | 78 | 52 |
| 45 | 100 | 45*100 LSTO | 4.0 | 91 | 54 |
| 50 | 90 | 50*90 LSTO | 4.0 | 83 | 57 |
| 50 | 110 | 50*110 LSTO | 4.0 | 99 | 61 |
| 55 | 100 | 55*100 LSTO | 4.0 | 91 | 64 |
| 60 | 110 | 60*110 LSTO | 4.0 | 101 | 69 |
| 70 | 125 | 70*125 LSTO | 4.0 | 116 | 79 |
| 75 | 130 | 75*130 LSTO | 4.0 | 121 | 84 |
| 80 | 140 | 80*140 LSTO | 4.0 | 129 | 91 |
