High quality carrying accessories H310 Adapter sleeve
- 0.99 1 - 99 pieces
- 0.92 100 - 499 pieces
- 0.85 500 - 999 pieces
- 0.78 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Applicable industries: | Textile, light industry, papermaking, metallurgy | port: | Guangzhou |
| Model: | H310 | Packaging Preview: | |
| feature: | Stable performance: Bass | place of origin; place of origin: | Shandong China |
| payment terms: | L/C,Western Union,D/P,D/A,T/T | Material: | steel |
| product name: | High quality bearing accessories H310 adapter sleeve | model: | H310 |
| Card: | Hujiangzhong | application: | Textile, high quality bearing accessories H310 adapter sleeve |
| Serve: | OEM customized service | sample: | usable |
| quality: | high precision | pack: | original packaging |
| Supply capacity: | 300000 pieces/month | Packaging Details: | Plastic bag + single box packaging + carton + pallet |
| brand: | Hujiangzhong |
Product Description

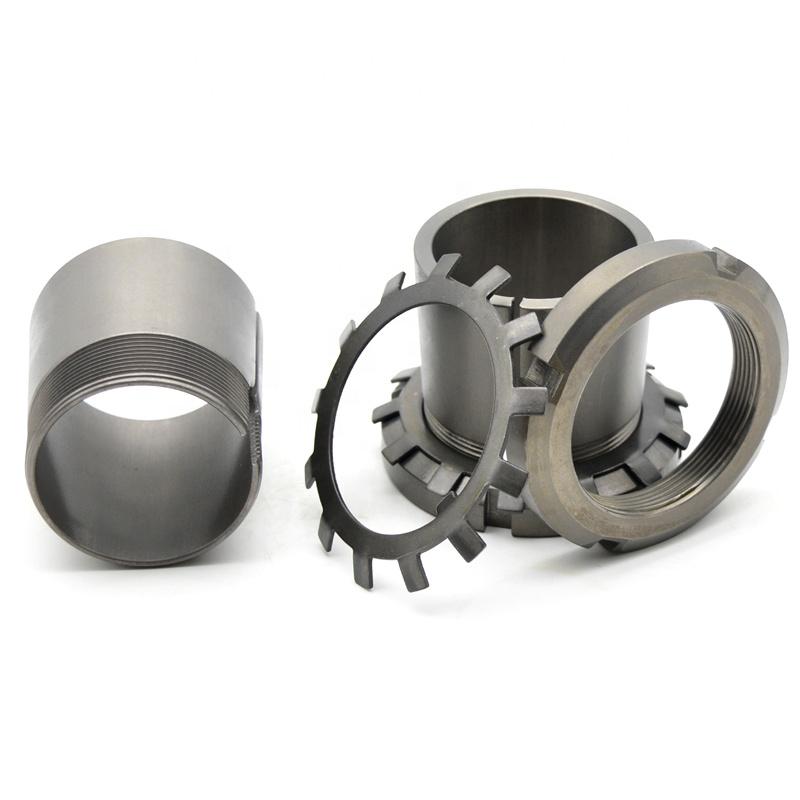

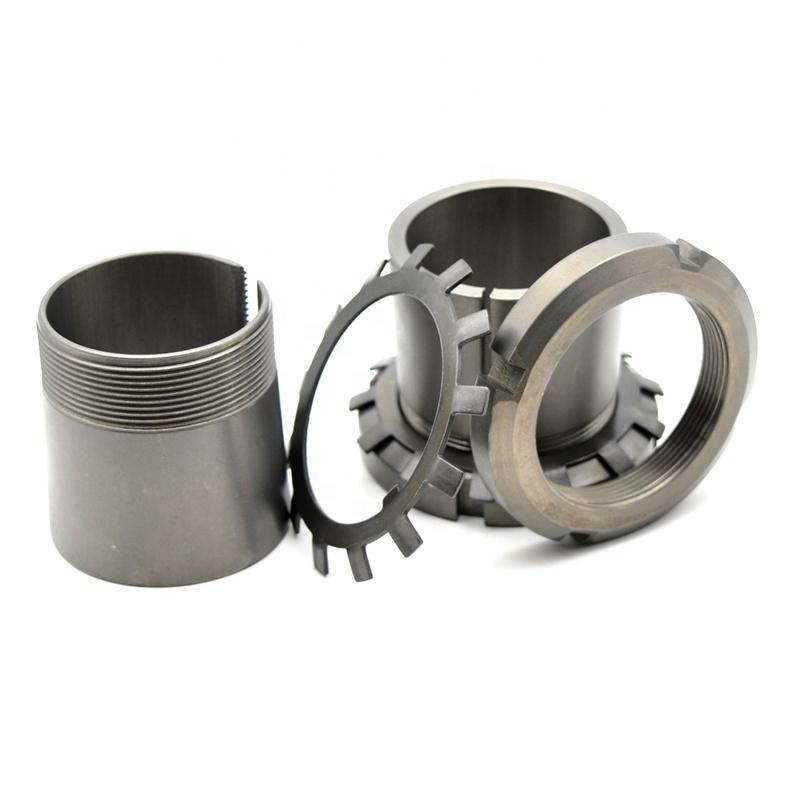

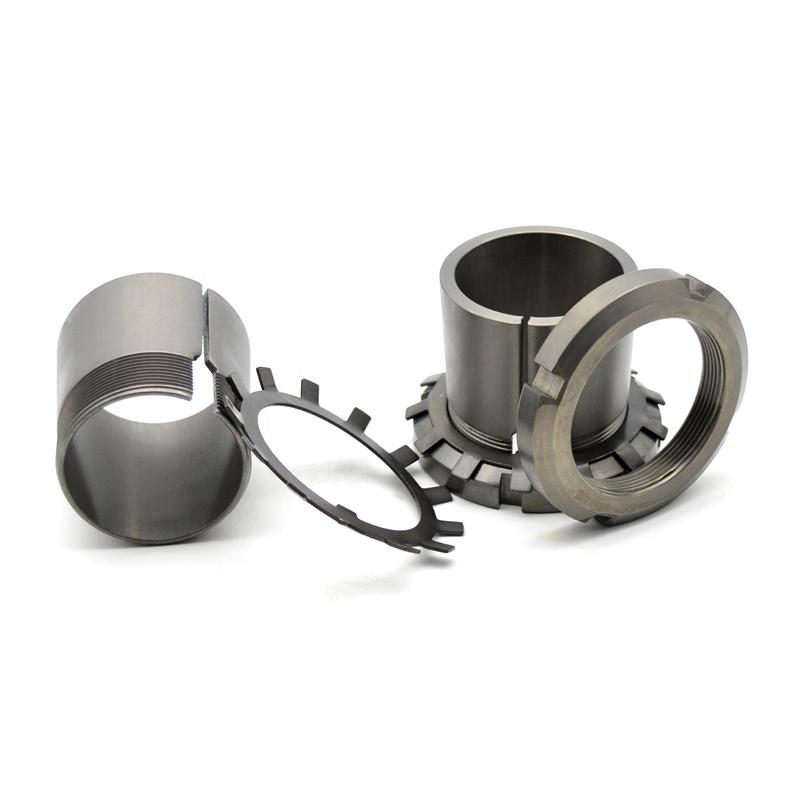

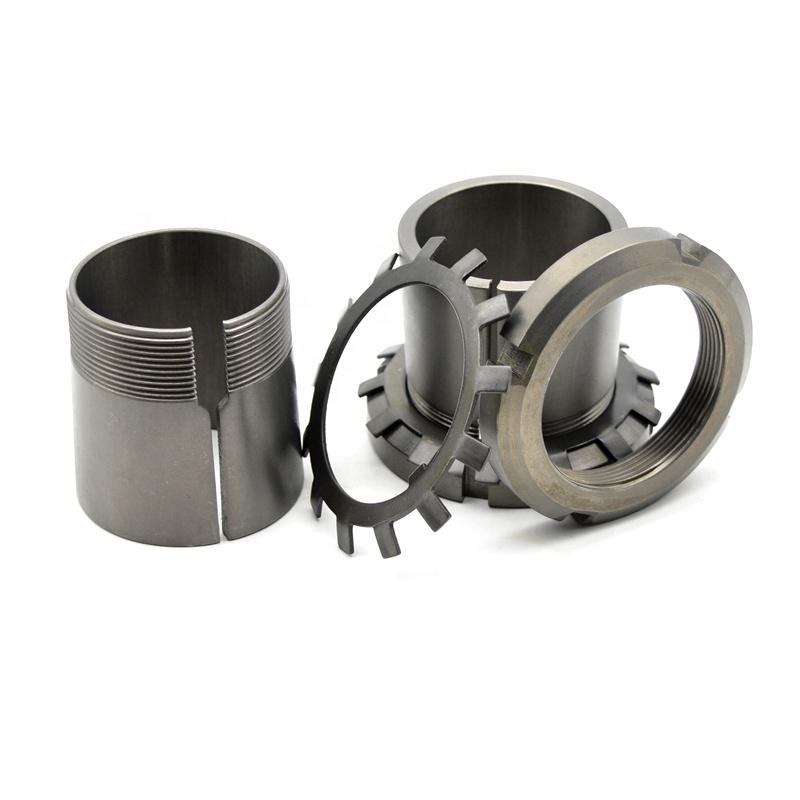

High quality bearing accessories H310 adapter sleeve
product description:ThisAdapter sleeveIt is the most commonly used part for locating bearings with tapered bores on cylindrical shafts, as it can be used on optical or stepped shafts.feature:The bushing is easy to install and does not require additional fixing to the shaft. When using tightsAdapter sleeveOn the optical axis, the bearing can be positioned anywhere on the shaft. When used in conjunction with the stepped ring on the stepped shaft, the bearing has accurate axial positioning and easy bearing unloading.application:ThisAdapter sleeveUsed to fix tapered bore self-aligning bearings (self-aligning ball bearings, spherical roller bearings) on shoulderless shafts. It has the characteristics of simple structure, reliable operation and convenient bearing replacement. Widely used in textile, light industry, papermaking, metallurgy, belt transportation and conveying equipment and other industries.

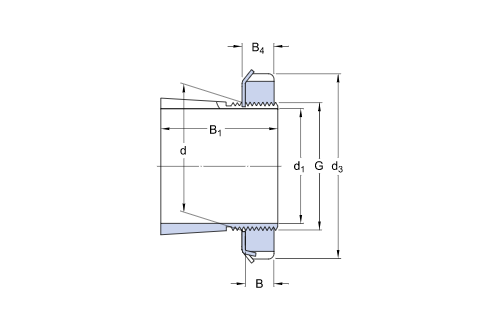

Adapter model
specify | Main dimensions | Included products | ||||||
d1[mm] | d[mm] | B1 [mm] | fasten the screw nut | lock the device | ||||
H 308 | 35 | 40 | 36 | km 8 | MB 8 | |||
H 308 E | 35 | 40 | 36 | KMFE 8 | ||||
H 209 | 40 | 45 | 33 | km 9 | MB 9 | |||
H 2309 | 40 | 45 | 50 | km 9 | MB 9 | |||
H 309 | 40 | 45 | 39 | km 9 | MB 9 | |||
H 309 E | 40 | 45 | 39 | KMFE 9 | ||||
H 210 | 45 | 50 | 35 | 10 km | MB 10 | |||
H 2310 | 45 | 50 | 55 | 10 km | MB 10 | |||
H 310 | 45 | 50 | 42 | 10 km | MB 10 | |||
H 310 E | 45 | 50 | 42 | KMFE 10 | ||||
H 211 | 50 | 55 | 37 | 11 km | MB 11 | |||
Specification
product name | High quality bearing accessories H310 adapter sleeve |
Card | Hujiangzhong |
Model | H310 |
Material | steel |
pack | original packaging |
cage | Steel cage, nylon cage, copper cage |
feature | Long life and high speed |
application | Textile, high quality bearing accessories H310 adapter sleeve |
size | 40*45*39mm |
Serve | OEM customized service |
