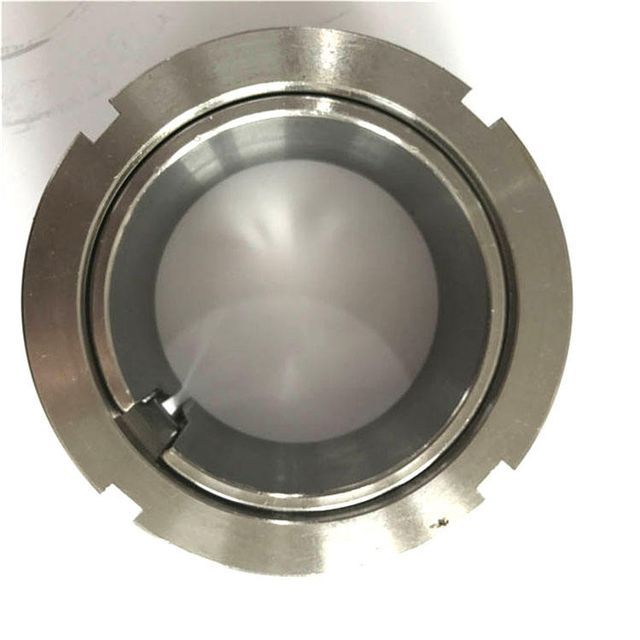

Metric Shaft Adapter Sleeves H2321 H2322 H2324 H2326 H2328 H2330 H2332 Sleeve Bushing Bearing Catalog H2334 H2336 Bearings

Supplier: Shandong Simon Bearing Co., Ltd.
Region: Shandong, China
Contact: Mr Huarong Zhang
Price: $4.00 / 1 - 99 pieces
$3.00 / 100 - 999 pieces
$2.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

in stock:	big	sample:	usable
type:	Spherical plain radial bearing	delivery time:	Receive payment within 3 days
Accuracy class:	P0 P6 P5	quality:	upscale
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Origin:	Shandong China
product name:	Adapter sleeve	Package preview:
pack:	original packaging	Processing:	available
series:	HHE series	Packaging Details:	1. Single box packing, then in carton, then in pallet. 2. Standard export packing. 3. According to customer needs.
Applicable industries:	bearing parts	brand:	Lena/OEM
model:	H2321 H2322

Metric Shaft Adapter Sleeves H2321 H2322 H2324 H2326 H2328 H2330 H2332 Sleeve Bushing Bearing Catalog H2334 H2336 Bearings

Product Description

1- Product type
H :Adapter sleeve, dimensions to ISO, basic design
ha:Adapter sleeves, dimensions to ISO, except bore, 1/16 in.
he:Adapter sleeves, dimensions to ISO, except bore, in 1/4 in
HS:Adapter sleeves, dimensions to ISO, except bore, in 1/8 in
oh:Adapter sleeves, dimensions to ISO, ready for oil injection
Open Web Initiative:Adapter sleeve, dimensions to ISO, for oil injection, with locking plate
OSNW:Adapter sleeves, dimensions to ANSI standard, ready for oil injection
Single Nucleotide Polymorphism:Adapter sleeves, dimensions to ANSI, with locking plate
SNW:Adapter sleeves, dimensions to ANSI, with lock washer
KH :Threadless sleeve, basic design
Potassium hydroxide:Threadless socket for oil filling.
2- Size identification
This part is where the numbers are placed to tell the size of the adapter sleeve.
3- suffix
Second:For adapter sleeves for oil injection: one or two oil supply lines at the end opposite the threaded part
Man:sleeve ripped in half
Second:Adapter sleeve without keyway, standard adapter sleeve with KMFE lock nut or HME lock
nut. This option is recommended for CARB toroidal roller bearings and sealed bearings
Um:Adapter sleeve without keyway, with KMFE H locknut. Sealed bearings are recommended for this option
El:Adapter sleeve without keyway, with KMFE L locknut. Sealed bearings are recommended for this option
G:Changed thread diameter according to revised ISO standard
H :There is an oil supply tube on the threaded end
Hepatitis B:One or two oil supply tubes on threaded end
large:Adapter sleeves with lock nuts have a lower cross-sectional height. This option is recommended for
CARB toroidal roller bearings and sealed bearings
Lala:Same as L but with key slot location for locking clip. CARB recommends using this option
Toroidal roller bearings and sealed bearings.
The designation system consists of three parts:

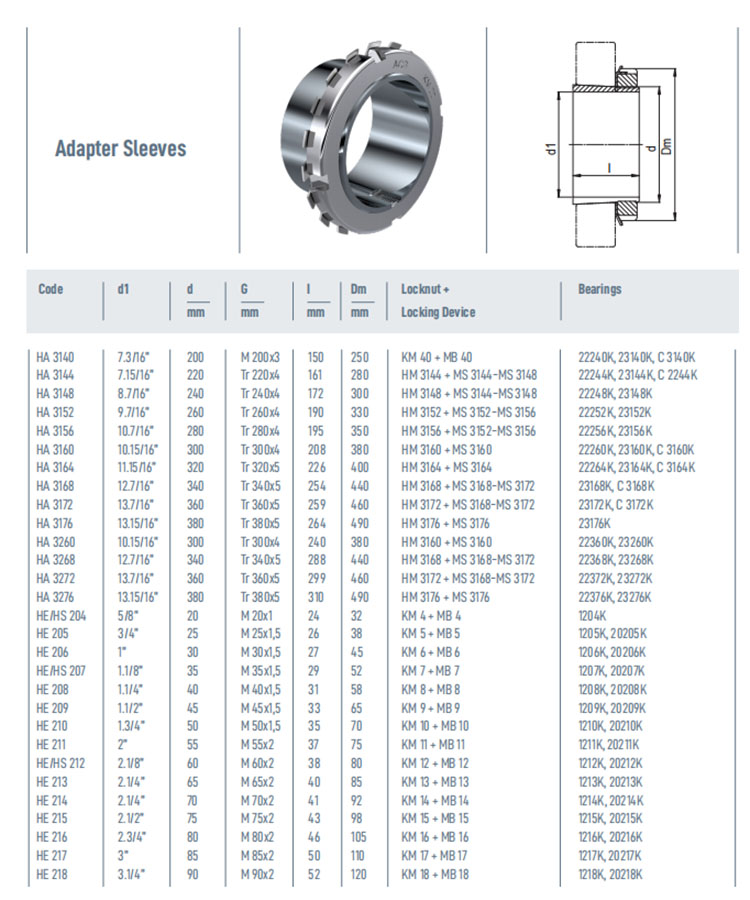

Adapter sleeve information
brand	SIMON or as your request
Item name	Metric Shaft Adapter Sleeves H2321 H2322 H2324 H2326 H2328 H2330 H2332 Sleeve Bushing Bearing Catalog H2334 H2336 Bearings
Material	Chrome steel, Gcr15
Seal type	Open
Certificate	ISO9001-2000
Shipping Details	2-10 days after receiving the deposit
shipping	Express: DHL Fedex EMS / Sea freight
Advantages of bearings	1). Excellent and high quality control
	2). Prompt delivery
	3).Competitive price
	4). Small order accepted
	5).Accept customer's drawings or samples
	6).OEM service

Adapter sleeves are used to secure self-aligning bearings with tapered bores (self-aligning ball bearings, self-aligning roller bearings) on shafts without shoulders. Metallurgy, belt transportation and transportation equipment industry.

The adapter sleeve is composed of adapter sleeve, lock nut, lock washer (or lock card) and other parts. Adapter sleeves with locknut and lockwasher are only interchangeable as a whole. Parts from different sources are not interchangeable.

Packaging and Shipping
