Automatic car bumper injection molding machine plastic car bumper making machine
-
Supplier: Zhangjiagang City BEST Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Min Yuan -
Price: $80000.00 / 1 - 2 sets
$68000.00 / >=3 sets -
Min. Order: 1 set
Product details
| product name: | car bumper making machine | Main selling point: | automatic |
| Local service location: | not any | Injection rate (g/s): | 1192 g/s |
| type: | Preform injection | Tie rod spacing (width) (mm): | 1350mm |
| Certification: | ISO9001/CE/TUV | Distance between drawbars: | 1350*1280mm |
| Core Components Warranty: | 1 year | Marketing Type: | normal product |
| brand: | BST machine | port: | Shanghai for plastic bottle capping machine |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Machine weight: | 76 tons |
| Packaging Details: | Packaging Details: We are responsible for machine packaging and loading. The injection molding machine adopts anti-rust technology to ensure that it does not rust by sea. Each package will be secured inside the container, ensuring there is no damage or collision during the entire shipping process. We should take a photo of the load and send it to you for reference. | Mould height (mm): | 600 - 1400 mm |
| Machine size: | 13.2*3.1*3.6m | Injector number: | 25 |
| payment terms: | letter of credit, wire transfer | Injection weight (g): | 8100 g |
| Video external inspection: | if | Screw diameter: | 38-40mm |
| Theoretical injection volume (cm³): | 9000 cubic centimeters | Screw aspect ratio: | 22.3 |
| After-sales service provided: | Video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support | Warranty: | 1 year, 1 year |
| Injection pressure: | 166Mpa | Opening stroke (mm): | 1400 mm |
| Voltage: | 380V/ 50Hz 3P+N+E (variable) | Health status: | new |
| Supply capacity: | 30 sets of fpr plastic bottle cap making machine per month | Applicable industries: | Manufacturing Plants, Food and Beverage Plants |
| model: | BST-13000A | Core components: | Bearings, Motors, Pumps, Gears, PLCs, Others, Pressure Vessels, Engines, Gearboxes, Screws |
| Fuel tank capacity: | 2400L | Screw diameter (mm): | 135 mm |
| Name: | car bumper forming machine | Ejection force (kN): | 280 kN |
| Key words: | Auto bumper injection molding machine | Plastic Processing: | PP,PC,ABS,PET,PVC,FRPP/PVC,PPR,EVA,HDPE,MLLDPE,EPS,PA,polystyrene,PE,LDPE,EVOH,HDPE/PP,ABS/PP,PE/PP,polylactic acid |
| Type of machine: | hydraulic | style: | horizontal |
| Weight (kg): | 76000 | Screw speed (rpm): | 1 - 100 rpm |
| Tie rod spacing (height) (mm): | 1280mm | Showroom location: | not any |
| place of origin; place of origin: | Jiangsu, China | Ejector stroke (mm): | 220 mm |
| Power (kW): | 245 kW | Mechanical test report: | if |
Automatic Wholesale Automatic Plastic Chair Car Bumper, Injection Molding Machine
Product Description
BEST13000A
Strong technical design ability, stable quality, strong production capacity, well-known brand.

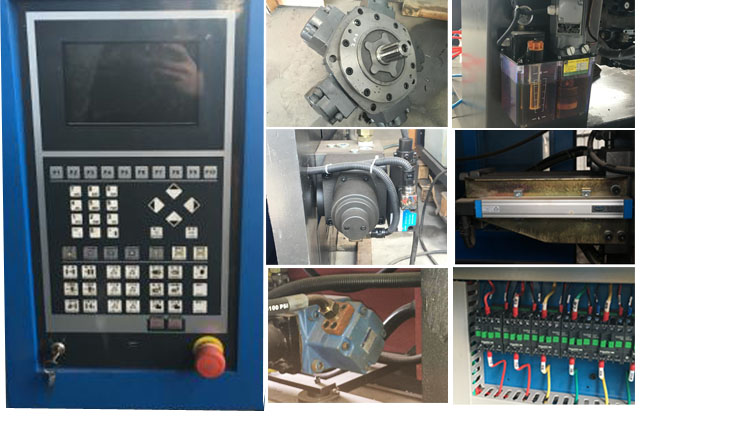

Control System
The all-digital control system adopts a dedicated controller, multi-CPU processing division,
Multifunctional automatic fault detection, alarm system, certificate 99 mold
Processing program, with remote control interface. High system stability,
Response capability. The system adopts color LCD screen, man-machine interface, simple operation,
Has multiple peripheral interfaces.
Hydraulic system
The advanced hydraulic system design realizes rapid multi-stage pressure and speed switching through proportional control of pressure and flow. The system configuration is reasonable, stable and reliable. The noise is less than 75 decibels. The medium and large machines use a two-way cartridge valve system to improve the system flow and response speed, so that the whole machine can achieve the best performance.

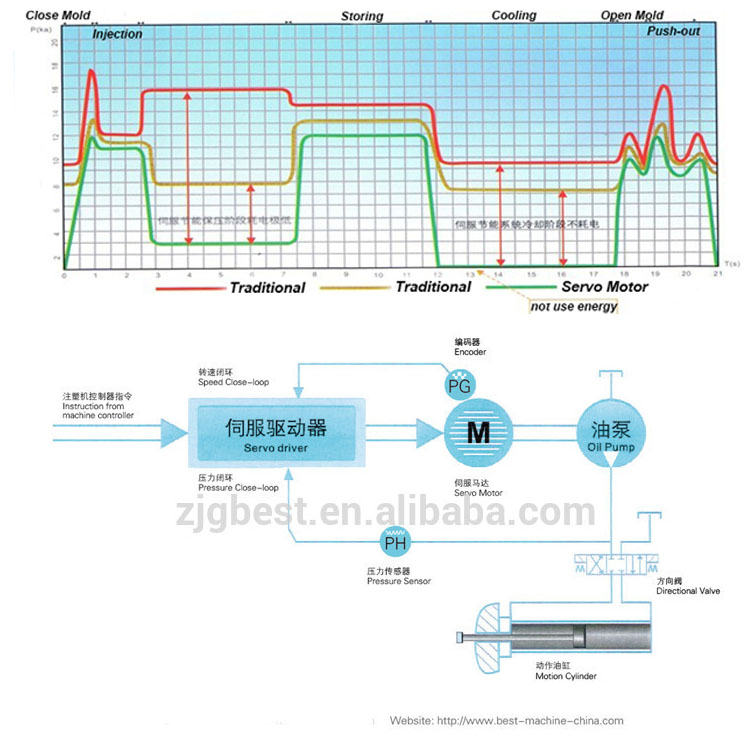

server system
After the servo driver receives the pressure flow command from the computer controller, it compares it with the actual pressure flow feedback to correct the difference in the speed of the servo motor. In this way, the control of injection molding is not only accurate and fast, but also the repeatability of the product is high.
technical parameter
| Model | Clamping tonnage (KN) | Ejector Tonnage (KN) | Thermal power (KN) | Maximum Pump Pressure (MPA) | Pump motor power (kw) | Machine size (m) | Machine weight (t) | Fuel tank capacity (L) |
| BST-1000A | 1000 | 50 | 7.6 | 16 | 11 | 4.3*1.5*1.6 | 3.4 | 180 |
| BST-1320A | 1320 | 50 |
8.2 | 16 | 13 | 4.5*1.6*1.7 | 3.9 | 200 |
| BST-1400A | 1400 | 50 | 8.2 | 16 | 13 | 4.8*1.6*1.7 | 4.2 | 220 |
| BST-1650A | 1650 | 70 | 8.2 | 16 | 15 | 5.0*1.6*1.7 | 5 | 250 |
| BST-1800A | 1800 | 70 | 11 | 16 | 15 | 5.3*1.6*1.75 | 5.5 | 250 |
| BST-2050A | 2050 | 70 | 11.6 | 16 | 17 | 5.4*1.6*1.75 | 6 | 270 |
| BST-2300A | 2300 | 70 | 11.6 | 16 | 18.5 | 5.7*1.8*2.0 | 6.5 | 300 |
| BST-2600A | 2600 | 70 | 15.5 | 16 | 25 | 6.1*1.7*1.8 | 8 | 350 |
| BST-3000A | 3000 | 80 | 15.5 | 16 | 25 | 6.5*1.8*1.8 | 9 | 370 |
| BST-3400A | 3400 | 80 | 17.5 | 16 | 30 | 6.7*2.0*1.9 | 10.8 | 400 |
| BST-3850A | 3850 | 80 | 17.5 | 16 | 30 | 7.0*2.2*2.0 | 11.5 | 400 |
| BST-4500A | 4500 | 85 | 20.5 | 16 | 37 | 7.3*2.3*2.4 | 13.8 | 450 |
| BST-4800A | 4800 | 125 | 23.4 | 16 | 40 | 8.3*2.2*2.2 | 16.2 | 600 |
| BST-5200A | 5200 | 125 | 28.1 | 16 | 43.5 | 8.6*2.2*2.25 | 20 | 750 |
| BST-5800A | 5800 | 125 | 28.1 | 16 | 48.5 | 8.75*2.2*2.3 | 21.8 | 850 |
| BST-6500A | 6500 | 160 | 37.1 | 16 | 55 | 9.2*2.2*2.4 | 26 | 1000 |
| BST-7500A | 7500 | 180 | 40.9 | 16 | 67 | 10.7*2.3*2.7 | 38 | 1200 |
| BST-8500A | 8500 | 186 | 42.5 | 16 | 74 | 11*2.4*2.75 | 45 | 1300 |
| BST-11000A | 11000 | 210 | 63 | 16 | 128 | 14*2.9*4.1 | 63 | 1800 |
| BST-13000A | 13000 | 280 | 85.25 | 16 | 160 | 13.2*3.1*3.6 | 76 | 2400 |
