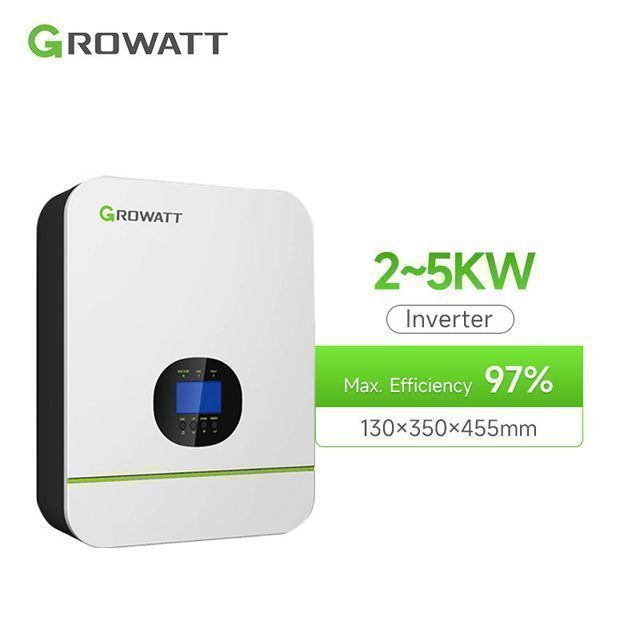

Growatt SPF 2000~5000TL HVM 2000W 3000W 4000W 5000W Off Grid Solar Inverter with CAN/RS485

Supplier: Anhui Micoe Photovoltaic Technology Co., Ltd.
Region: Anhui, China
Contact: Mr Anhui Micoe
Price: $156.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

battery voltage:	24/48 VDC	application:	The Sun can generate system
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Warranty:	5 years
output type:	single, double	size:	120315390mm/130350455mm
Packaging Preview:		Output frequency:	50Hz/60Hz
brand:	Growatt	exhibit:	LCD Monitor
Inverter efficiency:	97%	Waveform:	pure sine wave
type:	DC/DC Converters, DC/AC Inverters	Inverter Type:	Off-grid inverter
type of battery:	Lead acid\lithium\gel	Packaging Details:	Growatt 2000W 3000W 4000W 5000W Off Grid Solar Inverter with CAN/RS485 1. Standard export wooden box and carton 2. Packaging can be customized according to different customers' needs
Supply capacity:	10000pcs per month 2000W 3000W 4000W 5000W Off Grid Solar Inverter with CAN/RS485	model:	Growatt SPF 2000~5000TL HVM
Transfer time:	10 ms (for personal computers); 20 ms (for home appliances)	Certificate:	CE TUV
port:	China Shanghai	Protect:	Overload, Short Circuit and Deep Discharge
communicate:	CAN/RS485 for BMS communication	weight:	7kg/8kg/8kg/14.5kg/14.5kg
product name:	Growatt 2000W 3000W 4000W 5000W Off Grid Solar Inverter with CAN/RS485	place of origin; place of origin:	Guangdong, China

Product Description

data sheet	SPF 2000TL HVM	SPF 3000TL HVM	SPF 3000TL HVM-48	SPF 4000TL HVM	SPF 5000TL HVM
battery voltage	24VDC	24VDC	48VDC	48VDC	48VDC
Inverter output
rated power	2000VA/ 2000W	3000VA/ 3000W	3000VA/ 3000W	4000VA/ 4000W	5000VA/ 5000W
Parallel capability	Do not	Do not	Do not	Yes, 6 units	Yes, 6 units
AC Voltage Regulation (Battery Mode)	230VAC±5% @ 50/60Hz	230VAC±5% @ 50/60Hz	230VAC±5% @ 50/60Hz	230VAC±5% @ 50/60Hz	230VAC±5% @ 50/60Hz
surge power	4000VA	6000VA	6000VA	8000VA	10000VA
Efficiency (peak)	93%	93%	93%	93%	93%
waveform	pure sine wave	pure sine wave	pure sine wave	pure sine wave	pure sine wave
transfer time	10 ms (for personal computers); 20 ms (for home appliances)
solar power charger
Maximum PV array power	1000W	1000W	2400W	4500W	4500W
MPPT range @ working voltage	30VDC～80VDC	30VDC～80VDC	60VDC～115VDC	60VDC ~115VDC	60VDC ~115VDC
Maximum PV Array Open Circuit Voltage	100VDC	100VDC	145VDC	145VDC	145VDC
Maximum solar charging current	50A	50A	40A	80A	80A
maximum efficiency	97%	97%	97%	97%	97%
Standby power consumption	2 watts	2 watts	2 watts	2 watts	2 watts
AC charger
recharging current	30A	30A	15A	60A	60A
AC input voltage	230 VAC	230 VAC	230 VAC	230 VAC	230 VAC
Optional voltage range	170-280 VAC (for personal computers); 90-280 VAC (for home appliances)
Frequency Range	50Hz/60Hz (auto-sensing)	50Hz/60Hz (auto-sensing)	50Hz/60Hz (auto-sensing)	50Hz/60Hz (auto-sensing)	50Hz/60Hz (auto-sensing)
physical
Dimensions (D/W/H) in mm	120/315/390	120/315/390	120/315/390	130/350/455	130/350/455
Net weight (kg)	7	8	8	14.5	14.5
Operating environment
humidity	5% to 95% relative humidity (non-condensing)	5% to 95% relative humidity (non-condensing)	5% to 95% relative humidity (non-condensing)	5% to 95% relative humidity (non-condensing)	5% to 95% relative humidity (non-condensing)
Operating temperature	0°C - 55°C	0°C - 55°C	0°C - 55°C	0°C - 55°C	0°C - 55°C
Storage temperature	-15°C - 60°C	-15°C - 60°C	-15°C - 60°C	-15°C - 60°C	-15°C - 60°C

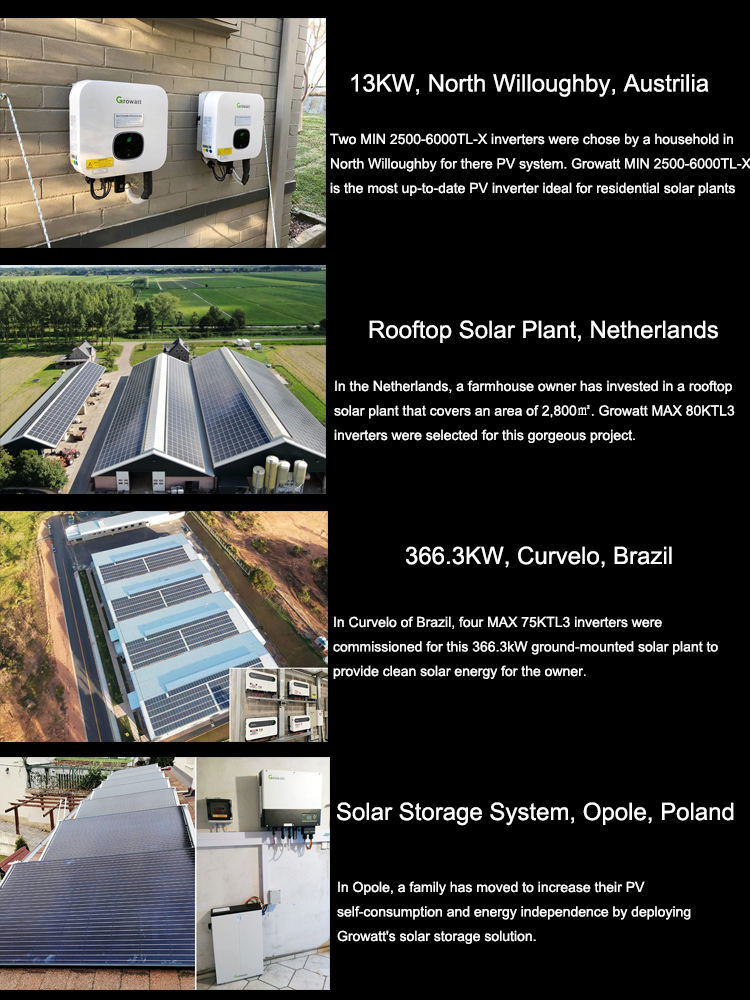

case

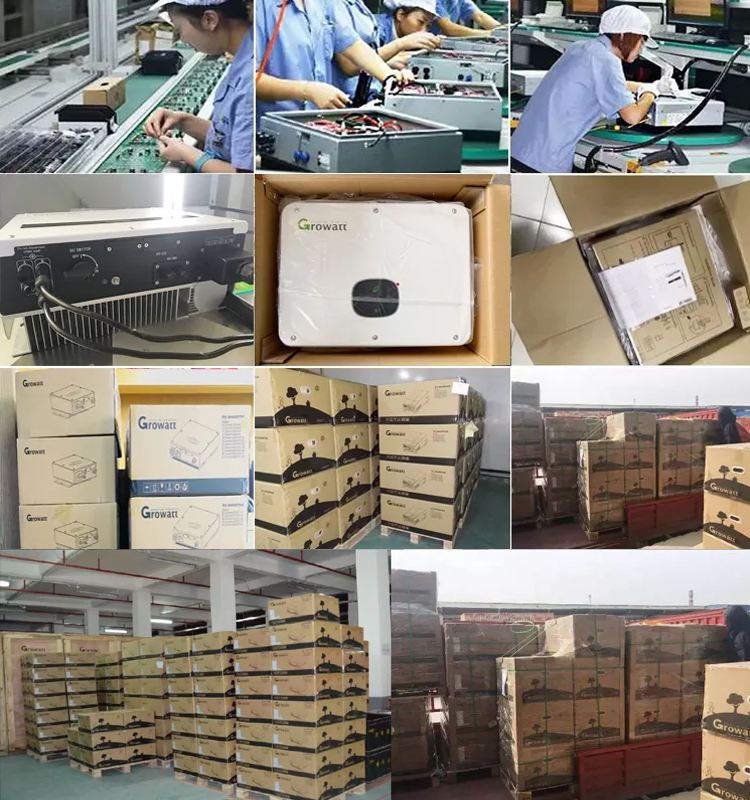

Product packaging
