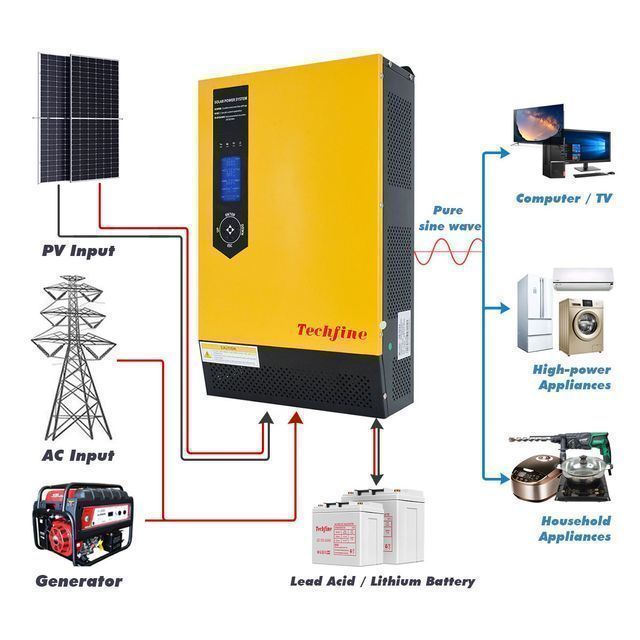

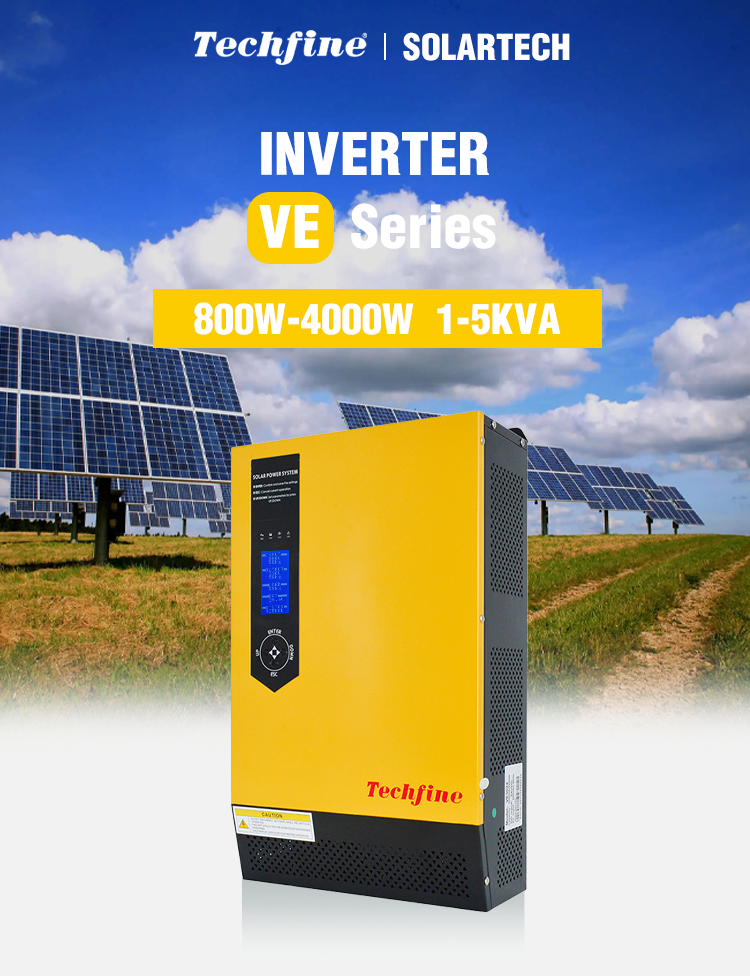

Solar Inverter 3KVA 5KVA Solar Hybrid Inverter 24V 48V Pure Sine Wave Off Grid Inverter for Solar System with MPPT Solar Charger
-
Supplier: Guangdong Techfine Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Ken Zeng -
Price: $138.00 /piece -
Min. Order: 1 piece
Product details
| MPPT efficiency: | 98-100% | place of origin; place of origin: | Guangdong, China |
| Output frequency: | 50/60HZ | Warranty: | 1 year, 1 year |
| recharging current: | 60A | application: | Solar System Home |
| weight: | 19KG | port: | Shenzhen/Guangzhou |
| Waveform: | pure sine wave | Original Equipment Manufacturer: | Accept OEM and ODM |
| output type: | single | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Protect: | Short circuit protection overload | Certificate: | ISO9001, ISO14001 |
| The output voltage: | 220VAC | size: | 512*320*136mm |
| model: | VE3024M | feature: | Energy efficient solar inverters and hybrid inverters |
| Inverter efficiency: | >98% | color: | yellow, red, white, green |
| type: | DC/AC inverter | brand: | Thai style |
| exhibit: | LCD Monitor | Input voltage: | 24V/48V |
| Packaging Details: | Techfine Inverter is packaged in a strong and stable carton and uses plastic foam to reduce vibration and shock to ensure our products are in good condition. All Techfine products come in sturdy packaging for ocean and inland transportation, handling. Techfine guarantees the safety of operations and the timeliness of delivery, and provides attentive service to our customers. | Output current: | 60A |
| Supply capacity: | 5000 pieces per month |
product description
Product Description
Product parameters
Model | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | ||||
Input voltage (DC) | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | ||||
standard | 220VAC (standard) | ||||||||
rated power | 800W | 1200W | 1600W | 2400W | 4000W | ||||
waveform | pure sine wave | ||||||||
Battery Type | VRLA / GEL /GEL Deep Cycle / Lithium | ||||||||
Maximum PV array power | 12V: 800W / 24V: 1600W / 48V: 3200W | ||||||||
PV input voltage range (PWM controller) | 12V: MPPT 15V-150VDC / PWM 15V-30VDC | ||||||||
24V: MPPT 30V-150VDC / PWM 30V-60VDC | |||||||||
48V: MPPT 60V-150VDC / PWM 60V-105VDC | |||||||||
Maximum solar charging current | 60A | ||||||||
Maximum AC Charge Current | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A | ||||
transfer time | <10ms(UPS mode)/<20ms(INV mode) | ||||||||
load peak ratio | (Max) 3:1 | ||||||||
Static power (W) | 5W | 11.5W | 13W | 15W | 20W | ||||
Protect | Power supply: Input overcurrent protector | ||||||||
