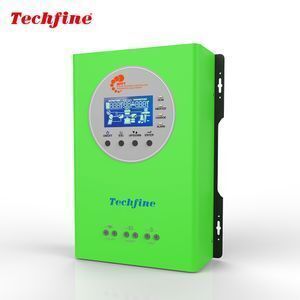

MPPT 40A wall mount smart wind solar panel battery regulator charge controller

Click here to contact

Product details

Brand Name:	Techfine;	Packaging Detail:	styrofoam+carton;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	OEM:	Accepted;
Place of Origin:	Guangdong China;	Warranty:	2 Years,2YEAR;
MPPT efficiency:	99%;	Max PV Voltage:	48v;
Certificate:	ISO9001, ISO14001;	Package Preview:	;
Color:	Green;	Charge mode:	MPPT Maximum Power Point Tracking;
Model Number:	MPPT ML40;	Application:	Charger Controller,Voltage Controller,Solar System Controller;
Control Mode:	Intelligent Control;	Type:	mPPT;
Port:	Guangzhou;	Work Time (h):	Continue;
Protection:	Short Circuit;	Display:	LCD Screen;
Feature:	High Efficiency Charging Method;	Supply Ability:	15000.0 Piece/Pieces per Year;

Product Description

Feature:

Three-stage smart charging

Adjustable parameters by pressing buttons

12V/24V/48V adaptive

Wall mounting

Easy to various paramenters , the operation paramenters are clear to read

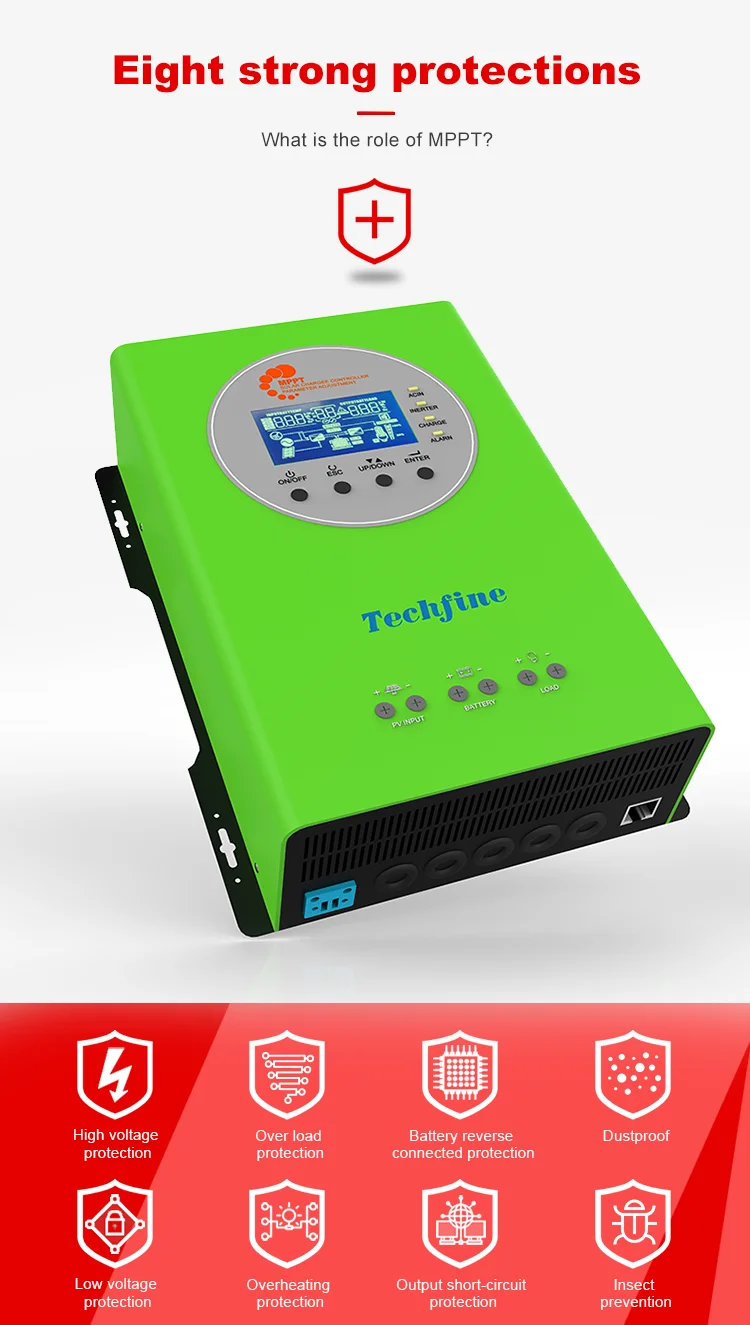

High voltage protection

Over load protection

Battery reverse connected protection

Dustproof

Low voltage protection

Overheating protection

Output short-circuit protection

Insect prevention

The maximum utilization rate of solar energy can reach 99%

With super fast charging algorithm, efficiency increased by 30%

Product Description

Product parameters
Model		40A	60A	80A	100A
System voltage		12V/24V/36V/48V(Adaptive)
Nominal current		40A	60A	80A	100A
Charging mode		MPPT maximum power point tracking
Applicable battery type		Lead acid battery;Gel battery;Flooded battery;Deep cycle battery
Charging method		Four stages: constant current charge, constant voltage charge, floating charge,equalizing charge
PV input maximum open circuit voltage (VOC)		DC150V
System identified voltage	12V	8~16V
	24V	17~30V
	36V	30~42V
	48V	42~64V
PV input voltage	12V	17~150V
	24V	30~150V
	36V	41~150V
	48V	53~150V
Solar panel rated input power	12V	540W	800W	1040W	1300W
	24V	1080W	1600W	2160W	2600W
	36V	1620W	2400W	3240W	3900W
	48V	2160W	3200W	4320W	5200W
