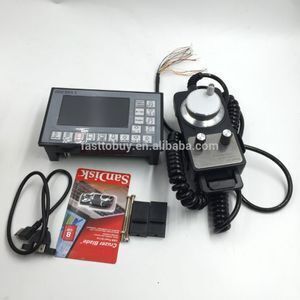

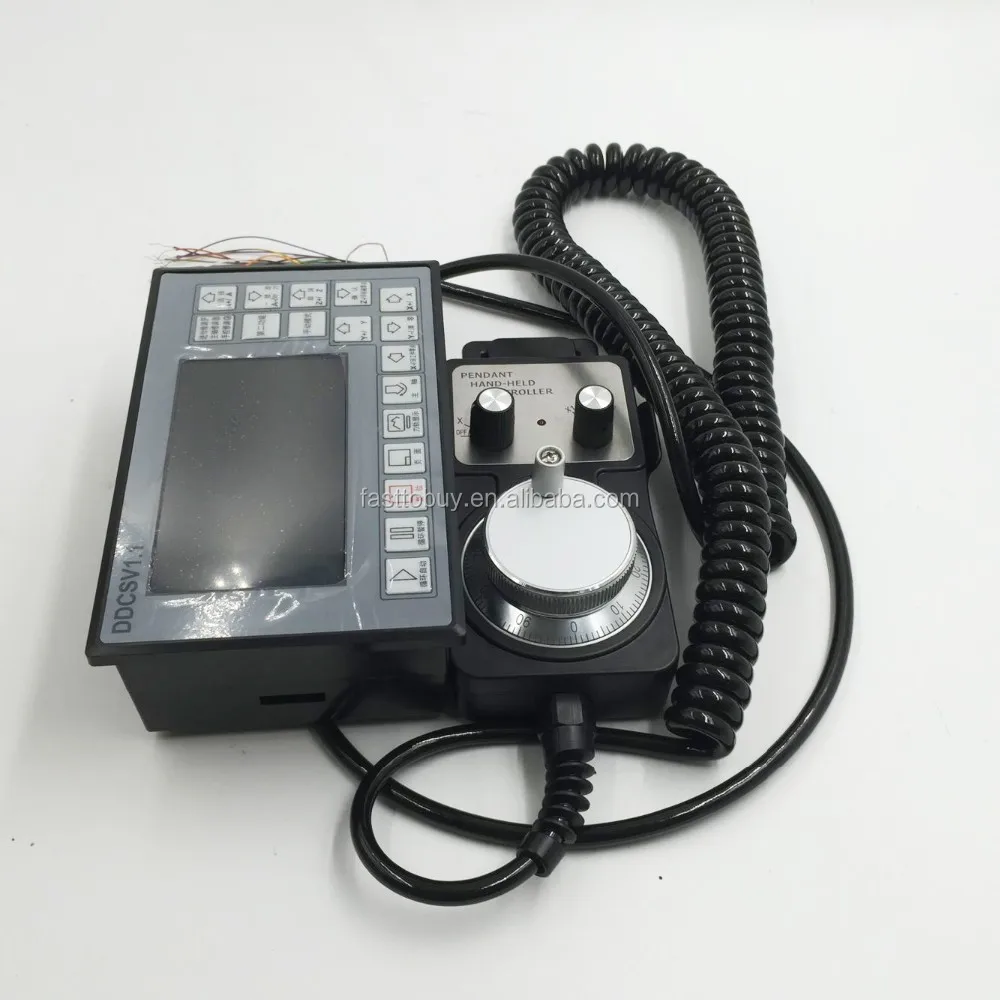

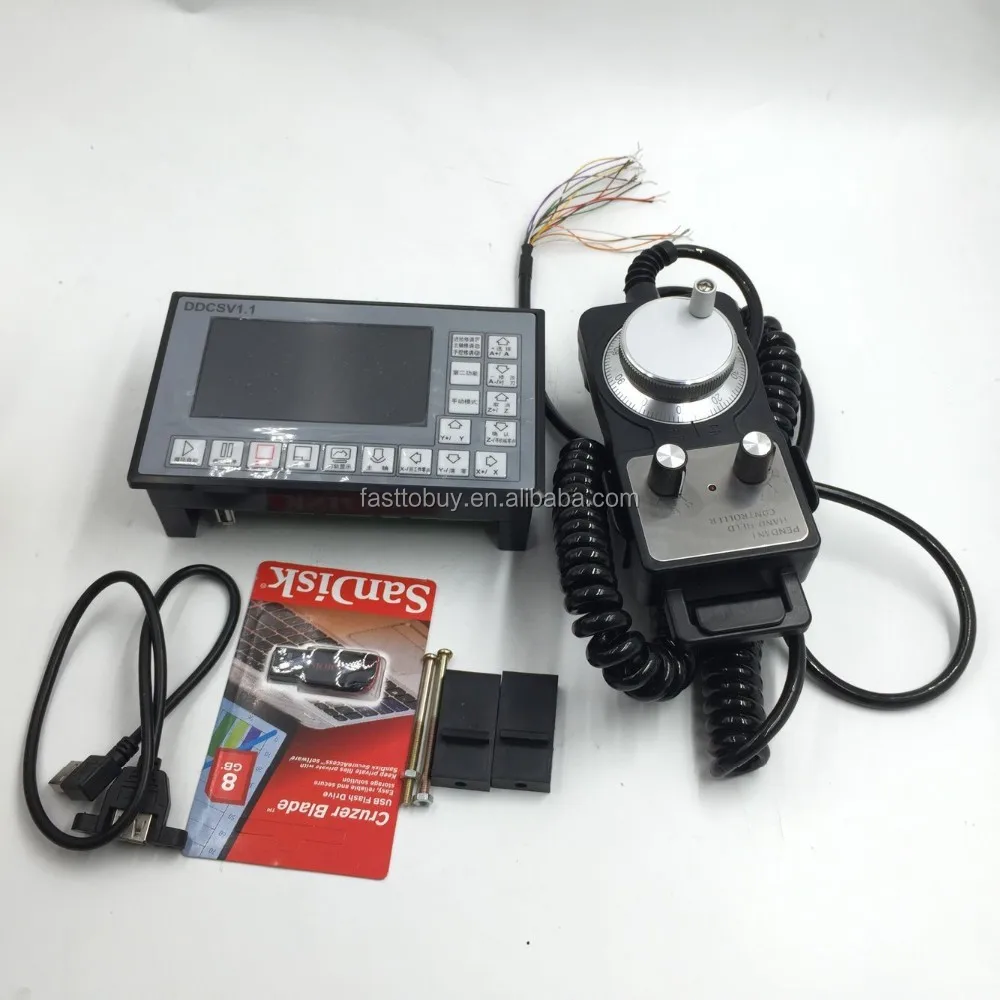

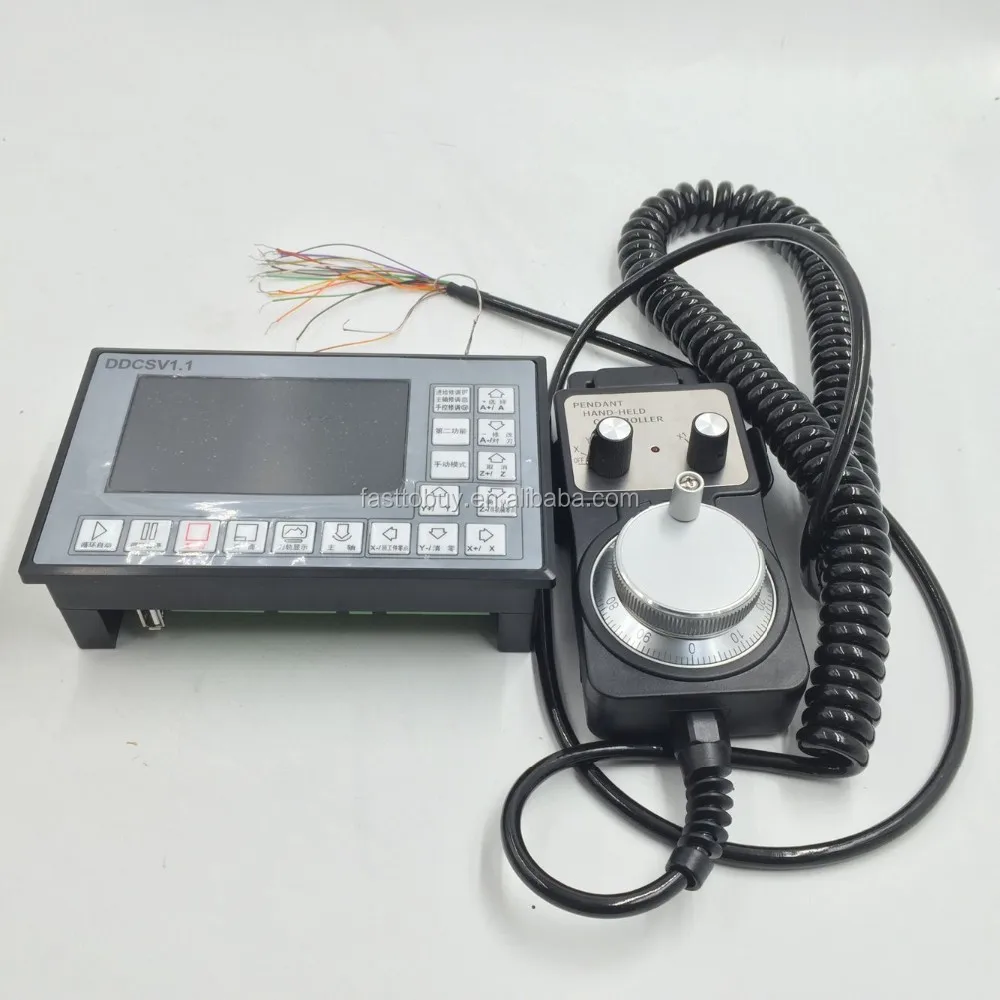

4 Axis Offline Motion Controller+Handwheel MPG 500Khz G Code Replace Mach3 USB CNC Controller for CNC Router

Input interface

 16-circuit optocoupler coupling isolation

Output interface

 Ordinary digital 3-circuit optocoupler coupling isolation

 0-10V spindle control port with analog quantity(can be modified as PWM output);

Axis No.

 Support the 4 axis stepper motor control,

Single axis Pulse

Max 500Khz

 Main control chip

 ARM9

Core algorithm chip

 FPGA

Screen

 4.3 inches TFT  480*272

Operational keys

17

Power supply

18-32V 0.5A

G Code

USB flash disk to read the G code

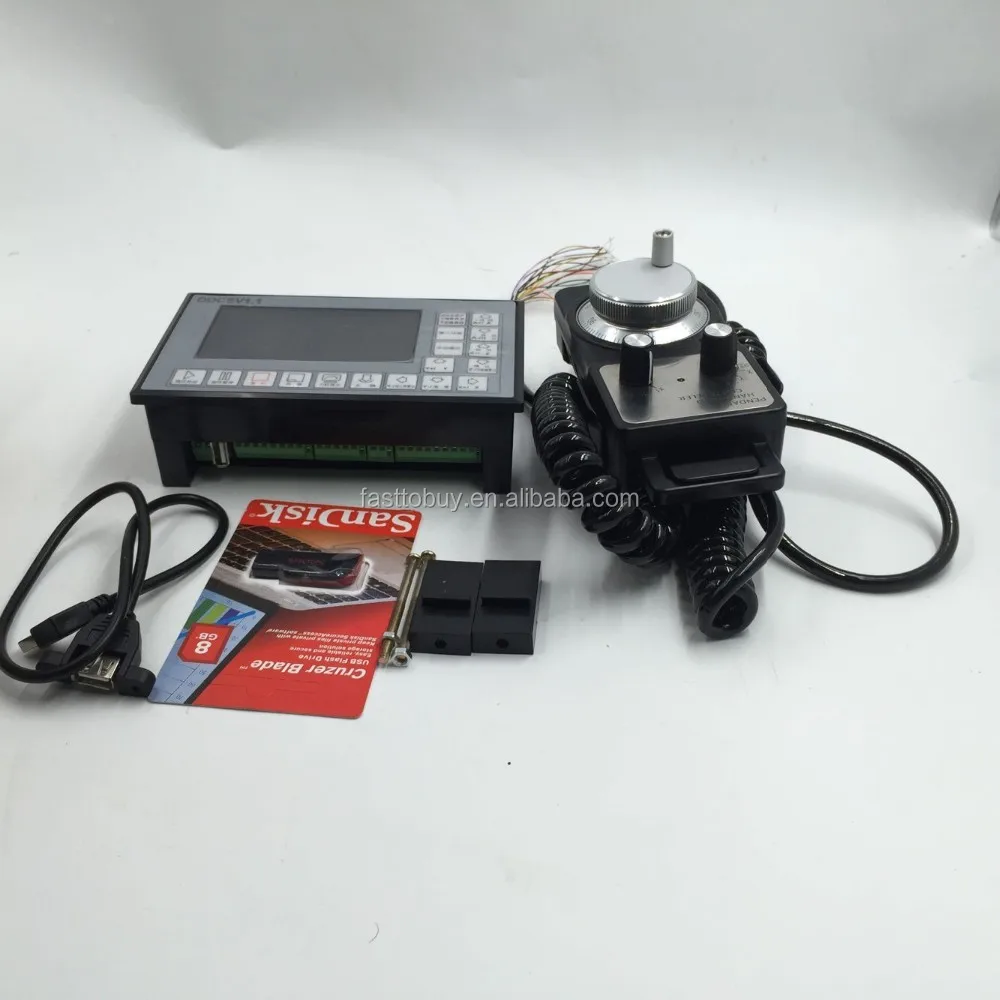

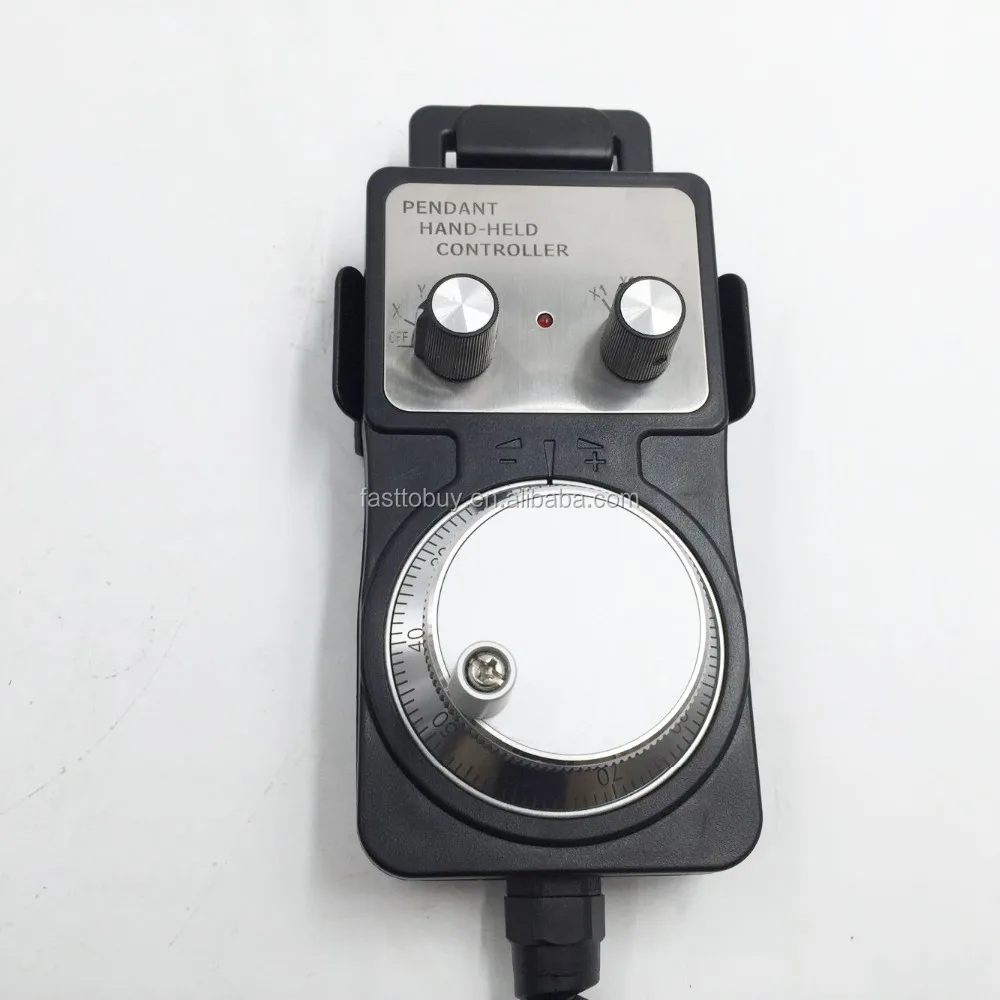

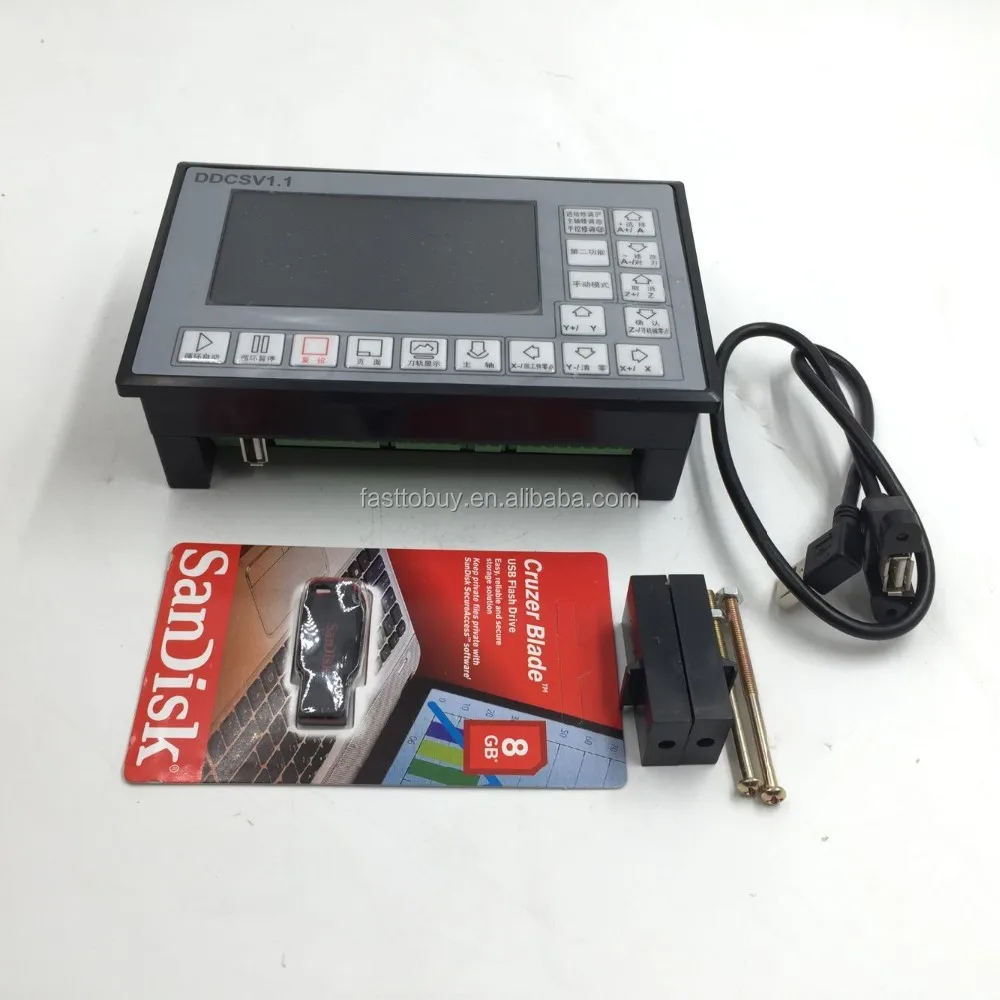

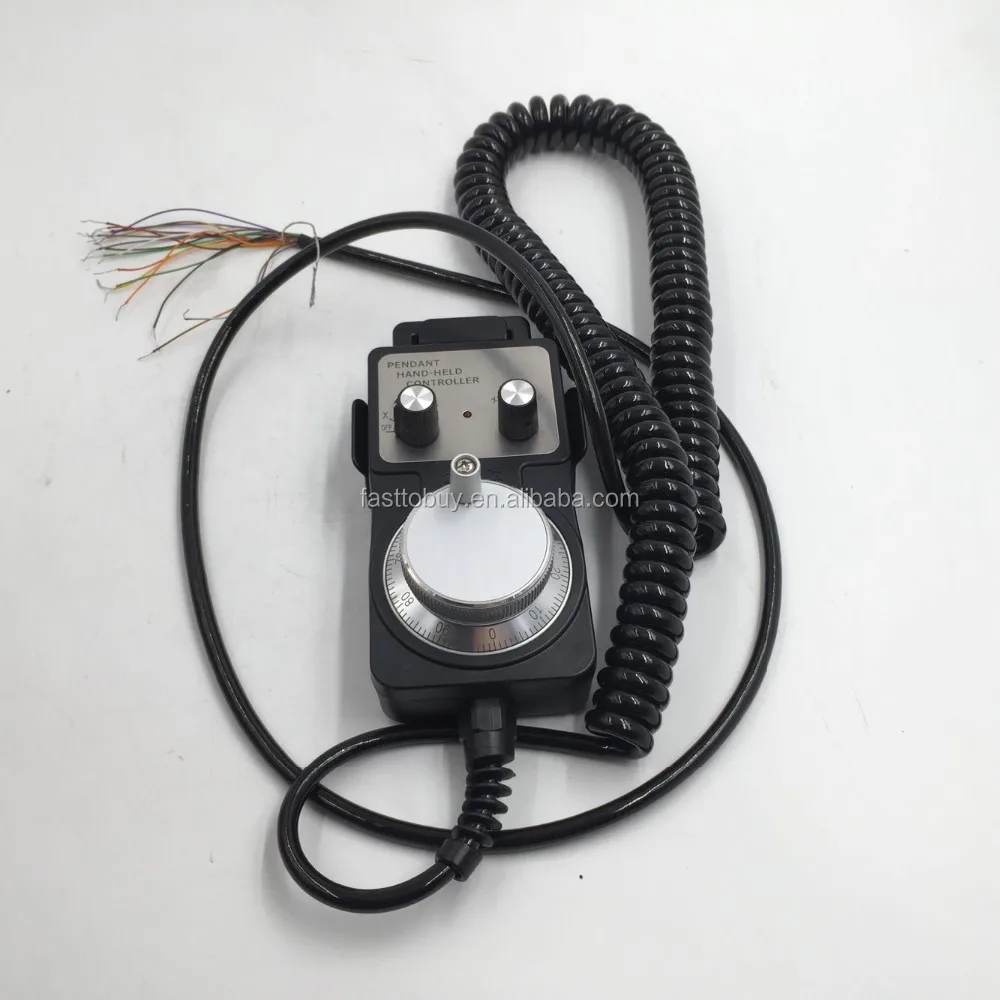

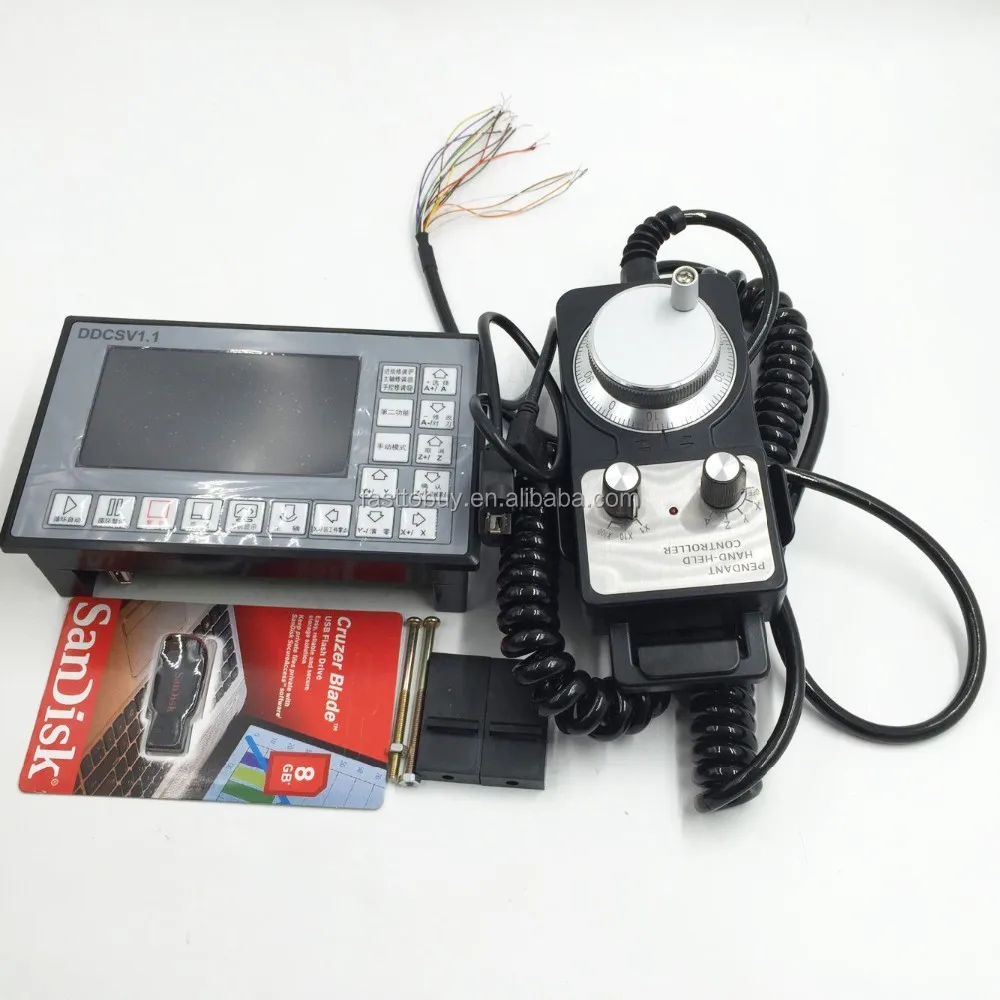

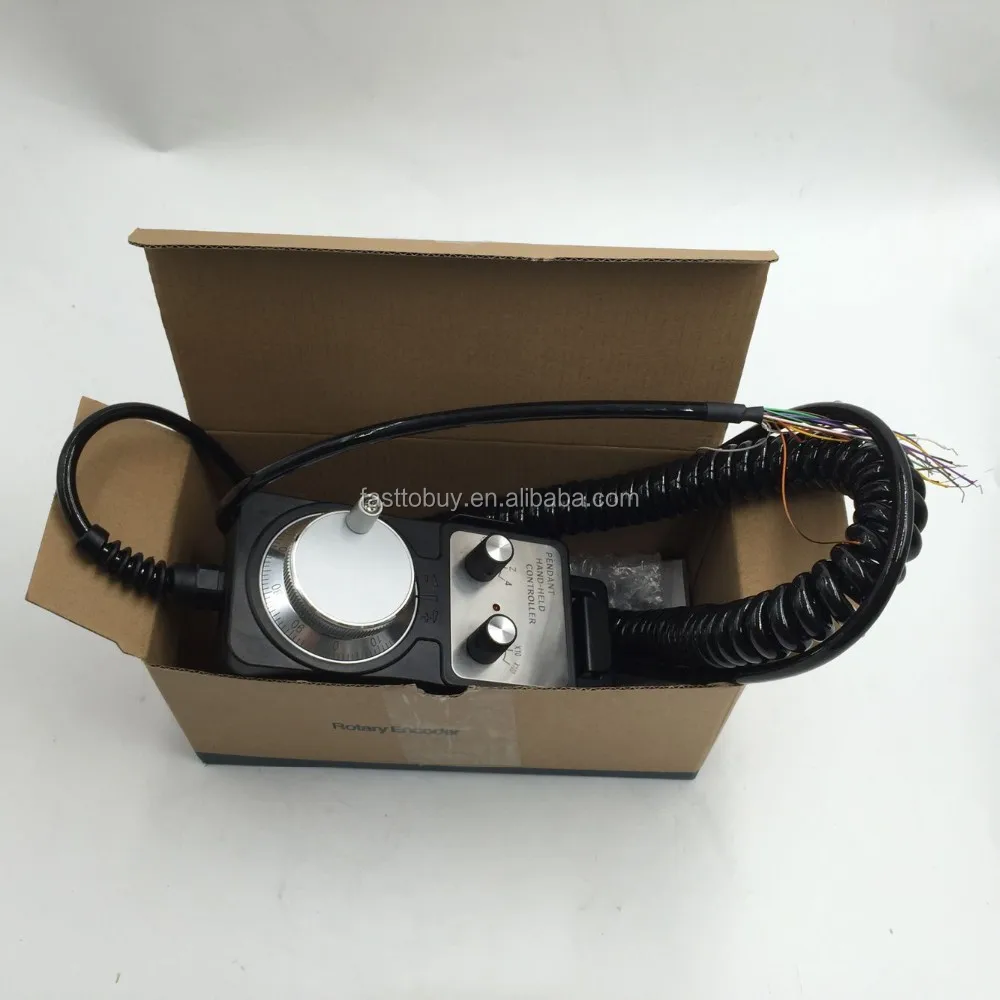

MPG port

Support the general MPG in the market

Other

Support the panel key with single-axis manual operation, manual step and CONT operation

Support the operation of quickly specify the running position;

Support the multi coordinate systems (with automatically saving function in case of power cut);

Support the function of saving data automatically after power down (press the start to automatically save the data in the operation, automatically save the data after power down)

1

 The control period of each position is only 4 second

2

 high control precision, the pulse width can be adjusted

3

It supports the common stepper motor and servo motor

4

 ARM+FPGA design framework

5

 The ARM can finish the part of human-computer interface and code analysis

6

the FPGA can finish the part of underlying algorithm and control pulse generate

7

 The common off-line operation can be finished only by 17 keys

8

 it supports the FANUC with high universality to be compatible with G code set

9

Port of the controller is extensible(8 Input/12 relay output)

10

It Does not need a dedicated computer for engraving machine

Resolution

100PPR

Supply Voltage

DC5V  +/-5%

Supply Current

less than or equal to 80mA

1

8 input and 12 output extension board(M code)

2

24V Power supply
