3KG/2KG/1KG Electric Digital Metal Melting Furnace mini gold melting furnace

Supplier: Shenzhen Fast To Buy Commerce Co., Ltd.
Region: Guangdong, China
Contact: Ms. Sophie Fasttobuy
Price: $170.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	;	Single package size:	22X22X44 cm;
Model Number:	SG-RRL-3KG-110V;	dimensions:	22 * 22 * 40cm;
weight:	12KG Package;	Use voltage:	110V power;
Warranty:	1 years;	Single gross weight:	10.0 KG;
Brand Name:	N/A;	Classification:	Laboratory Heating Equipments;
Maximum temperature:	1100℃;	Melting furnace model:	SG-RRL-3KG-110V;
Selling Units:	Single item;	capacity:	3KG;
Place of Origin:	Guangdong China;	Packaging Detail:	carton;

1. Shipping list

1PCS	Melting furnace
1PCS	3KG graphite crucible
1PCS	power cable
1PCS	clamp
1PCS	Instruction manual

2. Specifications& Feature

name	Melting furnace
model	SG-RRL-3KG-110V
Use voltage	110V
power	1400W
capacity	3KG
Maximum temperature	1100℃
weight	12KG
Package dimensions	22 * 22 * 40cm

3. Advantage

1.	The product uses quartz furnace
2.	PID temperature control table
3.	High purity graphite crucible
4.	Up to 1100 ° C
5.	1400W working power and 3KG capacity

4. Benefits for you

(1) The furnace wire seal integrated machine can be heated and heated quickly. The inner tank is made of quartz and has the characteristics of heat resistance, acid and alkali resistance and aging resistance.

(2) Equipped with advanced PID module and digital control system to provide accurate and convenient metal melting, monitoring the actual temperature in the melting chamber at 2 second intervals, so that it will not overheat or cool

(3) Graphite crucible: high temperature resistance, good thermal conductivity, corrosion resistance and long service life.

(4) It can be heated up to 1100 ° C and can melt metals with melting point below 1100 ° C such as: gold, sterling silver, pure copper and aluminum.

5. More choices available(please leave a message)

model	Voltage	Graphite crucible capacity
SG-RRL-3KG-110V	110 V	3KG
SG-RRL-3KG-220V	220 V	3KG
SG-RRL-2KG-110V	110 V	2KG
SG-RRL-2KG-220V	220 V	2KG
SG-RRL-1KG-110V	110 V	1KG
SG-RRL-1KG-220V	220 V	1KG

6. Application area

Suitable for industrial and workshop applications, suitable for processing smelting gold, sterling silver, pure copper and aluminum

7. Technical Support

note:

1. The product work is under high temperature conditions, so it can't work for a long time, and it needs to be cooled for 3 hours.

2. When working, mainly protect yourself and avoid high temperature burns

3. The product can't work in humid environment

4. If the molten product contains substances such as acid and alkali, these substances will produce harmful gases with corrosion at high levels. In this case we recommend opening the furnace cover during the smelting process.

5. The maximum temperature of the product is 1100 °C. It is forbidden to smelt beyond this temperature.

6. Before use, check if the is damaged. If it is damaged, replace it immediately.

7. In order to achieve the best results of smelting, do not fill the . Gas is generated during the smelting process, and the metal is filled with metal, which causes an increase in pressure and poses a danger. If the armor is full, open the lid and smelt.

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

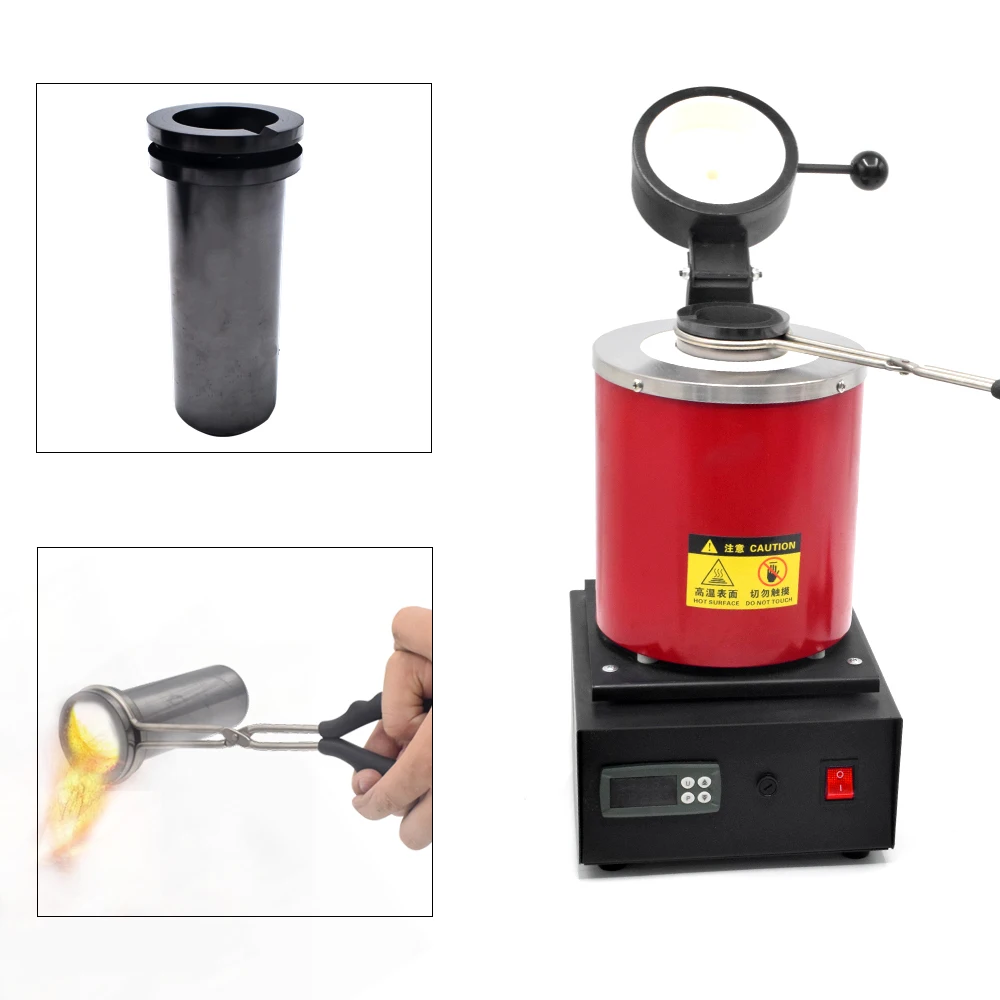

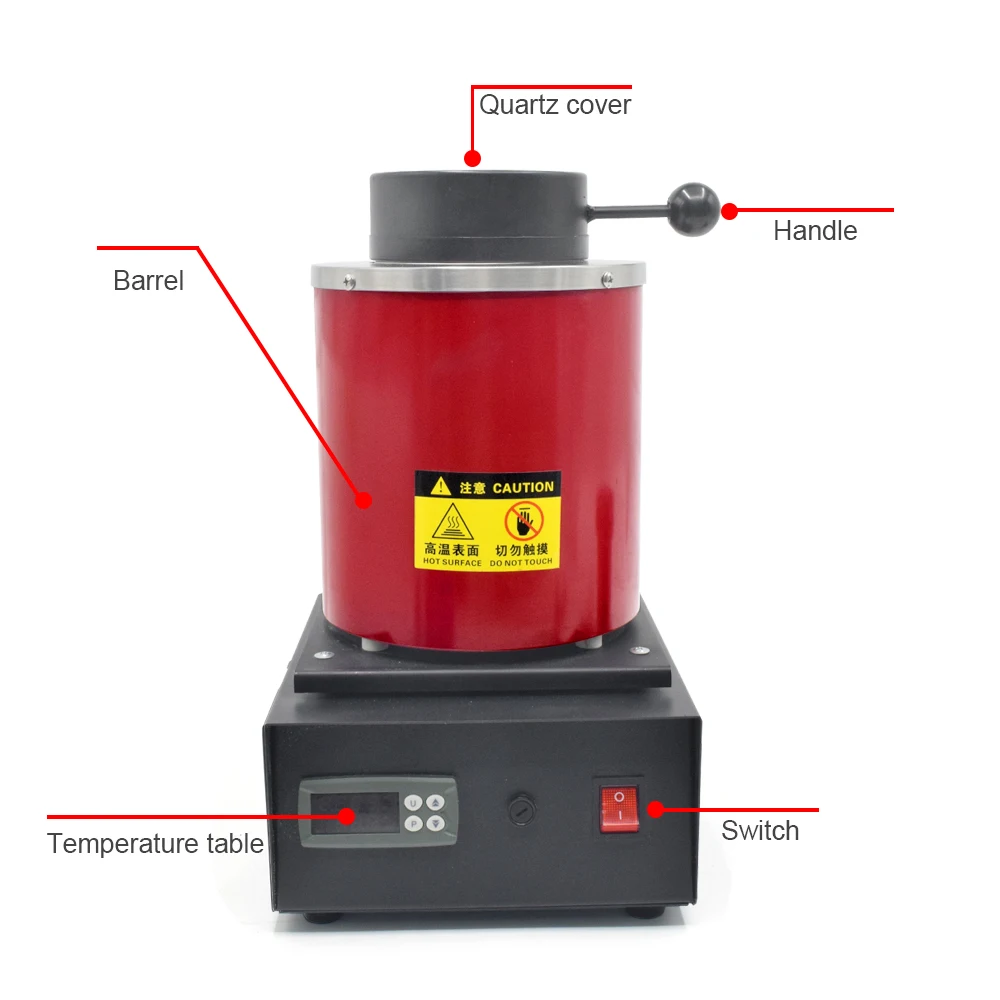

6. Picture show
